2013 TOYOTA YARIS HATCHBACK Owners Manual

151
2-3. Operating the lights and wipers
2
When driving
YARIS_HB_U_52D44U
■
The windshield wiper and washer can be operated when
The engine switch is in the “ON” position.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
Ty p e B
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

152 2-3. Operating the lights and wipers
YARIS_HB_U_52D44U
NOTICE
■When the windshield is dry
Do not use the wiper, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

153
2-3. Operating the lights and wipers
2
When driving
YARIS_HB_U_52D44U

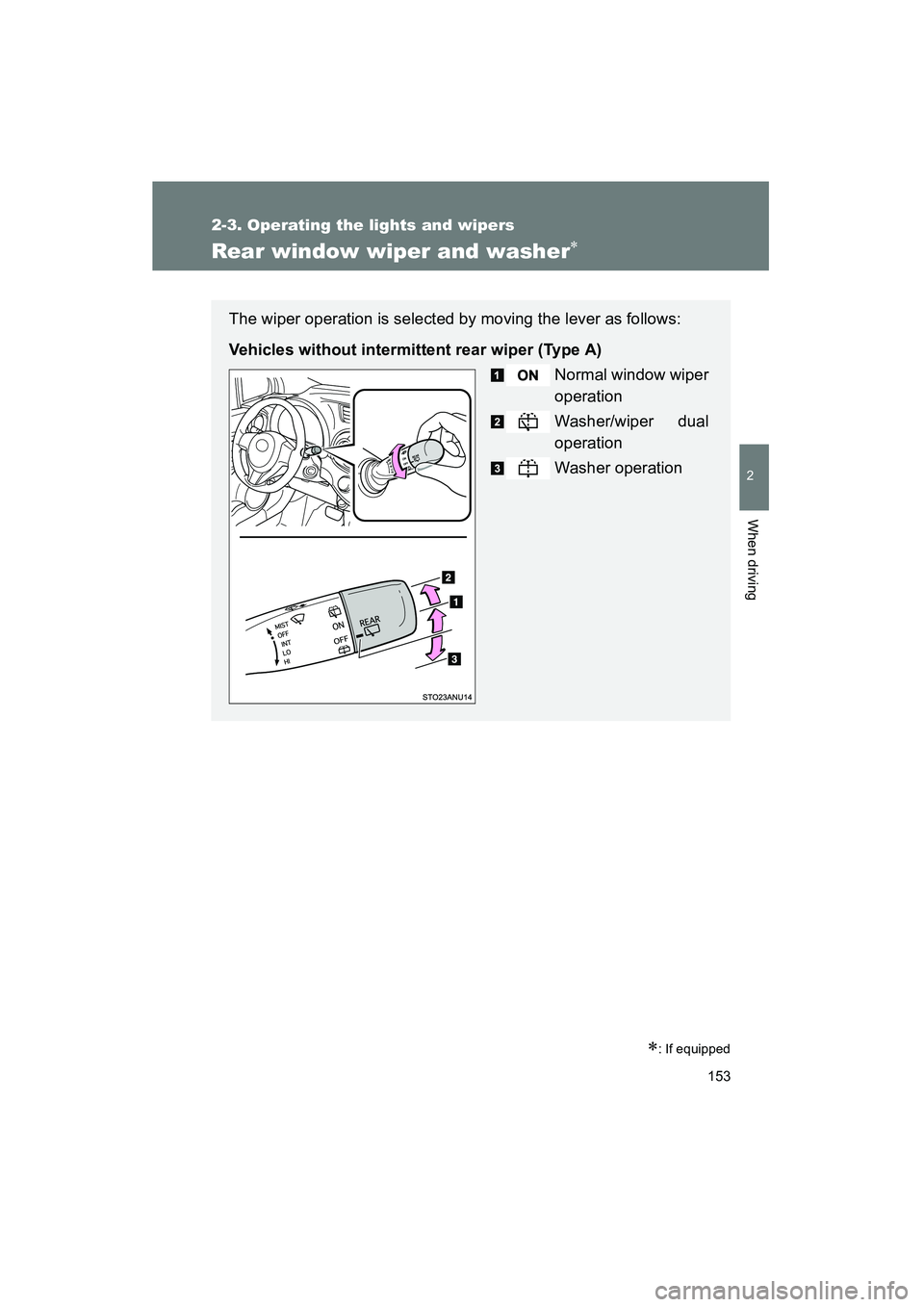

Rear window wiper and washer∗
∗: If equipped
The wiper operation is selected by moving the lever as follows:
Vehicles without intermittent rear wiper (Type A)Normal window wiper
operation
Washer/wiper dual
operation
Washer operation

154 2-3. Operating the lights and wipers
YARIS_HB_U_52D44U

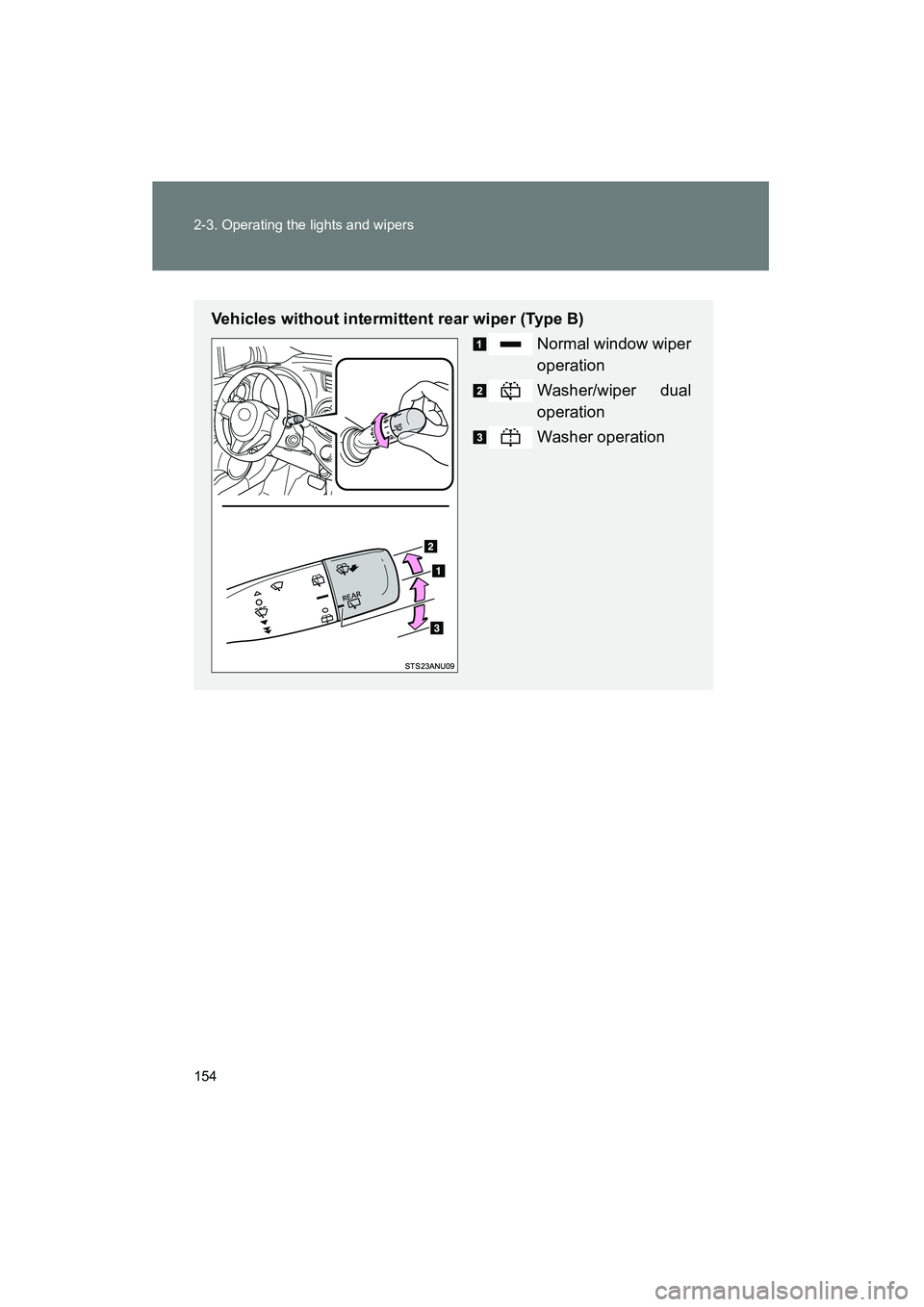

Vehicles without intermittent rear wiper (Type B)Normal window wiper
operation
Washer/wiper dual
operation
Washer operation

155
2-3. Operating the lights and wipers
2
When driving
YARIS_HB_U_52D44U
Vehicles with intermittent rear wiper (Type A)
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual
operation
Washer/wiper dual
operation
The wiper will automatically
operate a couple of time after
the wiper squirts.

156 2-3. Operating the lights and wipers
YARIS_HB_U_52D44U
■The rear window wiper and washer can be operated when
The engine switch is in the “ON” position.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked, if there is washer fluid in the
washer fluid reservoir.
Vehicles with intermittent rear wiper (Type B)
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual
operation
Washer/wiper dual
operation
The wiper will automatically
operate a couple of time after
the wiper squirts.

157
2-3. Operating the lights and wipers
2
When driving
YARIS_HB_U_52D44U

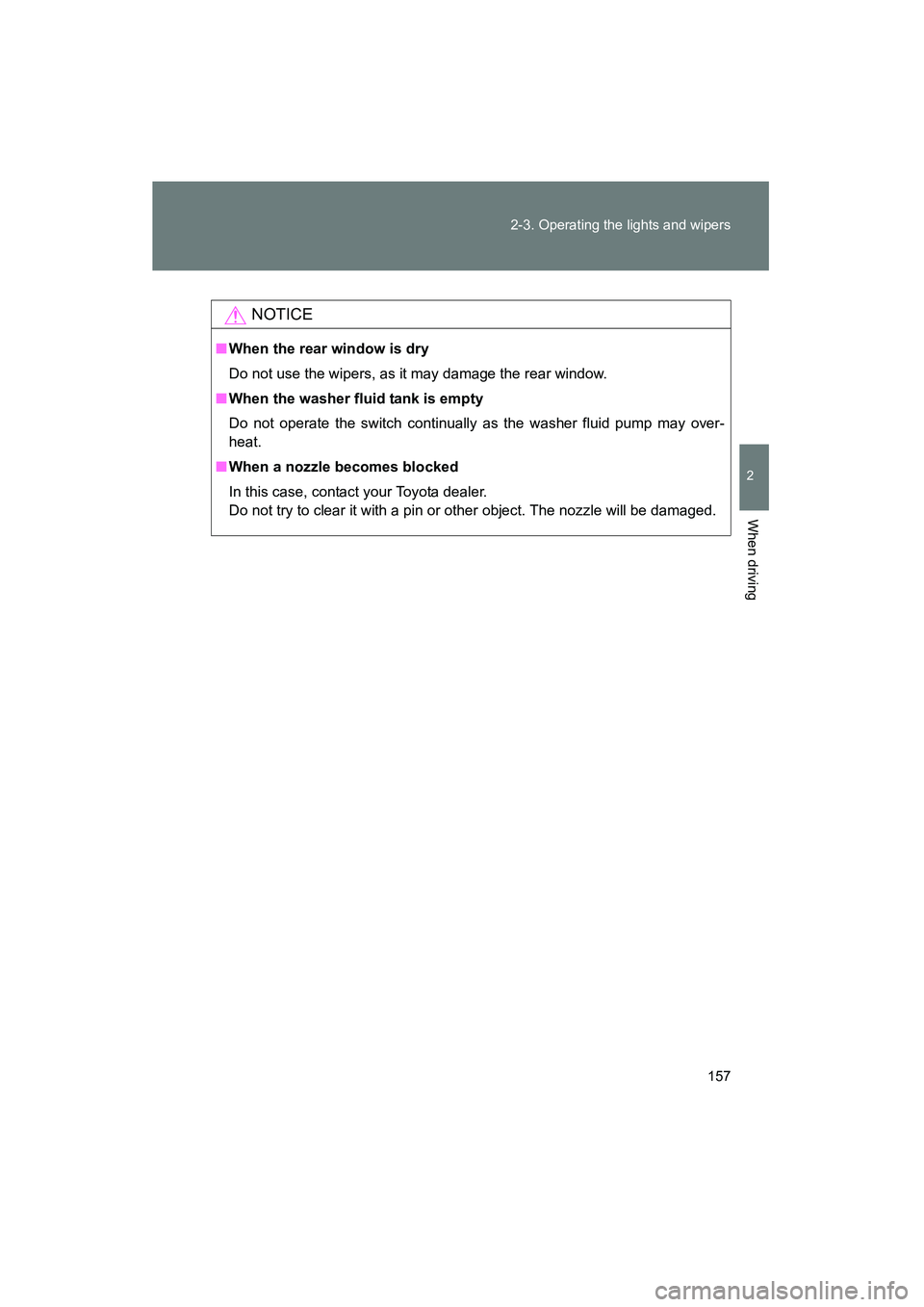

NOTICE
■
When the rear window is dry
Do not use the wipers, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

158
YARIS_HB_U_52D44U
2-4. Using other driving systems

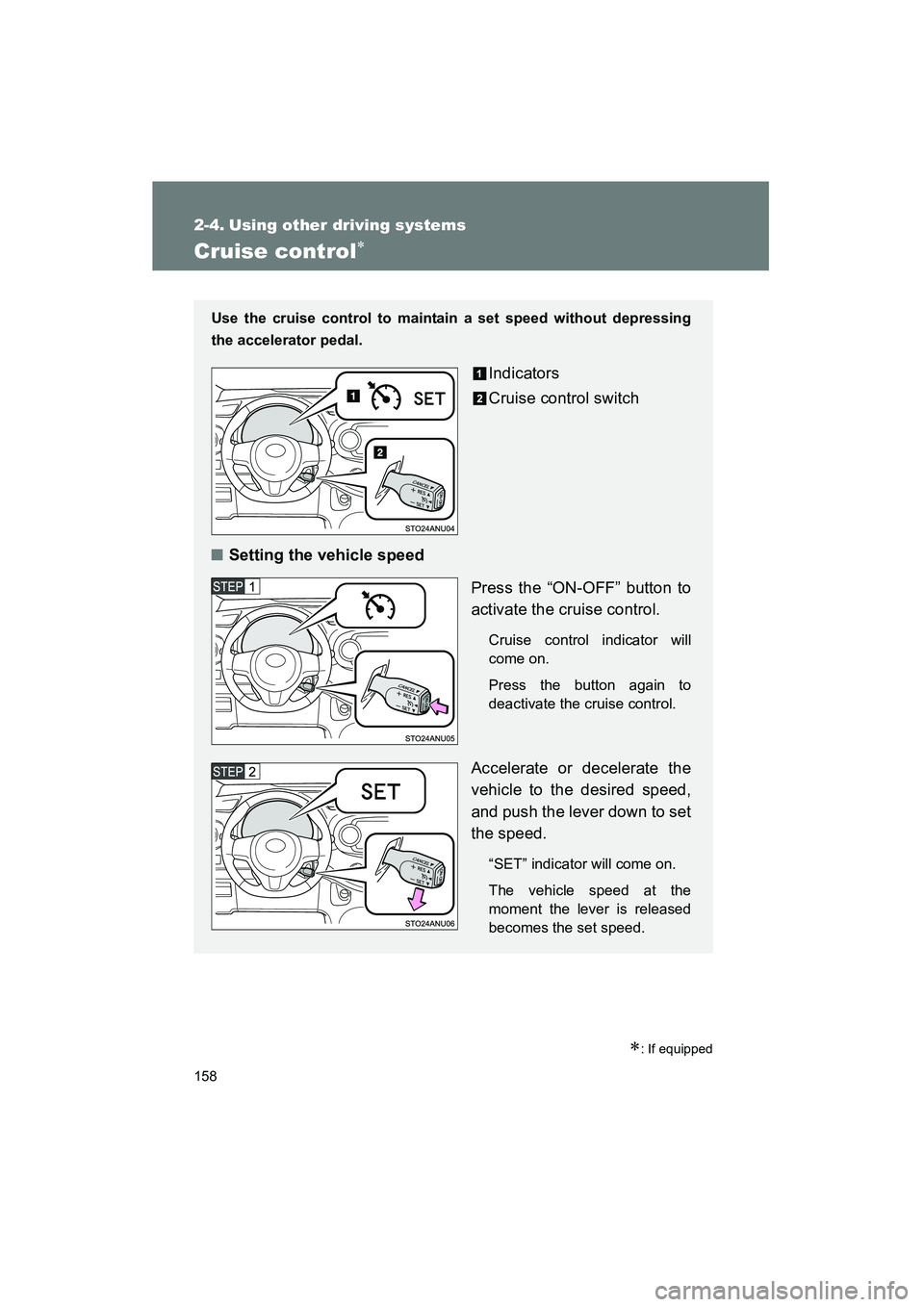

Cruise control∗
∗: If equipped
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
■ Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.
