2013 TOYOTA YARIS HATCHBACK Owners Manual

207
3-4. Using the storage features
3
Interior features
YARIS_HB_U_52D44U

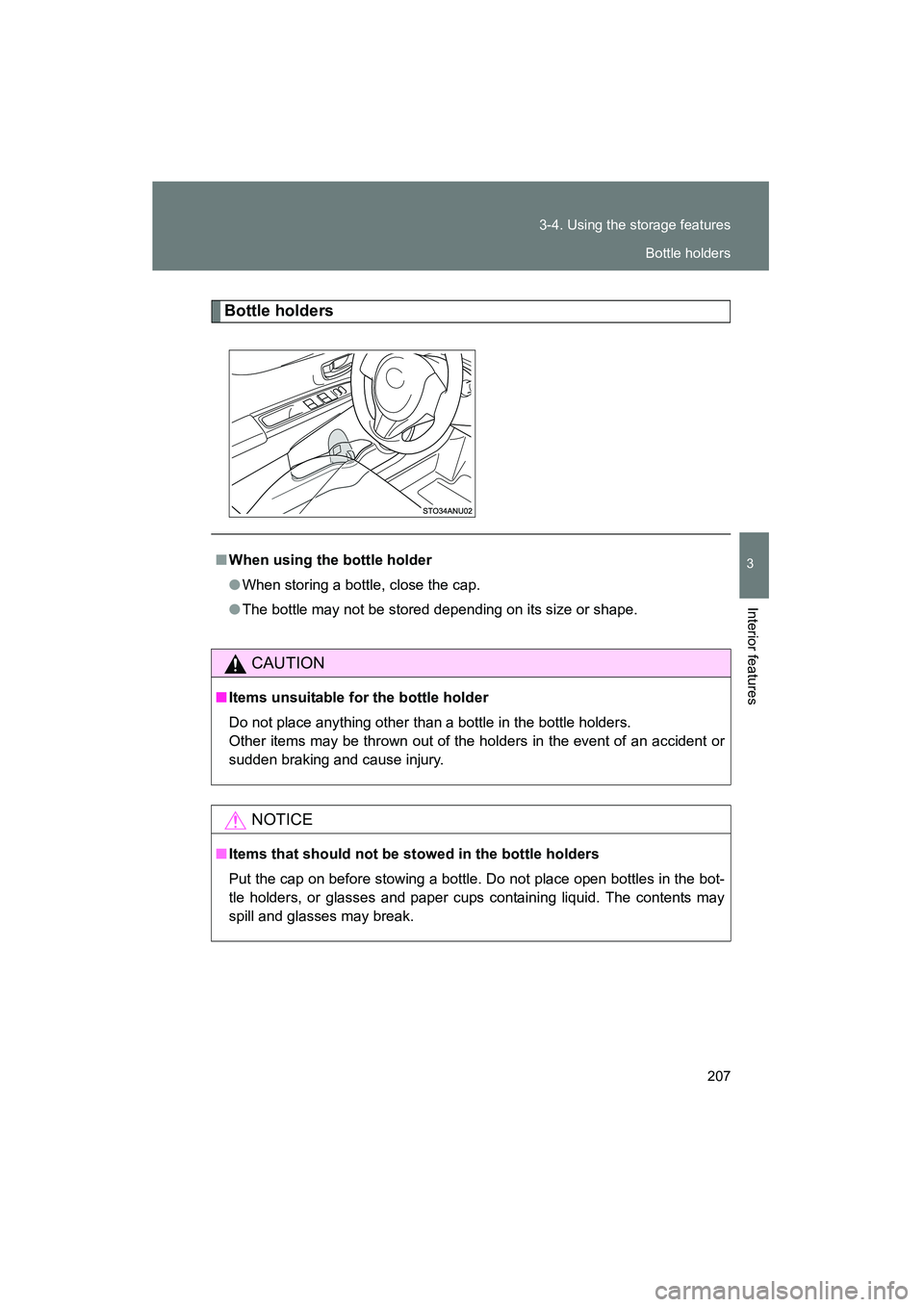

Bottle holders
■
When using the bottle holder
●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
CAUTION
■Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

208
YARIS_HB_U_52D44U
3-5. Other interior features

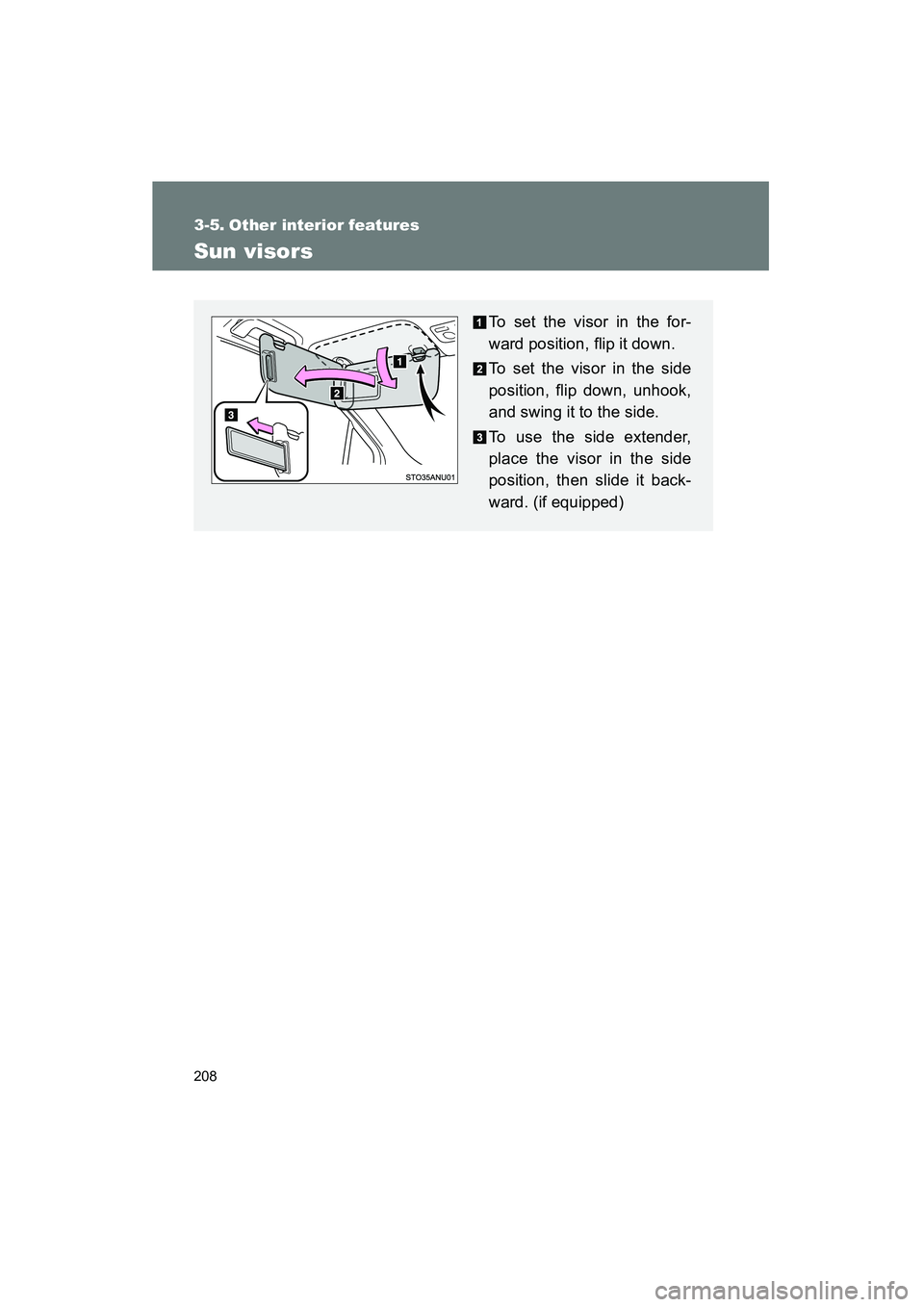

Sun visors
To set the visor in the for-
ward position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.
To use the side extender,
place the visor in the side
position, then slide it back-
ward. (if equipped)

209
3-5. Other interior features
3
Interior features
YARIS_HB_U_52D44U

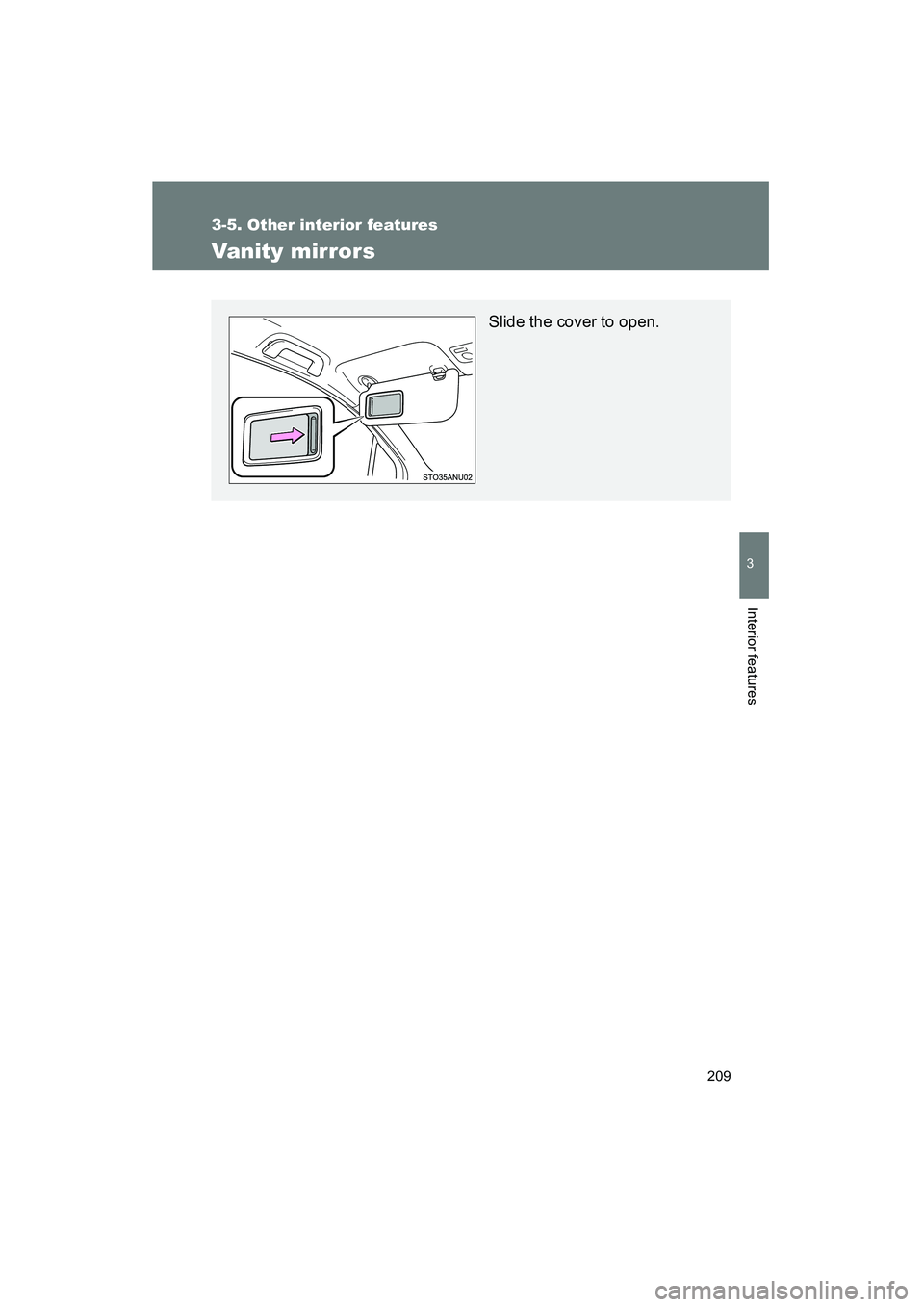

Vanity mirrors
Slide the cover to open.

210
3-5. Other interior features
YARIS_HB_U_52D44U
Clock
■The clock is displayed when
The engine switch is in the “ON” position.
■ When disconnecting and reconnecting battery terminals
The clock data will be reset.
Adjusts the hours
Adjusts the minutes

211
3-5. Other interior features
3
Interior features
YARIS_HB_U_52D44U
Outside temperature display
The temperature display shows temperatures within the ranges of
-40°F (-40°C) and 122°F (50°C).
Except Canada
Canada

212 3-5. Other interior features
YARIS_HB_U_52D44U

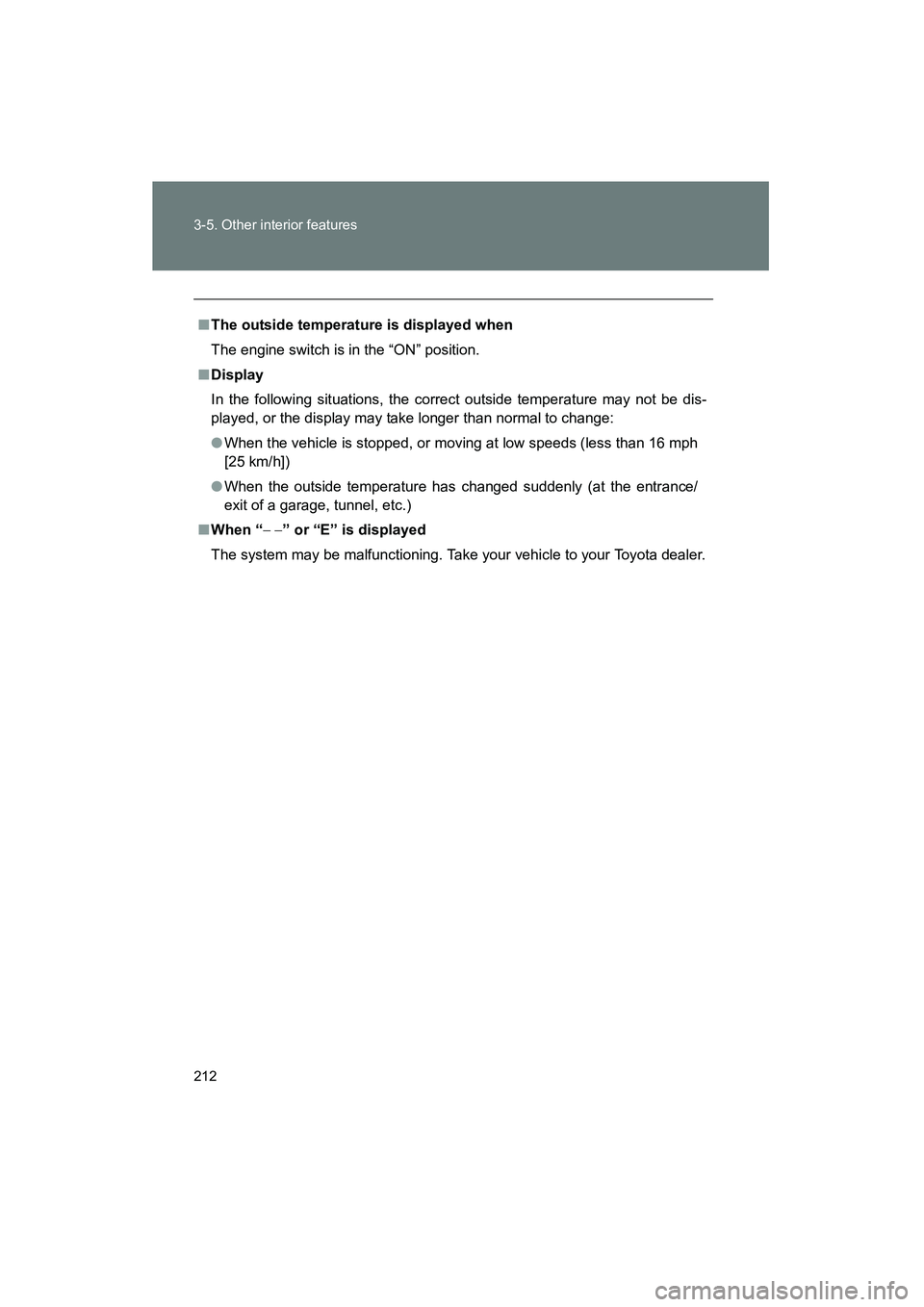

■The outside temperature is displayed when
The engine switch is in the “ON” position.
■ Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
● When the vehicle is stopped, or moving at low speeds (less than 16 mph
[25 km/h])
● When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
■ When “ − −” or “E” is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.

213
3-5. Other interior features
3
Interior features
YARIS_HB_U_52D44U

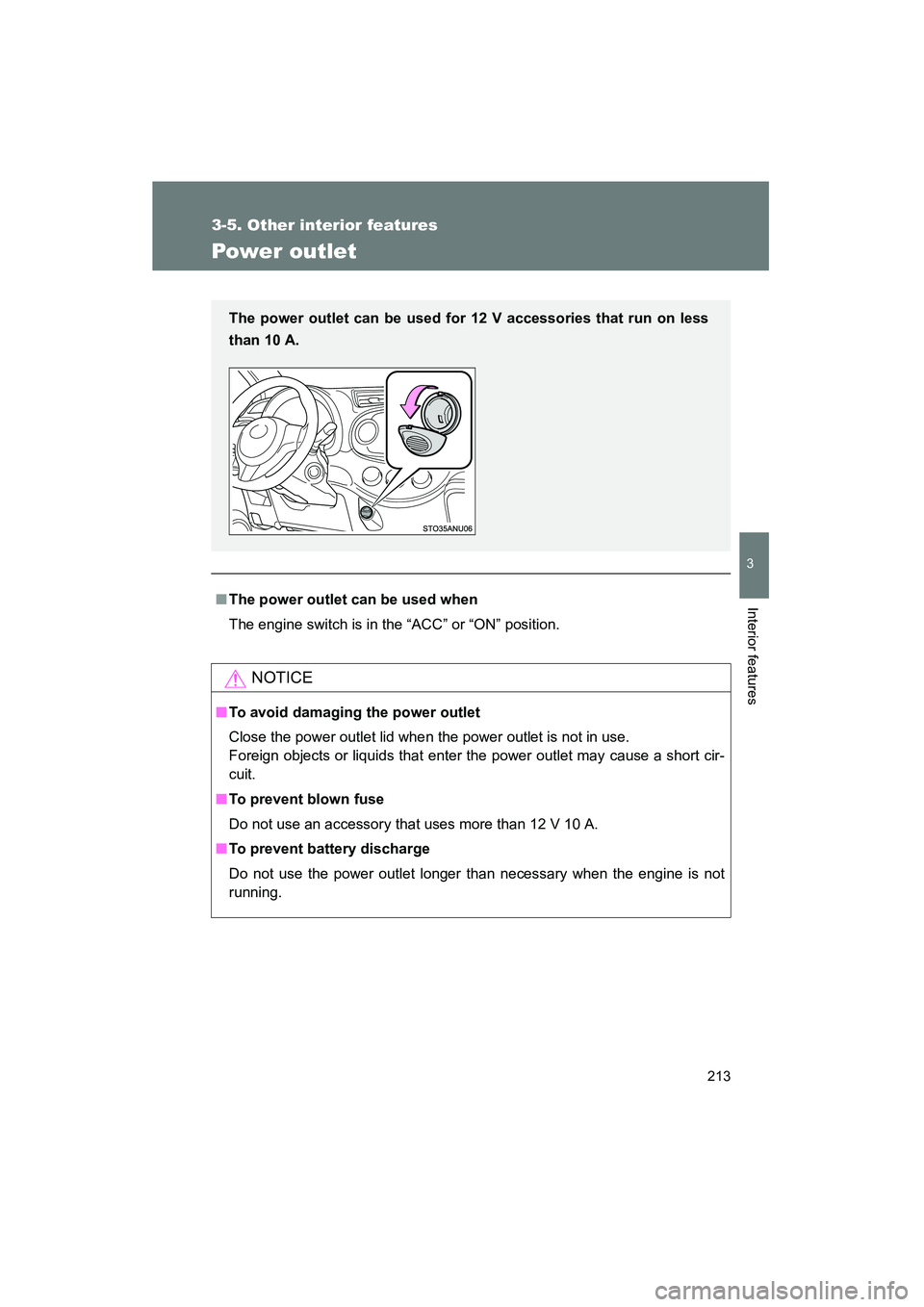

Power outlet
■The power outlet can be used when
The engine switch is in the “ACC” or “ON” position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
The power outlet can be used for 12 V accessories that run on less
than 10 A.

214
3-5. Other interior features
YARIS_HB_U_52D44U

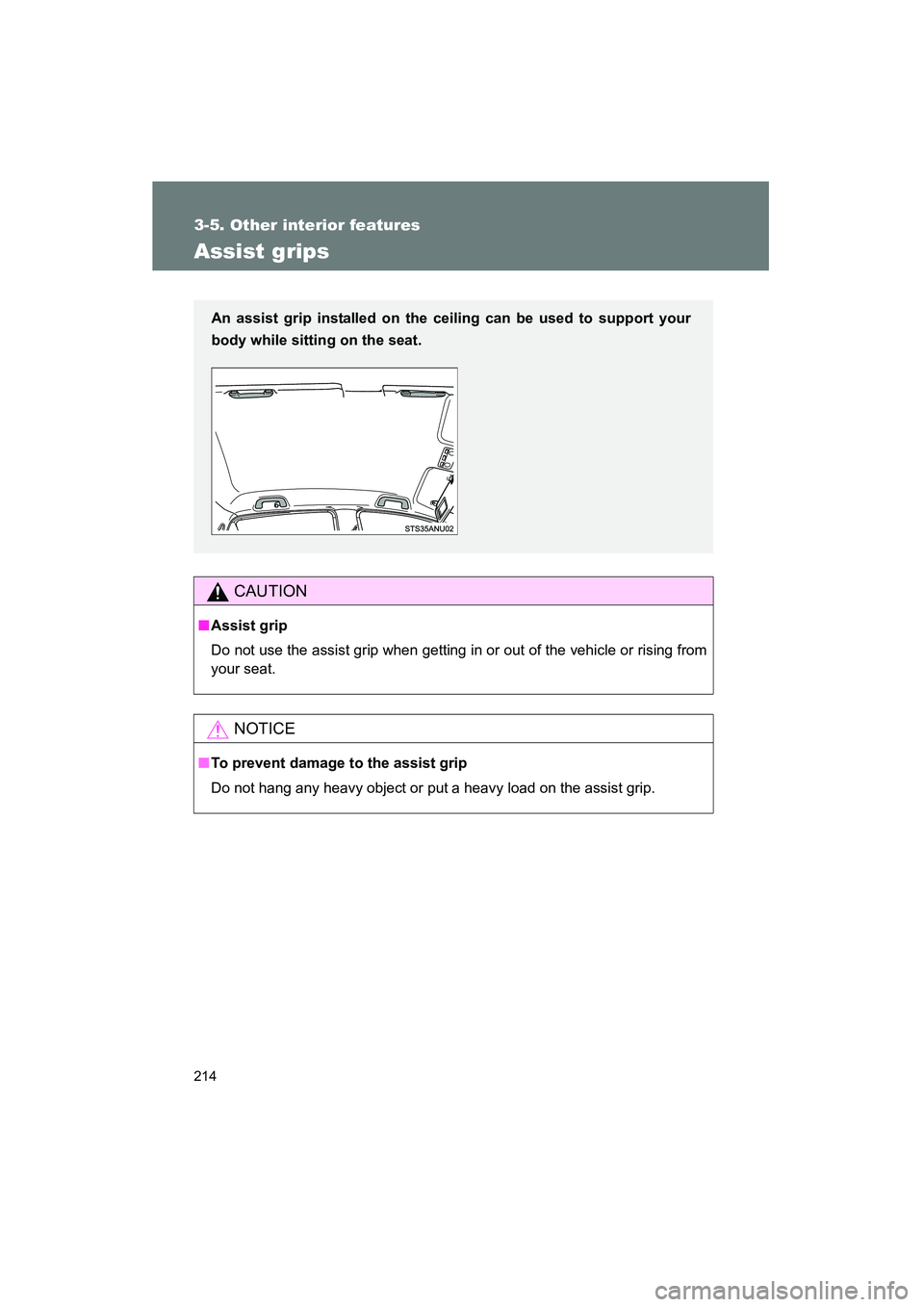

Assist grips
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ceiling can be used to support your
body while sitting on the seat.
