2013 TOYOTA YARIS HATCHBACK Owners Manual

199
3-1. Using the air conditioning system and defogger
3
Interior features
YARIS_HB_U_52D44U

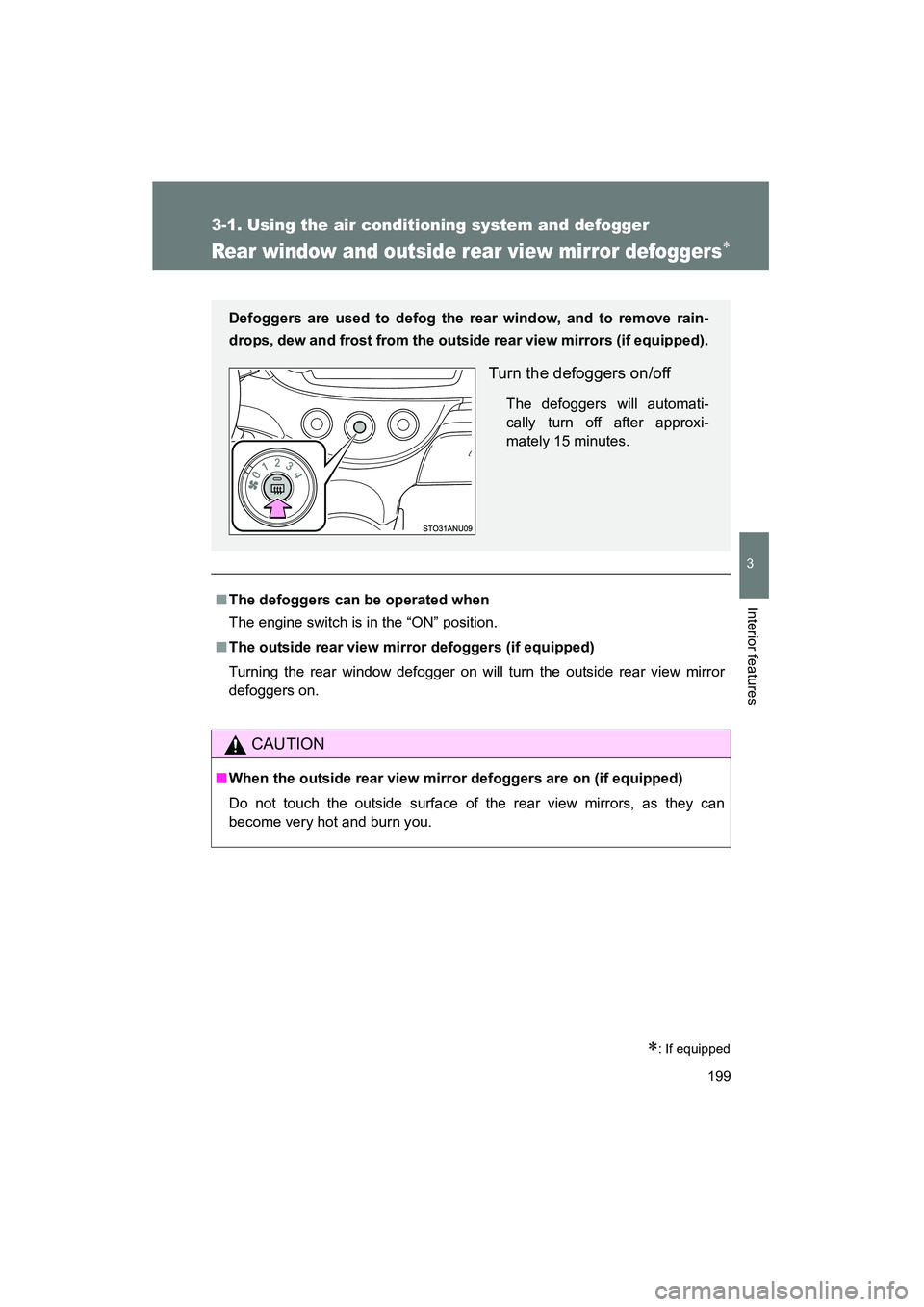

Rear window and outside rear view mirror defoggers∗
∗: If equipped
■The defoggers can be operated when
The engine switch is in the “ON” position.
■ The outside rear view mirror defoggers (if equipped)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
■When the outside rear view mirror defoggers are on (if equipped)
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outsid e rear view mirrors (if equipped).
Turn the defoggers on/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes.

200
YARIS_HB_U_52D44U
3-2. Using the audio system

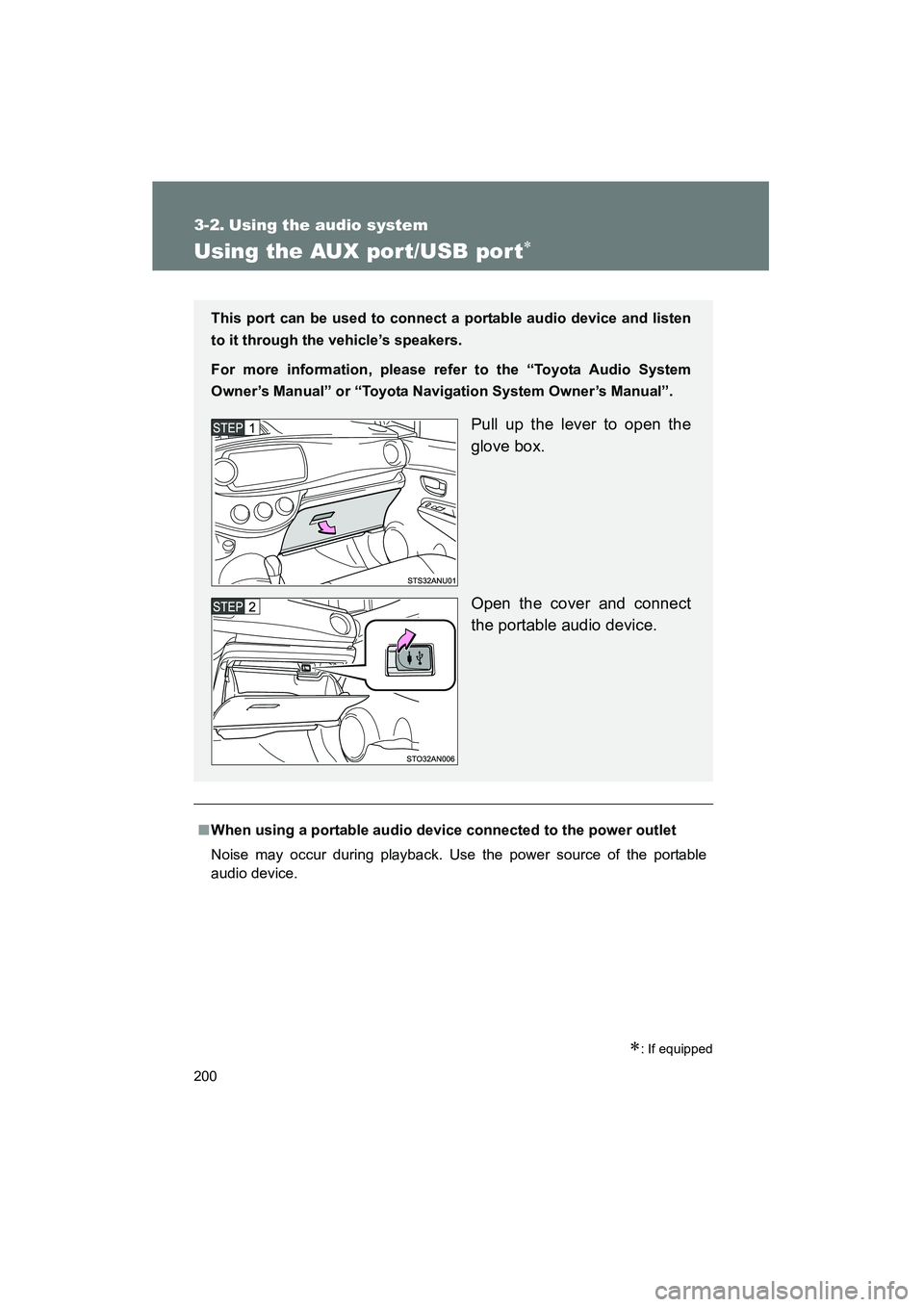

Using the AUX port/USB por t∗
∗: If equipped
■When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device. This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
For more information, please refer to the “Toyota Audio System
Owner’s Manual” or “Toyota Navigation System Owner’s Manual”.
Pull up the lever to open the
glove box.
Open the cover and connect
the portable audio device.

201
3-2. Using the audio system
3
Interior features
YARIS_HB_U_52D44U
Using the steering wheel audio switches∗
∗: If equipped
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
Some audio features (audio volume control, radio, CD player etc.)
can be controlled using the switches on the steering wheel.
For more information, please refer to the ”Toyota Audio System
Owner’s Manual” or “Toyota Navigation System Owner’s Manual”.

202
YARIS_HB_U_52D44U
3-3. Using the interior lights

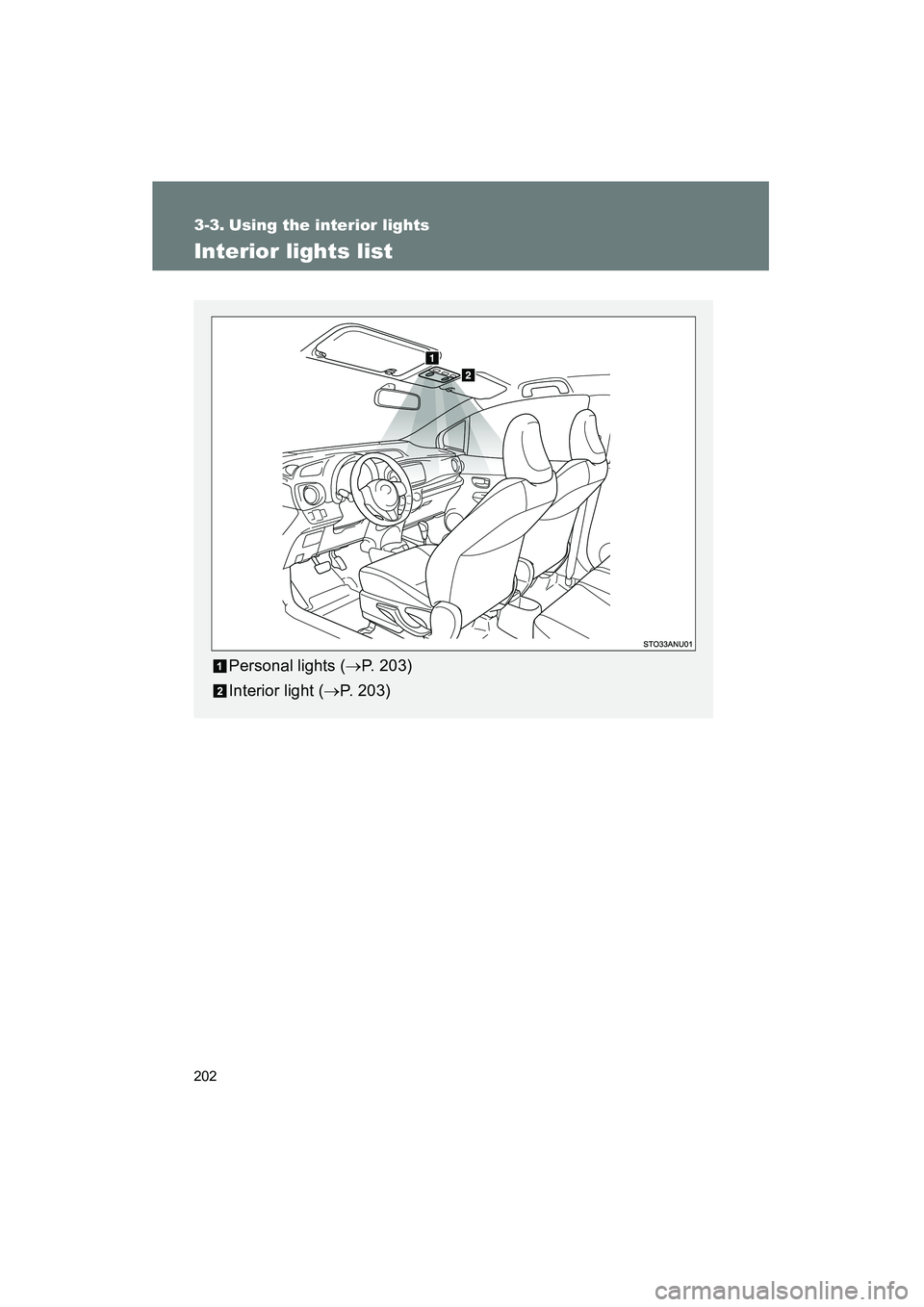

Interior lights list
Personal lights (→P. 203)
Interior light ( →P. 203)

203
3-3. Using the interior lights
3
Interior features
YARIS_HB_U_52D44U
Personal lights
Turns the lights on/off
Interior light
Turns the lights off
Turns the lights on/off linked to
door position
Turns the lights on
■Illuminated entry system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
■ To prevent battery discharged
If the interior light remains on when the door is not fully closed and the inte-
rior light switch is in the door position, the lights will go off automatically after
20 minutes.
■ Customization that can be configured at Toyota dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features →P. 368)
Personal lights and interior light

204
YARIS_HB_U_52D44U
3-4. Using the storage features

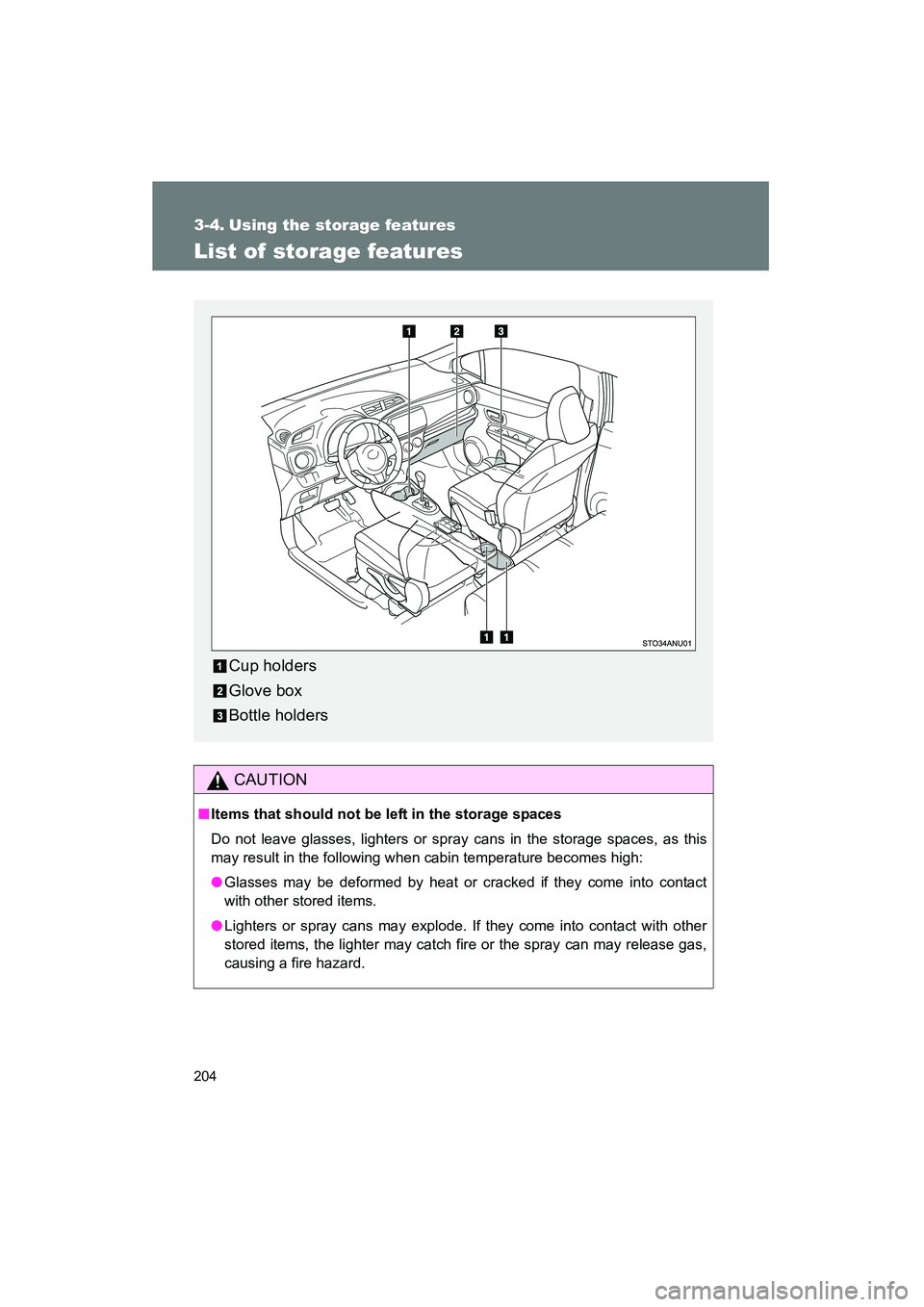

List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Cup holders
Glove box
Bottle holders

205
3-4. Using the storage features
3
Interior features
YARIS_HB_U_52D44U
Glove box
Pull up the lever to open the
glove box.
Cup holdersFront
CAUTION
■ Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
Glove box and cup holders

206 3-4. Using the storage features
YARIS_HB_U_52D44URear
■
Remove the separator
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent burns.
Pull the separator up.
Cup holders
