6-1. Specifications
6
Vehicle specifications
YARIS_HB_U_52D44U
Vehicle identification

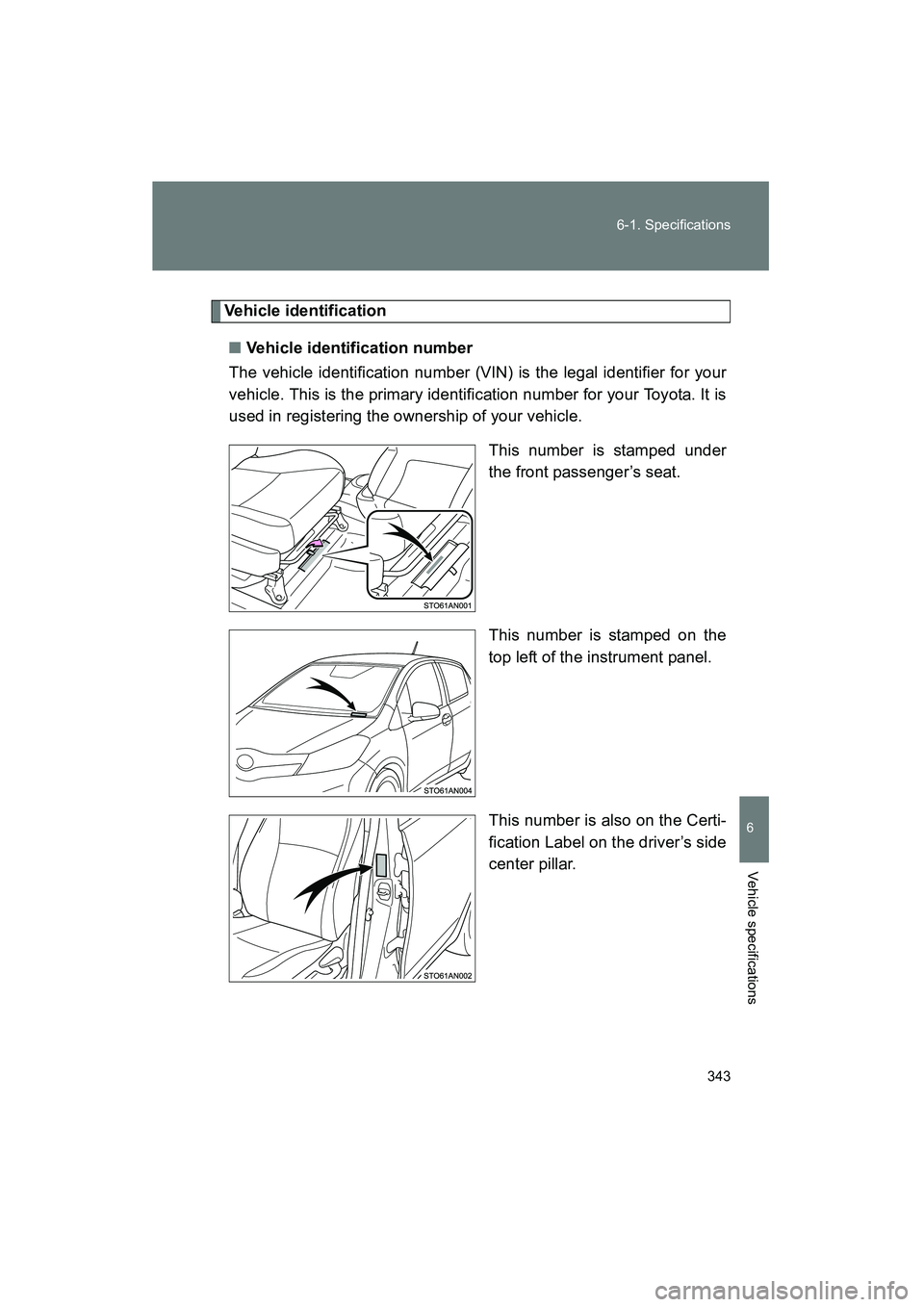

■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under
the front passenger’s seat.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label on the driver’s side
center pillar.

344 6-1. Specifications
YARIS_HB_U_52D44U■

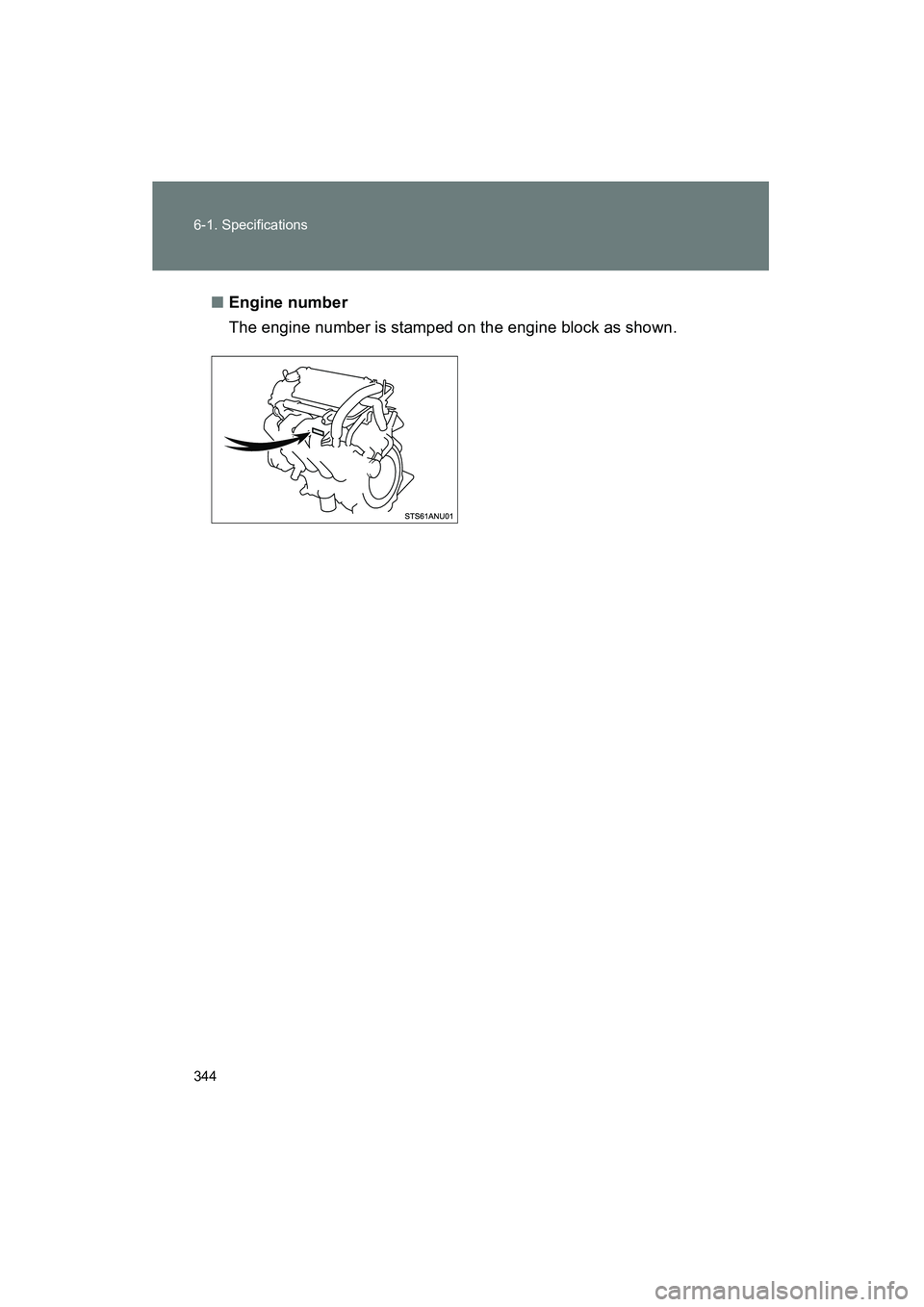

Engine number
The engine number is stamped on the engine block as shown.

345
6-1. Specifications
6
Vehicle specifications
YARIS_HB_U_52D44U

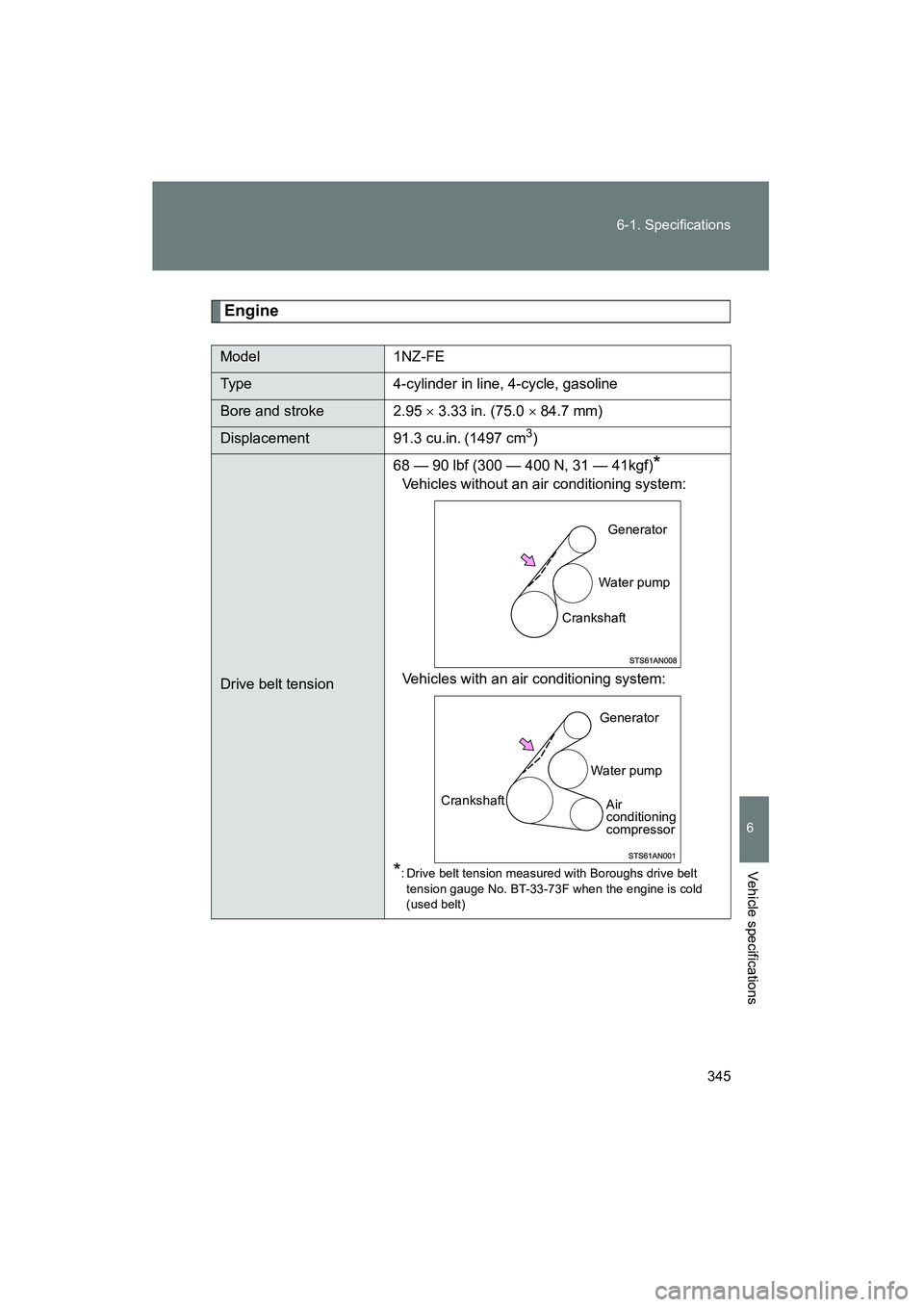

Engine
Model
1NZ-FE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 2.95 × 3.33 in. (75.0 × 84.7 mm)
Displacement 91.3 cu.in. (1497 cm3)
Drive belt tension 68 — 90 lbf (300 — 400 N, 31 — 41kgf)
*
Vehicles without an air conditioning system:
Vehicles with an air conditioning system:
*: Drive belt tension measured with Boroughs drive belt
tension gauge No. BT-33-73F when the engine is cold
(used belt)
Generator
Water pump
Crankshaft
Generator
Water pump Air
conditioning
compressor
Crankshaft

346 6-1. Specifications
YARIS_HB_U_52D44U

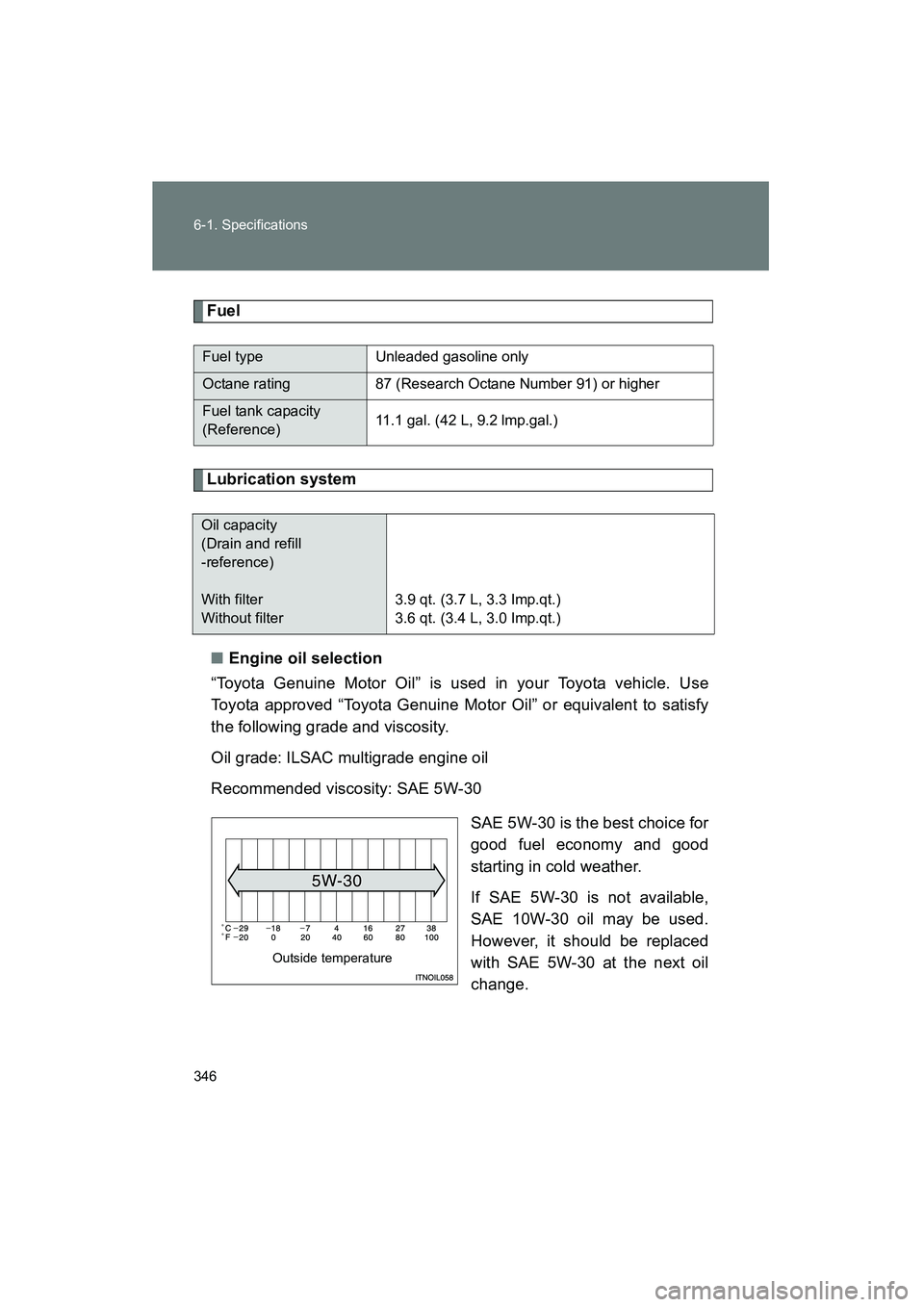

Fuel
Lubrication system■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
Fuel typeUnleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference) 11.1 gal. (42 L, 9.2 lmp.gal.)
Oil capacity
(Drain and refill
-reference)
With filter
Without filter 3.9 qt. (3.7 L, 3.3 Imp.qt.)
3.6 qt. (3.4 L, 3.0 Imp.qt.)
Outside temperature

347
6-1. Specifications
6
Vehicle specifications
YARIS_HB_U_52D44U
Oil viscosity (5W-30 is explained here as an example):
●
The 5W in 5W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
● The 30 in 5W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Cooling system
Capacity
(Reference) Vehicles with an automatic transmission:
4.9 qt. (4.6 L, 4.0 Imp.qt.)
Vehicles with a manual transmission:
5.0 qt. (4.7 L, 4.1 Imp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite,
and non-borate coolant with long-life
hybrid organic acid technology
Do not use plain water alone.

348 6-1. Specifications
YARIS_HB_U_52D44U

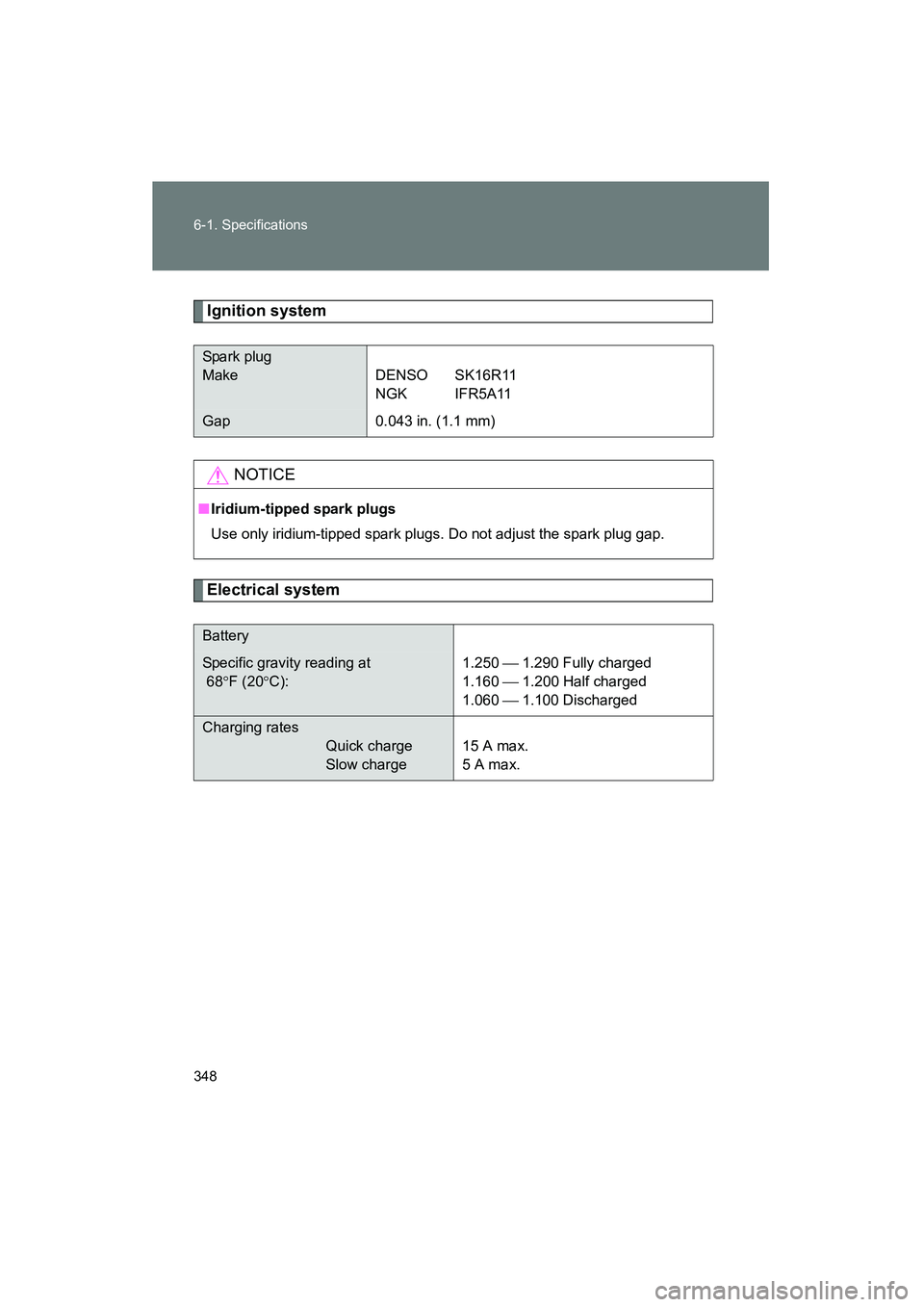

Ignition system
Electrical system
Spark plug
MakeDENSO SK16R11
NGK IFR5A11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Battery
Specific gravity reading at
68° F (20 °C): 1.250  1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge 15 A max.
5 A max.

349
6-1. Specifications
6
Vehicle specifications
YARIS_HB_U_52D44U

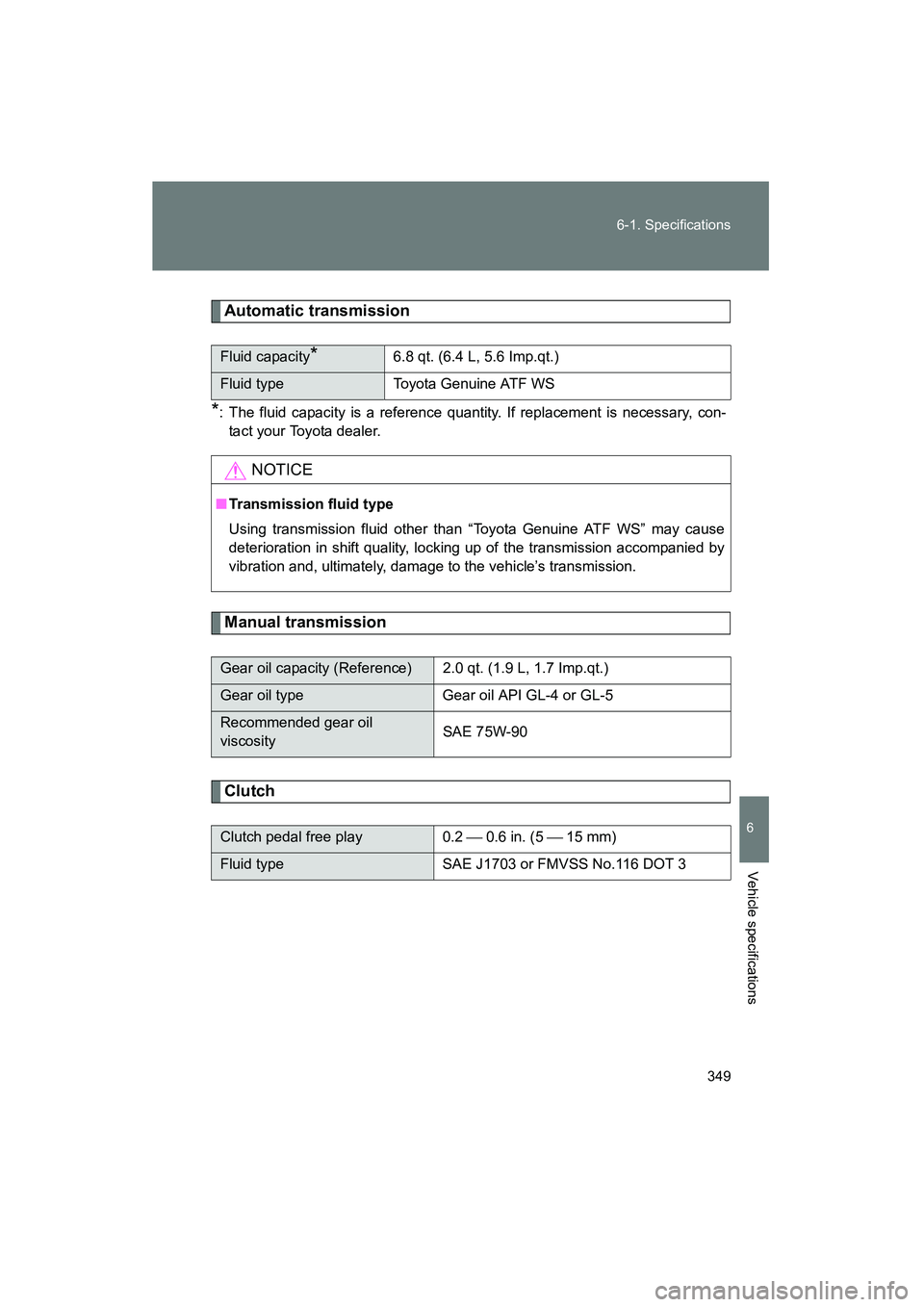

Automatic transmission
*: The fluid capacity is a reference quantity. If replacement is necessary, con-
tact your Toyota dealer.
Manual transmission
Clutch
Fluid capacity*6.8 qt. (6.4 L, 5.6 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.
Gear oil capacity (Reference) 2.0 qt. (1.9 L, 1.7 Imp.qt.)
Gear oil type Gear oil API GL-4 or GL-5
Recommended gear oil
viscosity SAE 75W-90
Clutch pedal free play
0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

350 6-1. Specifications
YARIS_HB_U_52D44U

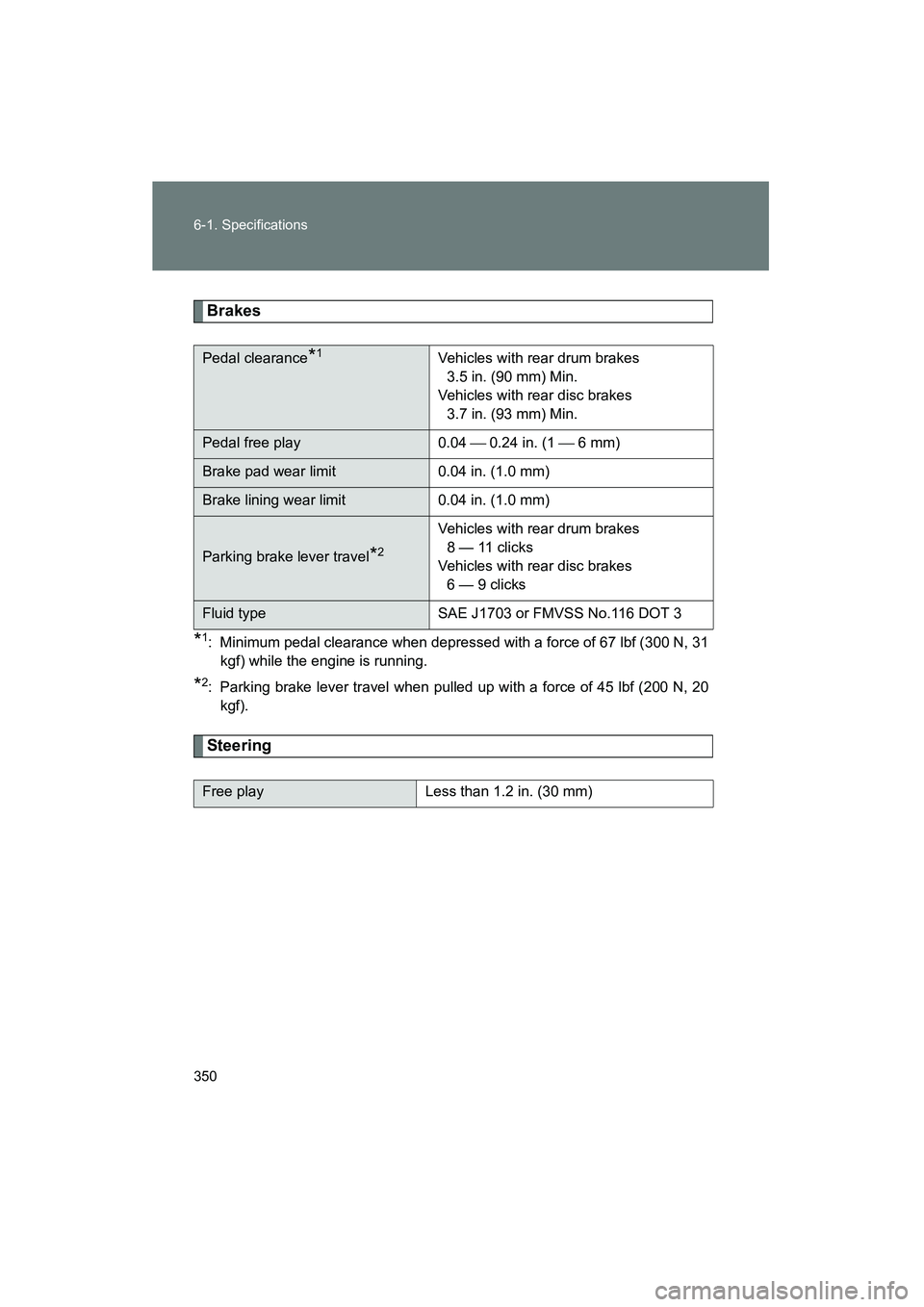

Brakes
*1: Minimum pedal clearance when depressed with a force of 67 lbf (300 N, 31kgf) while the engine is running.
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N, 20kgf).
Steering
Pedal clearance*1Vehicles with rear drum brakes 3.5 in. (90 mm) Min.
Vehicles with rear disc brakes 3.7 in. (93 mm) Min.
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Brake lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel*2
Vehicles with rear drum brakes
8 — 11 clicks
Vehicles with rear disc brakes 6 — 9 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)
