2013 TOYOTA YARIS HATCHBACK Owners Manual

Interior features3
191
YARIS_HB_U_52D44U
3-1. Using the air conditioning system and defogger
Air conditioning system .... 192
Rear window and outside rear view mirror
defoggers ....................... 199
3-2. Using the audio system Using the AUX port/USB port ........................ 200
Using the steering wheel audio switches ............... 201
3-3. Using the interior lights Interior lights list ............... 202
• Personal lights ............... 203
• Interior light .................... 203
3-4. Using the st orage features
List of storage features .... 204
• Glove box....................... 205
• Cup holders ................... 205
• Bottle holders ................. 207 3-5. Other interior features
Sun visors ........................ 208
Vanity mirrors ................... 209
Clock ................................ 210
Outside temperature display ............................ 211
Power outlet ..................... 213
Assist grips....................... 214
Floor mat .......................... 215
Luggage compartment features .......................... 217

192
YARIS_HB_U_52D44U

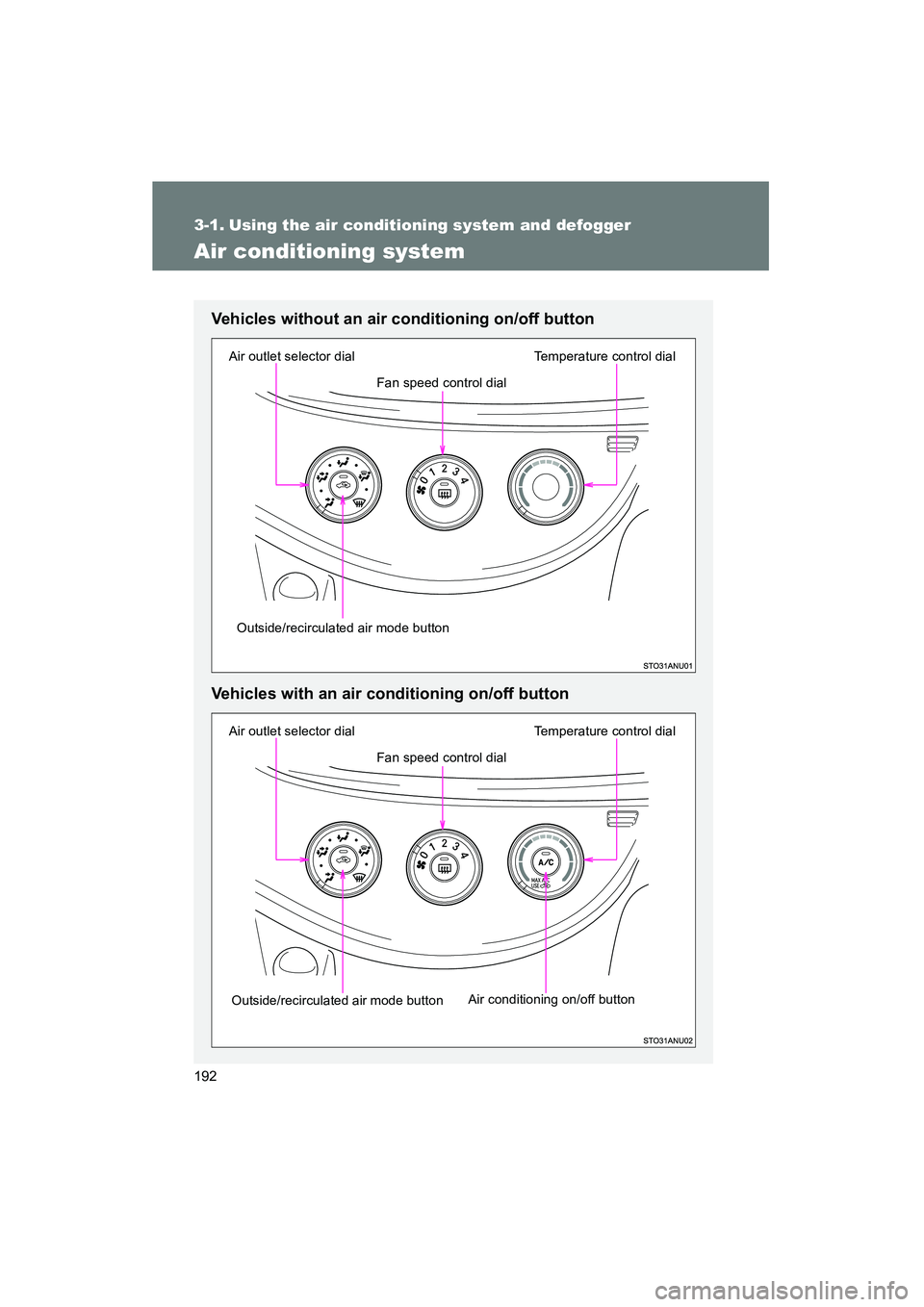

3-1. Using the air conditioning system and defogger
Air conditioning system
Vehicles without an air conditioning on/off button
Vehicles with an air conditioning on/off button
Fan speed control dial
Air outlet selector dial
Temperature control dial
Outside/recirculated air mode button
Fan speed control dial
Air outlet selector dial
Temperature control dial
Outside/recirculated air mode button
Air conditioning on/off button

193
3-1. Using the air conditioning system and defogger
3
Interior features
YARIS_HB_U_52D44U
Adjusting the settings
To adjust the fan speed, turn the fan speed control dial clock-
wise (increase) or counterclockwise (decrease).
Turning the dial to “0” turns off the fan.
Vehicles without an air conditioning on/off button:
Turn the temperature control dial clockwise to increase the
temperature.
Vehicles with an air conditioning on/off button:
To adjust the temperature setting, turn the temperature control
dial clockwise (warm) or counterclockwise (cool).
If is not pressed, the system will blow ambient temperature
air or heated air.
For quick cooling, turn the temperature control dial to “
MAX A/C”
position and set the outside/recirculated air mode button to recircu-
lated air mode.
To select the air outlets, set the air outlet selector dial to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
Defogging the windshield
Set the air outlet selector dial to position.
If the recirculated air mode is
used, it will automatically switch
to the outside air mode.
In this position, the outside/recir-
culated air mode cannot be
changed to the recirculated air
mode.

194 3-1. Using the air conditioning system and defogger

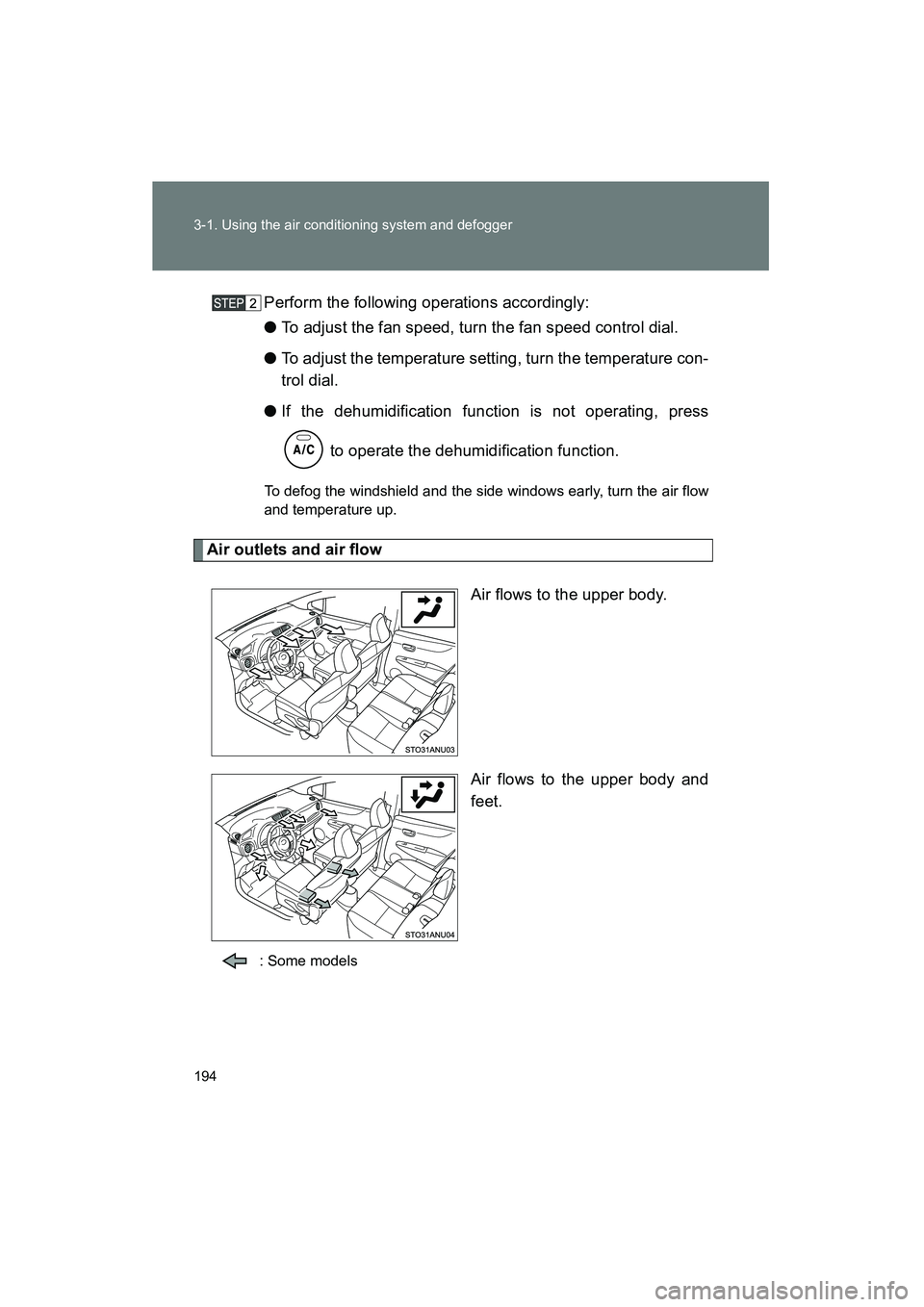

YARIS_HB_U_52D44UPerform the following operations accordingly:
●
To adjust the fan speed, turn the fan speed control dial.
● To adjust the temperature setting, turn the temperature con-
trol dial.
● If the dehumidification function is not operating, press
to operate the dehumidification function.
To defog the windshield and the side windows early, turn the air flow
and temperature up.
Air outlets and air flow
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models

195
3-1. Using the air conditioning system and defogger
3
Interior features
YARIS_HB_U_52D44U

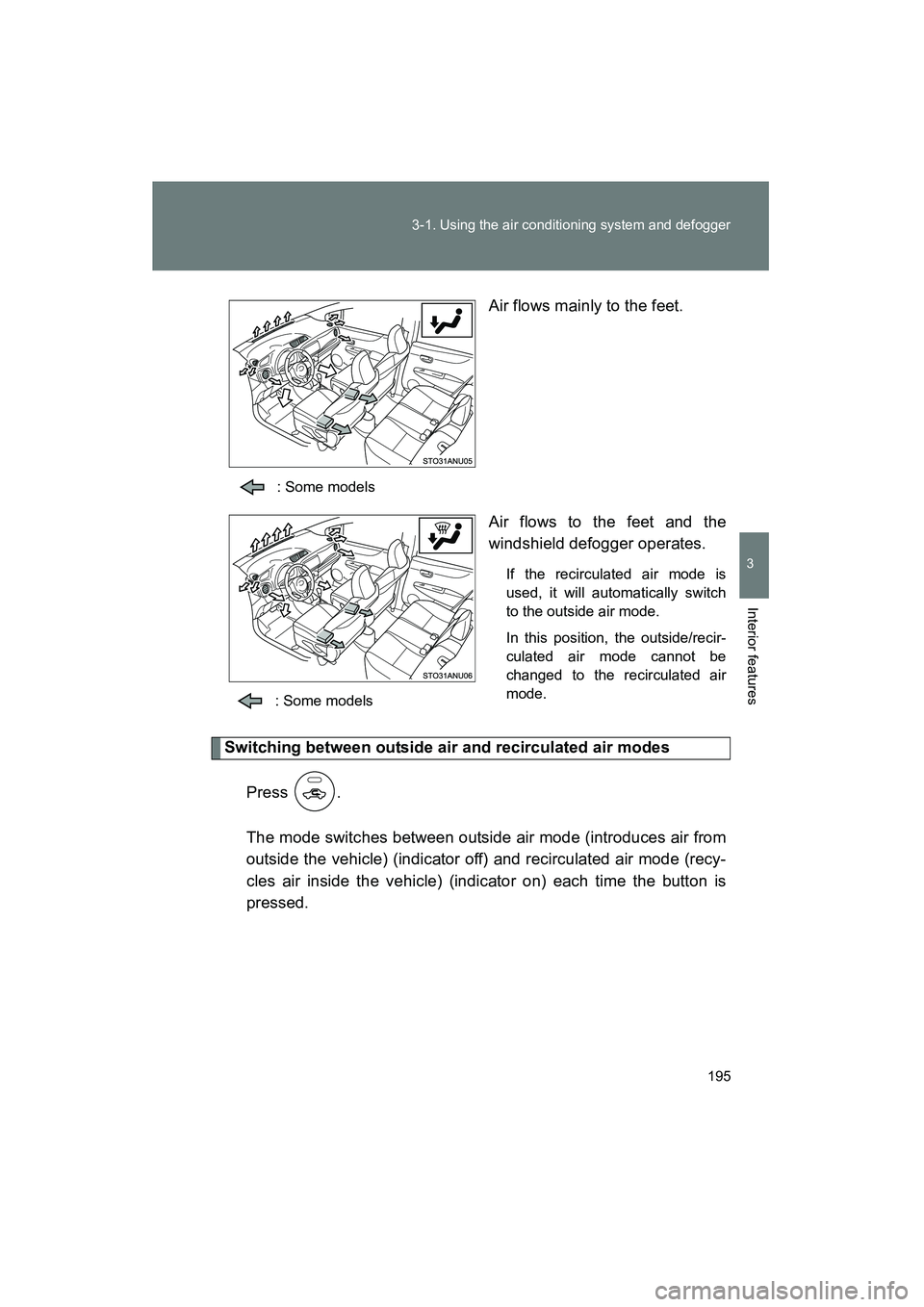

Air flows mainly to the feet.
: Some models
Air flows to the feet and the
windshield defogger operates.
If the recirculated air mode is
used, it will automatically switch
to the outside air mode.
In this position, the outside/recir-
culated air mode cannot be
changed to the recirculated air
mode.
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (introduces air from
outside the vehicle) (indicator off) and recirculated air mode (recy-
cles air inside the vehicle) (indicator on) each time the button is
pressed.
: Some models

196 3-1. Using the air conditioning system and defogger
YARIS_HB_U_52D44U

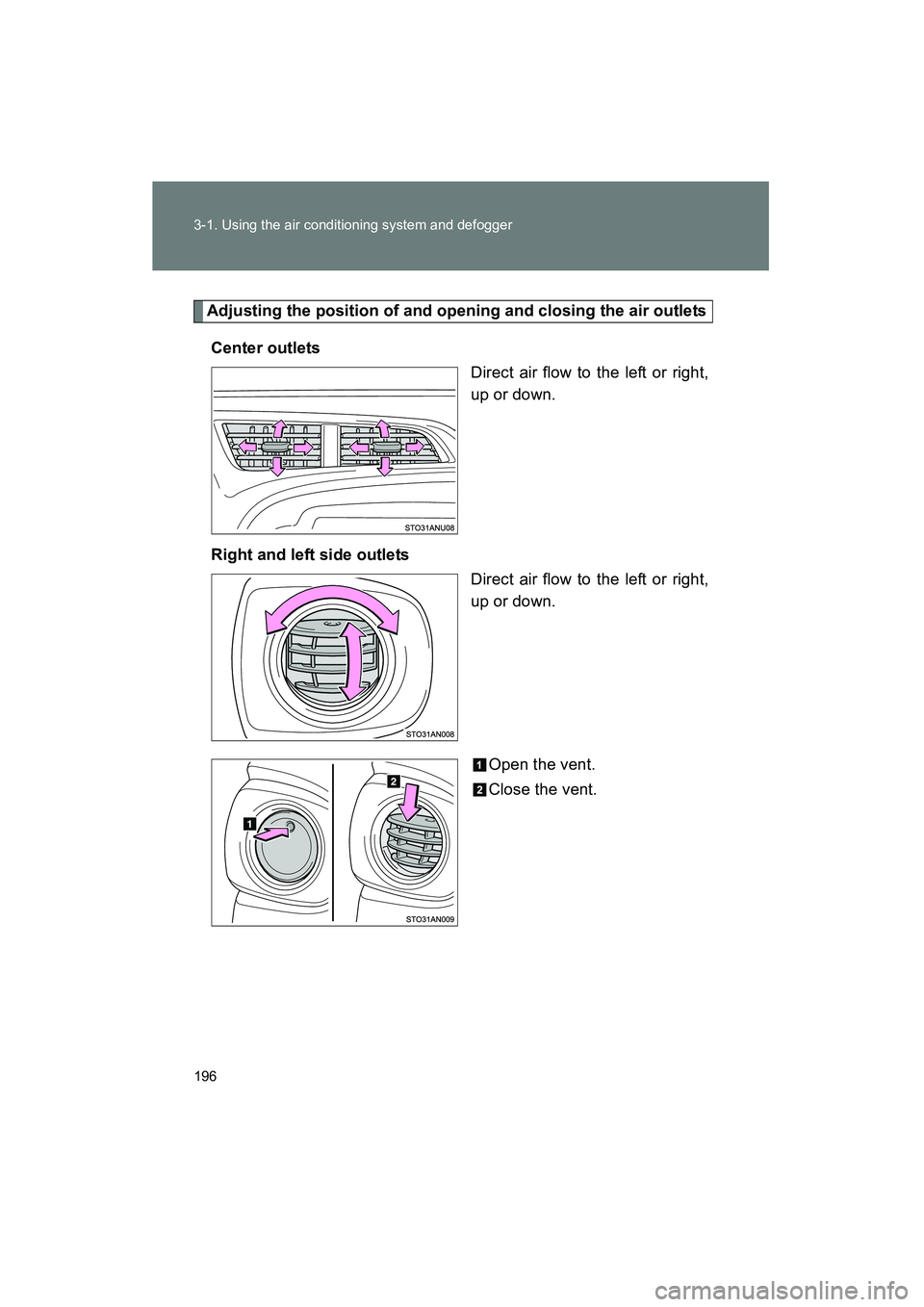

Adjusting the position of and opening and closing the air outletsCenter outlets Direct air flow to the left or right,
up or down.
Right and left side outlets Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.

197
3-1. Using the air conditioning system and defogger
3
Interior features
YARIS_HB_U_52D44U
■

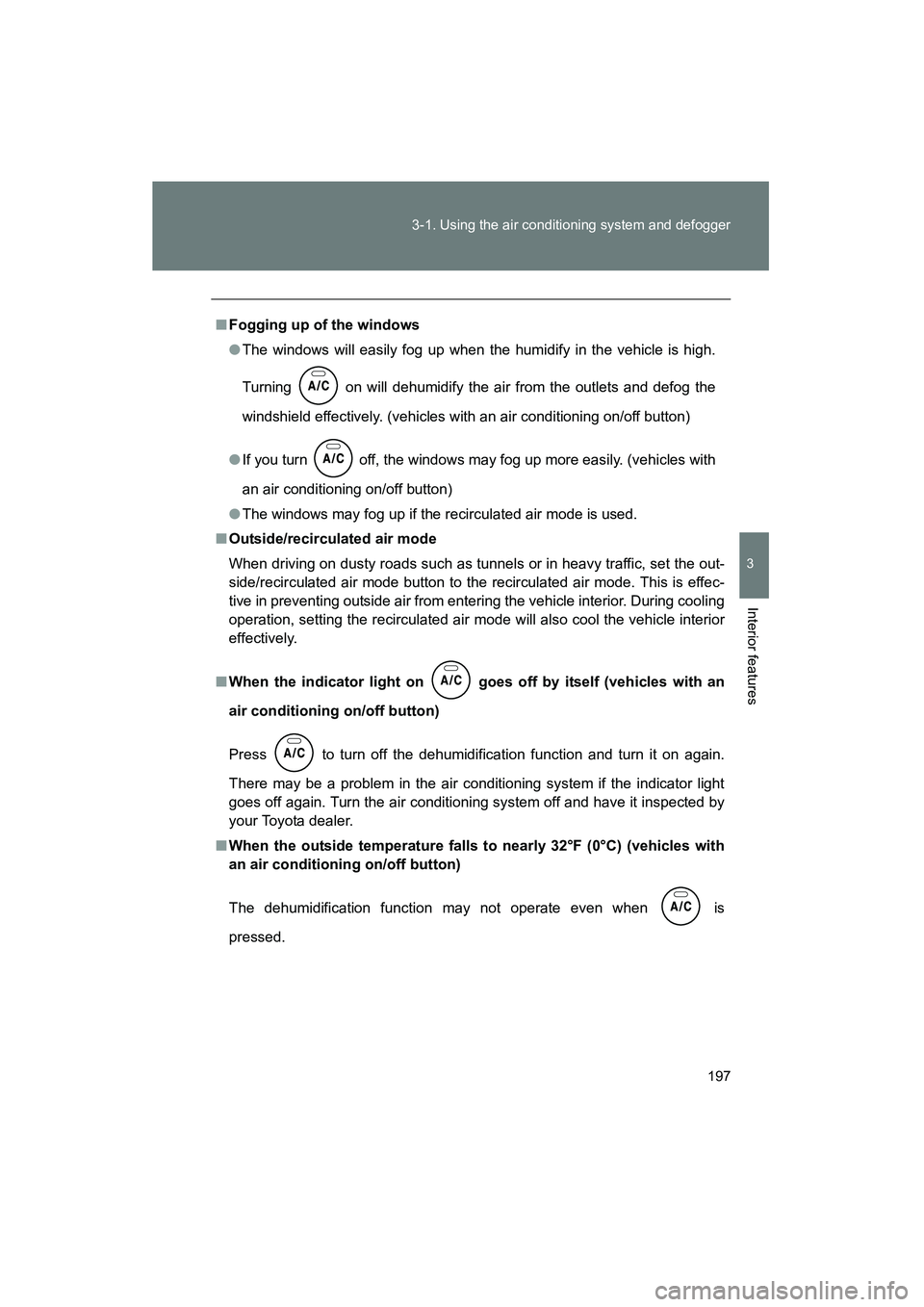

Fogging up of the windows
●The windows will easily fog up when the humidify in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the
windshield effectively. (vehicles with an air conditioning on/off button)
● If you turn off, the windows may fog up more easily. (vehicles with
an air conditioning on/off button)
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effec-
tive in preventing outside air from entering the vehicle interior. During cooling
operation, setting the recirculated air mode will also cool the vehicle interior
effectively.
■ When the indicator light on goes off by itself (vehicles with an
air conditioning on/off button)
Press to turn off the dehumidification function and turn it on again.
There may be a problem in the air conditioning system if the indicator light
goes off again. Turn the air conditioning system off and have it inspected by
your Toyota dealer.
■ When the outside temperature falls to nearly 32°F (0°C) (vehicles with
an air conditioning on/off button)
The dehumidification function may not operate even when
is
pressed.

198 3-1. Using the air conditioning system and defogger
YARIS_HB_U_52D44U

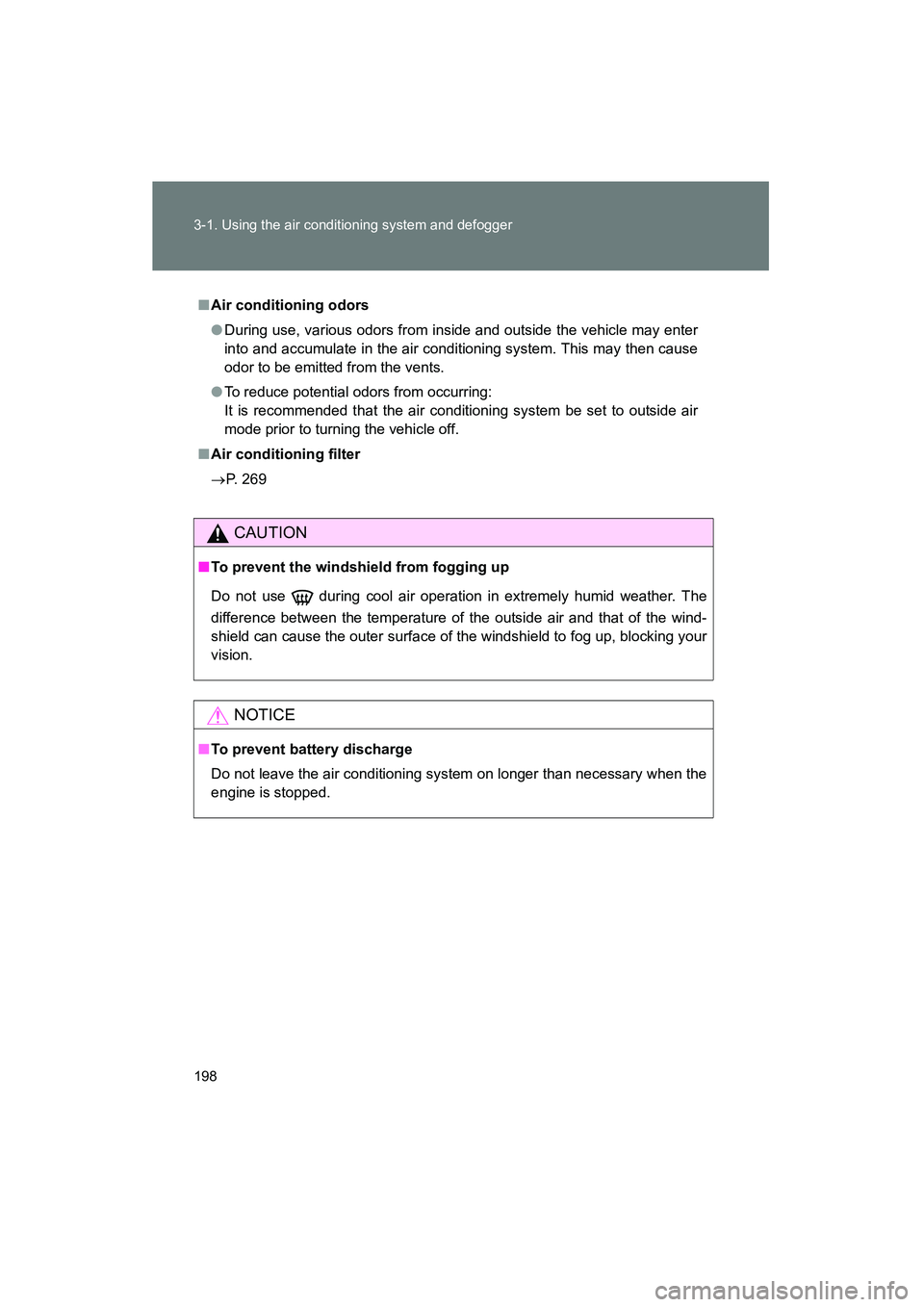

■Air conditioning odors
● During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
■ Air conditioning filter
→ P. 269
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is stopped.
