2013 TOYOTA YARIS HATCHBACK Owners Manual

YARIS_HB_U_52D44U
15
Pictorial indexInstrument panel
SRS knee airbag P. 80
Hood lock release lever P. 238
Gauges and meters
Multi-information display P. 133
P. 140
Glove box P. 205
Fuel filler door opener P. 69
∗: If equipped
Tire pressure warning reset switch∗ P. 255
AUX port/USB port∗ P. 200
Power outlet P. 213

YARIS_HB_U_52D44U
16
Emergency flasher switch P. 296
Pictorial indexInstrument panel
Front passenger “AIR BAG ON” and
“AIR BAG OFF” indicator lights
P. 92
Rear window defogger switch∗/rear window and
outside rear view mirror defoggers
∗ P. 199
Air conditioning system P. 192

YARIS_HB_U_52D44U

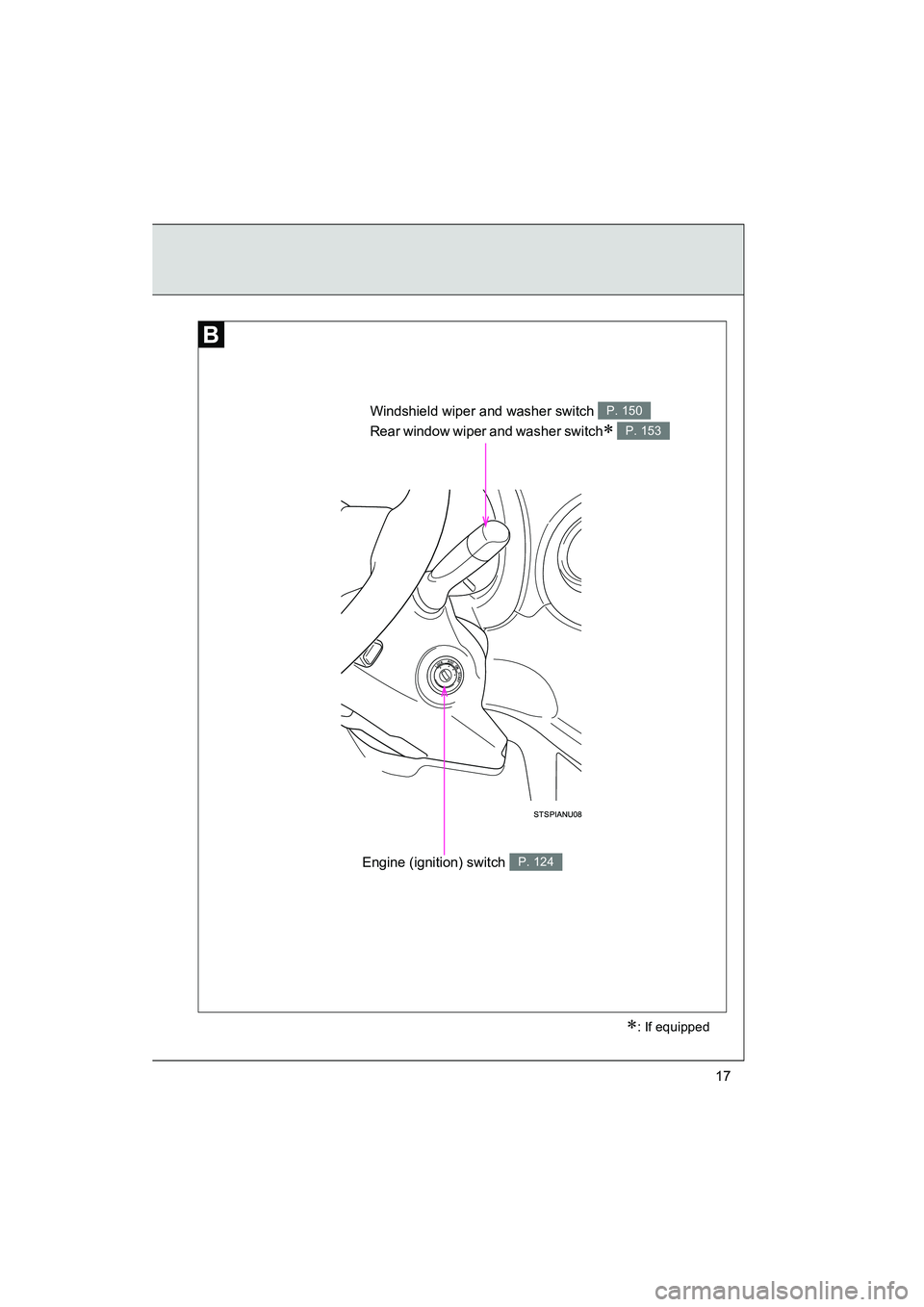

17
Windshield wiper and washer switch
Rear window wiper and washer switch
∗
P. 150
P. 153
Engine (ignition) switch P. 124
∗: If equipped

YARIS_HB_U_52D44U
18
Headlight switch P. 145
Instrument panel light control dial P. 135
Pictorial indexInstrument panel
Outside rear view mirror switches∗ P. 64
Tilt steering lock release lever P. 62
Turn signal lever P. 130
Fog light switch∗ P. 148

YARIS_HB_U_52D44U

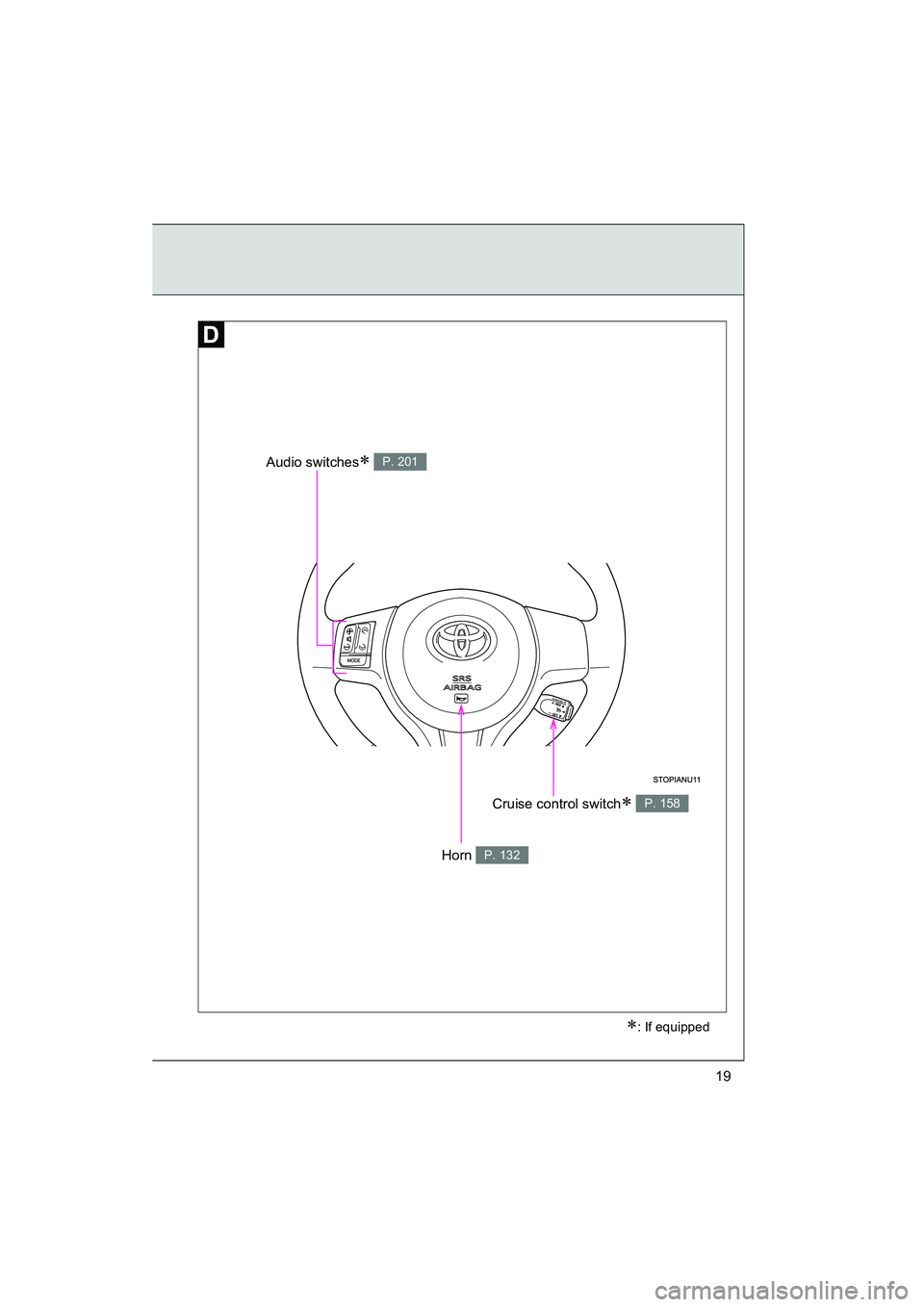

19
Audio switches∗ P. 201
Horn P. 132
∗: If equipped
Cruise control switch∗ P. 158

YARIS_HB_U_52D44U
20
For your information
Main Owner’s Manual
Please note that this manual applies to all models and all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear a sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota
vehicles are currently available on the market. You should know that Toyota
does not warrant these products and is not responsible for their
performance, repair, or replacement, or for any damage they may cause to,
or adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products.
Modification with non-genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.

YARIS_HB_U_52D44U
21
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with your Toyota dealer for precautionary measures or spe-
cial instructions regarding installati on of a mobile two-way radio system.
Vehicle data recordings
Your Toyota is equipped with several sophisticated computers that will record
certain data, such as:
• Engine speed
• Accelerator status
• Brake status
• Vehicle speed
• Shift position (except manual transmission)
The recorded data varies according to the vehicle grade level and options
with which it is equipped. Furthermore, these computers do not record con-
versations, sounds or pictures.
●Data usage
Toyota may use the data recorded in these computers to diagnose malfunc-
tions, conduct research and development, and improve quality.
To y o t a
will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if the vehicle is leased
• In response to an official request by the police, a court of law or a govern- ment agency
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner

YARIS_HB_U_52D44U
22

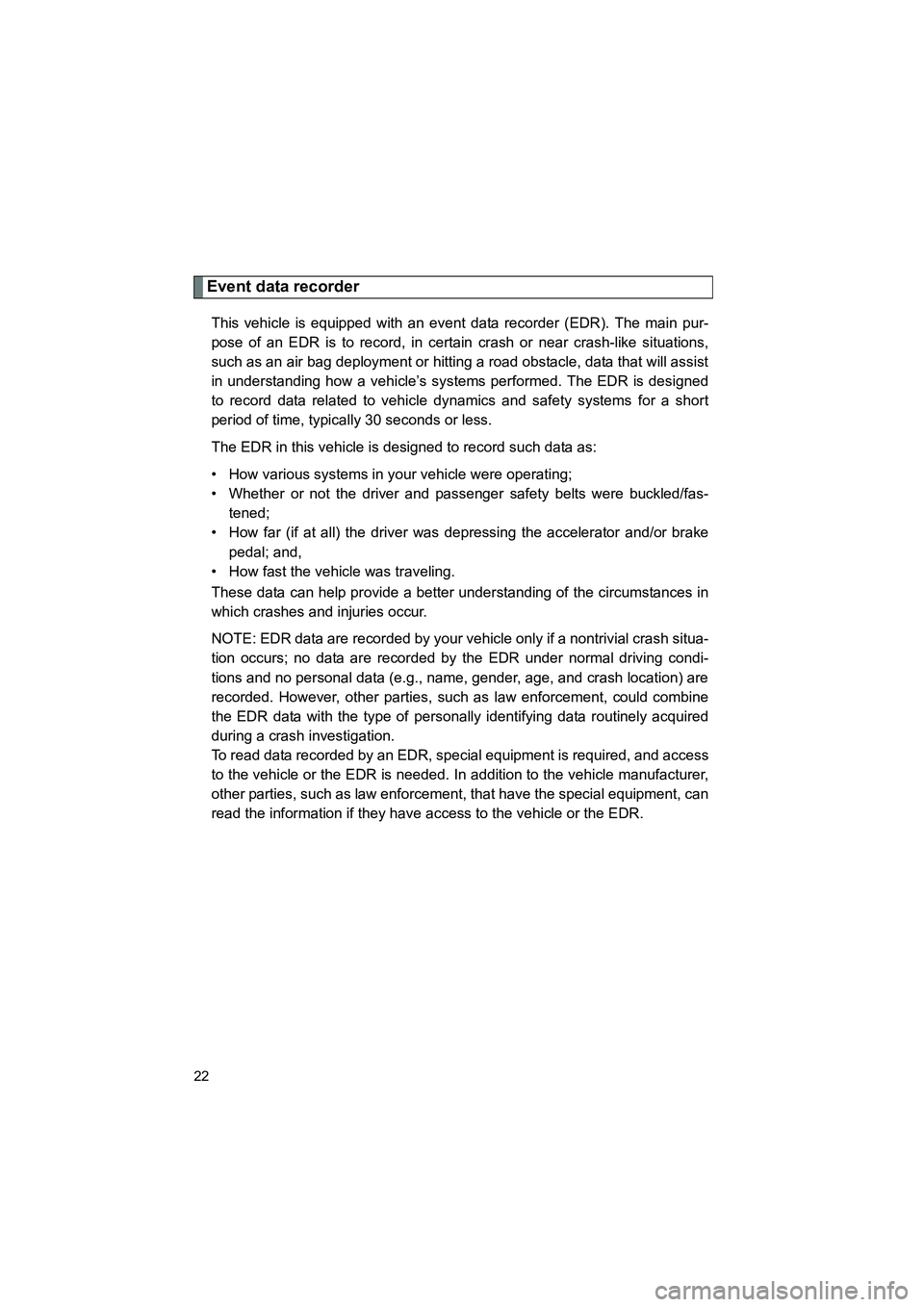

Event data recorder
This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed
to record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fas-
tened;
• How far (if at all) the driver was depressing the accelerator and/or brake
pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a nontrivial crash situa-
tion occurs; no data are recorded by the EDR under normal driving condi-
tions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.
