2013 TOYOTA YARIS HATCHBACK Owners Manual

367
6-1. Specifications
6
Vehicle specifications
YARIS_HB_U_52D44U

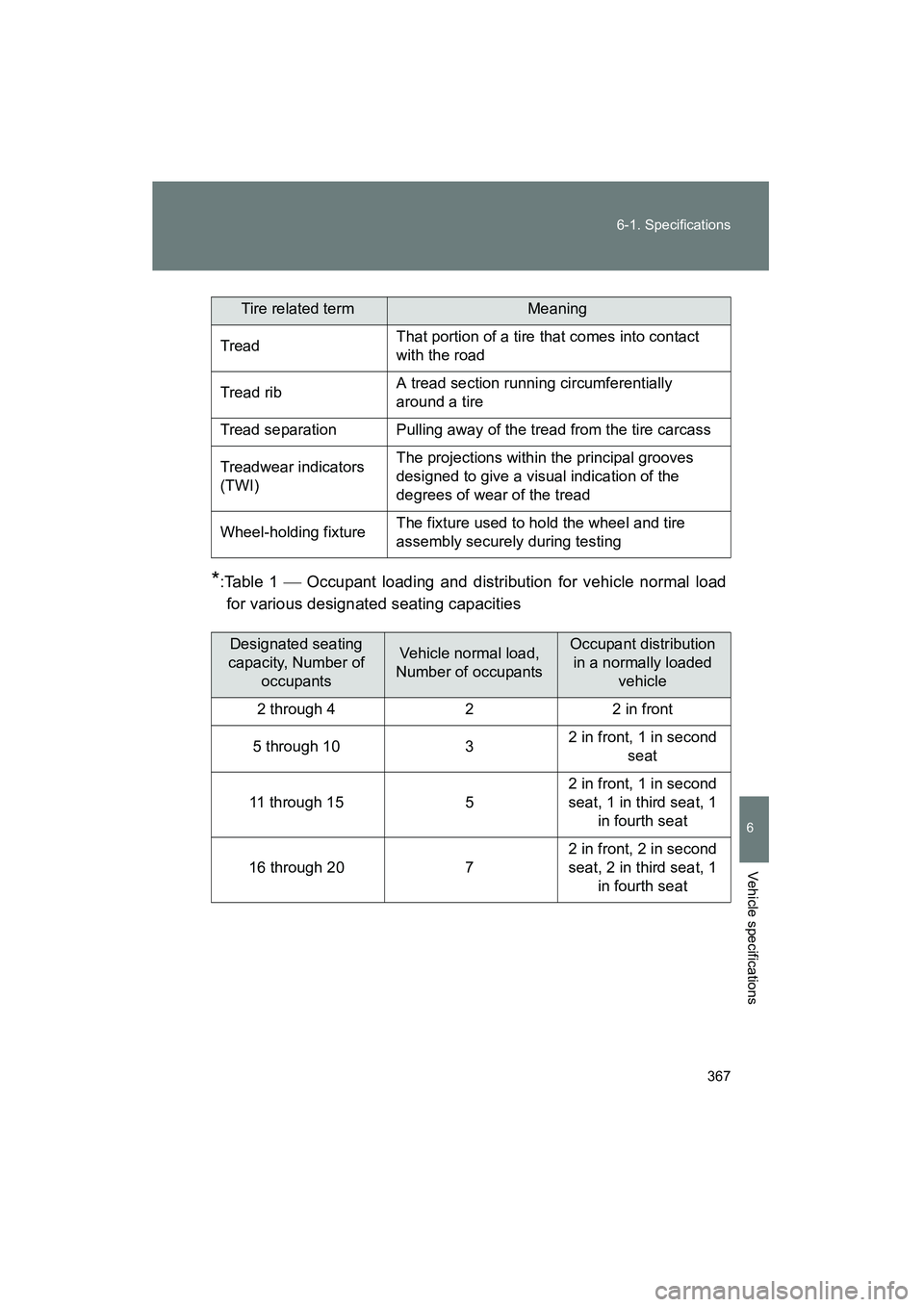

*:Table 1
 Occupant loading and distribution for vehicle normal load
for various designated seating capacities
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Designated seating
capacity, Number of occupants Vehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat
Tire related termMeaning

368
YARIS_HB_U_52D44U
6-2. Customization

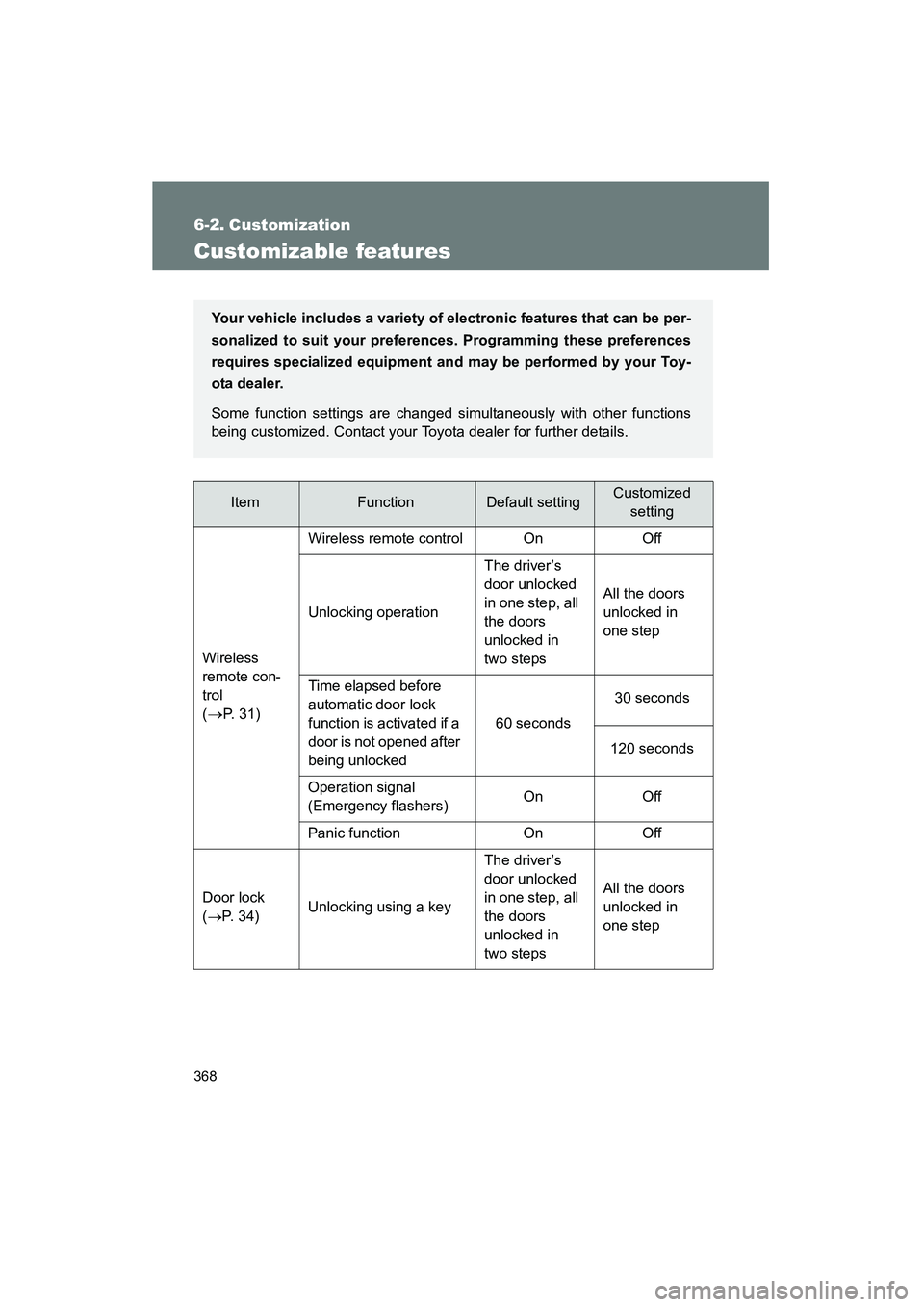

Customizable features
ItemFunctionDefault settingCustomized setting
Wireless
remote con-
trol
(
→P. 31) Wireless remote control On
Off
Unlocking operation The driver’s
door unlocked
in one step, all
the doors
unlocked in
two stepsAll the doors
unlocked in
one step
Time elapsed before
automatic door lock
function is activated if a
door is not opened after
being unlocked 60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers) On
Off
Panic function OnOff
Door lock
( → P. 3 4 ) Unlocking using a key The driver’s
door unlocked
in one step, all
the doors
unlocked in
two stepsAll the doors
unlocked in
one step
Your vehicle includes a variety of
electronic features that can be per-
sonalized to suit your prefer ences. Programming these preferences
requires specialized equipment and may be performed by your Toy-
ota dealer.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.

369
6-2. Customization
6
Vehicle specifications
YARIS_HB_U_52D44U

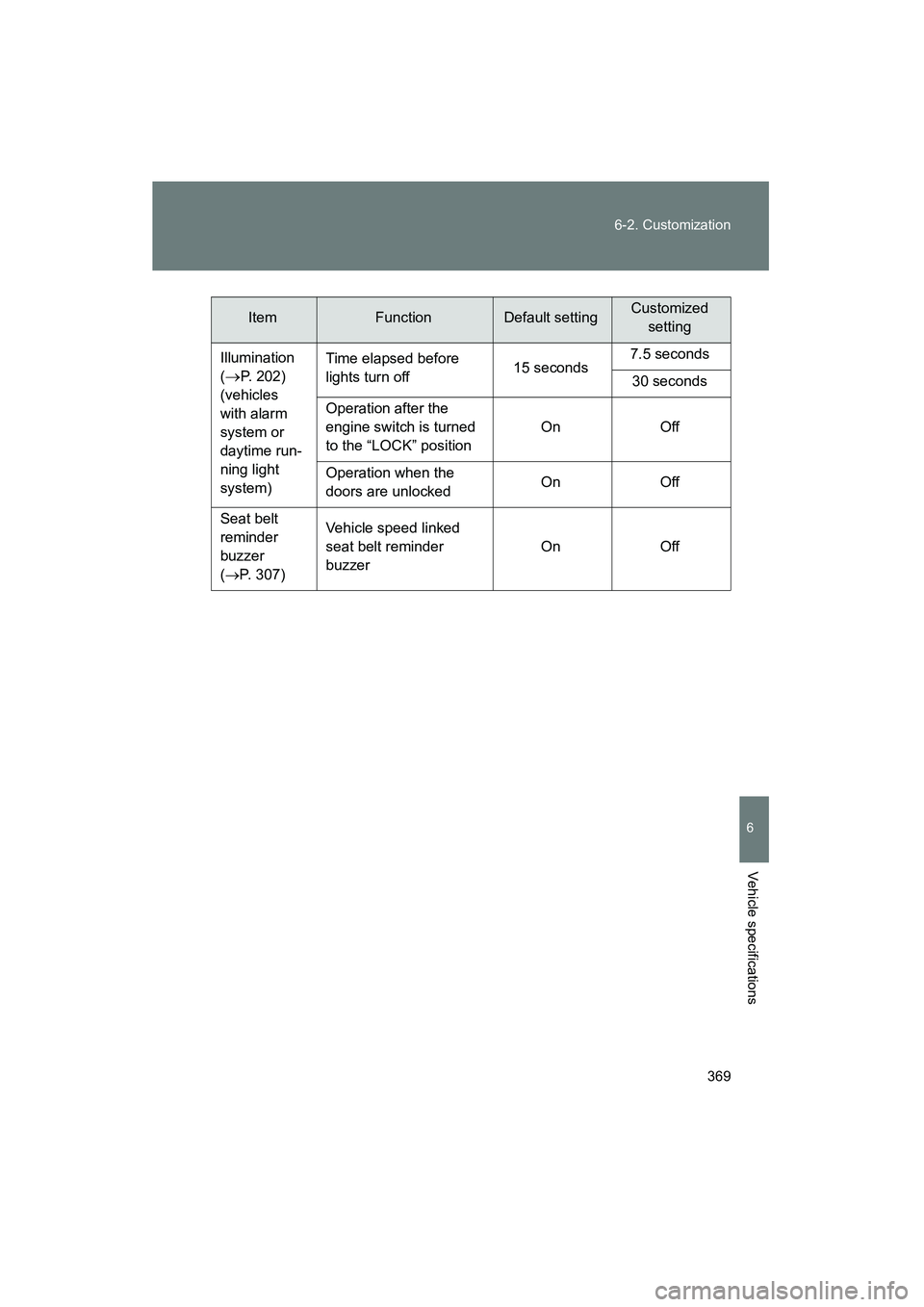

Illumination
(
→P. 202)
(vehicles
with alarm
system or
daytime run-
ning light
system) Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation after the
engine switch is turned
to the “LOCK” position On
Off
Operation when the
doors are unlocked On
Off
Seat belt
reminder
buzzer
( → P. 307) Vehicle speed linked
seat belt reminder
buzzer
On
Off
ItemFunctionDefault settingCustomized
setting

370
6-2. Customization
YARIS_HB_U_52D44U

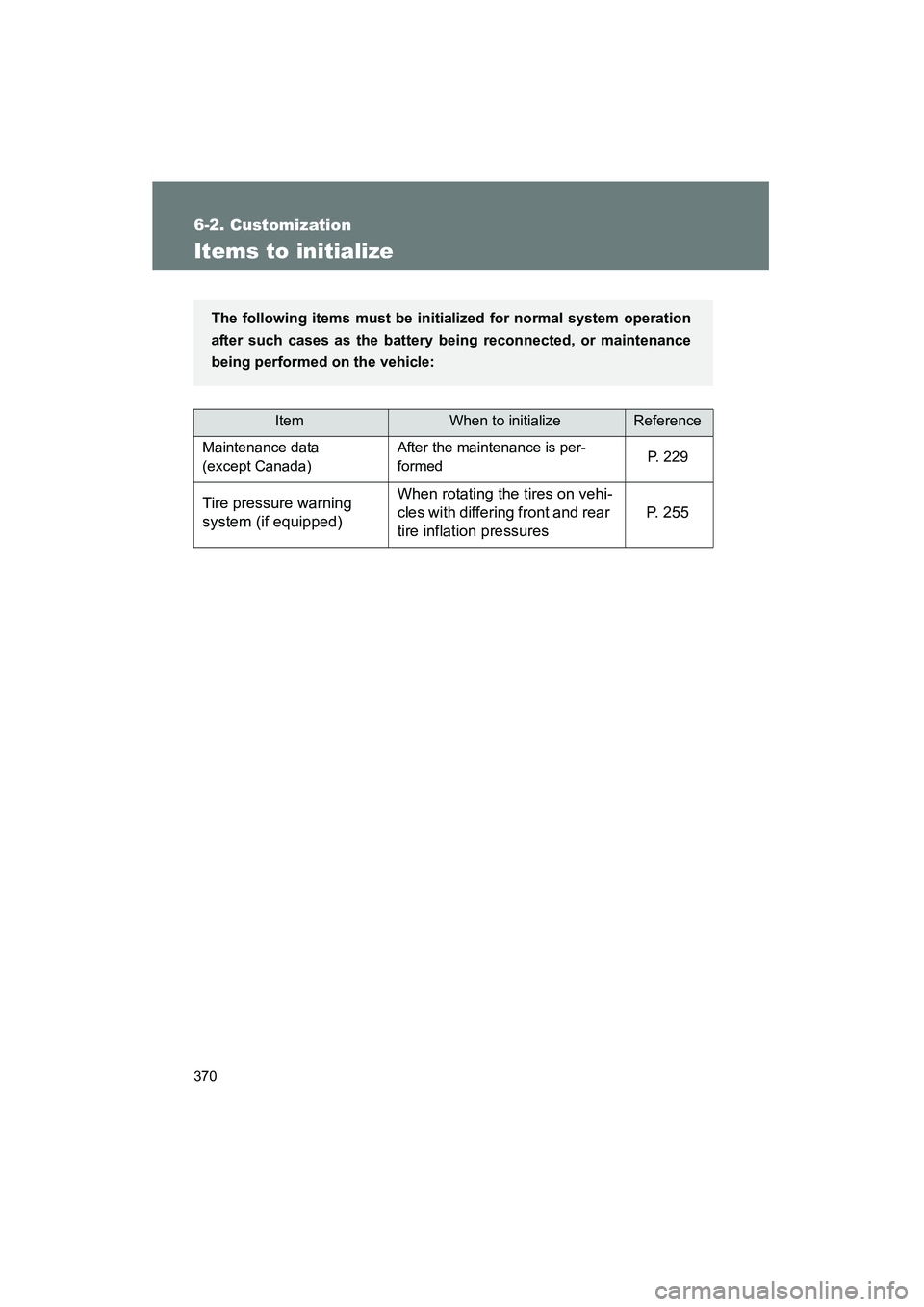

Items to initialize
ItemWhen to initializeReference
Maintenance data
(except Canada)After the maintenance is per-
formedP. 229
Tire pressure warning
system (if equipped)When rotating the tires on vehi-
cles with differing front and rear
tire inflation pressures
P. 255
The following items must be initialized for normal system operation
after such cases as the battery being reconnected, or maintenance
being performed on the vehicle:

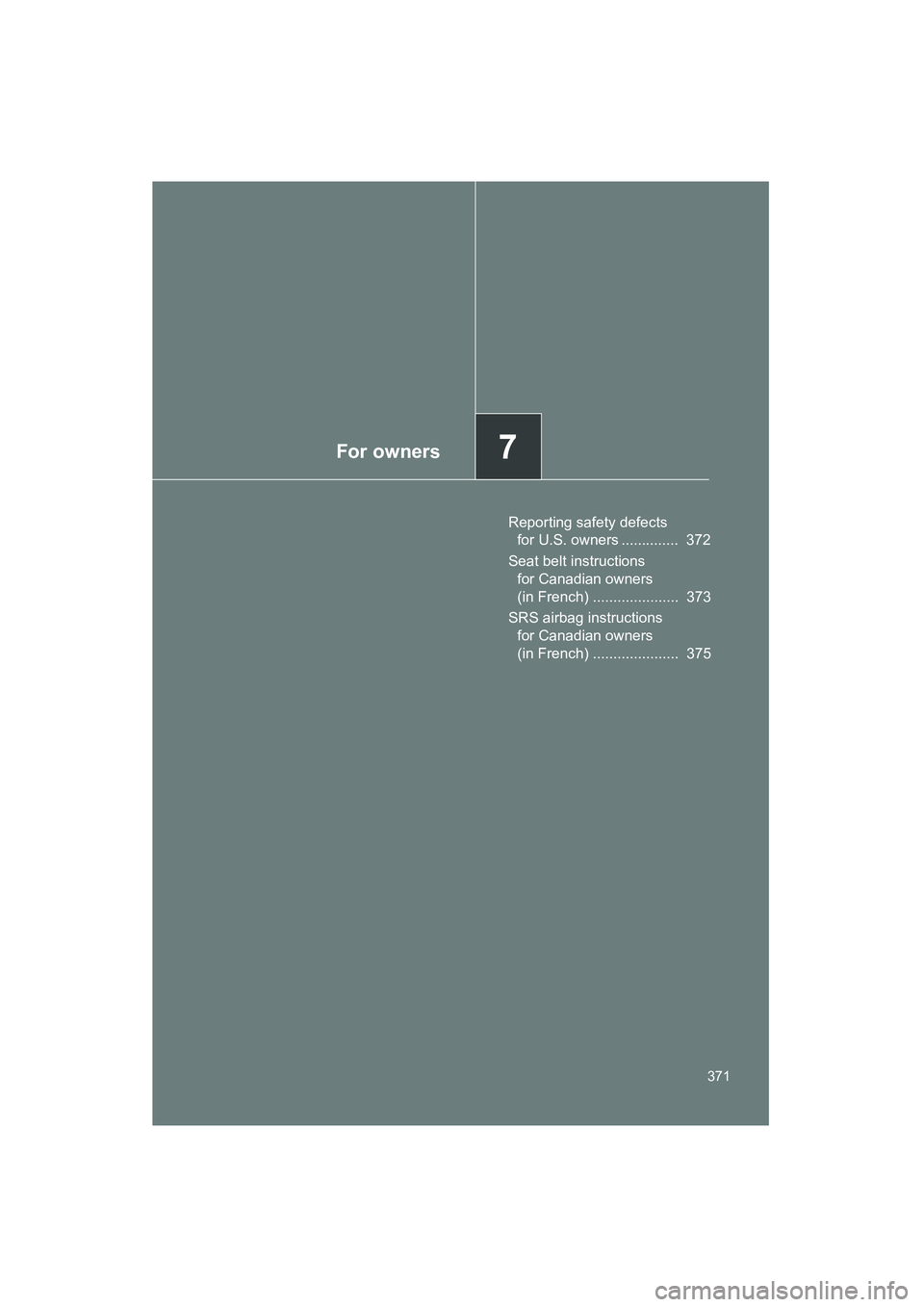

For owners7
371
YARIS_HB_U_52D44U
Reporting safety defects for U.S. owners .............. 372
Seat belt instructions for Canadian owners
(in French) ..................... 373
SRS airbag instructions for Canadian owners
(in French) ..................... 375

372
YARIS_HB_U_52D44U

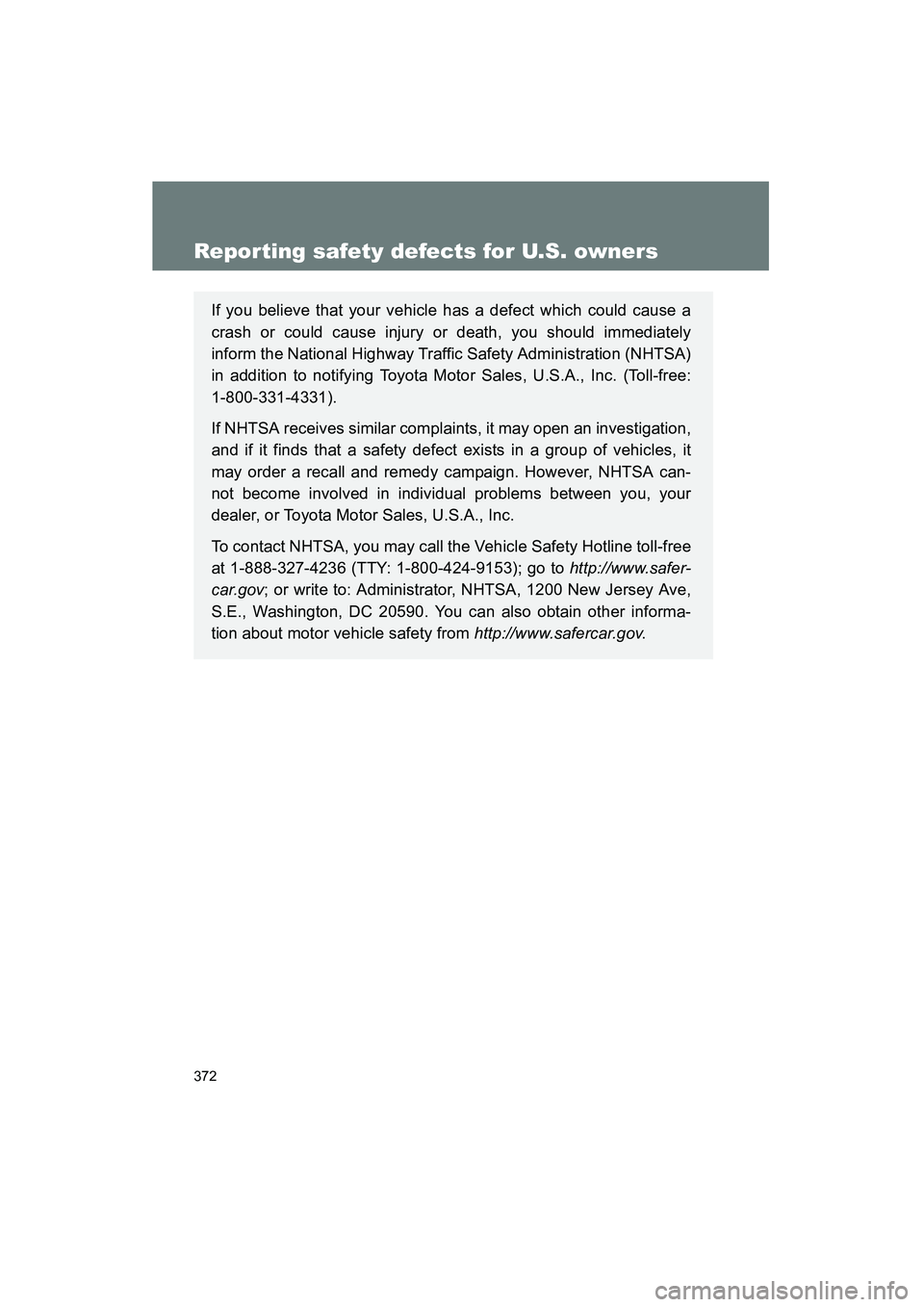

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safer-
car.gov; or write to: Administrator, NHTSA, 1200 New Jersey Ave,
S.E., Washington, DC 20590. You can also obtain other informa-
tion about motor vehicle safety from http://www.safercar.gov.

373
YARIS_HB_U_52D44U
7
For owners

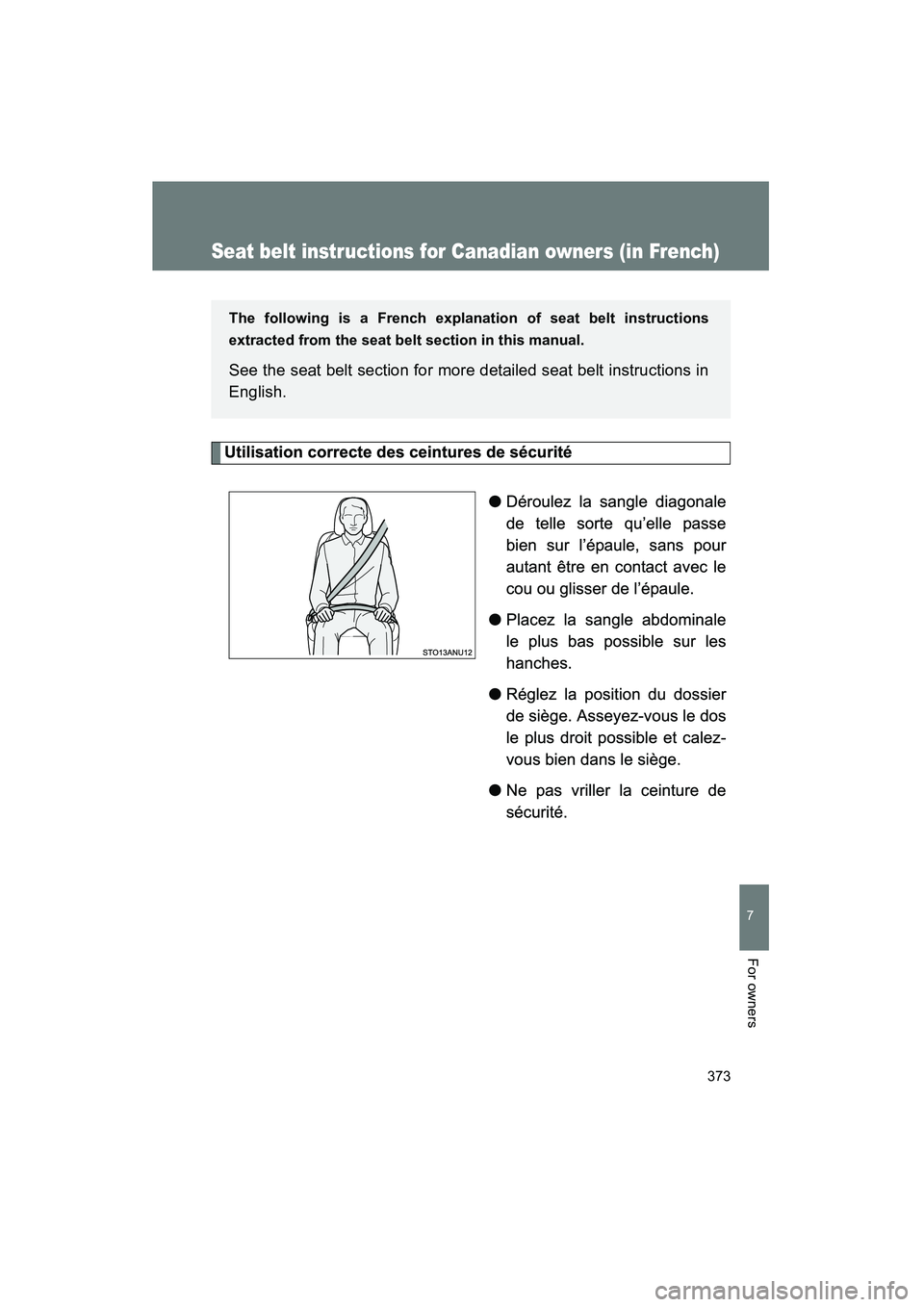

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.

374
YARIS_HB_U_52D44U
