2013 Peugeot 508 Owner's Manual - RHD (UK, Australia)

6
159
Child safety
The incorrect installation of a child seat in avehicle compromises the child's protection in the event of an accident.
Remember to fasten the seat belts or the child seat harnesses keeping the slack relative to the child's body to a minimum,
even for shor t journeys.
When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it secures the child seat firmly on the seat of your vehicle. If your passenger seat is adjustable, move it for wards if necessary.
For optimum installation of the "forwards-facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.

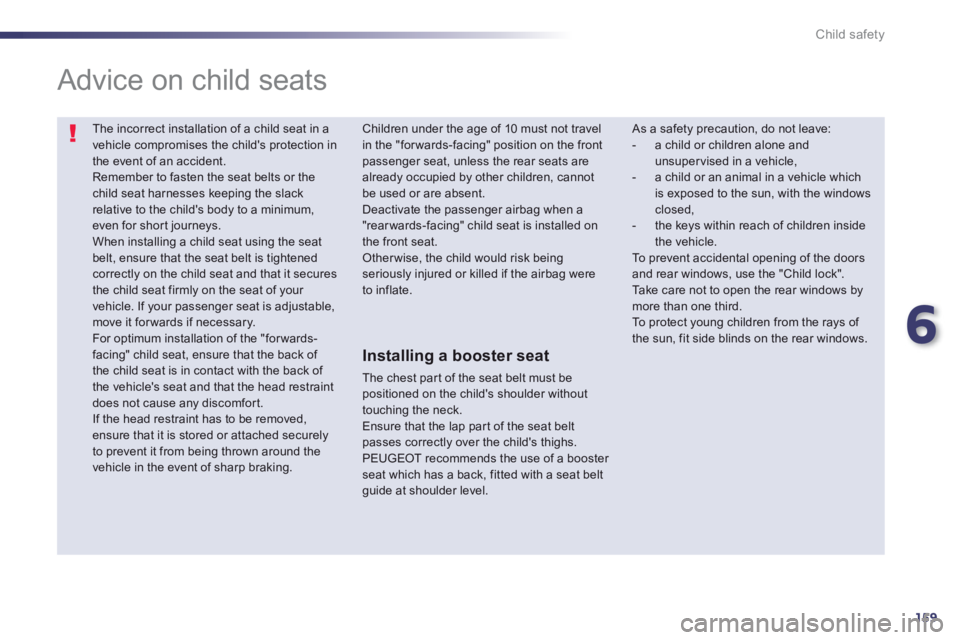

Advice on child seats

As a safety precaution, do not leave: - a child or children alone and unsupervised in a vehicle, - a child or an animal in a vehicle whichis exposed to the sun, with the windows closed,
- the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows bymore than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.

Children under the age of 10 must not travel in the "forwards-facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a
"rearwards-facing" child seat is installed on the front seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.


Installing a booster seat

The chest par t of the seat belt must be positioned on the child's shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs.
PEUGEOT recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.

160
!
Child safety
Your vehicle has been approved in accordance
with the latest ISOFIX regulations .
The seats, represented below, are fitted with
regulation ISOFIX mountings.

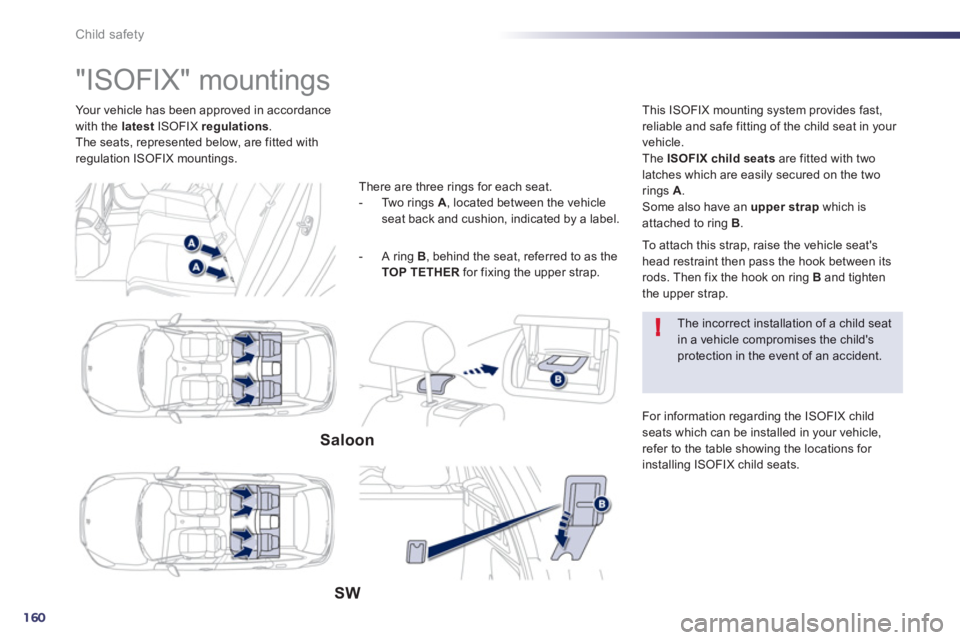

"ISOFIX" mountings


There are three rings for each seat.


- Two rings A
, located between the vehicleseat back and cushion, indicated by a label.
This IS
OFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seatsare fitted with two latches which are easily secured on the two
rings A. Some also have an upper strapwhich isattached to ring B.



Saloon

SW


The incorrect installation of a child seat in a vehicle compromises the child'sprotection in the event of an accident.
For information re
garding the ISOFIX childseats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats.



- A ring
B, behind the seat, referred to as the TOP TETHER
for fixing the upper strap.
To a t t a c h t h i s s t r a
p, raise the vehicle seat's head restraint then pass the hook between its
rods. Then fix the hook on ring Band tighten
the upper strap.

6
161
Child safety

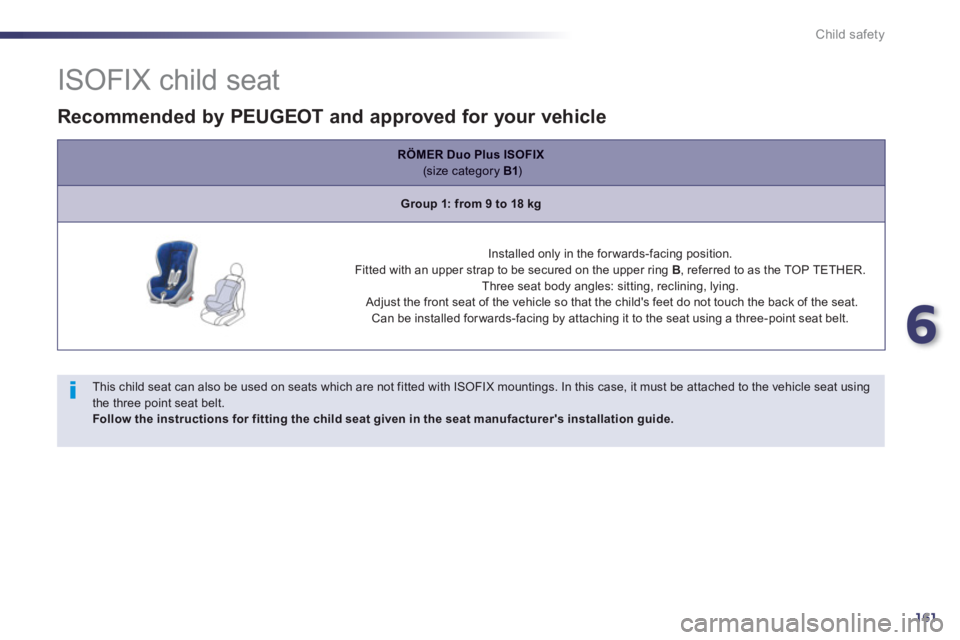

ISOFIX child seat


This child seat can also be used on seats which are not fitted with ISOFIX mountings. In this case, it must be attached to the vehicle seat using the three point seat belt.Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.


Recommended by PEUGEOT and approved for your vehicle
RÖMERDuo Plus ISOFIX(size category B1)
Group 1: from 9 to 18 kg


Installed only in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B, referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Adjust the front seat of the vehicle so that the child's feet do not touch the back of the seat.
Can be installed for wards-facing by attaching it to the seat using a three-point seat belt
.

162
Child safety

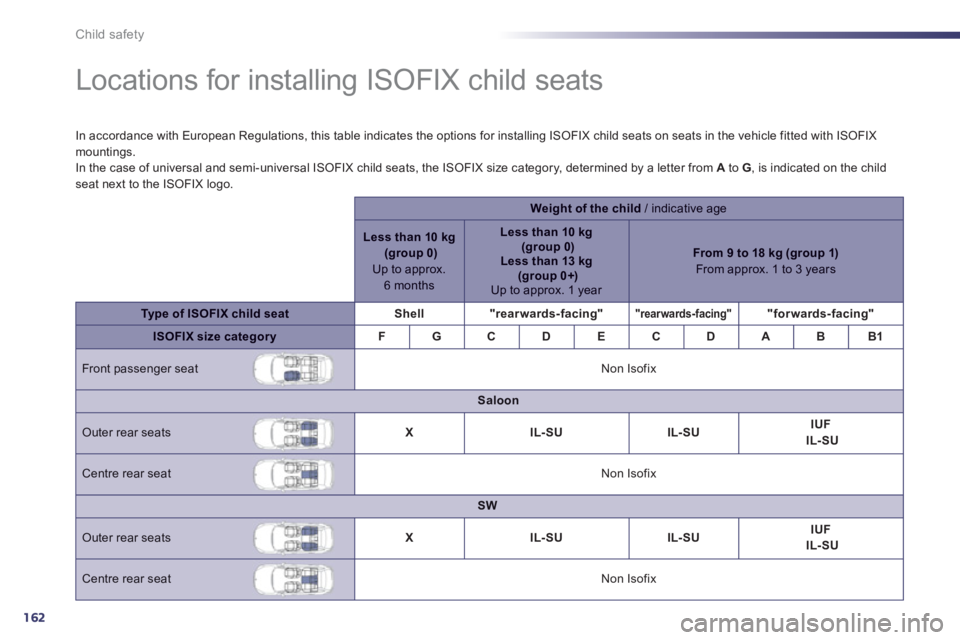

Locations for installing ISOFIX child seats
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIXmountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from Ato G , is indicated on the childseat next to the ISOFIX logo.
Weight of the child/ indicative age
Less than 10 kg (group 0)Up to approx. 6 months
Less than 10 kg(group 0)Less than 13 kg(group 0+)Up to approx. 1 year
From 9 to 18 kg (group 1)From approx. 1 to 3 years
Type of ISOFIX child seatShell"rearwards-facing""rearwards-facing""forwards-facing"
ISOFIX size categoryFGCDECDABB1


Front passenger seat Non Isofix
Saloon

Outer rear seatsXIL-SUIL-SUIUF
IL-S
U

Centre rear seat Non Isofix
SW

Outer rear seatsXIL-SUIL-SUIUF
IL-S
U
Centre rear seat Non Isofix

6
163
Child safety

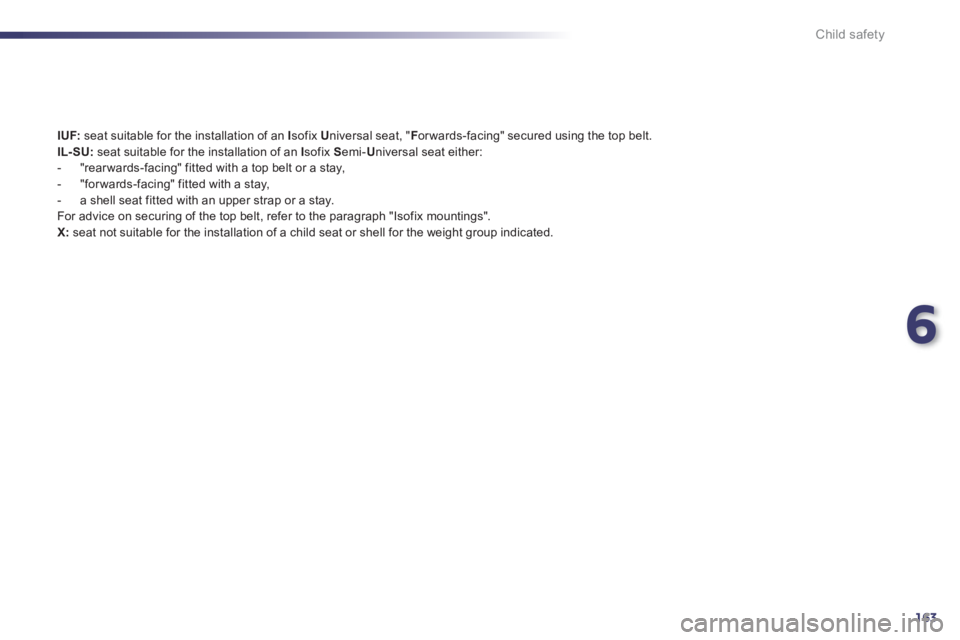

IUF:seat suitable for the installation of an Isofix U niversal seat, "F
orwards-facing" secured using the top belt.IL- SU:seat suitable for the installation of an I sofix S emi-U
niversal seat either:


- "rearwards-facing" fitted with a top belt or a stay,

- "forwards-facing" fitted with a stay,

- a shell seat fitted with an upper strap or a stay.
For advice on securing of the top belt, refer to the paragraph "Isofix mountings".
X:seat not suitable for the installation of a child seat or shell for the weight group indicated.

164
Child safety

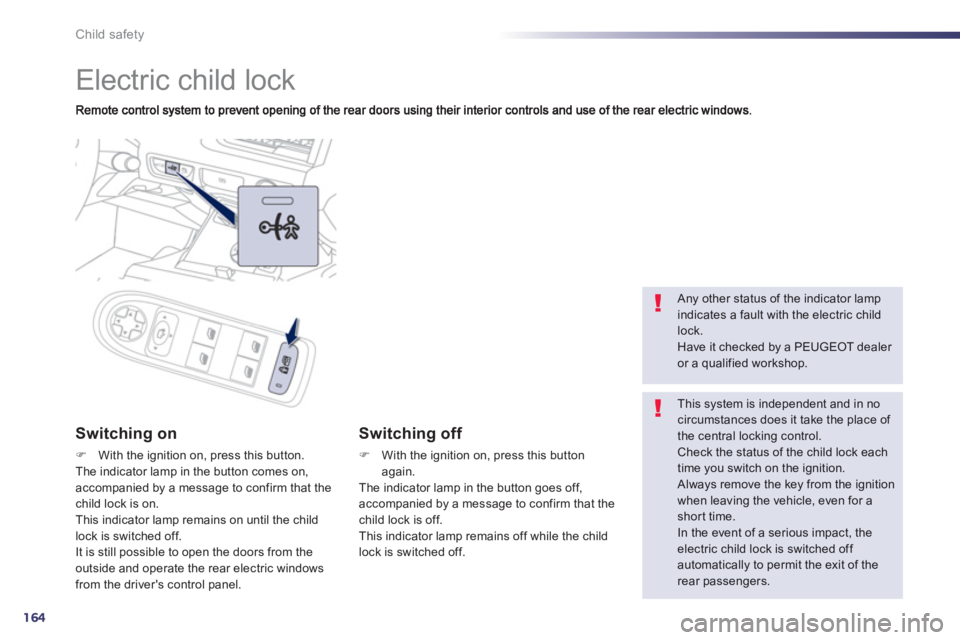

Electric child lock
Switching on
FWith the ignition on, press this button.The indicator lamp in the button comes on, accompanied by a message to confirm that the child lock is on.
This indicator lamp remains on until the child
l
ock is switched off.
It is still possible to open the doors from the
outside and operate the rear electric windows
from the driver's control panel.

Switching off
F
With the ignition on, press this button
again.
The indicator lamp in the button goes off,
accompanied by a message to confirm that thechild lock is off.
This indicator lamp remains off while the child
lock is switched off.


Any other status of the indicator lampindicates a fault with the electric child lock.
Have it checked by a PEUGEOT dealer or a qualified workshop.


This system is independent and in nocircumstances does it take the place of
the central locking control. Check the status of the child lock eachtime you switch on the ignition.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of a serious impact, the electric child lock is switched off automatically to permit the exit of therear passengers.

7
165
Safety

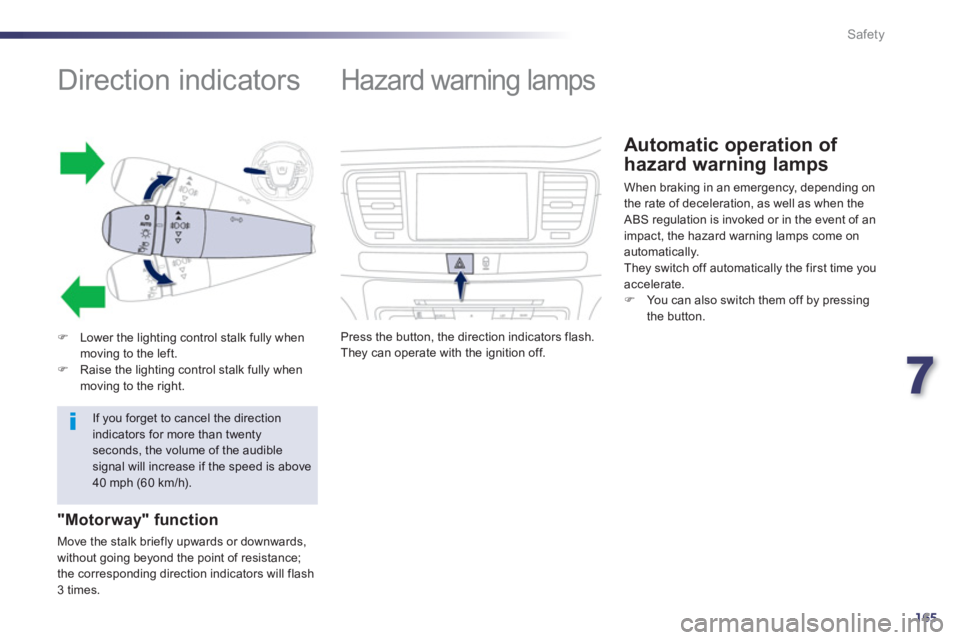

Direction indicators
F
Lower the lighting control stalk fully when moving to the left. F
Raise the lighting control stalk fully when moving to the right.


"Motorway" function

Move the stalk briefly upwards or downwards,
without going beyond the point of resistance;
the corresponding direction indicators will flash 3 times.
If you forget to cancel the direction indicators for more than twenty seconds, the volume of the audible signal will increase if the speed is above40 mph (60 km/h).




Hazard warning lamps
Press the button, the direction indicators flash.
They can operate with the ignition off.
Automatic operation of
hazard warnin
g lamps
When braking in an emergency, depending on
the rate of deceleration, as well as when the ABS regulation is invoked or in the event of animpact, the hazard warning lamps come on
automatically.
They switch off automatically the first time you accelerate.F
You can also switch them off by pressingthe button.

166
Safety

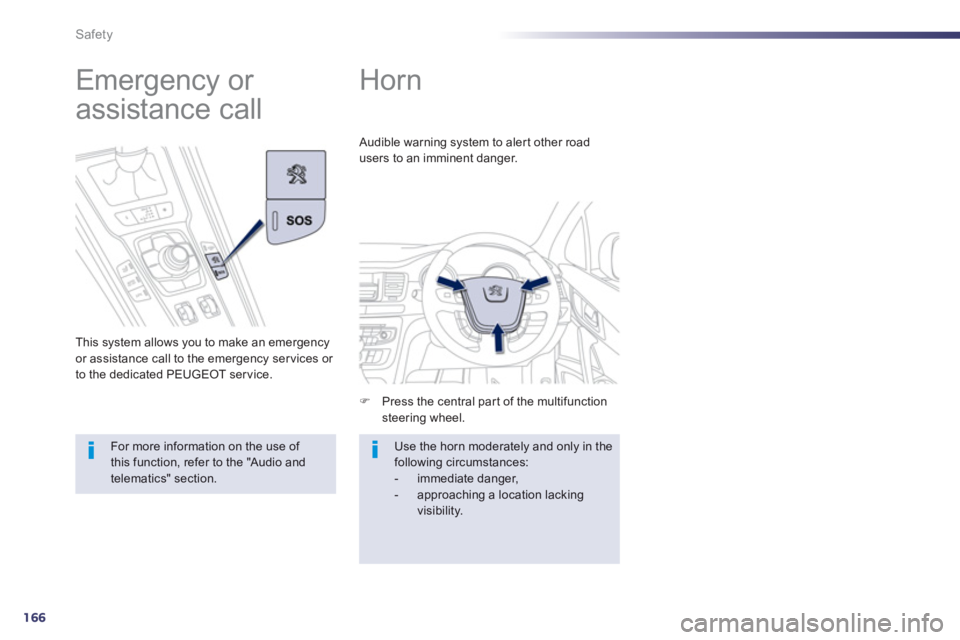

Horn
F
Press the central part of the multifunction steering wheel.
Audible warning system to alert other road
users to an imminent dan
ger.
Use the horn moderately and only in the following circumstances:


- immediate danger,

- approaching a location lackingvisibility.









Emergency or
assistance call
This system allows you to make an emergencyor assistance call to the emergency services or
to the dedicated PEUGEOT ser vice.

For more information on the use of this function, refer to the "Audio andtelematics" section.
