2013 Peugeot 508 Owner's Manual - RHD (UK, Australia)

3
87
Comfort

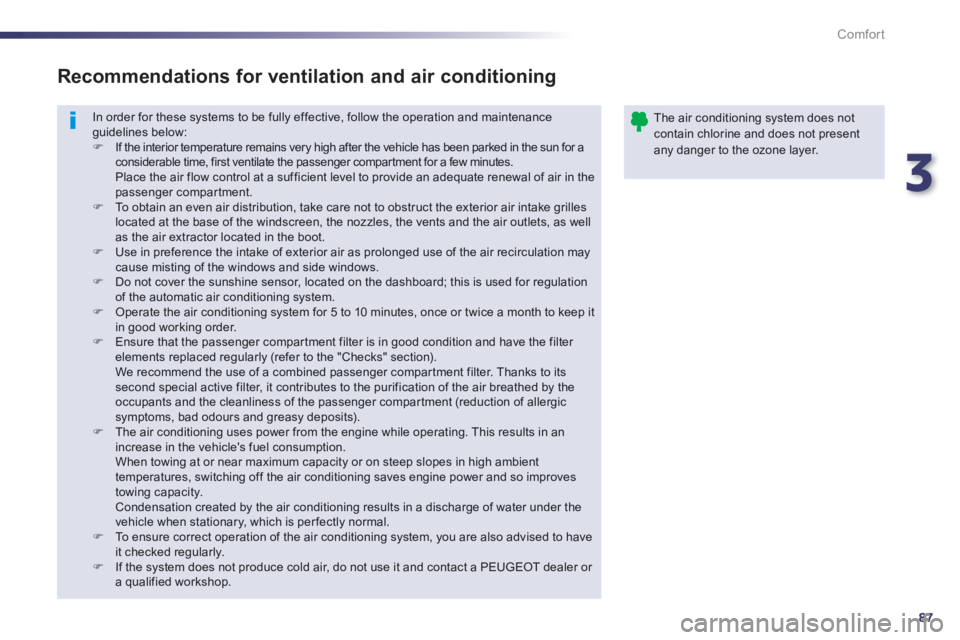

In order for these systems to be fully effective, follow the operation and maintenance guidelines below: F
If the interior temperature remains very high after the vehicle has been parked in the sun for a considerable time, first ventilate the passenger compar tment for a few minutes. Place the air flow control at a sufficient level to provide an adequate renewal of air in the passenger compartment.F
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. F
Use in preference the intake of exterior air as prolonged use of the air recirculation maycause misting of the windows and side windows.F
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the automatic air conditioning system.F
Operate the air conditioning system for 5 to 10 minutes, once or twice a month to keep itin good working order. F
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compartment filter. Thanks to its second special active filter, it contributes to the purification of the air breathed by the occupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).F
The air conditioning uses power from the engine while operating. This results in anincrease in the vehicle's fuel consumption. When towing at or near maximum capacity or on steep slopes in high ambient temperatures, switching off the air conditioning saves engine power and so improvestowing capacity. Condensation created by the air conditioning results in a discharge of water under thevehicle when stationary, which is per fectly normal.F
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly.F
If the system does not produce cold air, do not use it and contact a PEUGEOT dealer or a qualified workshop.
Recommendations for ventilation and air conditioning


The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.

88
Comfort

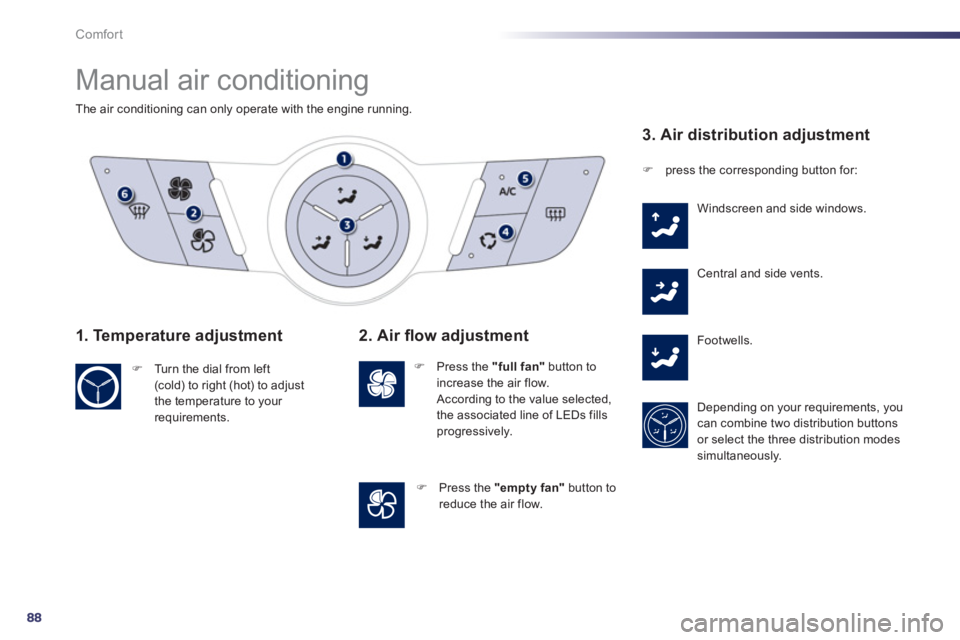

Manual air conditioning
The air conditioning can only operate with the engine running.
1. Temperature adjustment
F
Turn the dial from left(cold) to right (hot) to adjust
the temperature to your
requirements.



2. Air fl ow adjustment
F
Press the "full fan"
button to
increase the air flow.
According to the value selected,
the associated line of LEDs fills progressively.
F Press the "empty fan"
button toreduce the air flow.


3. Air distribution adjustment
F
press the corresponding button for:
Windscreen and side windows.
Central and side vents.
F
ootwells.
Depending on your requirements, you can combine two distribution buttons or select the three distribution modes
simultaneously.

3
89
Comfort

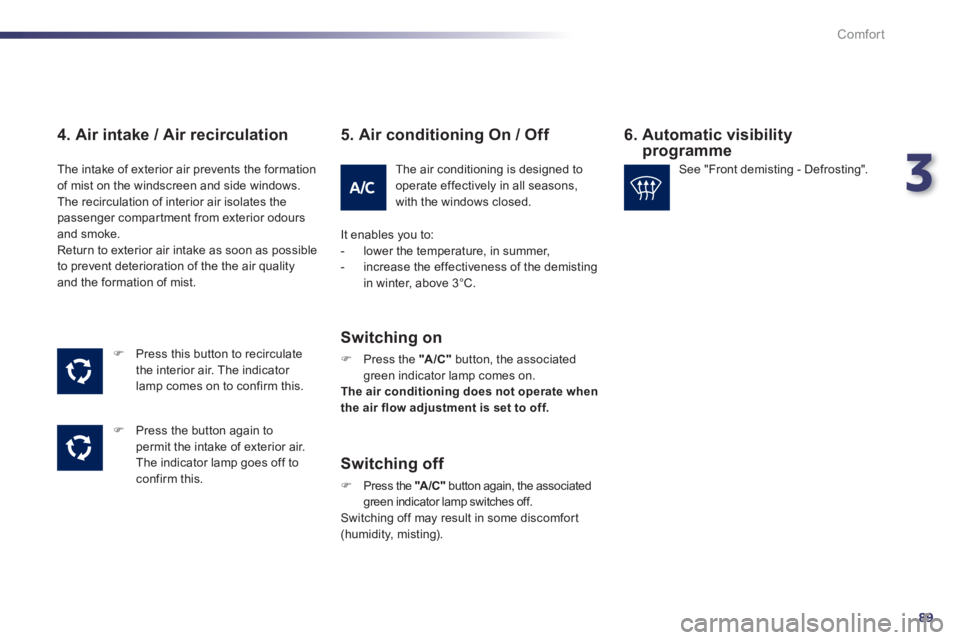

4. Air intake / Air recirculation
F
Press this button to recirculatethe interior air. The indicator
lamp comes on to confirm this.
F Press the button again to
permit the intake of exterior air.
The indicator lamp goes off toconfirm this.
The intake o
f exterior air prevents the formation of mist on the windscreen and side windows.
The recirculation of interior air isolates the passenger compartment from exterior odours and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the the air qualit
y and the formation of mist.
5. Air conditioning On / Off
The air conditioning is designed to operate effectively in all seasons,
with the windows closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting
in winter, above 3°C.
Switching on
FPress the "A/C"
button, the associatedgreen indicator lamp comes on.The air conditioning does not operate when
the air flow adjustment is set to off.
Switching off
FPress the "A/C"button again, the associatedgreen indicator lamp switches off. Switching off may result in some discomfort(humidity, misting).



6. Automatic visibility programme
See "Front demisting - Defrosting".

90
Comfort

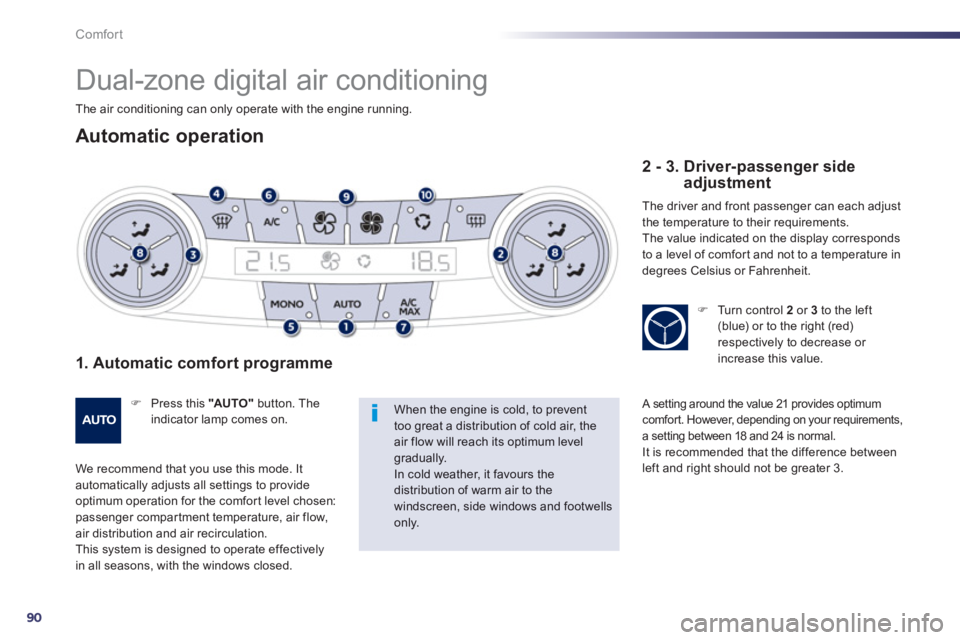

Dual-zone digital air conditioning
Automatic operation
1. Automatic comfort programme
F
Press this "AU TO "button. Theindicator lamp comes on.
We recommend that you use this mode. It automatically adjusts all settings to provide
optimum operation for the comfor t level chosen: passenger compar tment temperature, air flow, air distribution and air recirculation.
This system is designed to operate effectivelyin all seasons, with the windows closed.
When the engine is cold, to prevent too great a distribution of cold air, the air flow will reach its optimum levelgradually. In cold weather, it favours the distribution of warm air to the windscreen, side windows and footwells only.

2 - 3. Driver-passenger side adjustment

The driver and front passenger can each adjust
the temperature to their requirements.

The value indicated on the display corresponds
to a level of comfor t and not to a temperature in
degrees Celsius or Fahrenheit.
FTurn control 2or 3to the left(blue) or to the right (red) respectively to decrease or increase this value.
A setting around the value 21 provides optimum comfort. However, depending on your requirements,
a setting between 18 and 24 is normal. It is recommended that the difference between
left and right should not be greater 3. The air conditionin
g can only operate with the engine running.

3
91
Comfort

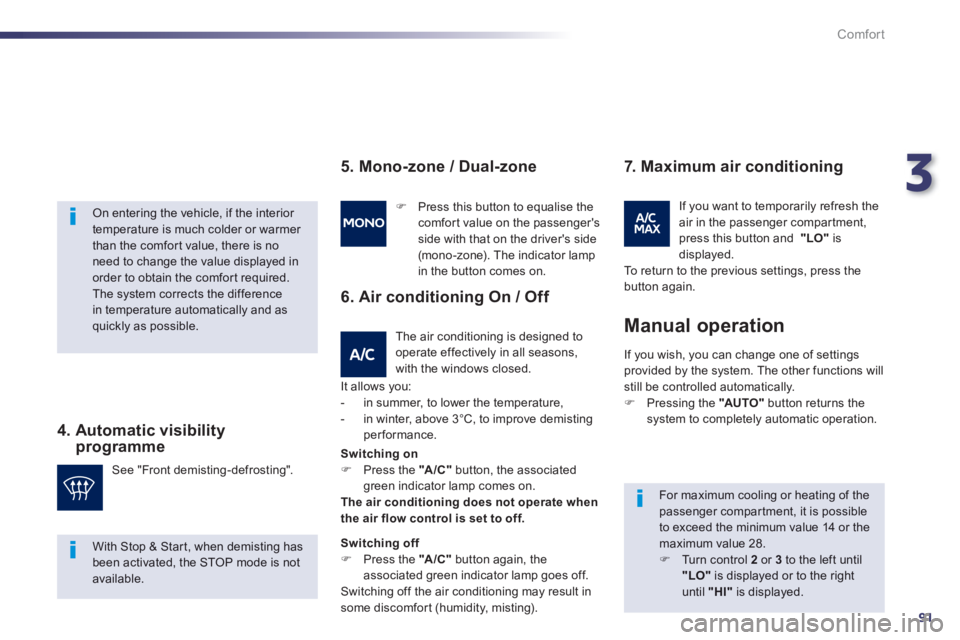

On entering the vehicle, if the interior temperature is much colder or warmer than the comfort value, there is noneed to change the value displayed in order to obtain the comfort required.The system corrects the differencein temperature automatically and asquickly as possible.

4. Automatic visibility programme

For maximum cooling or heating of thepassenger compartment, it is possibleto exceed the minimum value 14 or themaximum value 28.F
Turn control 2or 3
to the left until "LO"is displayed or to the right
until "HI"
is displayed. See "Front demistin
g-defrosting".
F
Press this button to equalise thecomfort value on the passenger's
side with that on the driver's side (mono-zone). The indicator lamp in the button comes on.

I
f you wish, you can change one of settings
provided by the system. The other functions will still be controlled automatically.F Pressing the "AUTO"
button returns the system to completely automatic operation.


Manual operation
5. Mono-zone / Dual-zone
The air conditioning is designed to operate effectively in all seasons,
with the windows closed.
6. Air conditioning On / Off
It allows you:
- in summer, to lower the temperature,
- in winter, above 3°C, to improve demistin
gperformance.


7. Maximum air conditioning
If you want to temporarily refresh theair in the passenger compartment,
press this button and "LO"isdisplayed.
To return to the previous settings, press the
button again.
With Stop & Start, when demisting has been activated, the STOP mode is notavailable.Switchin
g on
FPress the "A/C"button, the associated green indicator lamp comes on.The air conditioning does not operate when
the air flow control is set to off.
Switching offFPress the "A/C"
button again, the
associated green indicator lamp goes off.Switching off the air conditioning may result in
some discomfort (humidity, misting).

92
Comfort

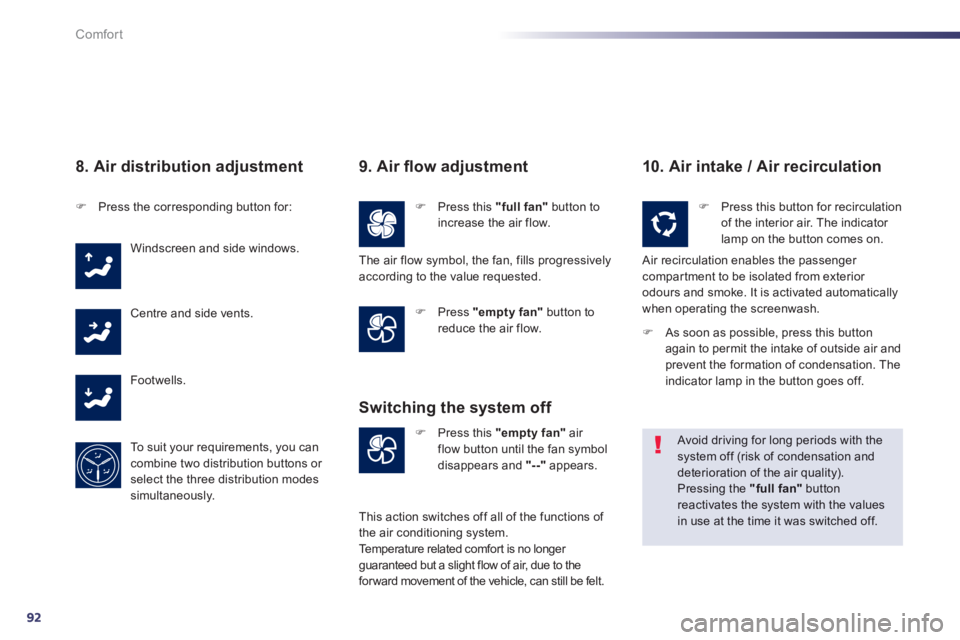

8. Air distribution adjustment
FPress the corresponding button for:

Windscreen and side windows.

Centre and side vents.
F
ootwells.
To s u i t
your requirements, you cancombine two distribution buttons or select the three distribution modes
simultaneously.


9. Air fl ow adjustment
FPress this "full fan"button toincrease the air flow.
FPress "empty fan"
button to reduce the air flow.



10. Air intake / Air recirculation
FPress this "empty fan"
air flow button until the fan symbol
disappears and "--"
appears.


Switching the system off
F
Press this button for recirculation of the interior air. The indicator
lamp on the button comes on.

Air recirculation enables the passenger compartment to be isolated from exterior
odours and smoke. It is activated automaticallywhen operating the screenwash.

Avoid driving for long periods with the system off (risk of condensation and deterioration of the air quality).
Pressing the "full fan"buttonreactivates the system with the valuesin use at the time it was switched off.
The air flow symbol, the fan, fills progressivelyaccording to the value requested.
Thi
s action switches off all of the functions of
t
he air conditioning system.
Temperature related comfor t is no longer guaranteed but a slight flow of air, due to theforward movement of the vehicle, can still be felt.
F
As soon as possible, press this buttonagain to permit the intake of outside air and prevent the formation of condensation. The
indicator lamp in the button goes off.

3
93
Comfort

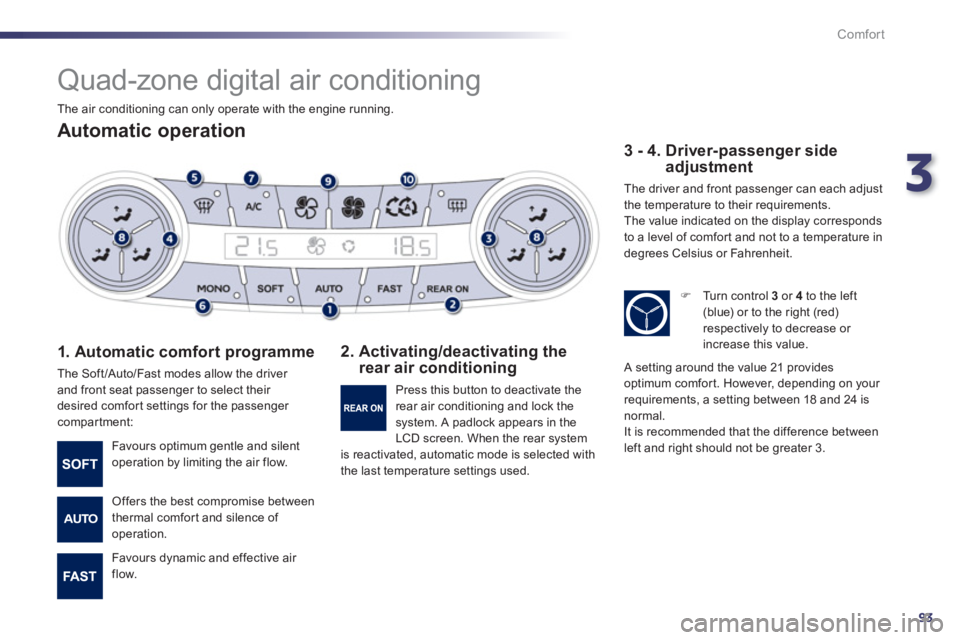

Quad-zone digital air conditioning

Automatic operation


1. Automatic comfort programme

The Soft/Auto/Fast modes allow the driver
and front seat passenger to select their
desired comfor t settings for the passenger compartment:
2. Activating/deactivating the rear air conditioning


3 - 4. Driver-passenger side
adjustment

The driver and front passenger can each adjust
the temperature to their requirements.
The value indicated on the display corresponds
to a level of comfor t and not to a temperature in
de
grees Celsius or Fahrenheit.
Favours optimum gentle and silent
operation by limiting the air flow.
Offers the best compromise between
thermal comfort and silence of
operation.
Favours d
ynamic and effective air
flow. Pr
ess this button to deactivate the
rear air conditioning and lock thesystem. A padlock appears in the
L
CD screen. When the rear system is reactivated, automatic mode is selected with
the last temperature settings used.
F
Turn control 3
or 4
to the left (blue) or to the right (red)respectively to decrease or
increase this value.

A setting around the value 21 providesoptimum comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
It is recommended that the difference between
left and right should not be greater 3.
The air conditionin
g can only operate with the engine running.

94
Comfort

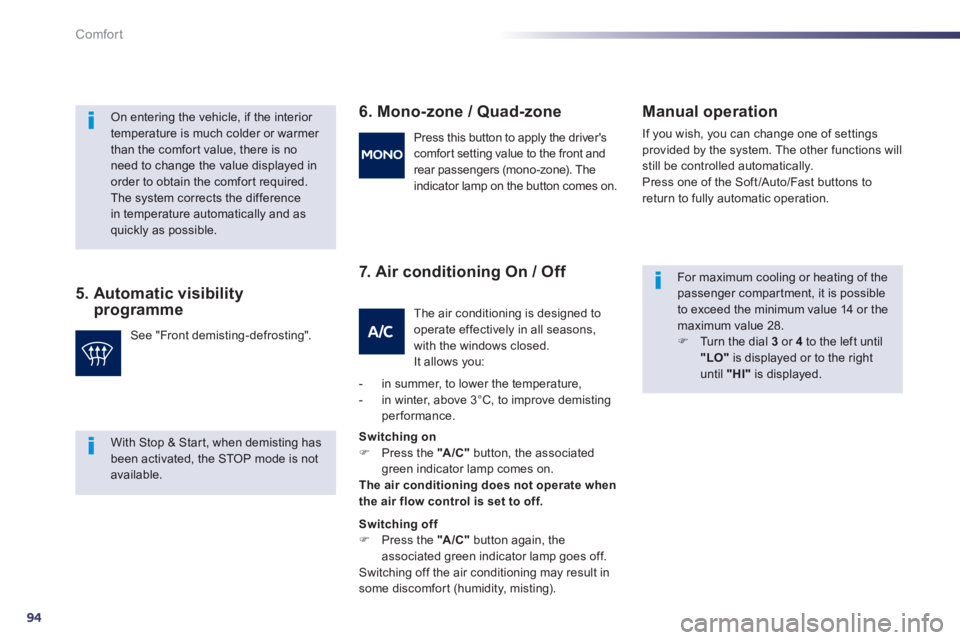

5. Automatic visibilityprogramme


6. Mono-zone / Quad-zone

7. Air conditionin
g On / Off
Manual o
peration

If you wish, you can change one of settings provided by the system. The other functions will still be controlled automatically.
Press one of the Soft/Auto/Fast buttons toreturn to fully automatic operation.

On entering the vehicle, if the interior temperature is much colder or warmer than the comfort value, there is noneed to change the value displayed in order to obtain the comfor t required.The system corrects the differencein temperature automatically and as quickly as possible.

See "Front demisting-defrosting". Press this button to apply the driver's
comfort setting value to the front and
rear passengers (mono-zone). The
indicator lamp on the button comes on.

The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
It allows you:


-
in summer, to lower the temperature,

- in winter, above 3°C, to improve demisting
performance.
Switchin
g onF Press the "A/C"button, the associated green indicator lamp comes on. The air conditioning does not operate when
the air flow control is set to off.
Switching offF Press the "A/C"button again, the
associated green indicator lamp goes off.
Switching off the air conditioning may result in
some discomfort (humidity, misting).

For maximum cooling or heating of thepassenger compar tment, it is possibleto exceed the minimum value 14 or themaximum value 28. F
Turn the dial 3
or 4
to the left until"LO"is displayed or to the right until "HI"
is displayed.

With Stop & Star t, when demisting hasbeen activated, the STOP mode is notavailable.
