2013 Peugeot 508 Owner's Manual - RHD (UK, Australia)

2
47
Access

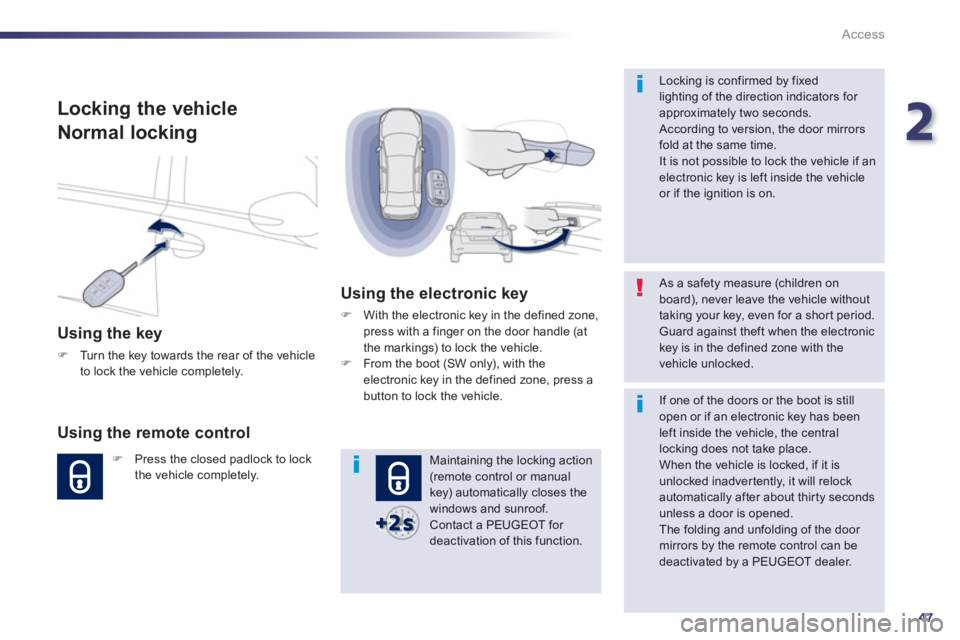

Locking the vehicle
Normal lockin
g


Using the key
F
Turn the key towards the rear of the vehicle
to lock the vehicle completely.

Using the remote control
FPress the closed padlock to lockthe vehicle completely.
Using the electronic key
FWith the electronic key in the defined zone,
press with a finger on the door handle (at
the markings) to lock the vehicle. FFrom the boot (SW only), with theelectronic key in the defined zone, press a button to lock the vehicle.


Maintaining the locking action (remote control or manual key) automatically closes the windows and sunroof.
Contact a PEUGEOT for deactivation of this function.


As a safety measure (children on board), never leave the vehicle withouttaking your key, even for a shor t period. Guard against theft when the electronickey is in the defined zone with the vehicle unlocked.


Locking is confirmed by fixedlighting of the direction indicators for approximately two seconds.
According to version, the door mirrorsfold at the same time.

It is not possible to lock the vehicle if an electronic key is left inside the vehicleor if the ignition is on.


If one of the doors or the boot is still open or if an electronic key has been left inside the vehicle, the centrallocking does not take place.
When the vehicle is locked, if it isunlocked inadvertently, it will relockautomatically after about thir ty secondsunless a door is opened.
The folding and unfolding of the door mirrors by the remote control can bedeactivated by a PEUGEOT dealer.

48
Access

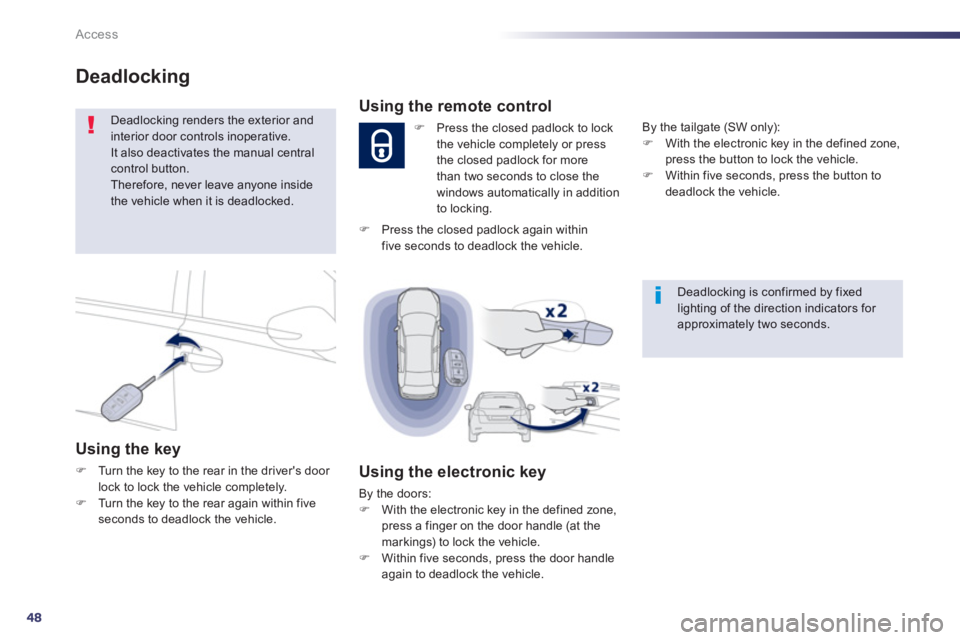

Deadlocking
Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button.
Therefore, never leave anyone insidethe vehicle when it is deadlocked.

Using the key
FTurn the key to the rear in the driver's door lock to lock the vehicle completely. FTurn the key to the rear again within fiveseconds to deadlock the vehicle.


Deadlocking is confirmed by fixedlighting of the direction indicators for approximately two seconds.


Using the remote control
F
Press the closed padlock to lock
the vehicle completely or press
the closed padlock for more
th
an two seconds to close the
windows automatically in addition
to locking.
Using the electronic key
By the doors: F
With the electronic key in the defined zone,
press a finger on the door handle (at the
markings) to lock the vehicle.F Within five seconds, press the door handle
again to deadlock the vehicle. B
y the tailgate (SW only):F
With the electronic key in the defined zone,
press the button to lock the vehicle. F
Within five seconds, press the button to deadlock the vehicle.

F
Press the closed padlock again within five seconds to deadlock the vehicle.

2
49
Access

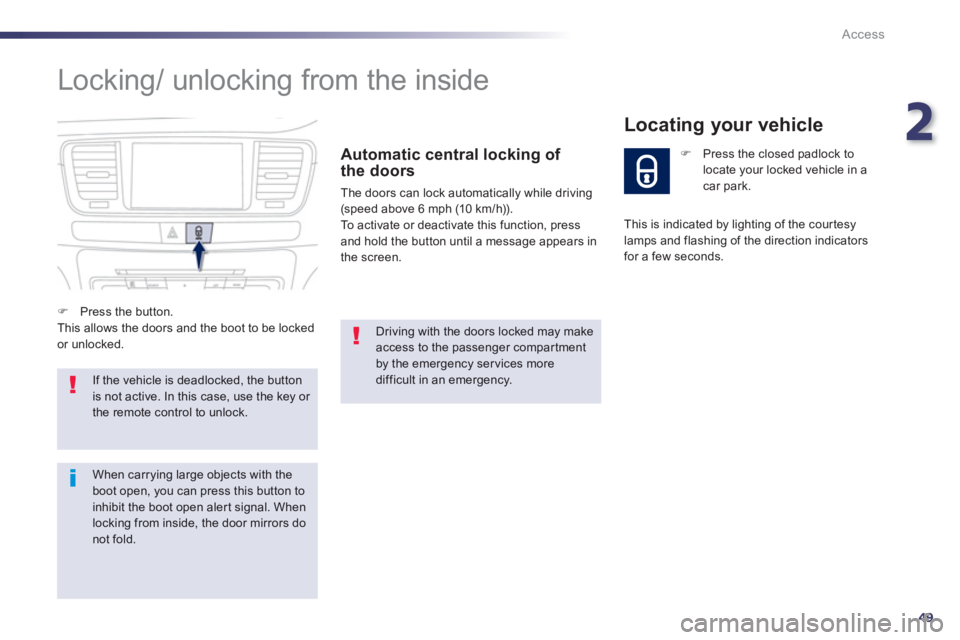

Locking/ unlocking from the inside
Automatic central locking of
the doors
The doors can lock automatically while driving(speed above 6 mph (10 km/h)).
To activate or deactivate this function, press
and hold the button until a message appears in
the screen.

If the vehicle is deadlocked, the buttonis not active. In this case, use the key or the remote control to unlock.
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
F
Press the closed padlock to locate your locked vehicle in acar park.
Locating your vehicle
F
Press the button.
This allows the doors and the boot to be locked or unlocked. This is indicated b
y lighting of the cour tesy
lamps and flashing of the direction indicatorsfor a few seconds.
When carrying large objects with the boot open, you can press this button toinhibit the boot open aler t signal. Whenlocking from inside, the door mirrors do not fold.

50
Access

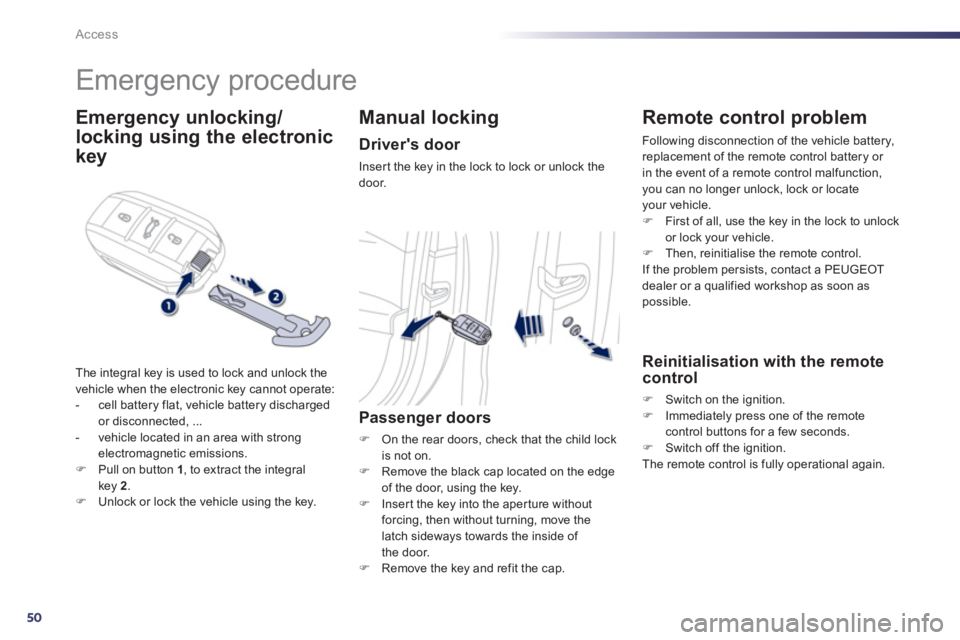

Emergency procedure
Emergency unlocking/
locking

using the electronic
ke
y
The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
- cell battery flat, vehicle battery discharged
or disconnected, ...
- vehicle located in an area with strongelectromagnetic emissions.FPull on button 1, to extract the integralkey 2.FUnlock or lock the vehicle using the key.


Manual locking


Driver's door

Inser t the key in the lock to lock or unlock thedoor.


Passenger doors
F
On the rear doors, check that the child lock
is not on. F Remove the black cap located on the edgeof the door, using the key.F
Inser t the key into the aper ture withoutforcing, then without turning, move the
latch sideways towards the inside of
the door.F Remove the key and refit the cap.
Remote control problem

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction
, you can no longer unlock, lock or locateyour vehicle.F First of all, use the key in the lock to unlock
or lock your vehicle. F Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer or a qualified workshop as soon as
possible.

Reinitialisation with the remote control
F
Switch on the ignition.F
Immediately press one of the remotecontrol buttons for a few seconds. F
Switch off the ignition.
The remote control is fully operational again.

2
51
Access

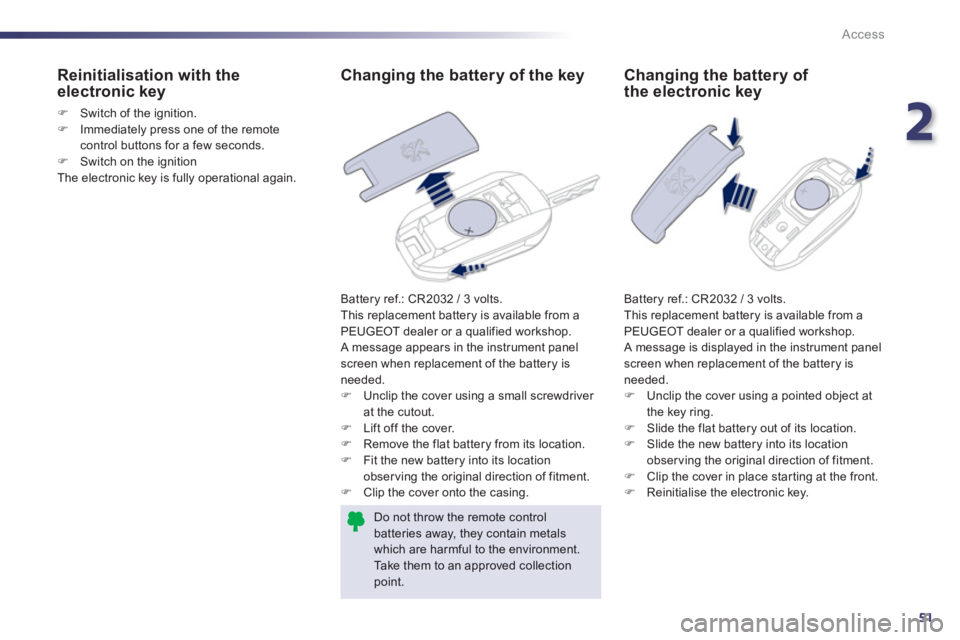

Changing the battery of the key
Battery ref.: CR2032 / 3 volts.
This replacement battery is available from a PEUGEOT dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is needed. FUnclip the cover using a small screwdriver at the cutout.
FLift off the cover.
FRemove the
flat battery from its location.
FFit the new battery into its location
observing the original direction of fitment.FClip the cover onto the casing.
Do not throw the remote controlbatteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.
Reinitialisation with the electronic key
F
Switch of the ignition. F
Immediately press one of the remotecontrol buttons for a few seconds.
F
Switch on the ignition
The electronic key is fully operational again.
Changing the battery of the electronic key

Battery ref.: CR2032 / 3 volts.
This replacement battery is available from a
PEUGEOT dealer or a qualified workshop.
A message is displayed in the instrument panel screen when replacement of the battery is
needed.F Unclip the cover using a pointed object at
the key ring. F Slide the flat battery out of its location.
F
Slide the new battery into its location
observing the original direction of fitment. F Clip the cover in place star ting at the front. F
Reinitialise the electronic key.

52
Access

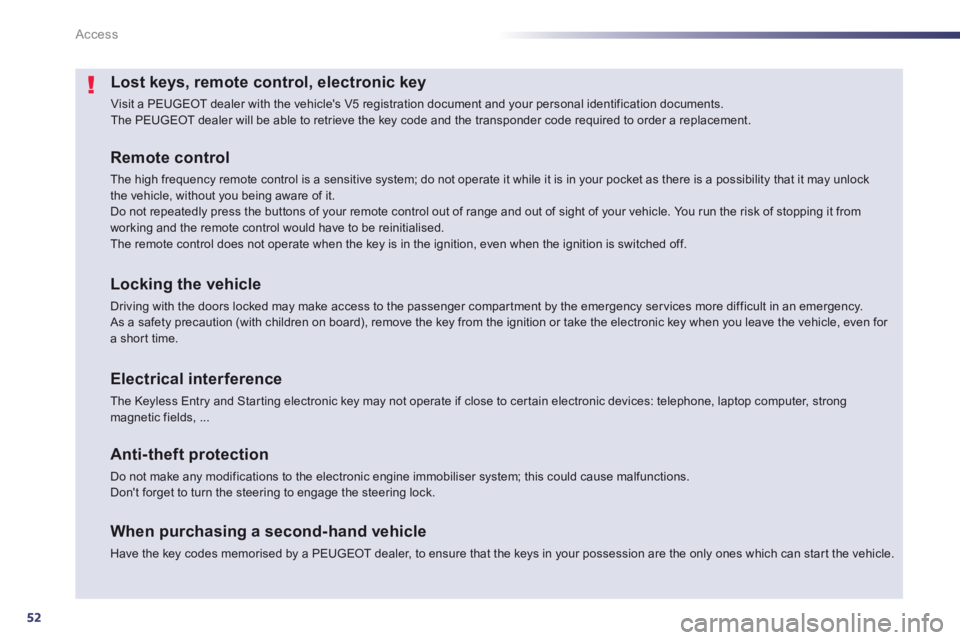

Lost keys, remote control, electronic key
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your personal identification documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlockthe vehicle, without you being aware of it. Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it fromworking and the remote control would have to be reinitialised.The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for a short time.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strongmagnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can star t the vehicle.

2
53
Access

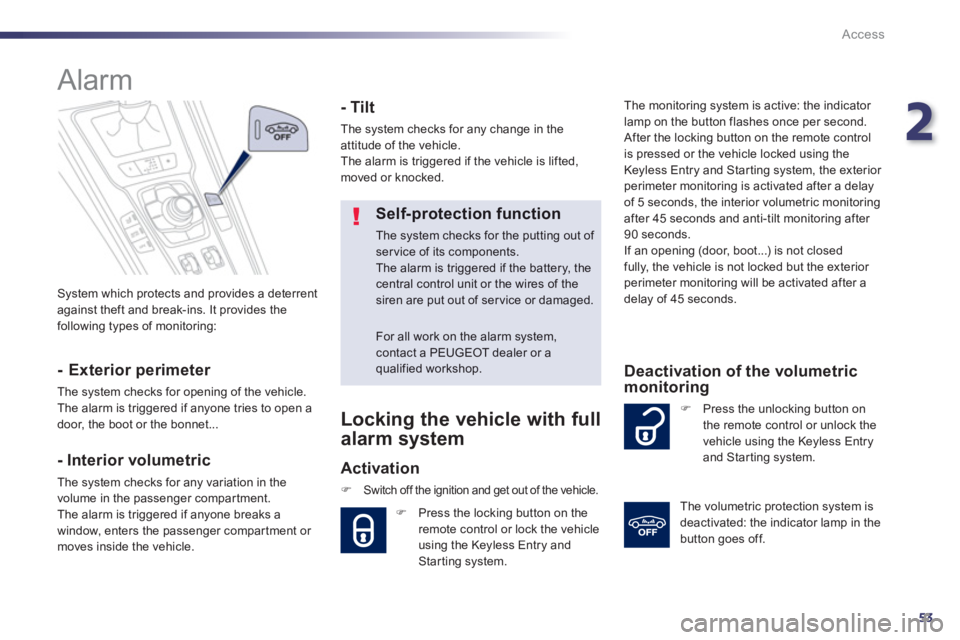

System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:





Alarm


- Exterior perimeter

The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...




- Interior volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compar tment or moves inside the vehicle.
- Tilt
The system checks for any change in the attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.


Self-protection function
The system checks for the putting out of ser vice of its components. The alarm is triggered if the battery, thecentral control unit or the wires of thesiren are put out of service or damaged.
For all work on the alarm system, contact a PEUGEOT dealer or aqualified workshop.
Locking the vehicle with full
alarm system
Activation
FSwitch off the ignition and get out of the vehicle.
F
Press the locking button on the
remote control or lock the vehicle
using the Keyless Entry and Starting system. The monitorin
g system is active: the indicator
lamp on the button flashes once per second.

After the locking button on the remote control is pressed or the vehicle locked using the
Ke
yless Entry and Starting system, the exterior
perimeter monitoring is activated after a delay of 5 seconds, the interior volumetric monitoring
after 45 seconds and anti-tilt monitoring after 90 seconds.
If an opening (door, boot...) is not closed fully, the vehicle is not locked but the exterior
perimeter monitoring will be activated after a
delay of 45 seconds.
F Press the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entryand Star ting system.

Deactivation of the volumetric monitoring

The volumetric protection system is
deactivated: the indicator lamp in the
button goes off.

54
Access

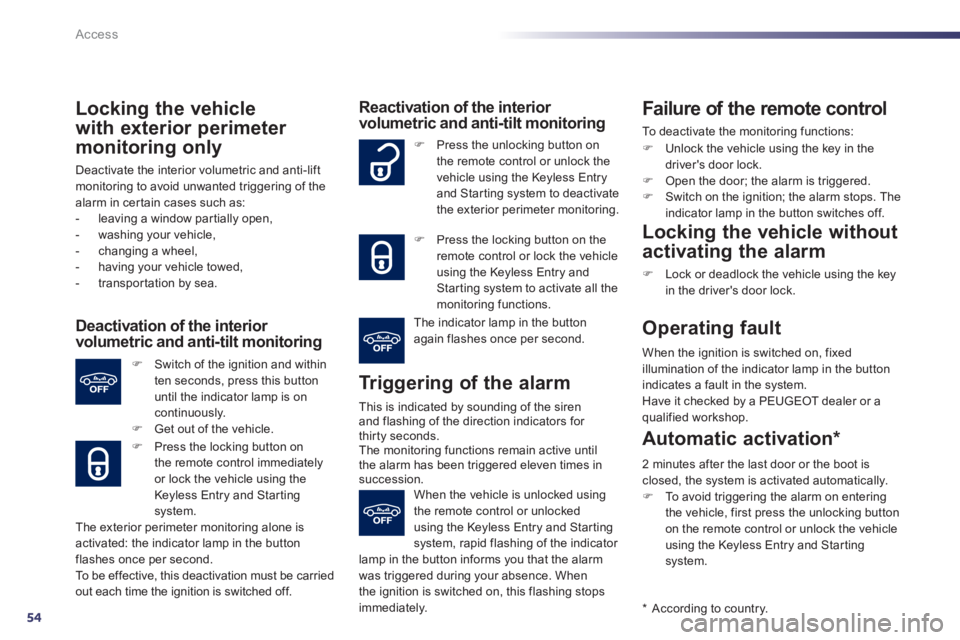

Locking the vehicle
w
ith exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-liftmonitoring to avoid unwanted triggering of thealarm in certain cases such as:
- leaving a window par tially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transportation by sea.
Deactivation of the interior volumetric and anti-tilt monitoring
F
Switch of the ignition and within
ten seconds, press this button
until the indicator lamp is on
continuously.F Get out of the vehicle.
F
Press the locking button on
the remote control immediatelyor lock the vehicle using the Keyless Entry and Starting system.
The exterior perimeter monitoring alone is activated: the indicator lamp in the button
flashes once per second.
To b e e
ffective, this deactivation must be carried
out each time the ignition is switched off.


Reactivation of the interior volumetric and anti-tilt monitoring


Tr iggering of the alarm


This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in succession.
FPress the unlocking button on
the remote control or unlock thevehicle using the Keyless Entry and Starting system to deactivate
the exterior perimeter monitoring.
F Press the locking button on theremote control or lock the vehicle
using the Keyless Entry and Starting system to activate all the monitoring functions.
The indicator lamp in the button
again flashes once per second.

When the vehicle is unlocked usingthe remote control or unlockedusing the Keyless Entry and Starting
system, rapid flashing of the indicator lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stopsimmediately.



Failure of the remote control

To deactivate the monitoring functions:
F
Unlock the vehicle using the key in thedriver's door lock. F
Open the door; the alarm is triggered.F
Switch on the ignition; the alarm stops. The
indicator lamp in the button switches off.




Locking the vehicle without
activating the alarm
F
Lock or deadlock the vehicle using the keyin the driver's door lock.


Operating fault


When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a PEUGEOT dealer or a qualified workshop.


*

According to country.


Automatic activation *



2 minutes after the last door or the boot isclosed, the system is activated automatically. F
To avoid triggering the alarm on entering
the vehicle, first press the unlocking buttonon the remote control or unlock the vehicleusing the Keyless Entry and Star ting system.
