2013 Peugeot 508 Owner's Manual - RHD (UK, Australia)

4

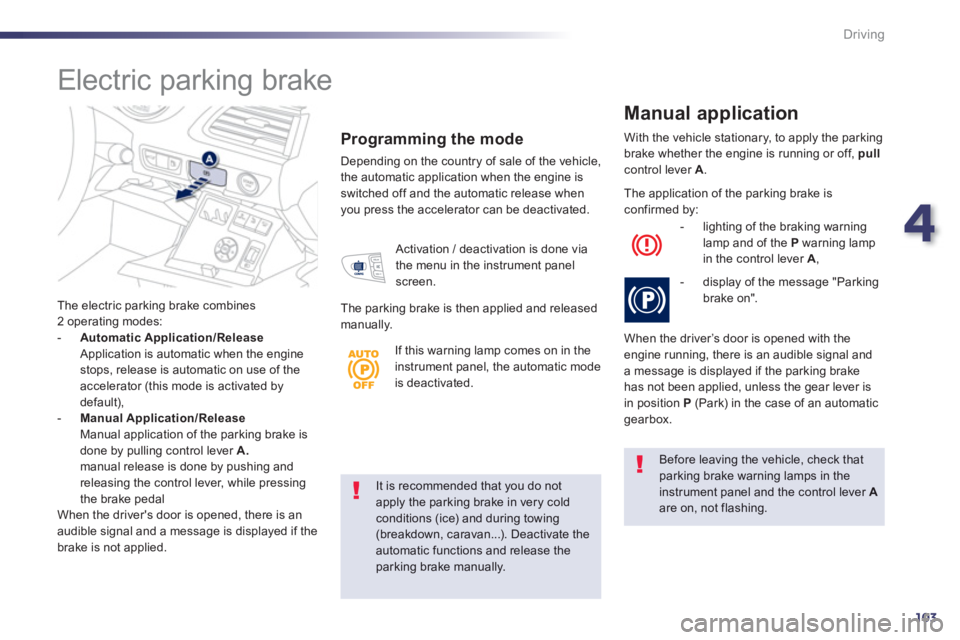

103
Driving
It is recommended that you do not apply the parking brake in very cold conditions (ice) and during towing
(breakdown, caravan...). Deactivate theautomatic functions and release theparking brake manually.



Before leaving the vehicle, check that parking brake warning lamps in the instrument panel and the control lever Aare on, not flashing.

The electric parking brake combines
2 operating modes:

-
Automatic Application/Release Application is automatic when the engine stops, release is automatic on use of the accelerator (this mode is activated by
default), -Manual Application/Release Manual application of the parking brake is done by pulling control lever A. manual release is done by pushing and releasing the control lever, while pressing
the brake pedal
When the driver's door is opened, there is an
audible si
gnal and a message is displayed if the
brake is not applied.

Programming the mode
Depending on the country of sale of the vehicle,
the automatic application when the engine is switched off and the automatic release whenyou press the accelerator can be deactivated. With the vehicle stationary, to apply the parking
brake whether the en
gine is running or off, pull
control lever A
.


Manual application
Activation / deactivation is done via
the menu in the instrument panel
screen.
The parkin
g brake is then applied and released
manually. The application o
f the parking brake isconfirmed by:


- li
ghting of the braking warning lamp and of the Pwarning lamp
in the control lever A,

- displa
y of the message "Parking brake on".
When the driver’s door is opened with the
engine running, there is an audible signal and
a message is displayed if the parking brake
has not been applied, unless the gear lever is in position P(Park) in the case of an automatic gearbox.








Electric parking brake
If this warning lamp comes on in the instrument panel, the automatic modeis deactivated.

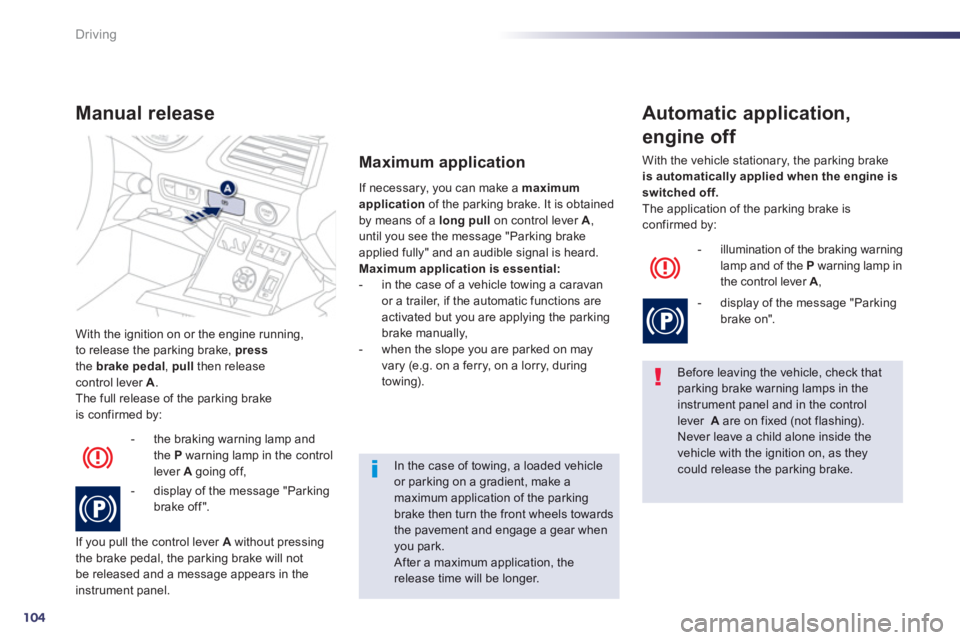

104
Driving
With the ignition on or the engine running,
to release the parking brake, pressthe brakepedal
, pullthen releasecontrol lever A
.
The full release of the parking brake
is confirmed by:
Manual release
- the braking warning lamp and
the P warning lamp in the controllever A
going off,
- displa
y of the message "Parking brake off".
I
f you pull the control lever Awithout pressing
the brake pedal, the parking brake will not
be released and a message appears in the
instrument panel. If necessar
y, you can make a maximum
applicationof the parking brake. It is obtained by means of a long pullon control lever A,
until you see the message "Parking brake
applied fully" and an audible signal is heard.Maximum application is essential:

- in the case of a vehicle towing a caravanor a trailer, if the automatic functions are
activated but you are applying the parkingbrake manually,

- when the slope you are parked on mayvary (e.g. on a ferry, on a lorry, during
towing).
Maximum application


Before leaving the vehicle, check that parking brake warning lamps in the instrument panel and in the control lever A
are on fixed (not flashing).

Never leave a child alone inside thevehicle with the ignition on, as they could release the parking brake.



Automatic application,
engine off



- illumination of the braking warning
lamp and of the Pwarning lamp in
the control lever A ,

- displa
y of the message "Parkingbrake on".
With the vehicle stationary, the parking brake is automatically applied when the engine is
switched off. The application of the parking brake is confirmed by:
In the case of towing, a loaded vehicleor parking on a gradient, make amaximum application of the parkingbrake then turn the front wheels towards the pavement and engage a gear whenyou park.
After a maximum application, the release time will be longer.

4

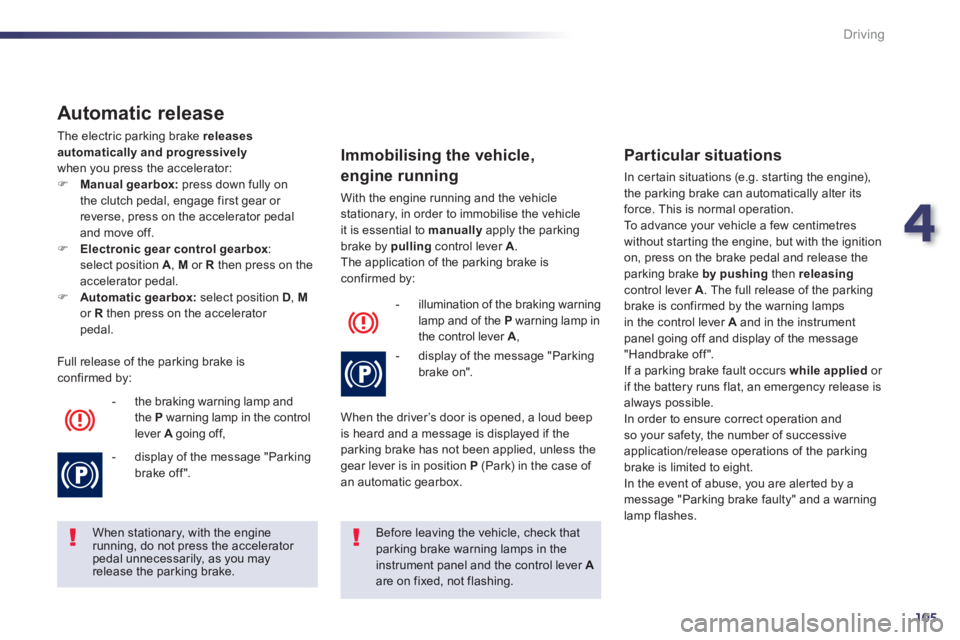

105
Driving

Automatic release

The electric parking brake releases automatically and progressively
when you press the accelerator:FManual gearbox:
press down fully on
the clutch pedal, engage first gear or reverse, press on the accelerator pedaland move off.FElectronic gear control gearbox : select position A
, M
or Rthen press on theaccelerator pedal. F Automatic gearbox:select position D , Mor Rthen press on the accelerator pedal.
Full release o
f the parking brake is confirmed by:
- the braking warning lamp and
th
e P warning lamp in the control
lever Agoing off, A
- display of the message "Parking brake off".


When stationary, with the engine running, do not press the accelerator pedal unnecessarily, as you may release the parking brake.
Before leaving the vehicle, check thatparking brake warning lamps in theinstrument panel and the control lever Aare on fixed, not flashing.


Immobilising the vehicle,
engine running
With the engine running and the vehicle
stationary, in order to immobilise the vehicle it is essential to manually
apply the parking
brake by pulling
control lever A.
The application of the parking brake is confirmed by:


- illumination o
f the braking warning
lamp and of the Pwarning lamp in
the control lever A ,

- displa
y of the message "Parkingbrake on".
When the driver’s door is opened, a loud beep
is heard and a message is displayed if theparking brake has not been applied, unless thegear lever is in position P (Park) in the case of an automatic gearbox.

Particular situations

In cer tain situations (e.g. star ting the engine),
the parking brake can automatically alter itsforce. This is normal operation.
To advance your vehicle a few centimetres
without star ting the engine, but with the ignition on, press on the brake pedal and release the
parking brake by pushing then releasingcontrol lever A
. The full release of the parking
brake is confirmed by the warning lamps in the control lever Aand in the instrument
panel going off and display of the message
"Handbrake off".
If a parking brake fault occurs while appliedor
if the battery runs flat, an emergency release is
always possible.
In order to ensure correct operation and
so your safety, the number of successive
application/release operations of the parking brake is limited to eight.
In the event of abuse, you are aler ted by a
message "Parking brake faulty" and a warning
lamp flashes.

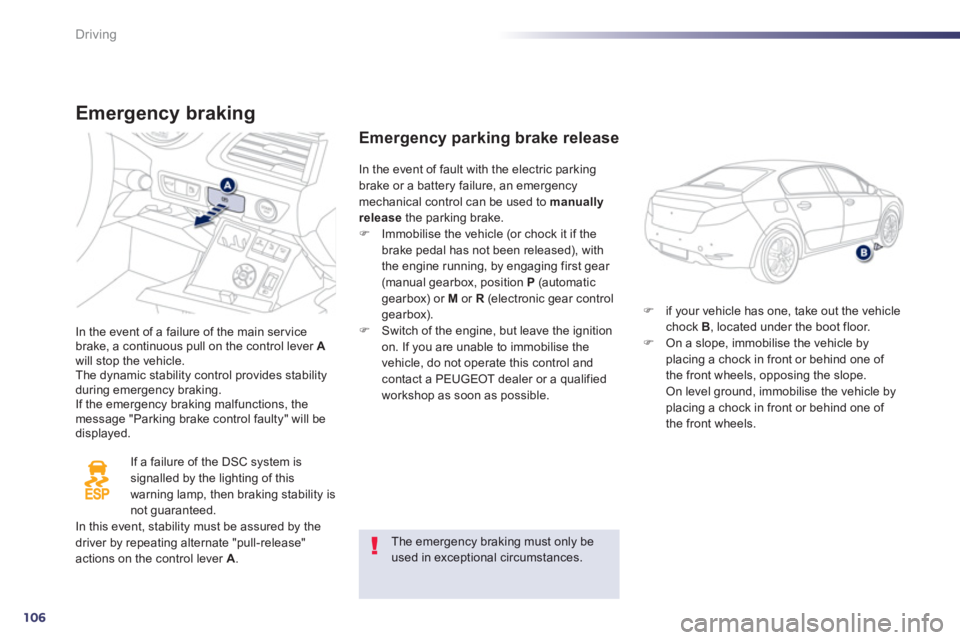

106
Driving
Emergency braking
In the event of a failure of the main servicebrake, a continuous pull on the control lever Awill stop the vehicle.The dynamic stability control provides stability during emergency braking.
If the emergency braking malfunctions, themessage "Parking brake control faulty" will be displayed.

If a failure of the DSC s
ystem is
signalled by the lighting of this
warning lamp, then braking stability is
not guaranteed.In this event, stability must be assured by thedriver by repeating alternate "pull-release" actions on the control lever A.
Emergency parking brake release
Fif your vehicle has one, take out the vehicle chock B , located under the boot floor. FOn a slope, immobilise the vehicle byplacing a chock in front or behind one of
the front wheels, opposing the slope. On level ground, immobilise the vehicle byplacing a chock in front or behind one of
the front wheels.
In the event o
f fault with the electric parkingbrake or a battery failure, an emergencymechanical control can be used to manually
releasethe parking brake.F Immobilise the vehicle (or chock it if the
brake pedal has not been released), with
the engine running, by engaging first gear (manual gearbox, position P(automatic gearbox) or M or R(electronic gear control
gearbox). F Switch of the engine, but leave the ignition on. If you are unable to immobilise the
vehicle, do not operate this control and
contact a PEUGEOT dealer or a qualified
workshop as soon as possible.
The emergency braking must only be used in exceptional circumstances.

4
107
Driving
F Pass your fingers under the edge of the
gaiter (below the gear lever surround).F
Unclip the surround by spreading the
tongues (located below) then pull away theassembly of surround and gaiter.


With an emergency release,immobilisation of the vehicle is nolonger be assured once the mechanical release has started and the mechanical
control cannot be used to apply theparking brake again.
Do not carry out any action on lever A , or stop / star t the engine while therelease control is engaged.
Have it checked by a PEUGEOT dealer or a qualified workshop.
The control C
cannot be used to apply the parking brake.
To r e - e ngage the electric parking brake(after correction of the fault or batteryfailure), make a long pull on the controllever A
until the parking brake warninglamp (!) flashes in the instrument panel, then make a second long pull until this warning lamp comes on fixed (not flashing).
FTurn the surround/gaiter assembly for
access to the lever.FPull hard on the control C
to release theparking brake. A loud knock confirms the release of the brake. FTake care to refit the control in its housing.
FReplace the surround/gaiter assembly.

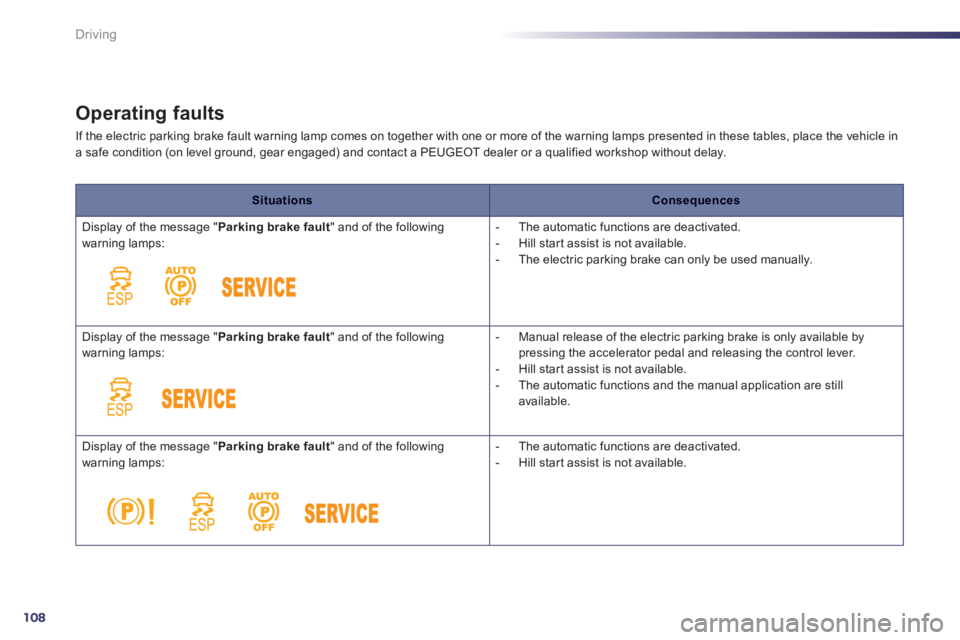

108
Driving
Operating faults
If the electric parking brake fault warning lamp comes on together with one or more of the warning lamps presented in these tables, place the vehicle ina safe condition (on level ground, gear engaged) and contact a PEUGEOT dealer or a qualified workshop without delay.
SituationsConsequences
Displa
y of the message "Parking brake fault" and of the following
warning lamps:

- The automatic functions are deactivated.

- Hill start assist is not available.

- The electric parking brake can only be used manually.
Displa
y of the message "Parking brake fault" and of the following
warning lamps:

- Manual release of the electric parking brake is only available by pressing the accelerator pedal and releasing the control lever.

- Hill start assist is not available.

- The automatic functions and the manual application are still available.
Displa
y of the message "Parking brake fault" and of the following
warning lamps:

- The automatic functions are deactivated.

- Hill start assist is not available.

4

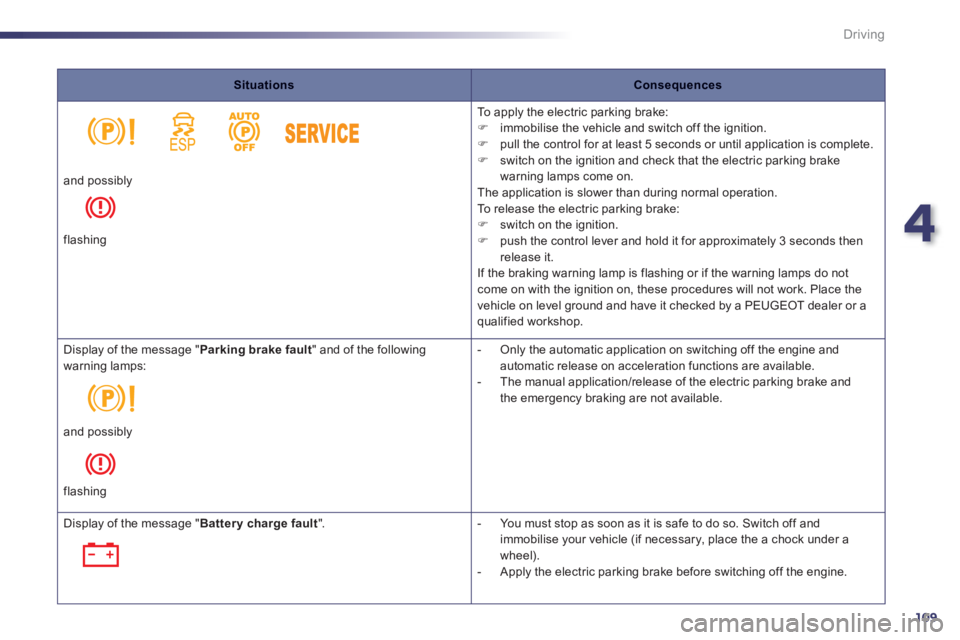

109
Driving
SituationsConsequences
To apply the electric parking brake: F immobilise the vehicle and switch off the ignition. F
pull the control for at least 5 seconds or until application is complete.F
switch on the ignition and check that the electric parking brake
warning lamps come on.
The application is slower than during normal operation.
To release the electric parking brake:
F
switch on the ignition. F
push the control lever and hold it for approximately 3 seconds then
release it.
If the braking warning lamp is flashing or if the warning lamps do not come on with the ignition on, these procedures will not work. Place the
vehicle on level ground and have it checked by a PEUGEOT dealer or aqualified workshop. and possibl
y

flashing
Display of the message "Parking brake fault" and of the following warning lamps:

- Only the automatic application on switching off the engine andautomatic release on acceleration functions are available.

- The manual application/release of the electric parking brake and
the emergency braking are not available.
and possibly
flashin
g

Display of the message "Battery charge fault".

- You must stop as soon as it is safe to do so. Switch off and
immobilise
your vehicle (if necessary, place the a chock under a
wheel).

- Apply the electric parking brake before switching off the engine.

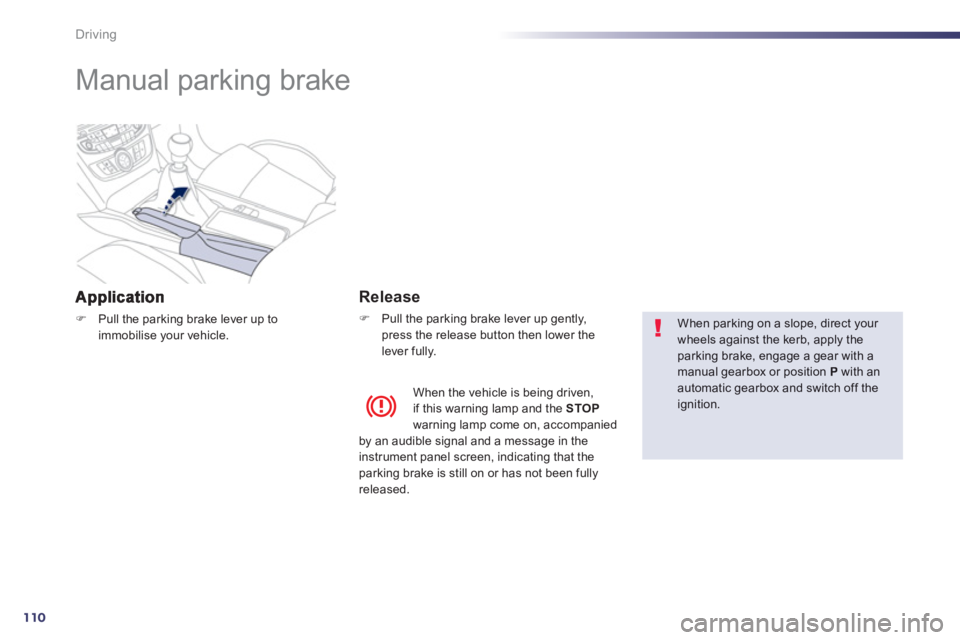

110
Driving





Manual parking brake
FPull the parking brake lever up toimmobilise your vehicle.



Release
F
Pull the parking brake lever up gently,
press the release button then lower the
lever fully.
When parking on a slope, direct your wheels against the kerb, apply theparking brake, engage a gear with amanual gearbox or position P
with an automatic gearbox and switch off theignition. When the vehicle is being driven,
if this warning lamp and the STOPwarning lamp come on, accompanied by an audible signal and a message in the
instrument panel screen, indicating that the
parking brake is still on or has not been fullyreleased.
