2013 Peugeot 508 Owner's Manual - RHD (UK, Australia)

2
55
Access

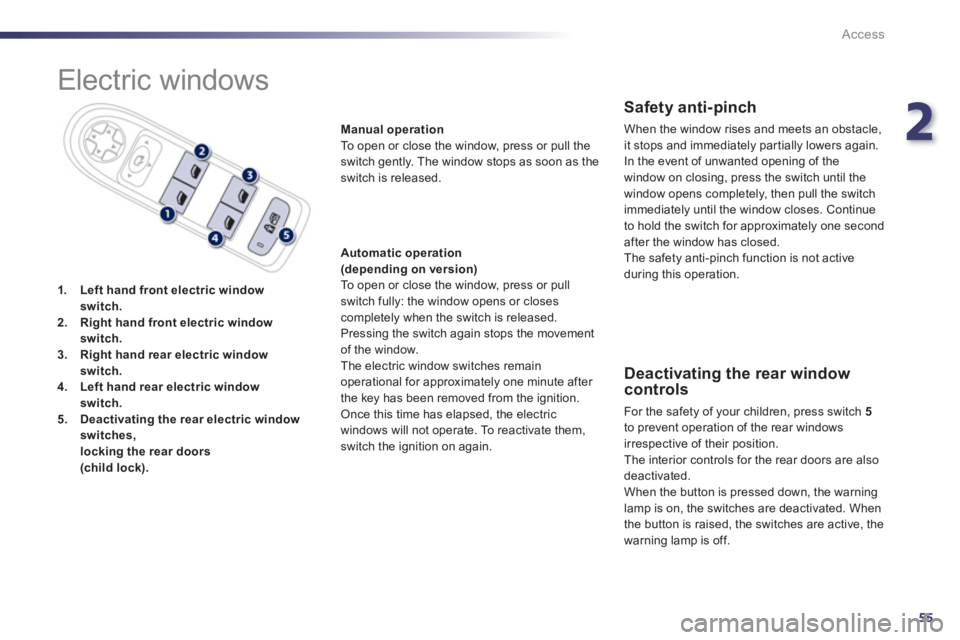

Electric windows
1.Left hand front electric windowswitch.2.Right hand front electric window
switch.3.Right hand rear electric windowswitch.4.Left hand rear electric windowswitch.5.Deactivating the rear electric window
sw
itches,locking the rear doors(child lock).
Manual operationTo open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.
Automatic operation(depending on version)To open or close the window, press or pull
switch fully: the window opens or closescompletely when the switch is released.Pressing the switch again stops the movementof the window.
The electric window switches remain
operational for approximately one minute after
the key has been removed from the ignition.Once this time has elapsed, the electric
windows will not operate. To reactivate them,
switch the ignition on again.

Safety anti-pinch

When the window rises and meets an obstacle,it stops and immediately partially lowers again.
In the event o
f unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediatel
y until the window closes. Continue
to hold the switch for approximately one secondafter the window has closed.
The safety anti-pinch function is not active
during this operation.

Deactivating the rear window controls

For the safety of your children, press switch 5
to prevent operation of the rear windows
irrespective of their position.
Th
e interior controls for the rear doors are also deactivated.
When the button is pressed down, the warning lamp is on, the switches are deactivated. When
the button is raised, the switches are active, the
warning lamp is off.

56
Access

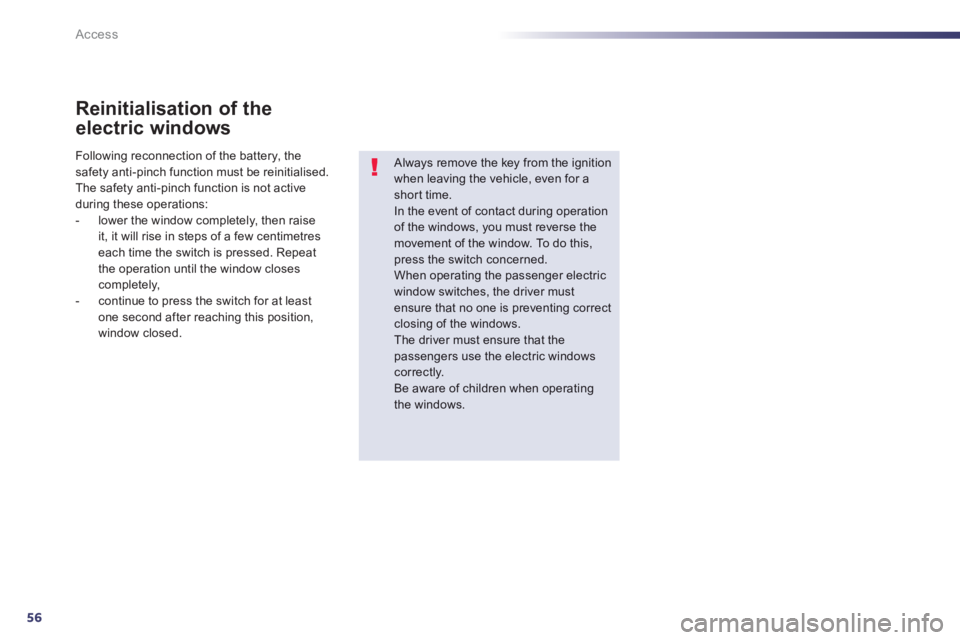

Reinitialisation of the
electric windows

Always remove the key from the ignition when leaving the vehicle, even for ashort time. In the event of contact during operation
of the windows, you must reverse themovement of the window. To do this, press the switch concerned.When operating the passenger electric window switches, the driver must ensure that no one is preventing correctclosing of the windows. The driver must ensure that thepassengers use the electric windows correctly.Be aware of children when operatingthe windows. Followin
g reconnection of the battery, thesafety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations:
- lower the window completely, then raise it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,
- continue to press the switch for at least
one second after reaching this position,
window closed.

2
57
Access

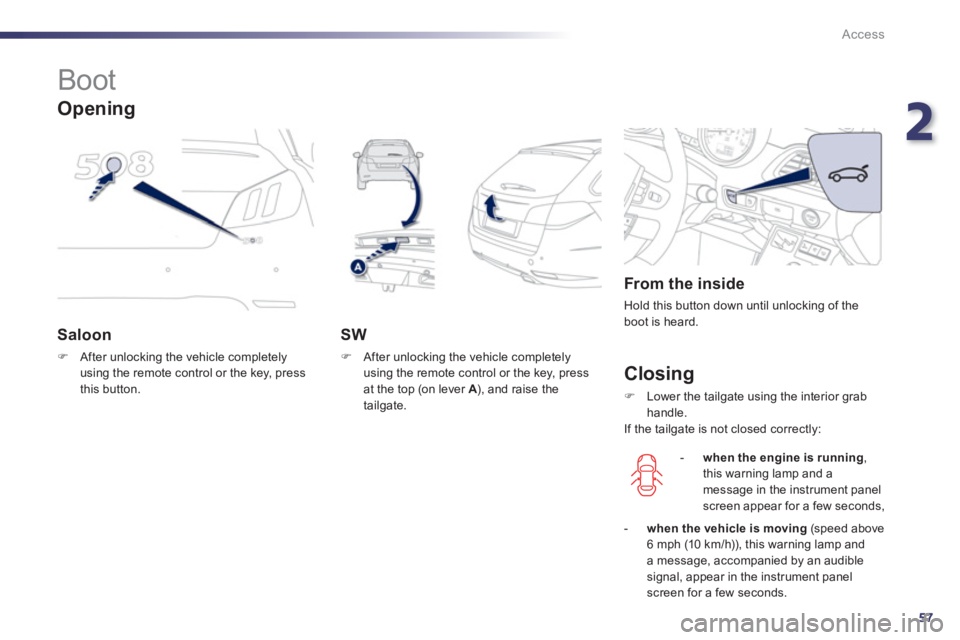

Boot


Saloon
FAfter unlocking the vehicle completely
using the remote control or the key, press
thi
s button.

SW
FAfter unlocking the vehicle completelyusing the remote control or the key, press
at the top (on lever A), and raise the Atailgate.



From the inside

Hold this button down until unlocking of theboot is heard.


Opening

Closin
g
F
Lower the tailgate using the interior grabhandle.
If the tailgate is not closed correctly:


-
when the engine is running
,
this warning lamp and a
message in the instrument panelscreen appear for a few seconds,
-when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp and
a message, accompanied by an audiblesignal, appear in the instrument panel
screen for a few seconds.

58
Access

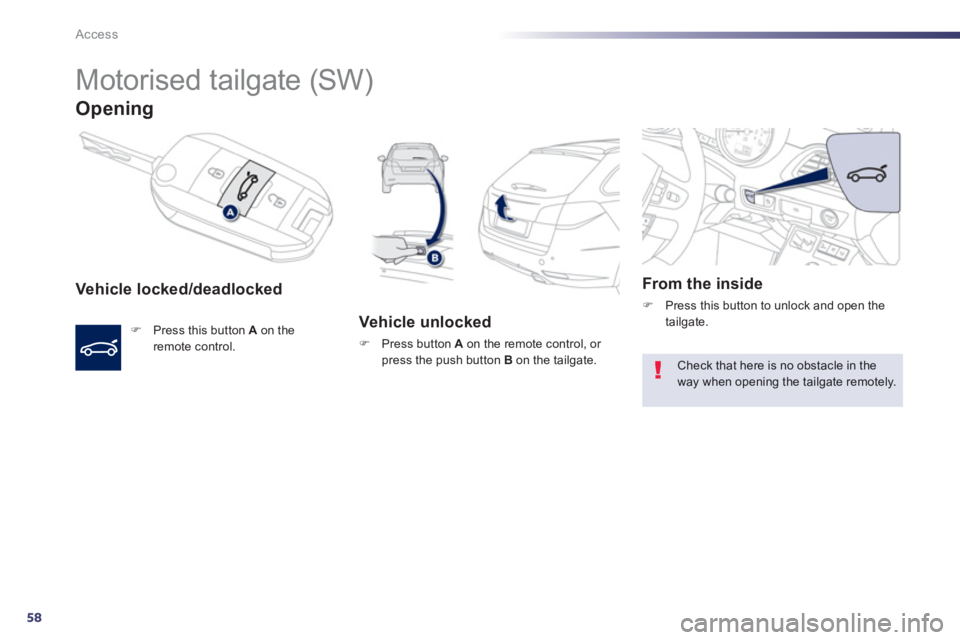

Motorised tailgate (SW)
Opening
Vehicle locked/deadlocked
F
Press this button Aon the
remote control.


Vehicle unlocked
F
Press button A
on the remote control, or press the push button B
on the tailgate.


From the inside
F
Press this button to unlock and open the
tailgate.


Check that here is no obstacle in the way when opening the tailgate remotely.

2
59
Access

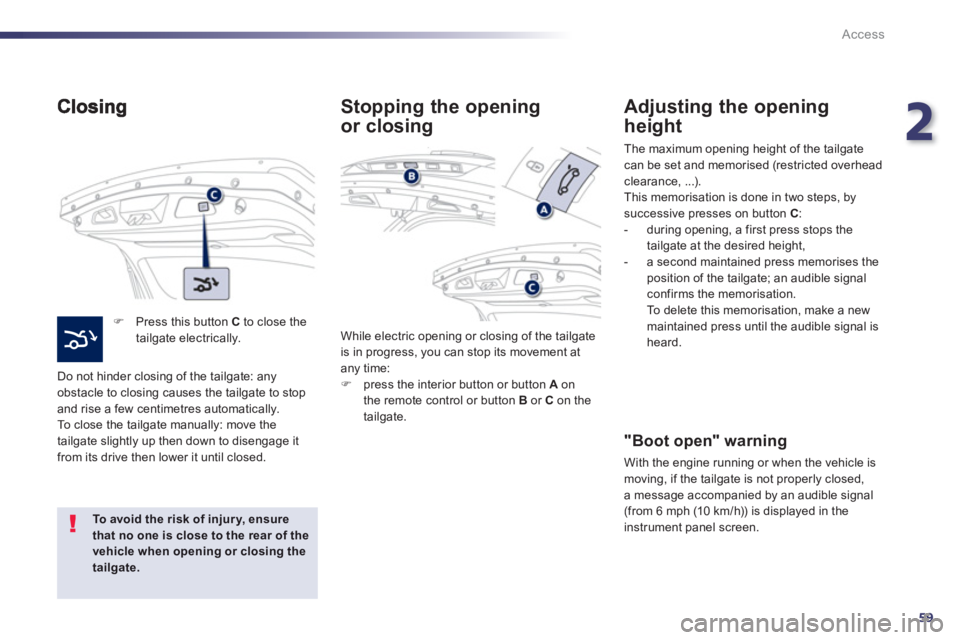

F Press this button Cto close thetailgate electrically.
Do not hinder closin
g of the tailgate: any
obstacle to closing causes the tailgate to stop
and rise a few centimetres automatically.
To close the tailgate manually: move the
tailgate slightly up then down to disengage it
from its drive then lower it until closed.
To avoid the risk of injury, ensure
that no one is close to the rear of thevehicle when opening or closing thetailgate.
While electric opening or closing of the tailgateis in progress, you can stop its movement atany time:
Fpress the interior button or button A
on
the remote control or button Bor C
on thetailgate.

Stopping the opening
or closing
Ad
justing the opening
height

The maximum opening height of the tailgate can be set and memorised (restricted overheadclearance, ...).
This memorisation is done in two steps, by
successive presses on button C:


- during opening, a first press stops the
tailgate at the desired height,

- a second maintained press memorises the
position of the tailgate; an audible signal confirms the memorisation.
To delete this memorisation, make a newmaintained press until the audible signal isheard.
"Boot open" warning
With the engine running or when the vehicle is
moving, if the tailgate is not properly closed,
a message accompanied by an audible signal
(from 6 mph (10 km/h)) is displayed in the
instrument panel screen.

60
Access

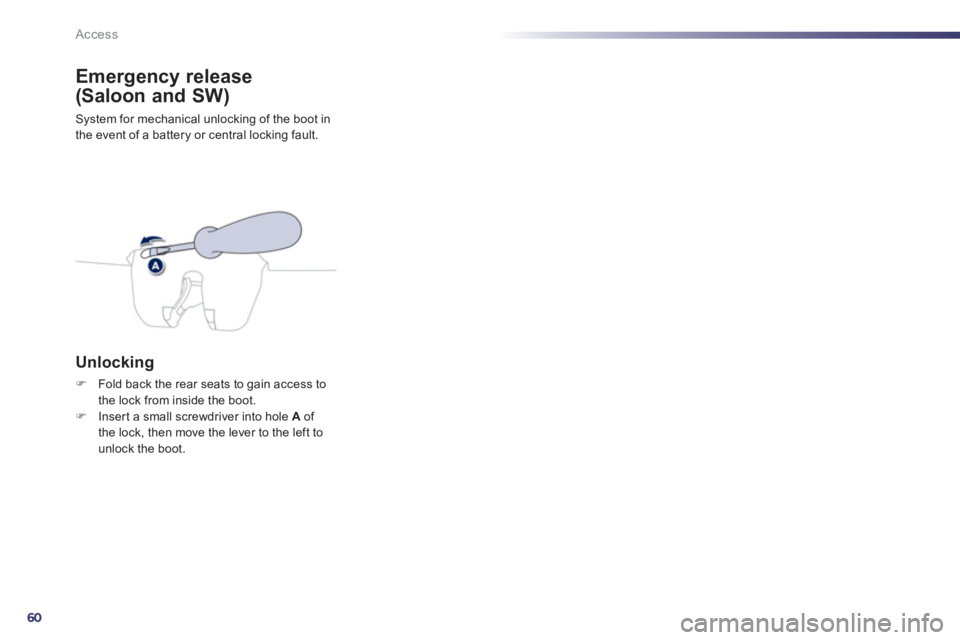

Emergency release
(Saloon and SW)
System for mechanical unlocking of the boot in
the event of a battery or central locking fault.
Unlocking
FFold back the rear seats to gain access to
the lock from inside the boot.FInsert a small screwdriver into hole A of
the lock, then move the lever to the le
ft tounlock the boot.

2
61
Access

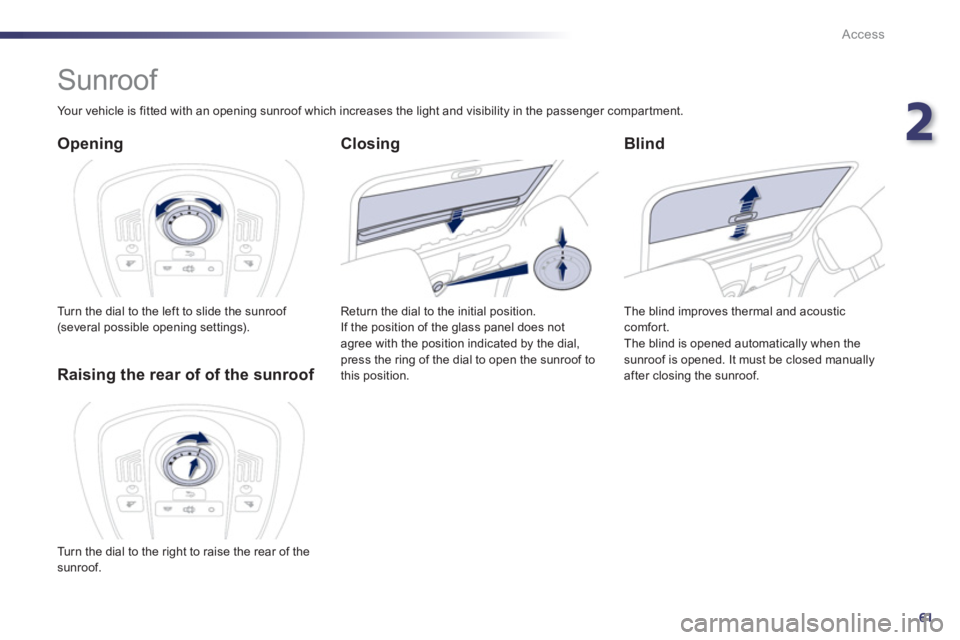

Sunroof


Opening

Turn the dial to the left to slide the sunroof (several possible opening settings).


Blind

The blind improves thermal and acoustic comfort.
The blind is opened automatically when the sunroof is opened. It must be closed manually
after closing the sunroof.

Raising the rear of of the sunroof

Your vehicle is fitted with an opening sunroof which increases the light and visibility in the passenger compartment.
Return the dial to the initial position.
If the position of the
glass panel does notagree with the position indicated by the dial, press the ring of the dial to open the sunroof to
this position.
Closing

Turn the dial to the right to raise the rear of the sunroof.

62
Access

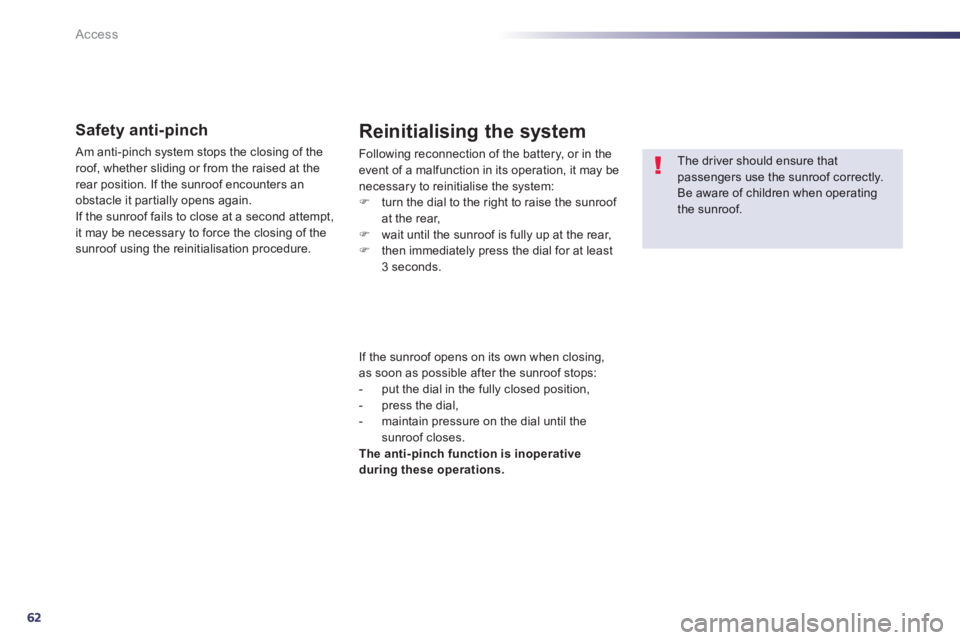

Safety anti-pinch
Am anti-pinch system stops the closing of the roof, whether sliding or from the raised at the rear position. If the sunroof encounters an
obstacle it par tially opens again.
If the sunroof fails to close at a second attempt,
it may be necessary to force the closing of thesunroof using the reinitialisation procedure.

Reinitialising the system


Following reconnection of the battery, or in the
event of a malfunction in its operation, it may be
necessary to reinitialise the system: F turn the dial to the right to raise the sunroof
at the rear,
F wait until the sunroof is fully up at the rear,F
then immediately press the dial for at least3 seconds.


I
f the sunroof opens on its own when closing,
as soon as possible after the sunroof stops:


- put the dial in the full
y closed position,

- press the dial,

- maintain pressure on the dial until the
sunroof closes.The anti-pinch function is inoperative during these operations.

The driver should ensure that passengers use the sunroof correctly. Be aware of children when operatingthe sunroof.
