2013 Peugeot 508 Owner's Manual - RHD (UK, Australia)

4
127
Driving

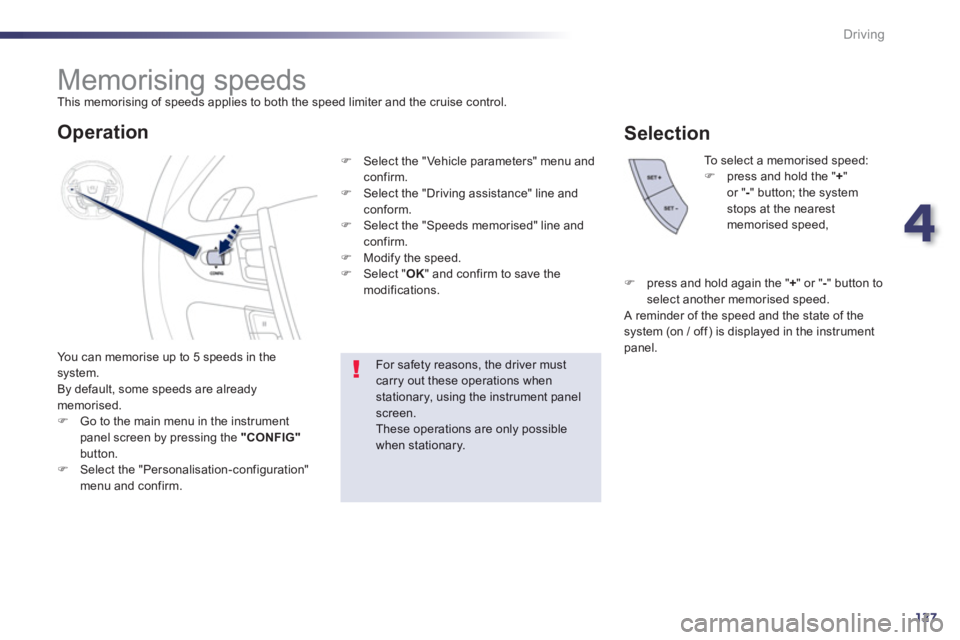

Memorising speeds
This memorising of speeds applies to both the speed limiter and the cruise control.
You can memorise u
p to 5 speeds in the system.
By default, some speeds are already memorised.FGo to the main menu in the instrument
panel screen by pressing the "CONFIG"button.FSelect the "Personalisation-configuration" menu and confirm.
To select a memorised speed:Fpress and hold the "+"or " -" button; the systemstops at the nearest memorised speed,
For safety reasons, the driver mustcarry out these operations when stationary, using the instrument panel screen.These operations are only possible when stationary.


Operation
FSelect the "Vehicle parameters" menu andconfirm.FSelect the "Driving assistance" line and conform.
FSelect the "Speeds memorised" line andconfirm.FModify the speed. FSelect " OK" and confirm to save the
modifications.

Selection
F
press and hold again the "+ " or " - " button toselect another memorised speed.
A reminder of the speed and the state of thesystem (on / off) is displayed in the instrument
panel.

128
Driving

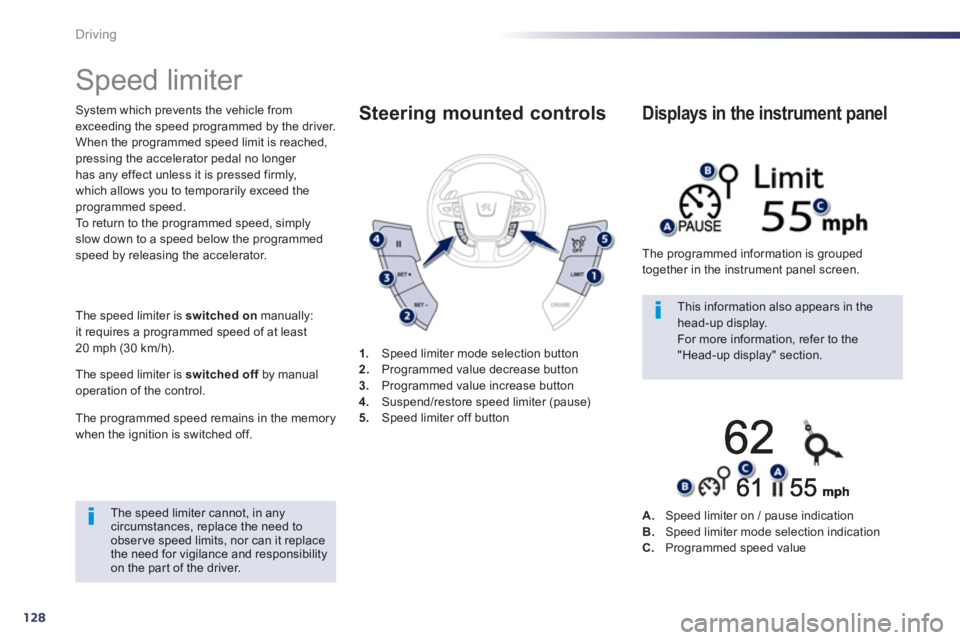

Speed limiter
System which prevents the vehicle fromexceeding the speed programmed by the driver.
When the programmed speed limit is reached,
pressing the accelerator pedal no longer has any effect unless it is pressed firmly,
which allows you to temporarily exceed theprogrammed speed.
To return to the programmed speed, simply
slow down to a speed below the programmed speed by releasing the accelerator.
The speed limiter is switched onmanuall
y:
it requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is
switched off by manual foperation of the control.
The pro
grammed speed remains in the memorywhen the ignition is switched off.

The speed limiter cannot, in anycircumstances, replace the need to obser ve speed limits, nor can it replacethe need for vigilance and responsibility on the par t of the driver.
This information also appears in the head-up display.
For more information, refer to the "Head-up display" section. 1.Speed limiter mode selection button
2. Programmed value decrease button3.
Programmed value increase button4.Suspend/restore speed limiter (pause)5.Speed limiter off button


Steering mounted controls

The programmed information is grouped
together in the instrument panel screen.

Displays in the instrument panel
A.Speed limiter on / pause indicationB.Speed limiter mode selection indicationC.Programmed speed value

4
129
Driving

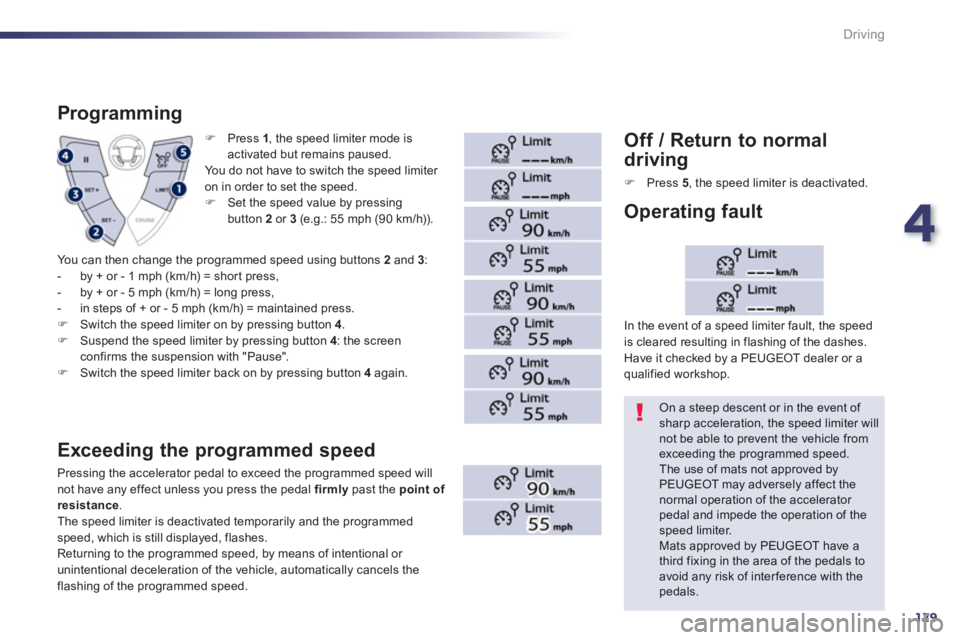

F Press 1, the speed limiter mode is
activated but remains paused.
You do not have to switch the s
peed limiter
on in order to set the speed. F Set the speed value by pressingbutton 2or 3(e.g.: 55 mph (90 km/h)).


Programming


Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have any effect unless you press the pedal firmlypast the point of resistance.
The speed limiter is deactivated temporarily and the programmedspeed, which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels the
flashing of the programmed speed.


Off / Return to normal
driving
F
Press 5, the speed limiter is deactivated.


On a steep descent or in the event of sharp acceleration, the speed limiter willnot be able to prevent the vehicle from exceeding the programmed speed.
The use of mats not approved byPEUGEOT may adversely affect the normal operation of the accelerator pedal and impede the operation of thespeed limiter.
Mats approved by PEUGEOT have a third fixing in the area of the pedals to avoid any risk of interference with thepedals.
In the event o
f a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a PEUGEOT dealer or a qualified workshop.


Operating fault
You can then change the programmed speed using buttons 2
and 3:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press. FSwitch the speed limiter on by pressing button 4 . FSuspend the speed limiter by pressing button 4: the screen confirms the suspension with "Pause".FSwitch the speed limiter back on by pressing button 4
again.

130
Driving

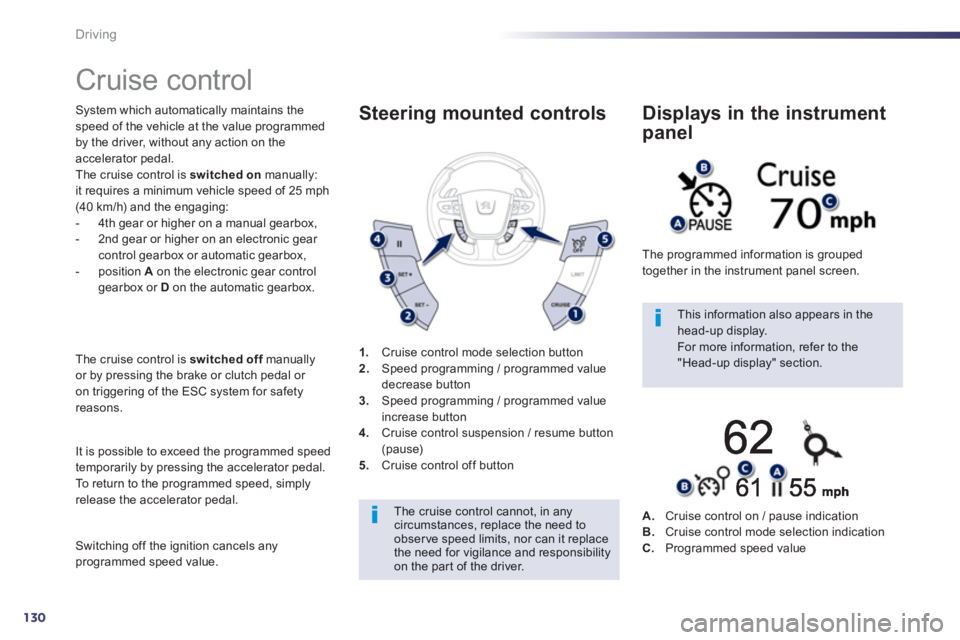

Cruise control
System which automatically maintains thespeed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal. The cruise control is switched on
manually:
it requires a minimum vehicle speed of 25 mph(40 km/h) and the engaging:
- 4th gear or higher on a manual gearbox,
- 2nd
gear or higher on an electronic gear control gearbox or automatic gearbox,
- position A
on the electronic gear control gearbox or Don the automatic gearbox.
Th
e cruise control is switched offmanuallyfor by pressing the brake or clutch pedal or
on triggering of the ESC system for safety reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal. To return to the programmed speed, simply release the accelerator pedal.
Switching off the ignition cancels any programmed speed value. 1
.Cruise control mode selection button
2. Speed programming / programmed value decrease button 3.
Speed programming / programmed value
increase button 4.Cruise control suspension / resume button (pause)5.Cruise control off button


Steering mounted controls
The cruise control cannot, in anycircumstances, replace the need to observe speed limits, nor can it replace the need for vigilance and responsibilityon the par t of the driver.
This information also appears in the head-up display.
For more information, refer to the "Head-up display" section. The pro
grammed information is grouped
together in the instrument panel screen.

Displays in the instrument
panel
A.Cruise control on / pause indicationB.Cruise control mode selection indication
C.Programmed speed value

4
131
Driving

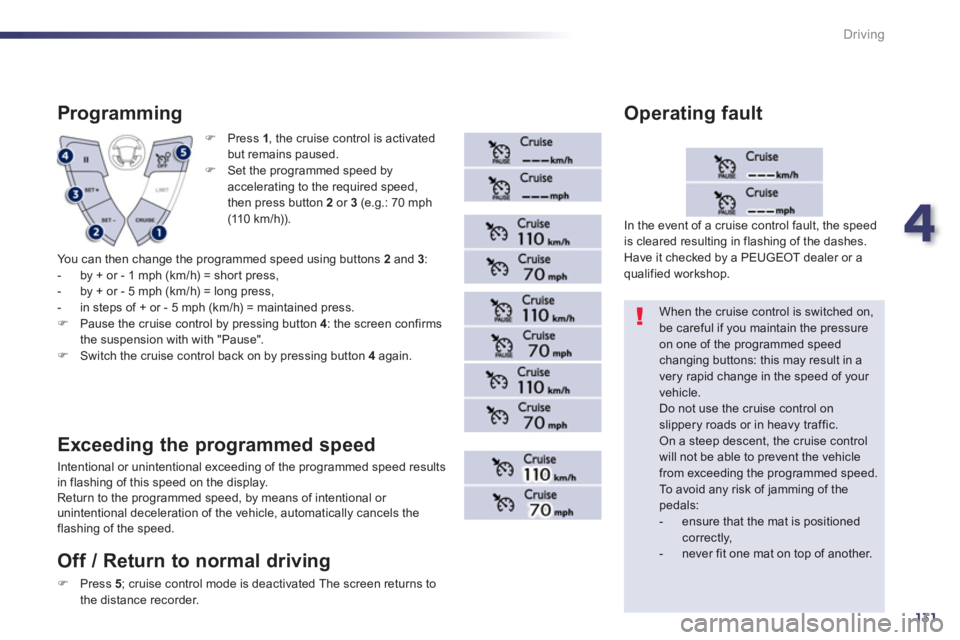

F Press 1, the cruise control is activated but remains paused.F
Set the programmed speed by
accelerating to the required speed,
then press button 2or 3(e.g.: 70 mph (11 0 k m / h)).

Programming

You can then change the programmed speed using buttons 2
and 3
:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press. FPause the cruise control by pressing button 4
: the screen confirmsthe suspension with with "Pause".FSwitch the cruise control back on by pressing button 4again.




Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed speed results
in flashing of this speed on the display.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels theflashing of the speed.
When the cruise control is switched on,be careful if you maintain the pressure on one of the programmed speedchanging buttons: this may result in avery rapid change in the speed of your vehicle. Do not use the cruise control on slippery roads or in heavy traffic.

On a steep descent, the cruise control will not be able to prevent the vehicle from exceeding the programmed speed.
To avoid any risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.
In the event o
f a cruise control fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a PEUGEOT dealer or a qualified workshop.


Operating fault

Off / Return to normal drivin
g
FPress 5
; cruise control mode is deactivated The screen returns to
the distance recorder.

132
Driving

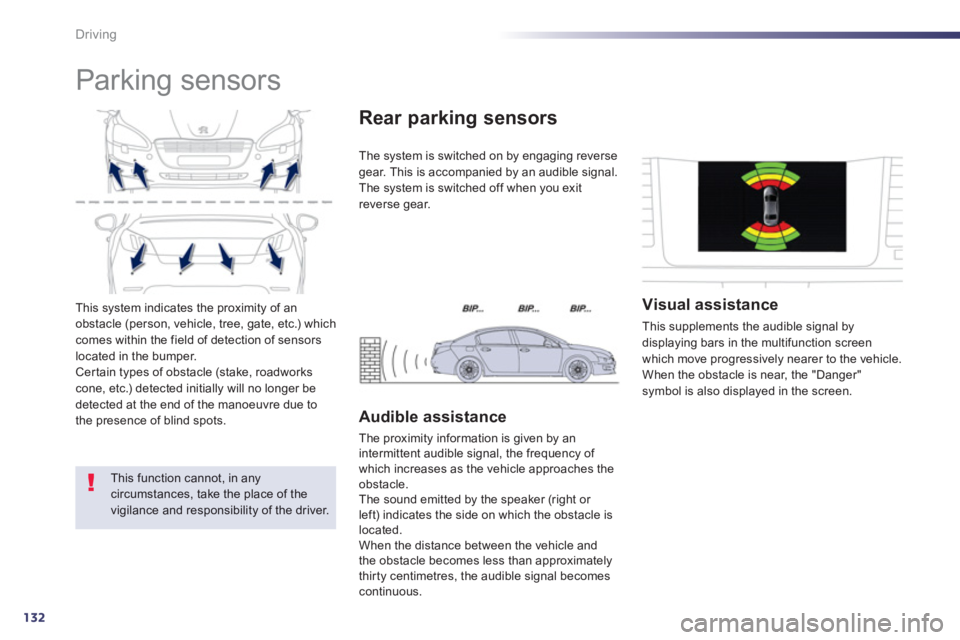

This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.) which comes within the field of detection of sensorslocated in the bumper.Certain types of obstacle (stake, roadworks cone, etc.) detected initially will no longer be detected at the end of the manoeuvre due to
the presence of blind spots.






Parking sensors


This function cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.

The system is switched on by engaging reverse
gear. This is accompanied by an audible signal.
The s
ystem is switched off when you exit reverse gear.


Rear parking sensors


Audible assistance

The proximity information is given by an
intermittent audible signal, the frequency of
which increases as the vehicle approaches the
obstacle.
The sound emitted by the speaker (right or left) indicates the side on which the obstacle is located.
When the distance between the vehicle andthe obstacle becomes less than approximatelythirty centimetres, the audible signal becomes continuous.



Visual assistance

This supplements the audible signal by
displaying bars in the multifunction screen
which move progressively nearer to the vehicle.
When the obstacle is near, the "Danger"symbol is also displayed in the screen.

4
133
Driving
In bad weather or in winter, ensure that the sensors are not covered with mud, ice or snow. When reverse gear isengaged, an audible signal (long beep)indicates that the sensors may be dirty.
Cer tain sound sources (motorcycle, lorry, pneumatic drill, etc.) may trigger the audible signals of the parkingsensor system. In th
e event of a malfunction
of the system, when reversegear is engaged this warning
lamp is displayed in the instrument panel
and/or a message appears in the screen,
accompanied by an audible signal (short beep).
Contact a PEUGEOT dealer or a qualified
wor
kshop.

Operating fault

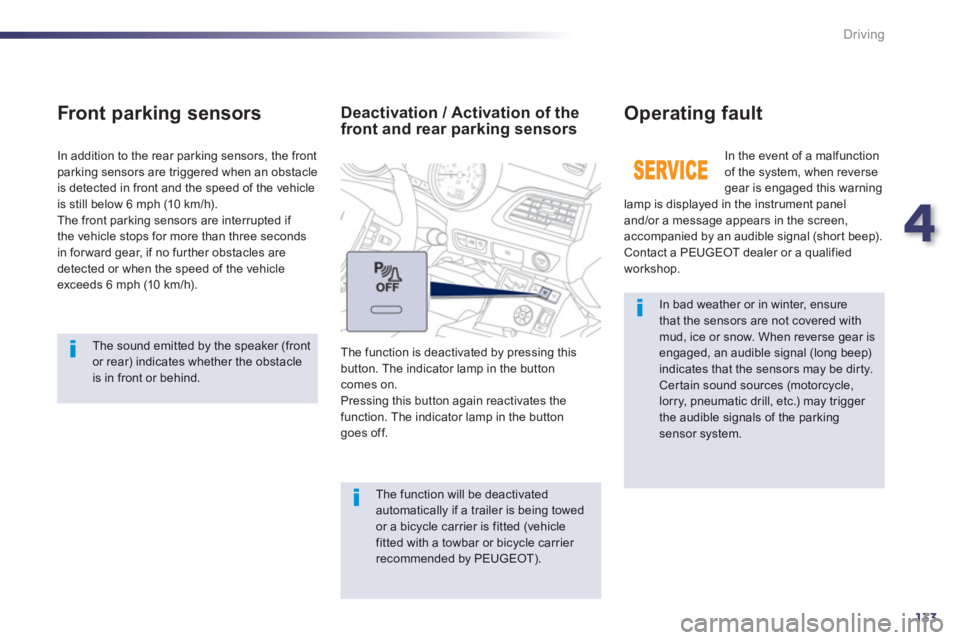

In addition to the rear parking sensors, the front
parking sensors are triggered when an obstacle
is detected in front and the speed of the vehicle
is still below 6 mph
(10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in
forward gear, if no fur ther obstacles are
detected or when the speed of the vehicle exceeds 6 mph (10 km/h).
Front par king sensors
The function will be deactivated automatically if a trailer is being towedor a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by PEUGEOT).

Deactivation / Activation of thefront and rear parking sensors
The function is deactivated by pressing this
button. The indicator lamp in the button
comes on.Pressing this button again reactivates thefunction. The indicator lamp in the button
goes off.



The sound emitted by the speaker (frontor rear) indicates whether the obstacle is in front or behind.

134
Driving

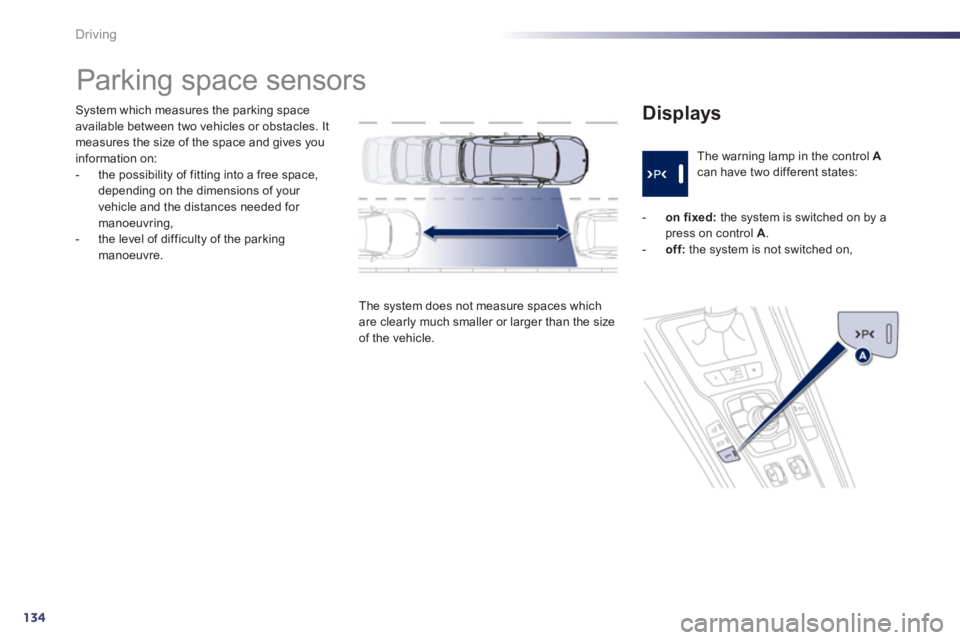

System which measures the parking spaceavailable between two vehicles or obstacles. Itmeasures the size of the space and gives you
information on:
- the possibility of fitting into a free space,
depending on the dimensions of your
vehicle and the distances needed for manoeuvring,
- the level of difficulty of the parkingmanoeuvre.
The s
ystem does not measure spaces which
are clearly much smaller or larger than the size of the vehicle.
The warning lamp in the control A
can have two different states:

Displays


-
on fixed:
the system is switched on by a press on control A.

- off:the system is not switched on,







Parking space sensors
