2013 Peugeot 508 Owner's Manual - RHD (UK, Australia)

4
135
Driving

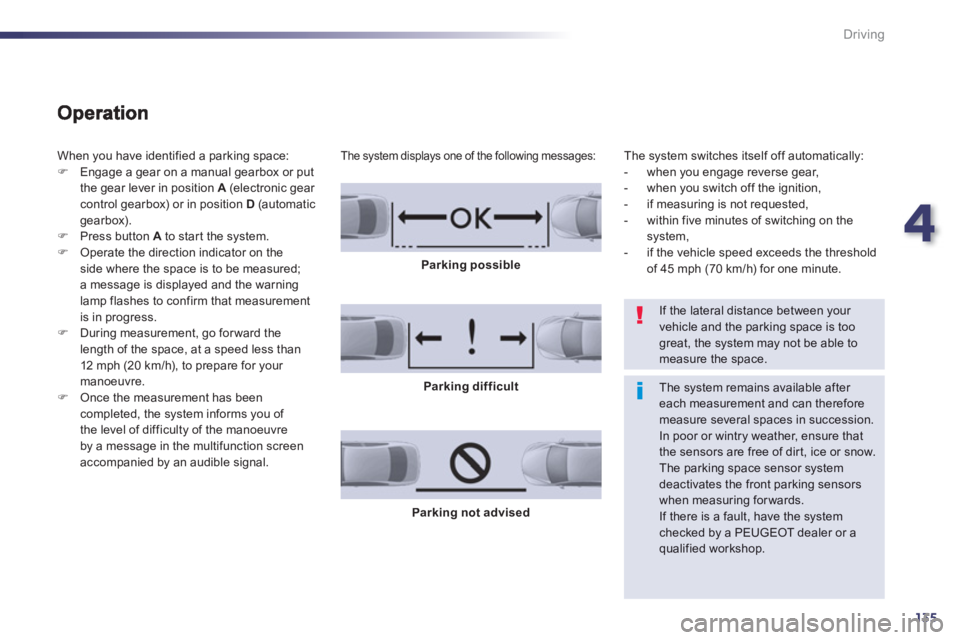

When you have identified a parking space:F
Engage a gear on a manual gearbox or put
the gear lever in position A (electronic gear control gearbox) or in position D(automaticgearbox).F
Press button Ato star t the system. F
Operate the direction indicator on theside where the space is to be measured; a message is displayed and the warning
lamp flashes to confirm that measurement
is in progress.
F During measurement, go for ward the
length of the space, at a speed less than
12 mph (20 km/h), to prepare for your manoeuvre.F Once the measurement has beencompleted, the system informs you of
the level of difficulty of the manoeuvre
by a message in the multifunction screen accompanied by an audible signal.
The system displays one of the following messages:
Parking possible
Parking difficult
Parking not advised


If the lateral distance between your vehicle and the parking space is toogreat, the system may not be able to measure the space.


The system remains available after each measurement and can therefore measure several spaces in succession. In poor or wintry weather, ensure thatthe sensors are free of dir t, ice or snow.
The parking space sensor systemdeactivates the front parking sensorswhen measuring forwards.
If there is a fault, have the system checked by a PEUGEOT dealer or a
qualified workshop.
The s
ystem switches itself off automatically:


- when you engage reverse gear,

- when
you switch off the ignition,

- if measuring is not requested,

- within five minutes of switching on thesystem,

- if the vehicle speed exceeds the threshold
o
f 45 mph (70 km/h) for one minute.

136
Visibility

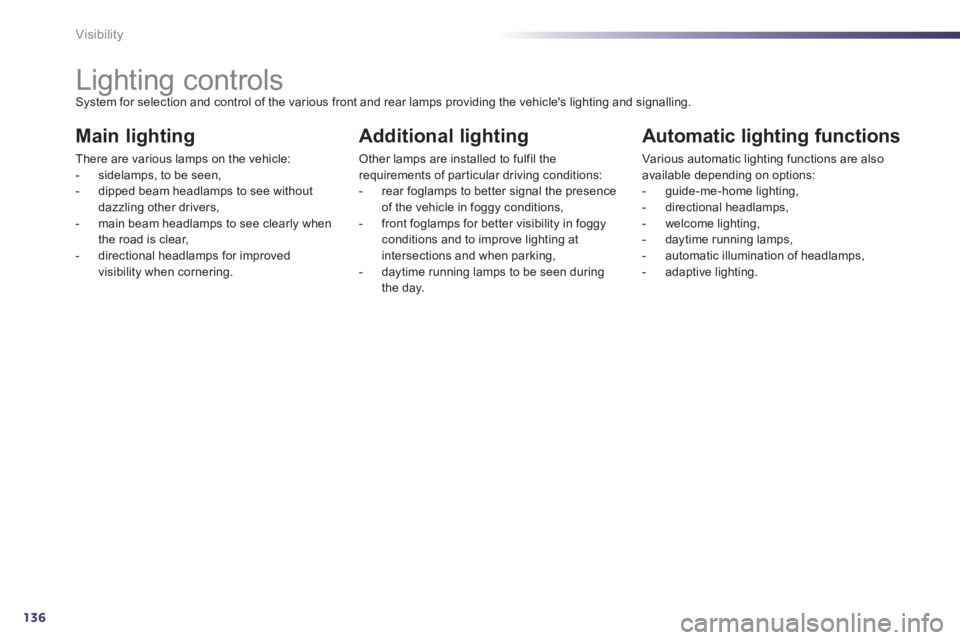

Lighting controls System for selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.
Main lighting
There are various lamps on the vehicle:
- sidelamps, to be seen,
- dipped beam headlamps to see without
dazzlin
g other drivers,
- main beam headlamps to see clearly when
the road is clear,
- directional headlamps for improved
visibility when cornering.



Additional lighting
Other lamps are installed to fulfil the requirements of particular driving conditions:


- rear foglamps to better signal the presence of the vehicle in foggy conditions,

- front foglamps for better visibility in foggyconditions and to improve lighting at intersections and when parking,

- daytime running lamps to be seen duringthe day.



Automatic lighting functions

Various automatic lighting functions are also
available depending on options:


- guide-me-home lighting,

- directional headlamps,

- welcome li
ghting,

- daytime running lamps,

- automatic illumination of headlamps,

- adaptive lighting.

5
137
Visibility

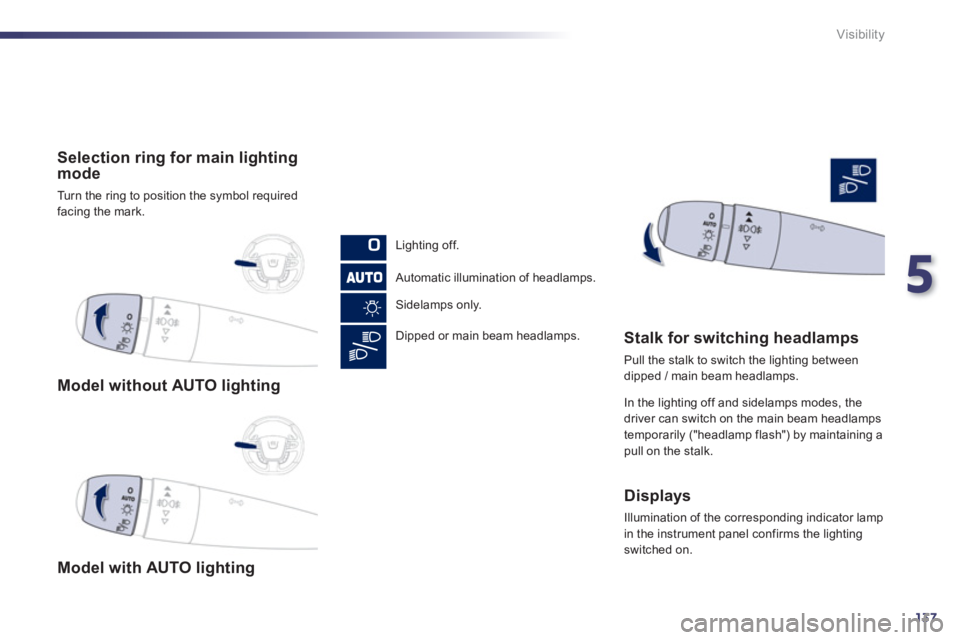

Model without AUTO lighting



Model with AUTO lighting



Selection ring for main lighting mode

Turn the ring to position the symbol required
facing the mark.

Li
ghting off.
Automatic illumination of headlamps.


Sidelamps onl
y.

Dipped or main beam headlamps.


Stalk for switching headlamps

Pull the stalk to switch the lighting between
dipped / main beam headlamps.

In the li
ghting off and sidelamps modes, the driver can switch on the main beam headlamps
temporaril
y ("headlamp flash") by maintaining apull on the stalk.


Displays

Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting switched on.

138
Visibility

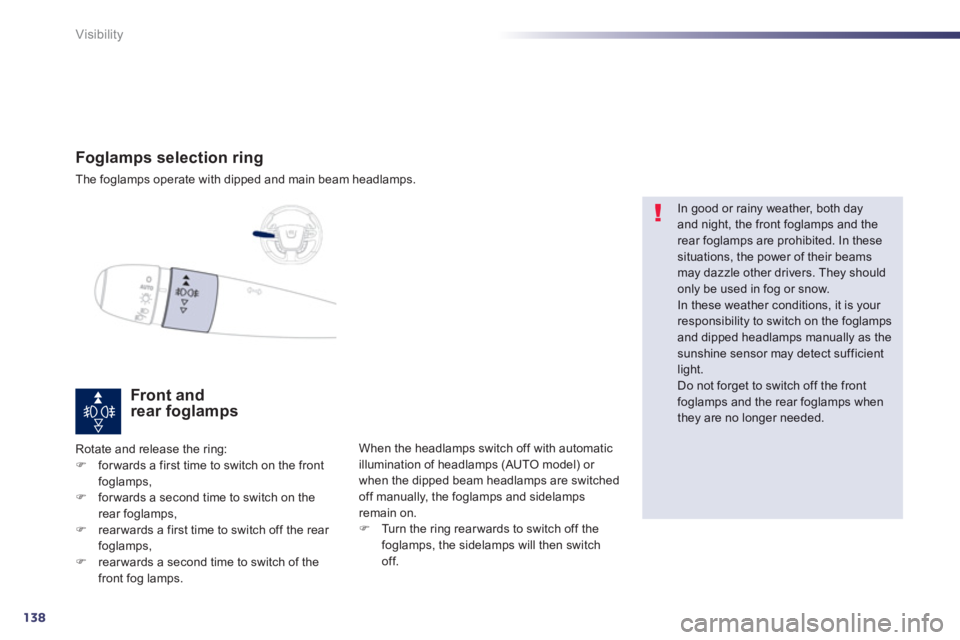

Foglamps selection ring
The foglamps operate with dipped and main beam headlamps.
Front and rear foglamps
Rotate and release the ring: Fforwards a first time to switch on the frontfoglamps, Fforwards a second time to switch on therear foglamps, Frearwards a first time to switch off the rear
foglamps, Frearwards a second time to switch of the
front fog lamps. When the headlamps switch off with automatic
illumination of headlamps
(AUTO model) or
when the dipped beam headlamps are switched
o
ff manually, the foglamps and sidelampsremain on.F Turn the ring rear wards to switch off the foglamps, the sidelamps will then switchoff.
In good or rainy weather, both day and night, the front foglamps and the rear foglamps are prohibited. In these situations, the power of their beams may dazzle other drivers. They shouldonly be used in fog or snow.
In these weather conditions, it is your responsibility to switch on the foglamps and dipped headlamps manually as the sunshine sensor may detect sufficientlight.
Do not forget to switch off the front foglamps and the rear foglamps when they are no longer needed.

5
139
Visibility

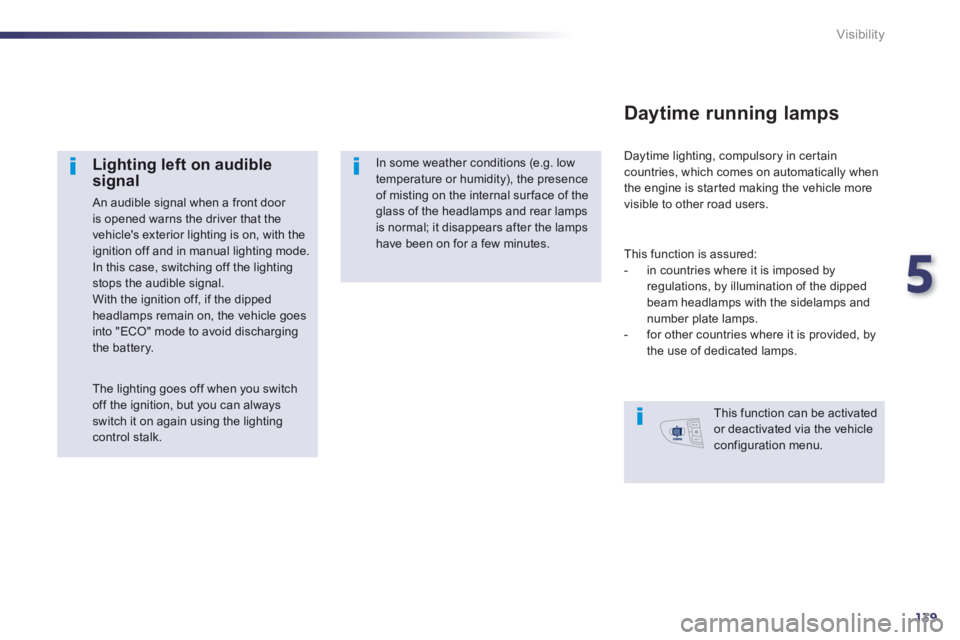

Lighting left on audible signal
An audible signal when a front door is opened warns the driver that the vehicle's exterior lighting is on, with theignition off and in manual lighting mode.
In this case, switching off the lighting stops the audible signal.
With the ignition off, if the dipped headlamps remain on, the vehicle goes into "ECO" mode to avoid discharging the battery.
In some weather conditions (e.g. lowtemperature or humidity), the presenceof misting on the internal sur face of the glass of the headlamps and rear lamps is normal; it disappears after the lampshave been on for a few minutes.

Daytime lighting, compulsory in cer tain
countries, which comes on automatically when
the engine is star ted making the vehicle more
visible to other road users.
Daytime running lamps

This function is assured:


- in countries where it is imposed by
regulations, by illumination of the dippedbeam headlamps with the sidelamps and number plate lamps.

- for other countries where it is provided, by
the use of dedicated lamps.

This function can be activatedor deactivated via the vehicleconfiguration menu.



The lighting goes off when you switchoff the ignition, but you can always switch it on again using the lighting control stalk.

140
Visibility
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only. F Within one minute of switching off the
ignition, operate the lighting control stalk upor down depending on the traffic side (for example: when parking on the left; lightingcontrol stalk upwards; the right hand sidelamps are on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position or
switch on the ignition.

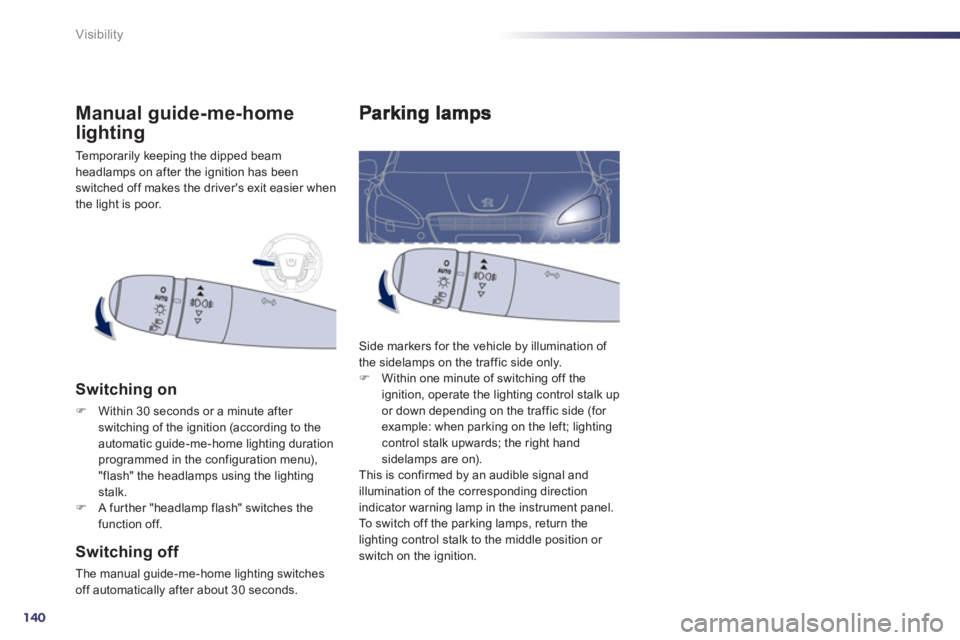

Temporarily keeping the dipped beam
headlamps on after the ignition has beenswitched off makes the driver's exit easier when
the light is poor.
Manual guide-me-home
lighting
Switching on
FWithin 30 seconds or a minute after
switching of the ignition (according to theautomatic guide-me-home lighting durationprogrammed in the configuration menu), "flash" the headlamps using the lighting stalk.FA further "headlamp flash" switches the
function off.

Switching off
The manual guide-me-home lighting switches
off automatically after about 30 seconds.

5
141
Visibility

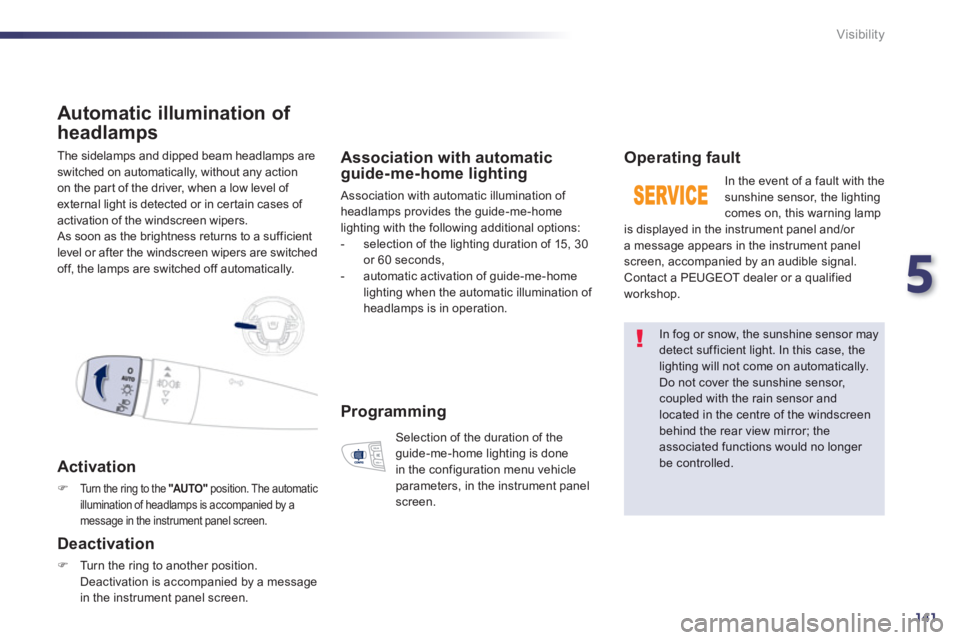

The sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver, when a low level of external light is detected or in certain cases of
activation of the windscreen wipers.

As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
o
ff, the lamps are switched off automatically.
Automatic illumination of
headlam
ps

Activation
FTurn the ring to the "AUTO"position. The automatic
illumination of headlamps is accompanied by a message in the instrument panel screen.


Deactivation
FTurn the ring to another position.
Deactivation is accompanied by a message
in the instrument panel screen.
Association with automaticguide-me-home lighting
Association with automatic illumination of headlamps provides the guide-me-home lighting with the following additional options:
- selection of the lighting duration of 15, 30
or 60 seconds,
- automatic activation o
f guide-me-home lighting when the automatic illumination of
headlamps is in operation.

Operating fault

In the event of a fault with the sunshine sensor, the lighting comes on, this warning lamp
is displayed in the instrument panel and/or
a message appears in the instrument panel screen, accompanied by an audible signal.
Contact a PEUGEOT dealer or a qualified
workshop.
In fog or snow, the sunshine sensor maydetect sufficient light. In this case, the lighting will not come on automatically. Do not cover the sunshine sensor,coupled with the rain sensor and located in the centre of the windscreenbehind the rear view mirror; theassociated functions would no longer be controlled.
Programming
Selection of the duration of theguide-me-home lighting is done
in the configuration menu vehicle
parameters, in the instrument panel screen.

142
Visibility

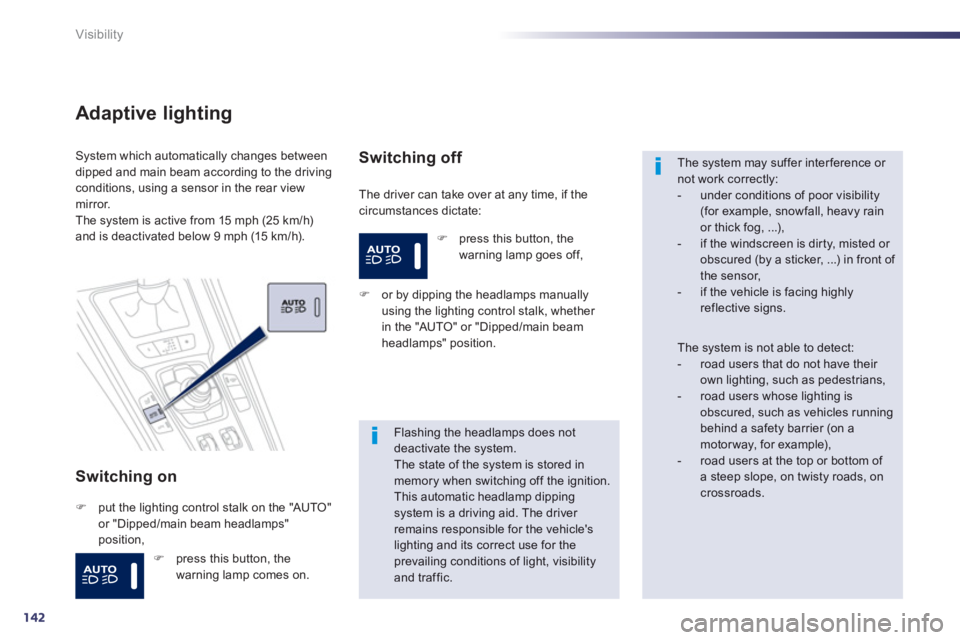

Adaptive lighting
Switching on
The driver can take over at any time, if thecircumstances dictate:
System which automatically changes betweendipped and main beam according to the driving conditions, using a sensor in the rear view mirror.
The system is active from 15 mph (25 km/h) and is deactivated below 9 mph (15 km / h).
Fput the lighting control stalk on the "AUTO"
or "Dipped/main beam headlamps"
position,

Switching off
F
or by dipping the headlamps manually using the lighting control stalk, whether
in the "AUTO" or "Dipped/main beam
headlamps" position.

Flashing the headlamps does notdeactivate the system.The state of the system is stored in memory when switching off the ignition. This automatic headlamp dipping system is a driving aid. The driver remains responsible for the vehicle'slighting and its correct use for theprevailing conditions of light, visibility and traffic.


The system may suffer interference or not work correctly:


- under conditions of poor visibility(for example, snowfall, heavy rain or thick fog, ...),

- if the windscreen is dir ty, misted or obscured (by a sticker, ...) in front of the sensor,

- if the vehicle is facing highly reflective signs.


The system is not able to detect:


- road users that do not have their own lighting, such as pedestrians,

- road users whose lighting isobscured, such as vehicles running behind a safety barrier (on amotorway, for example),

- road users at the top or bottom of a steep slope, on twisty roads, oncrossroads.
Fpress this button, the
warning lamp goes off,
F press this button, the
warning lamp comes on.
