2013 PEUGEOT 2008 Owners Manual

1
39
Instruments and controls

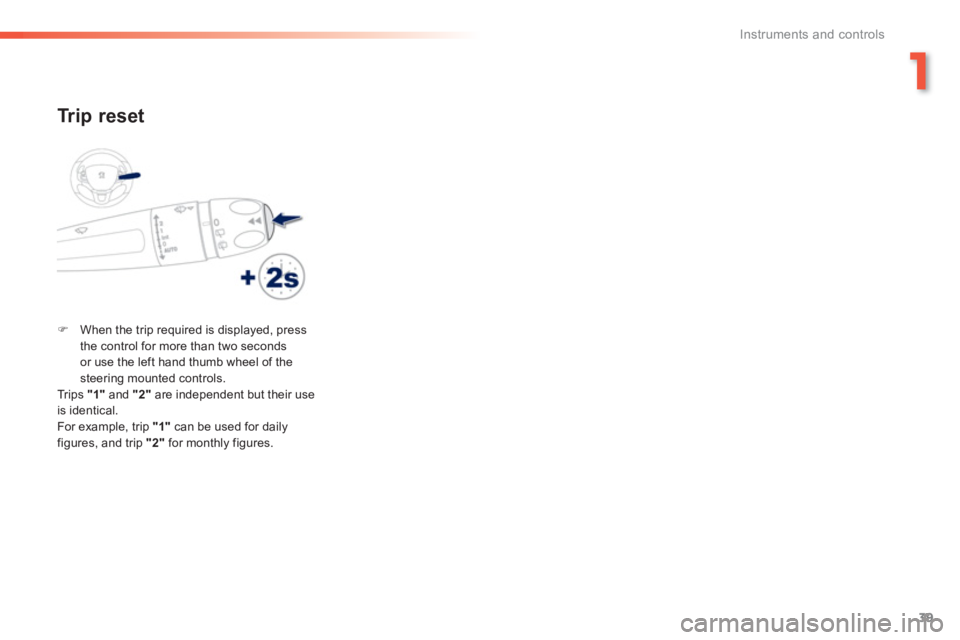

Tr ip reset
)When the trip required is displayed, press
the control for more than two secondsor use the left hand thumb wheel of the steering mounted controls.
Trips "1"
and "2"are independent but their useis identical.
For example, trip "1"
can be used for daily figures, and trip "2"
for monthly figures.

40
Instruments and controls
System which provides current information concerning the trip (range, fuel consumption…).











Trip computer with touch screen


Information display


- The current fuel consumption tab
with:


●
the range,

●
the current
fuel consumption,

●
the Stop & Star t time counter.


-
The trip "1"tab with:


●
the distance travelled.

●
the average fuel consumption,

●
the average speed,

for the first trip.


- The trip
"2"
tab with:


●
the distance travelled.

●
the average fuel consumption,

●
the average speed,
for the second trip.
)Press MODElocated on the
touch screen front panel, to
displa
y the various tabs.)Select the desired tab using your finger.

1
41
Instruments and controls

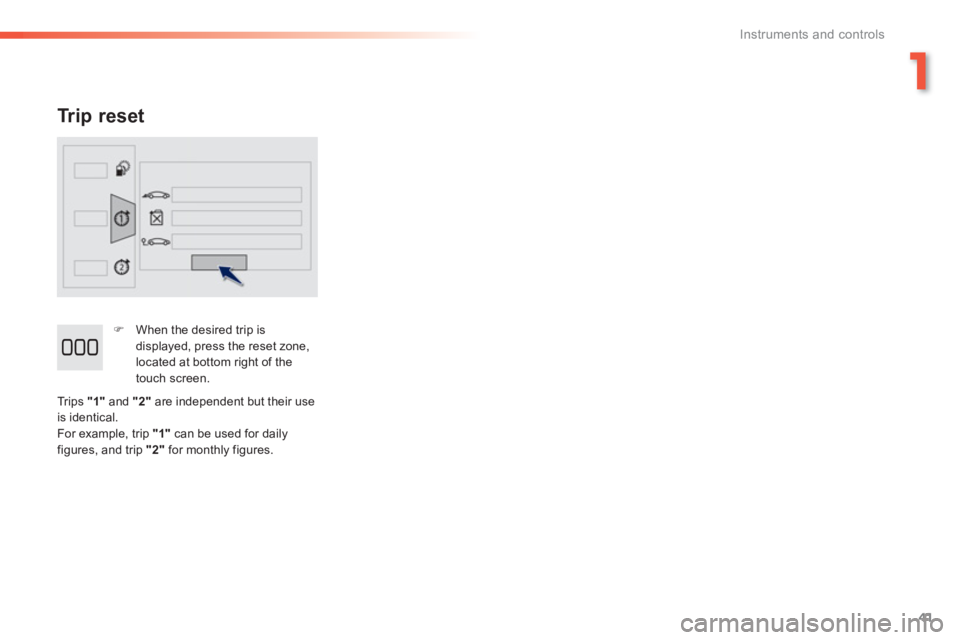

Tr ip reset
)
When the desired trip is
displayed, press the reset zone, located at bottom right of the
touch screen.
Trips
"1"
and "2"are independent but their use
is identical.
For example, trip "1"
can be used for daily
figures, and trip "2"
for monthly figures.

42
Instruments and controls
Stop & Start time counter
(minutes / seconds or hours /
minutes)

If dashes are displayed continuously while driving in place of the digits, contact a PEUGEOT dealer or a qualified workshop.
This function is only displayed from 20 mph (30 km/h).


This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.
Trip computer, a few definitions

Range
(miles or km)
The distance which can still be
travelled with the fuel remainingin the tank. Related to theaverage fuel consumption over
the last few miles (kilometres)
travelled.
When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).
Current fuel consumption
(mpg or l/100 km or km/l) Calculated over the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l) Calculated since the last trip computer reset.
Average speed
(mph or km/h)Calculated since the last trip computer reset.


Distance travelled
(miles or km)
Calculated since the last trip
computer reset.

If
your vehicle is fitted with Stop & Star t, a timecounter calculates the time spent in STOP mode during a journey. It resets to zero every time the ignition isswitched on with the key.

1
43
Instruments and controls
LCD instrument panel
) Press this button to display the following settings successively:


- hours,

- minutes,

- 12 or 24 hour format.





















Setting the date and time

Press MENU
to display the MAIN MENUthen select " Preferences".Select "Date & Time".
Select the date or time displa
yed, use the keypad to adjust the setting, then "Confirm".
Touch screen
Select "System configuration".

44
Access
System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well as providing protection against theft.














Remote control key
Unfolding the key


Unlocking the vehicle
Complete unlockin
g


Using the key
)
Turn the key to the front of the vehicle tounlock the vehicle.


Using the remote control
)Press the open padlock to unlock
the vehicle.



Unlocking is confirmed by rapid flashing of the direction indicators for approximately two seconds.
According to version, the door mirrors unfold at the same time. Unlocking with the key does notdeactivate the alarm.

)First press this button to unfold the key.

45
2
Access
Locking is confirmed by fixed lighting of the direction indicators for
approximately two seconds. According to version, the door mirrors fold at the same time.


As a safety measure (children onboard), never leave the vehicle without taking your key, even for a shor t period.
Locking the vehicle
Normal lockin
g

Using the remote control
)Press the closed padlock to lockthe vehicle completely.

Using the key
)Turn the key towards the rear of the vehicle
to lock the vehicle completely.

Maintainin
g the locking action (key or remote control) automatically closes the windows.


If one of the doors or the boot is still open or if an electronic key has been left inside the vehicle, the centrallocking does not take place.
When the vehicle is locked, if it isunlocked inadvertently, it will relockautomatically after about thir ty secondsunless a door is opened.
When the key is in the ignition switch,its locking/unlocking functions aredeactivated.
The folding and unfolding of the door mirrors by the remote control can be
deactivated by a PEUGEOT dealer or a qualified workshop.

46
Access

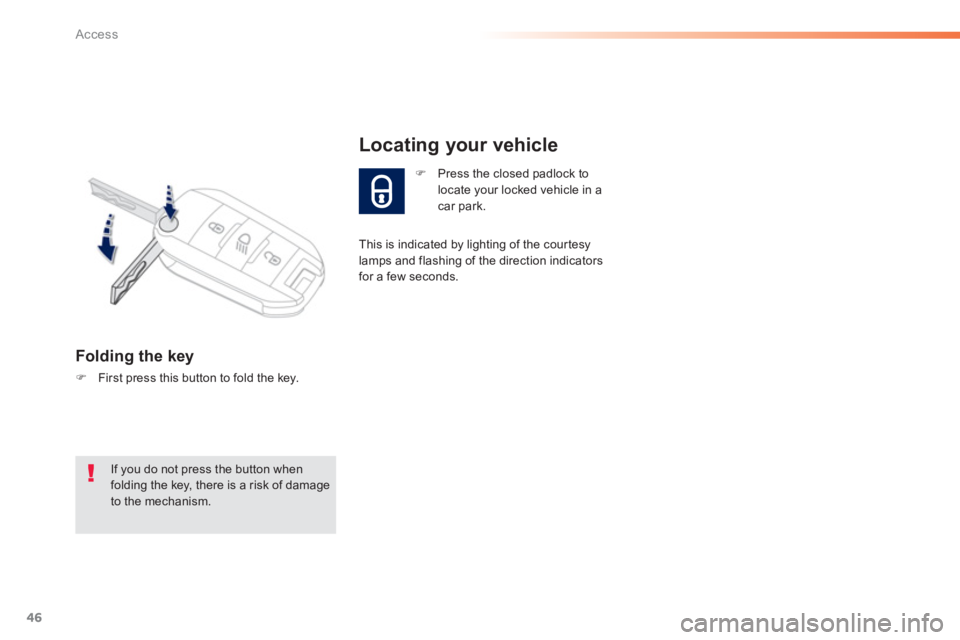

Folding the key
)First press this button to fold the key.
)Press the closed padlock tolocate your locked vehicle in a car park.
Locating your vehicle

This is indicated by lighting of the cour tesy lamps and flashing of the direction indicators
for a few seconds.
If you do not press the button when folding the key, there is a risk of damageto the mechanism.
