2013 PEUGEOT 2008 Owners Manual

103
4
Driving





Park Assist


This system provides active assistance with parking, detecting a parking space then controlling the steering to park in the space.
It controls the steering while the driver manages the accelerator, brakes, gears and clutch (manual gearbox). During phases of entry into and exit from
a parking space, the system provides visual and audible information to the driver in order to make the manoeuvre safe. It may be necessary to move
forwards and backwards more than once.

For entry into a parking space (parallel
parking) the system does not detect spaces which are clearly much smaller or larger than the size of the vehicle.
This "parking assistance" system is activated automatically duringmanoeuvres; it is therefore possible that a symbol comes on in the screen,accompanied by an audible signal,without affecting the manoeuvre.
When Park Assist is activated, it prevents a change to STOP mode of Stop & Star t. In STOP mode, activationof Park Assist restarts the engine.



The Park Assist system cannot in anycircumstances replace the care and responsibility of the driver.
The driver must remain in control of their vehicle ensuring that the space remains clear during the manoeuvre. In some circumstances, the sensors may not detect small obstacles located in their blind spots.
During a manoeuvre the steering wheel
turns quickly: do not hold the steering wheel, do not place your hand betweenthe spokes of the steering wheel andtake care with loose and bulky clothing,scarves, handbags... There is a risk of injury.

The s
ystem provides assistance in entering and exiting a parking space when parallel parking.
The driver can take control at any time by gripping the steering wheel.

104
Driving

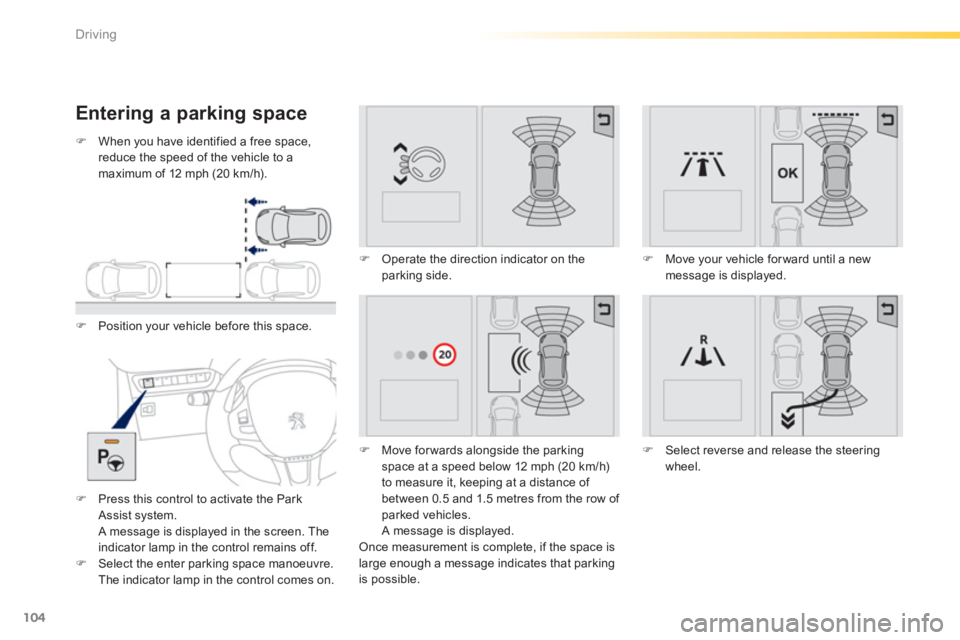

Entering a parking space
)When you have identified a free space,
reduce the speed of the vehicle to amaximum of 12 mph (20 km/h).
)Position your vehicle before this space.
)Press this control to activate the Park Assist system. A message is displayed in the screen. The indicator lamp in the control remains off.)Select the enter parking space manoeuvre.
The indicator lamp in the control comes on.
) Operate the direction indicator on the
parking side.
) Move for wards alongside the parking space at a speed below 12 mph (20 km/h)
to measure it, keeping at a distance of
between 0.5 and 1.5 metres from the row of
parked vehicles.
A messa
ge is displayed.
Once measurement is complete, if the space is large enough a message indicates that parking is possible.
)Move your vehicle for ward until a newmessage is displayed.
)Select reverse and release the steering
wheel.

105
4
Driving

The assisted parking manoeuvre is in progress.
Without exceeding 5 mph (8 km/h), continue the manoeuvres following the information given by
the "parking assistance" system, until the end
of manoeuvre message is displayed.
The indicator lamp in the control goes off,
accompanied by a audible signal.

Th
e driver takes back control of the vehicle's
steering.

Exit from a parking space
)
With the vehicle stationary, press thiscontrol to activate the Park Assist system.
A message is displayed in the screen. The
indicator lamp in the control remains o
ff. ) Select the exit parking space manoeuvre.
The indicator lamp in the control comes on.
) Operate the direction indicator on the exit
from parking side.The direction indicator warning lamp flashes in the instrument panel throughout
the manoeuvre, whatever the position of
the stalk.
) Select a forward or reverse gear then release the steering wheel.

)
When you want to exit from a parallel
parking space, star t the engine.

The assisted exit
from parking manoeuvre is in
progress.
Without exceeding 5 mph (8 km/h), continue the
manoeuvres following the information given by
the "parking assistance" system, until the endof manoeuvre message is displayed.
The manoeuvre is complete once the front wheels
of the vehicle are out of the parking space.
The indicator lamp in the control goes off,
accompanied by a audible signal.

Th
e driver takes back control of the vehicle'ssteering.

106
Driving
In bad weather and in winter, ensurethat the sensors are not covered by road dir t, ice or snow.
In the event of a fault, have the systemchecked by a PEUGEOT dealer or aqualified workshop.



If the system is deactivated during a manoeuvre, the drive should reactivate it manually to repeat the measurement.


If the lateral distance between your vehicleand the space is too great, the system may not be able to measure the space.
Anything projecting beyond the envelope of the vehicle (long or wide load) is nottaken into account by the Park Assist system during a manoeuvre.
Deactivation
A message is displayed in the screen.
Th
e driver then takes back control of thevehicle's steering.
The system is deactivated automatically:
- on switching off the ignition,
- if the en
gine stalls,
- if no manoeuvre is star ted within 5 minutes
of selection of the type of manoeuvre,
- after a prolonged stop of the vehicle during a manoeuvre,
- if the road wheel anti-spin regulation (ASR) is triggered,
- if the speed of the vehicle exceeds the
stated limit,
- when the driver interrupts movement of the
steerin
g wheel,
- if the driver presses the Park Assist control.
- if correct positionin
g of the vehicle is not possible (too many manoeuvres needed toinser t or extract the vehicle),
- if the driver's door is open,
- if one of the front wheels encounters anobstacle.


Switching off

The system is switched off automatically:


- when towing a trailer,

- if the driver's door is opened,

- if the speed of the vehicle is above 42 mph(70 km/h).
To switch the system of for a prolonged period,contact a PEUGEOT dealer or a qualified
workshop.


Operating faults

In the event of a fault with the system,
this warning lamp is displayed in the
instrument panel and/or a message appears in the screen, accompanied by an audible signal (short beep). The indicator lamp in the control flashes for a
few seconds. If the problem occurs while using
the system, the indicator lamp goes off.
In th
e event of a fault with
the power steering, these
warning lamps come on in
the instrument panel.
Contact a PEUGEOT dealer or a qualified
workshop.

107
5
Visibility














Lighting controls System for selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.


Main lighting

The vehicle has various lamps:


- sidelamps, to be seen,

- dipped beam headlamps to see without
dazzlin
g other drivers,

- main beam headlamps to see clearly when
the road is clear,

- directional headlamps for improved
visibility when cornering.

Additional lighting
Other lamps are installed to fulfil therequirements of particular driving conditions:
- a rear foglamp to better signal the
presence of the vehicle in foggy conditions,
- front foglamps with cornering lighting,
- daytime running lamps to be seen duringthe day,
- guide-me-home and welcome lighting for leaving and entering to the vehicle.


Automatic lighting
functions

Various automatic lighting functions are also
available depending on options:


- guide-me-home lighting,

- cornering lighting,

- welcome lighting,

- daytime running lamps,

- automatic illumination o
f headlamps.


In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of theglass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.

108
Visibility
Model without AUTO lighting
Model with AUTO lighting
Selection ring for main lighting mode
Turn the ring to position the symbol required
facing the mark.
Li
ghting off.

Automatic illumination of headlamps.
Sidelamps onl
y.
Di
pped or main beam headlamps.
Dipping the headlamps

Pull the stalk to switch the lighting between
dipped / main beam headlamps.

In the li
ghting off and sidelamps modes, the driver can switch on the main beam headlamps
temporaril
y ("headlamp flash") by maintaining apull on the stalk.


Displays

Illumination of the corresponding indicator lamp
in the instrument panel confirms the lightingswitched on.

109
5
Visibility








Foglamps selection ring

The foglamps operate with dipped and main beam headlamps.

Front foglamps and rear
foglamp
When the headlamps switch off with automatic
illumination of headlamps (AUTO model) or
when the dipped beam headlamps are switched
off manually, the foglamps and sidelamps
remain on. ) Turn the ring rear wards to switch off
the foglamps, the sidelamps will then switch off.

Rotate and release the rin
g:) forwards a first time to switch on the front
foglamps,) forwards a second time to switch on the rear foglamp,)
rearwards a first time to switch off the rear foglamp,)
rearwards a second time to switch of thefront fog lamps.
Rear foglamp only
)To switch it on, turn the ring forwards.
When the lighting is switched off automatically (with AUTO model), the foglamp and the dipped
beam headlamps will remain on.
)To switch it off, turn the ring rearwards.

110
Visibility
In good or rainy weather, both day and night, the front foglamps and the rear foglamp are prohibited. In thesesituations, the power of their beams may dazzle other drivers. They shouldonly be used in fog or snow. In these weather conditions, it is your responsibility to switch on the foglamps and dipped beam headlamps manuallyas the sunshine sensor may detect sufficient light.
Do not forget to switch off the frontfoglamps and the rear foglamp when they are no longer necessary.


Switching on the lampsafter the ignition isswitched off

To reactivate the lighting control, rotate the ring to the "0"position - lamps off, then to the desired position. On opening the driver's door atemporary audible signal warns thedriver that the lighting is on.
The lamps, with the exception of thesidelamps, switch off automatically after a maximum duration of thir ty minutes to prevent discharging of the battery.

Switching off the lampswhen the ignition is switched off
On switching off the ignition, all of thelamps turn off immediately, except for dipped beam if guide-me-home lighting is activated.
