2013 PEUGEOT 2008 Owners Manual

135
6
Safety
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between theoccupants and the airbags (a child, pet, object...). This could hamper the operation of the airbags or injure the occupants. After an accident or if the vehicle has beenstolen or broken into, have the airbagsystems checked. All work on the airbag system must be carried out by a PEUGEOT dealer or a qualified workshop.
Even if all of the precautions mentionedare obser ved, a risk of injury or of minor burns to the head, chest or arms when an airbag is deployed cannot be ruled out. Thebag inflates almost instantly (within a fewmilliseconds) then deflates within the same
time discharging the hot gas via openings provided for this purpose.
Lateral airbags
Use only approved covers on the seats, compatible with the deployment the lateralairbags. For information on the range of seatcovers suitable for your vehicle, you can contact a PEUGEOT dealer. Refer to the "Accessories" section.Do not fix or attach anything to the seatbacks (clothing...). This could cause injuryto the chest or arms if the lateral airbag isdeployed.Do not sit with the upper par t of the body anynearer to the door than necessary.



Front airbags

Do not drive holding the steering wheel by itsspokes or resting your hands on the centre part of the wheel.
Passengers must not place their feet on thedashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.

For the airbags to be fully effective, observe the following safety rules:
Curtain airbags
Do not fix or attach anything to the roof. This could cause injury to the head if the cur tain airbag is deployed. If fitted on your vehicle, do not remove thegrab handles installed on the roof, they play a part in securing the cur tain airbags.

136
Safety

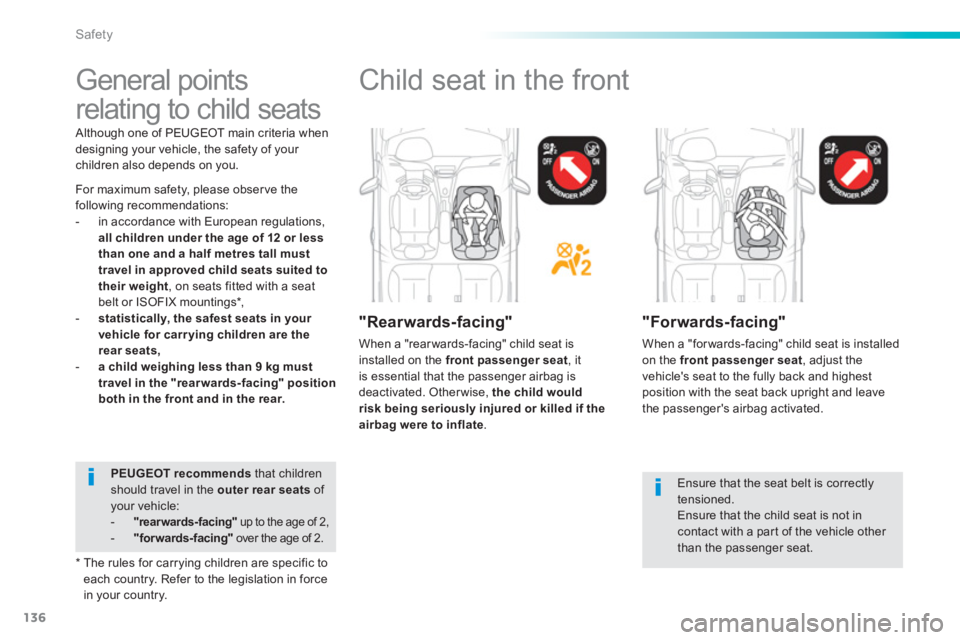

General points
relating to child seats
For maximum safety, please obser ve the following recommendations:
- in accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in a
pproved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings * ,-statistically, the safest seats in your
vehicle for carrying children are the rear seats,- a child weighing less than 9 kg must
travel in the "rearwards-facing" position both in the front and in the rear.
PEUGEOT recommends that childrenshould travel in the outer rrear seats
of your vehicle: -"rearwards-facing"
up to the age of 2,-"forwards-facing"over the age of 2.


Although one of PEUGEOT main criteria when
designing your vehicle, the safety of your children also depends on you.
*
The rules for carr
ying children are specific to
each country. Refer to the legislation in force
in your country.








Child seat in the front


"Rearwards-facing"

When a "rear wards-facing" child seat isinstalled on the front passenger seat, it is essential that the passenger airbag is
deactivated. Other wise, the child would
risk being seriously injured or killed if the
airbag were to inflate .


"Forwards-facing"

When a "forwards-facing" child seat is installed on the front passenger seat
, adjust the
vehicle's seat to the fully back and highestposition with the seat back upright and leave
the passenger's airbag activated.

Ensure that the seat belt is correctly tensioned. Ensure that the child seat is not in contact with a par t of the vehicle other than the passenger seat.

137
6
Safety

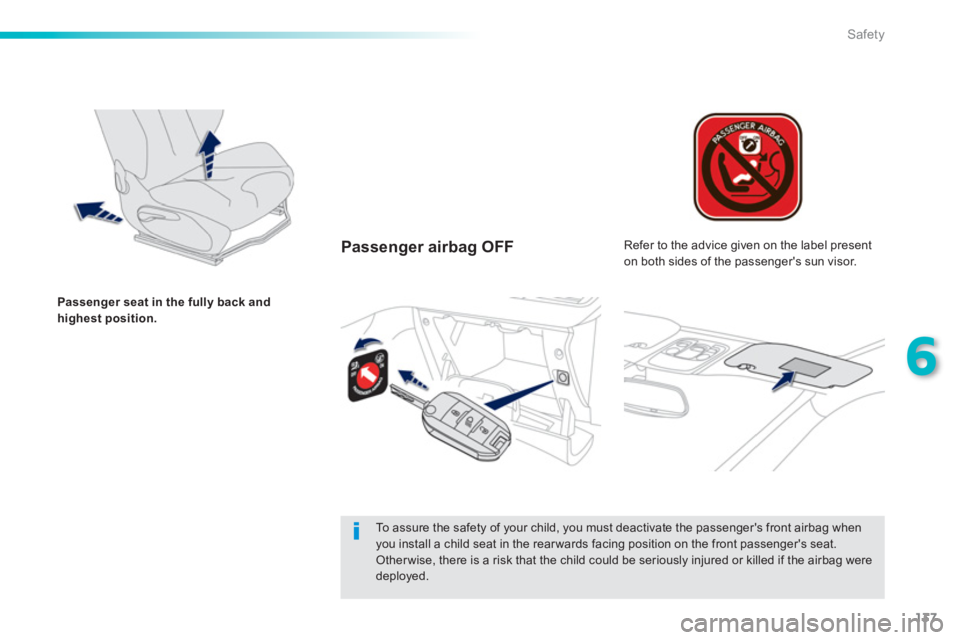

Passenger airbag OFF
Passenger seat in the fully back andhighest position.

Refer to the advice given on the label present on both sides of the passenger's sun visor.
To assure the safety of your child, you must deactivate the passenger's front airbag when you install a child seat in the rear wards facing position on the front passenger's seat.Other wise, there is a risk that the child could be seriously injured or killed if the airbag were deployed.

138
Safety

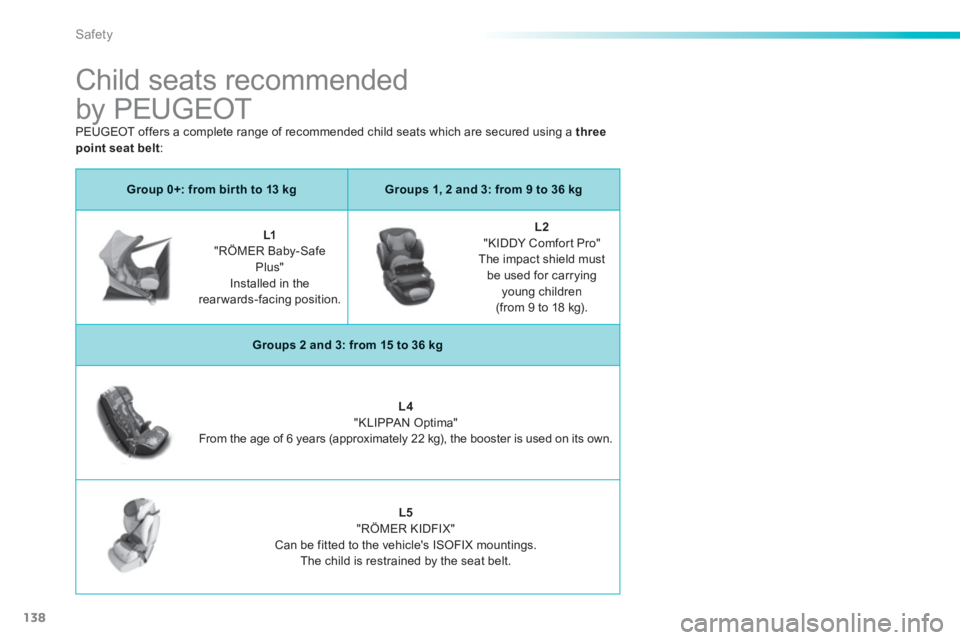

Child seats recommended
by PEUGEOT
Group 0+: from bir th to 13 kgGroups 1, 2 and 3: from 9 to 36 kg
L1"RÖMER Baby-SafePlus" Installed in therearwards-facing position.
L2
"KIDDY Comfor t Pro"
The impact shield must
be used for carr
ying young children(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4"KLIPPAN Optima" From the age of 6 years (approximately 22 kg), the booster is used on its own.
L5
"RÖMER KIDFIX"
Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt. PEUGE
OT offers a complete range of recommended child seats which are secured using a three point seat belt
:

139
6
Safety

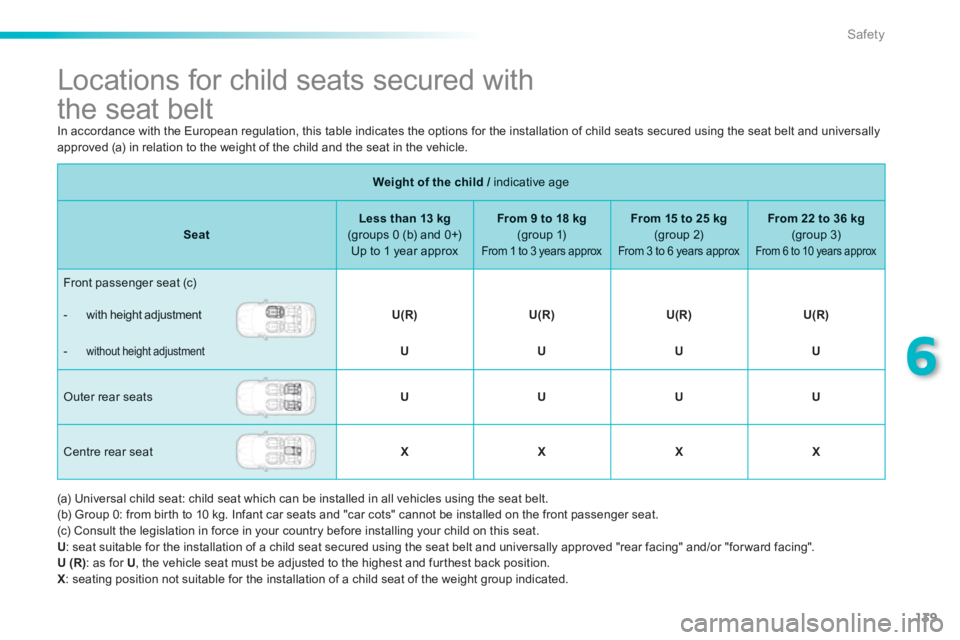

Locations for child seats secured with
the seat belt
In accordance with the European regulation, this table indicates the options for the installation of child seats secured using the seat belt and universally
approved (a) in relation to the weight of the child and the seat in the vehicle.
Weight of the child /indicative age /
SeatLess than 13 kg (groups 0 (b) and 0+) Up to 1 year approx
From 9 to 18 kg(group 1)From 1 to 3 years approx
From 15 to 25 kg
(group 2)From 3 to 6 years approx
From 22 to 36 kg(group 3) From 6 to 10 years approx

Front passenger seat (c)



- with height adjustment U(R)U(R)U(R)U(R)


-
without height adjustmenttUUUU
Outer rear seats UUUU
Centre rear seat XXXX
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from bir th to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
U: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or "for ward facing". U (R): as for U, the vehicle seat must be adjusted to the highest and furthest back position.
X
: seating position not suitable for the installation of a child seat of the weight group indicated.

140
Safety
The incorrect installation of a child seat in a vehicle compromises the child's protection in
the event of an accident. Ensure that there is no seat belt or seat belt buckle under the child seat, as this could destabilise it.

Remember to fasten the seat belts or the child seat harnesses keeping the slackrelative to the child's body to a minimum,even for shor t journeys. When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it securesthe child seat firmly on the seat of your vehicle. If your passenger seat is adjustable,move it for wards if necessary. At rear seating positions, always leavesufficient space between the front seat and:


- a "rear wards facing" child seat,

- the child's feet for a child seat fitted"forwards facing".

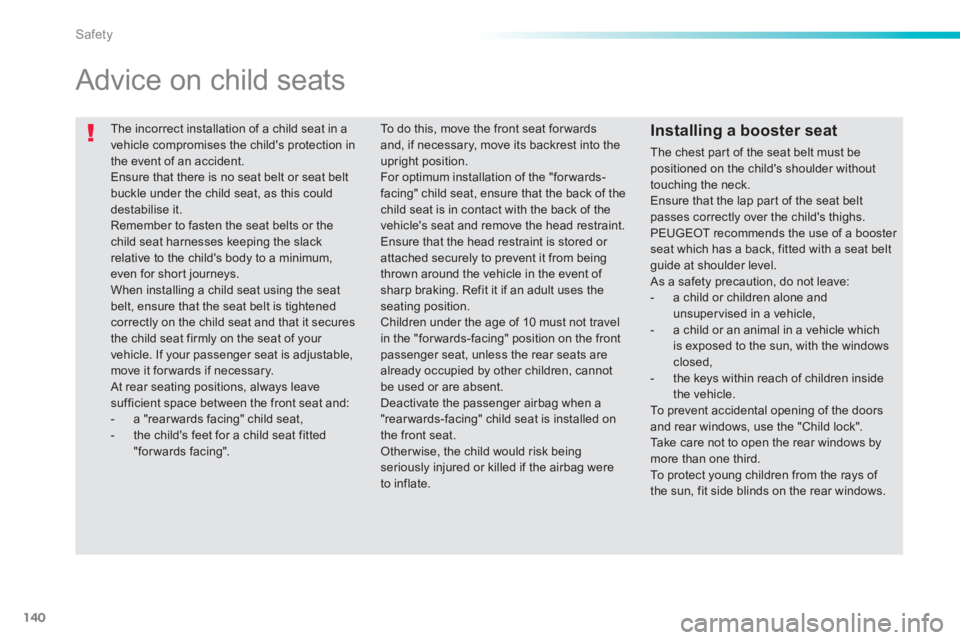

Advice on child seats
Installing a booster seat
The chest par t of the seat belt must bepositioned on the child's shoulder without touching the neck.Ensure that the lap part of the seat belt passes correctly over the child's thighs.PEUGEOT recommends the use of a booster seat which has a back, fitted with a seat beltguide at shoulder level.
As a safety precaution, do not leave: - a child or children alone andunsupervised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windowsclosed, - the keys within reach of children insidethe vehicle.To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows bymore than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.

To d o t h i s, move the front seat for wards and, if necessary, move its backrest into the
upright position.
For optimum installation of the "forwards-facing" child seat, ensure that the back of thechild seat is in contact with the back of the
vehicle's seat and remove the head restraint.
Ensure that the head restraint is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking. Refit it if an adult uses the seating position. Children under the age of 10 must not travel in the "forwards-facing" position on the frontpassenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a "rearwards-facing" child seat is installed on the front seat. Other wise, the child would risk being seriously injured or killed if the airbag were to inflate.

141
6
Safety
Your vehicle has been approved in accordance
with the new
ISOFIX regulation
.
The seats, represented below, are fitted with
re
gulation ISOFIX mountings:

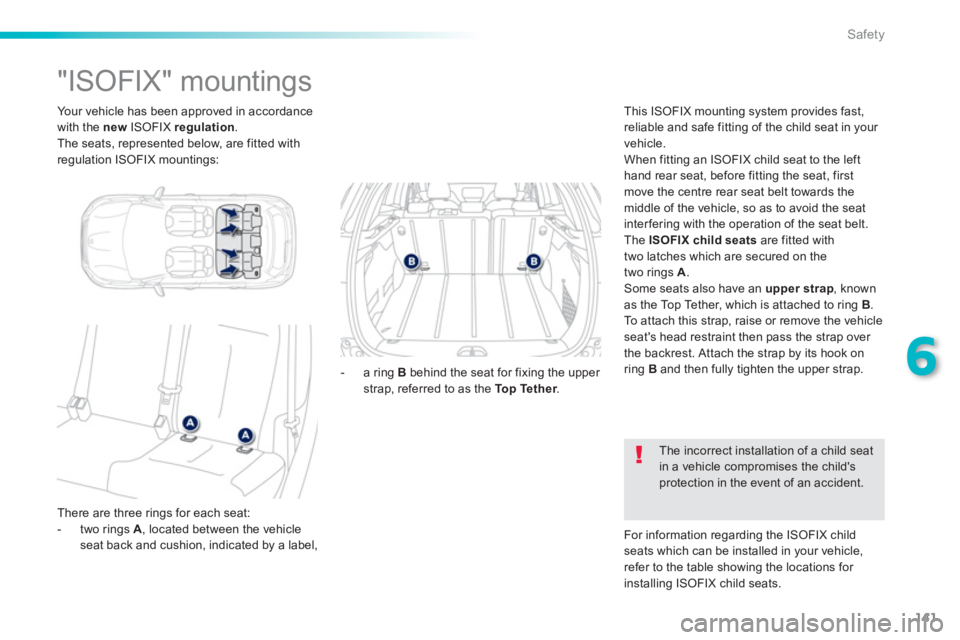

"ISOFIX" mountings

There are three rings for each seat:


- two rings A
, located between the vehicleseat back and cushion, indicated by a label, This I
SOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
When fitting an ISOFIX child seat to the left
hand rear seat, before fitting the seat, first
move the centre rear seat belt towards themiddle of the vehicle, so as to avoid the seat
interfering with the operation of the seat belt.
The ISOFIX child seats
are fitted with
two latches which are secured on the
two rings A.
Some seats also have an upper strap, known
as the Top Tether, which is attached to ring B.
To attach this strap, raise or remove the vehicle
seat's head restraint then pass the strap over
the backrest. Attach the strap by its hook on
ring Band then fully tighten the upper strap.
The incorrect installation of a child seatin a vehicle compromises the child's protection in the event of an accident.
For information re
garding the ISOFIX child seats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats. - a r
ing B
behind the seat for fixing the upper strap, referred to as the To p Te t h e r.r

142
Safety

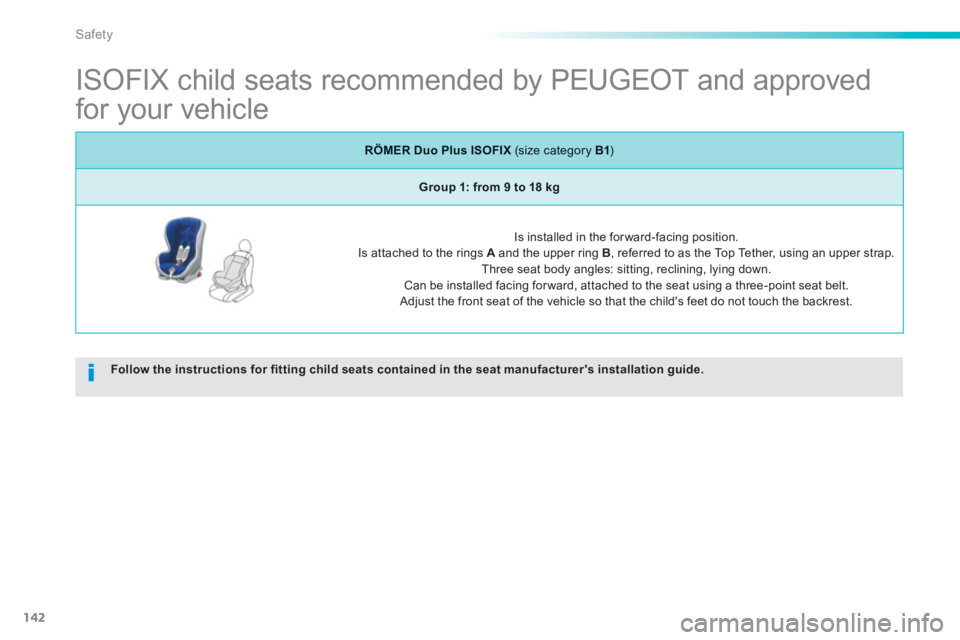

ISOFIX child seats recommended by PEUGEOT and approved
for your vehicle
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.
RÖMER Duo Plus ISOFIX(size category B1 )
Group 1: from 9 to 18 kg
Is installed in the for ward-facing position.
Is attached to the rings A and the upper ring B, referred to as the Top Tether, using an upper strap.
Three seat body angles: sitting, reclining, lying down.
Can be installed facing for ward, attached to the seat using a three-point seat belt.
Adjust the front seat of the vehicle so that the child's feet do not touch the backrest.
