2013 PEUGEOT 2008 Owners Manual

295

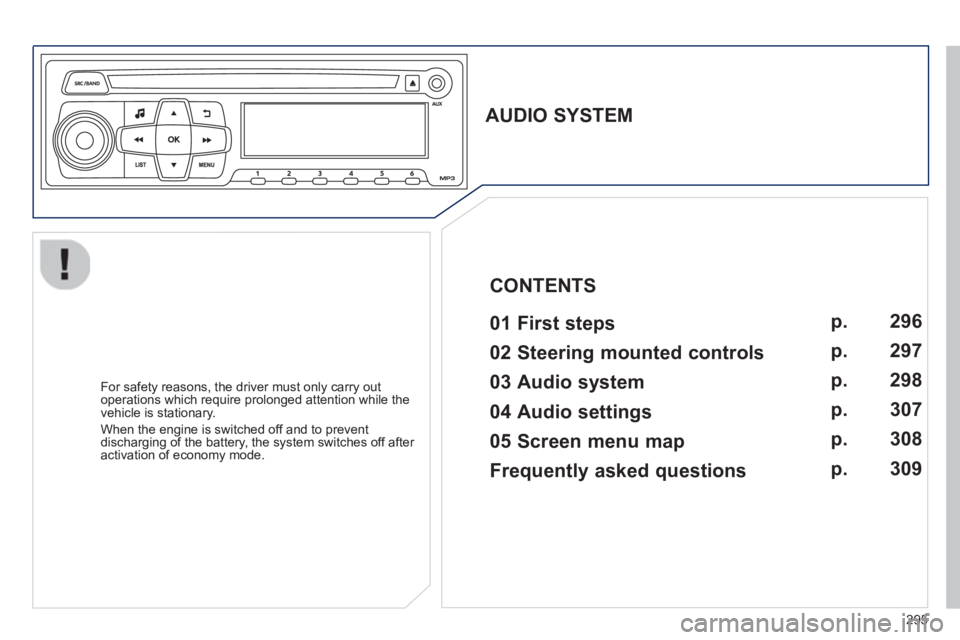

AUDIO SYSTEM


01 First steps


For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off after
activation of economy mode.



CONTENTS

02 Steering mounted controls

03 Audio system

04 Audio settings

05 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p. 29
6
297
298
307
308
309

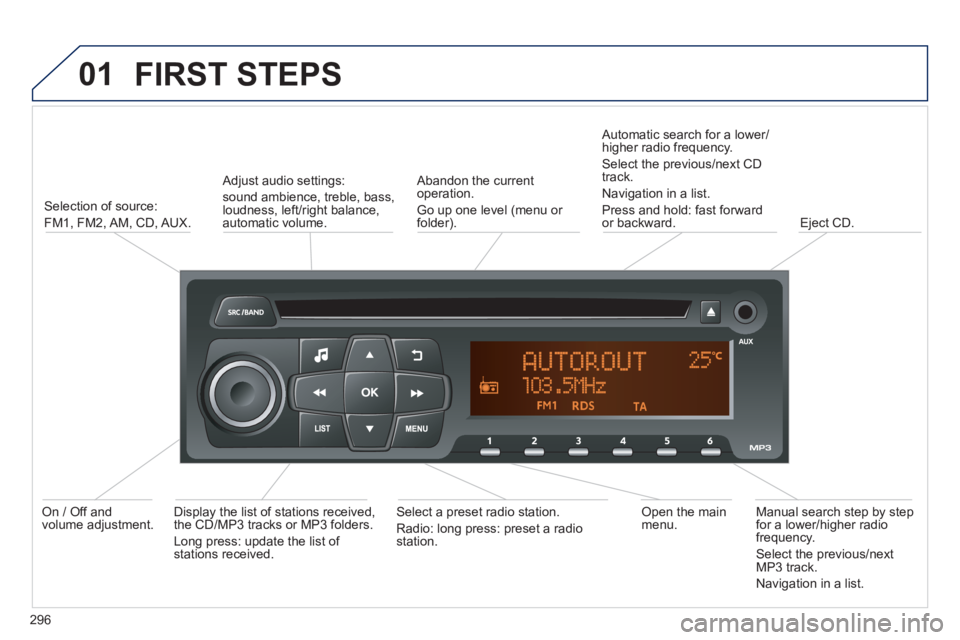

01
FIRST STEPS
296
Selection of source:
FM1, FM2, AM,
CD, AUX.
Adjust audio settings:
sound ambience, treble, bass,loudness, left/right balance, automatic volume.
Abandon the current
operation.
Go up one level (menu or folder).
A
utomatic search for a lower/higher radio frequency.
Select the previous/next CD
track.
Navi
gation in a list.
Pr
ess and hold: fast forwardor backward.
Eject CD.

Manual search step by step for a lower/higher radio frequency.
Select the previous/nextMP3 track.
Navi
gation in a list.
Open the mainmenu. Select a preset radio station.Radio: long press: preset a radiostation. Displa
y the list of stations received,
the CD/MP3 tracks or MP3 folders.
Lon
g press: update the list of stations received.


On / Off and
volume adjustment.

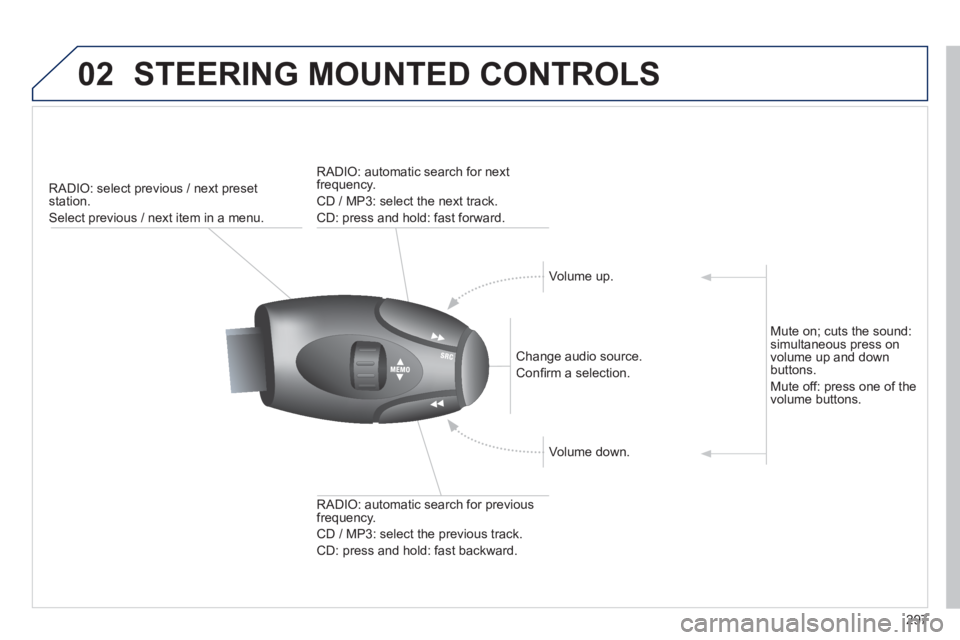

02 STEERING MOUNTED CONTROLS
297


RADIO: select previous / next presetstation.

Select previous / next item in a menu.

Change audio source.
Confi rm a selection.

RADI
O: automatic search for previousfrequency.
CD / MP3: select the
previous track.
CD:
press and hold: fast backward.
RADI
O: automatic search for next
frequency.

CD / MP3: select the next track.

CD: press and hold: fast forward.

Volume up.

V
olume down.
Mute on; cuts the sound:
simultaneous press on
volume up and downbuttons.
Mute o
ff: press one of the
volume buttons.

03
Press the SRC/BANDbutton several
times in succession and select the FM1, FM2 or AM waveband.
Pr
ess a button to listen to the corresponding preset station.Press to chan
ge to the next or previousletter (e.g. A, B, D, F, G, J, K, ...).

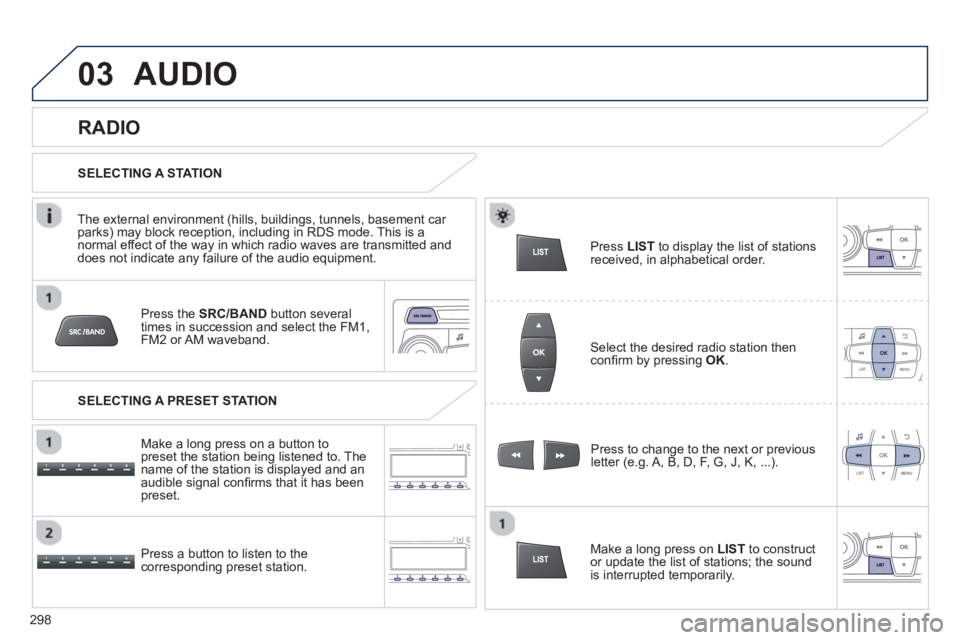

RADIO

Select the desired radio station thenconfi rm by pressing OK.

SELECTING A STATION
Make a lon
g press on LIST
to construct
or update the list of stations; the sound
is interrupted temporarily.
The external environment
(hills, buildings, tunnels, basement car parks) may block reception, including in RDS mode. This is a normal effect of the way in which radio waves are transmitted and
does not indicate any failure of the audio equipment.
SELECTING A PRESET STATION
Make a lon
g press on a button to
preset the station being listened to. The
name of the station is displayed and anaudible signal confi rms that it has been
preset.
Pr
ess LIST
to display the list of stations
received, in alphabetical order.
AUDIO
298

03

RDS, if displayed, enables you to continue listening to the samestation by automatic retuning to alternative frequencies. However,
in certain conditions, coverage by an RDS station may not be
assured throughout the country as radio stations do not cover
100 % of the territory. This explains the loss of reception of the station during a journey.
AUDIO

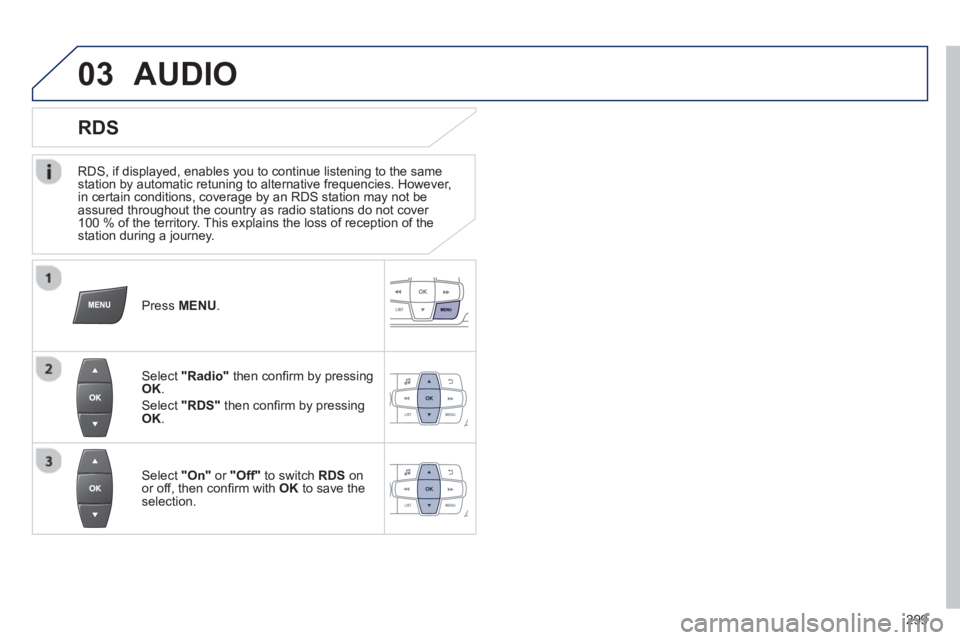

RDS
Press MENU .
Select "Radio"
then confi rm by pressing
OK.
Select "RDS"then confi rm by pressingOK
.
Select "On"
or "Off"
to switch RDSonor off, then confi rm with OK
to save the selection.

2
99

03AUDIO

Radio Text is information transmitted by the radio station on thestation or on the song being played.

Pr
ess MENU.

Select "Radio"or "Media"(dependingon the current sound source) then confi rm by pressing OK.

Select "RADIO TEXT"
then confi rm by pressing OK.

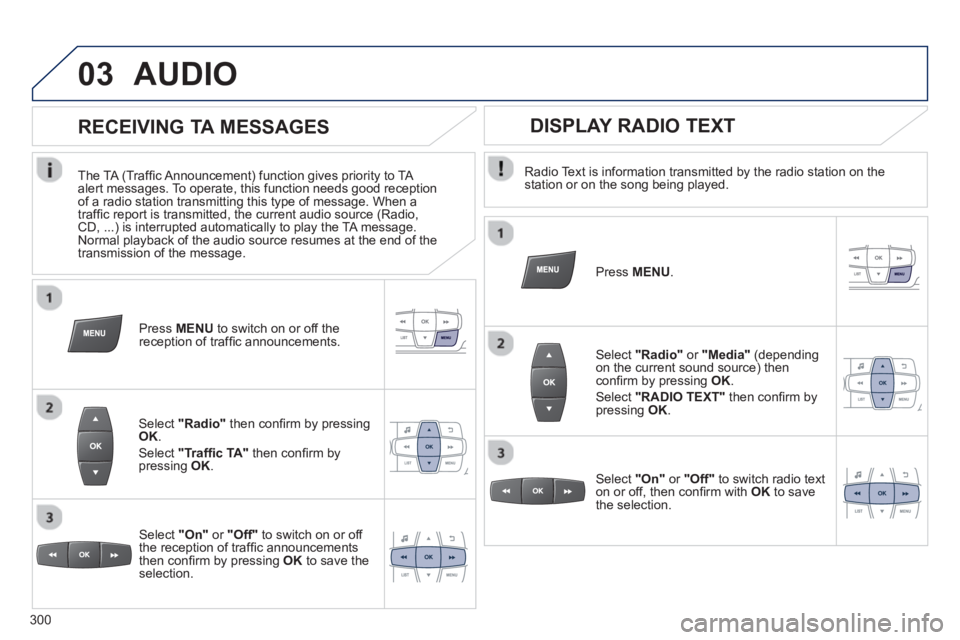

DISPLAY RADIO TEXT

RECEIVING TA MESSAGES


The TA (Traffi c Announcement) function gives priority to TA
alert messages. To operate, this function needs good receptionof a radio station transmitting this type of message. When a
traffi c report is transmitted, the current audio source (Radio,CD, ...) is interrupted automatically to play the TA message.
Normal playback of the audio source resumes at the end of the
transmission of the message.

Select "Radio"then confi rm by pressingOK.
Select "Traffi c TA"
then confi rm by pressing OK.
Select "On"or "Off"
to switch on or off
the reception of traffi c announcements
then confi rm by pressing OKto save theselection.
Press MENU
to switch on or off the reception of traffi c announcements.

Select "On"or "Off"
to switch radio text
on or off, then confi rm with OK
to savethe selection.
300

03

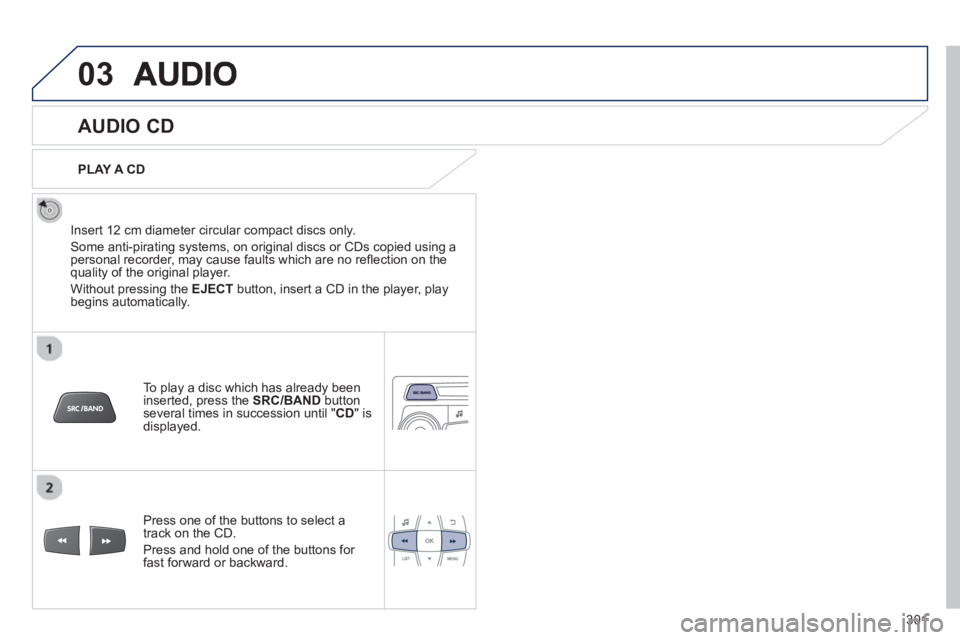

AUDIO CD


Insert 12 cm diameter circular compact discs only.
Some anti-piratin
g systems, on original discs or CDs copied using apersonal recorder, may cause faults which are no refl ection on thequality of the original player.

Without pressing the EJECT
button, insert a CD in the player, playbegins automatically.

To play a disc which has already beeninserted, press the SRC/BAND
buttonseveral times in succession until "CD " is
displayed.

Pr
ess one of the buttons to select a
track on the CD.
Pr
ess and hold one of the buttons for fast forward or backward.
PLAY A
CD
301

03AUDIO

CD

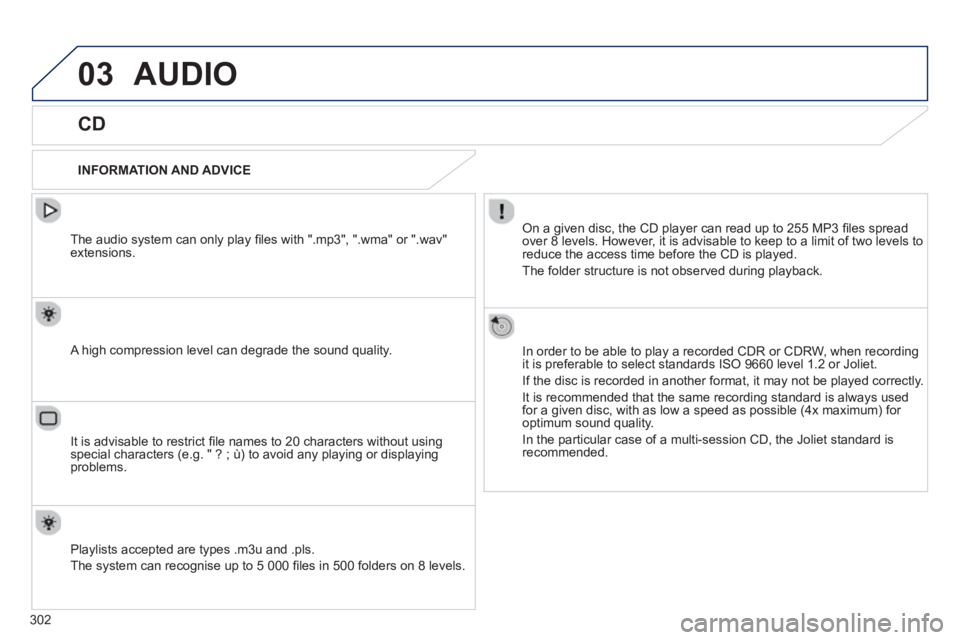

INFORMATION AND ADVICE
On a given disc, the CD player can read up to 255 MP3 fi les spread
over 8 levels. However, it is advisable to keep to a limit of two levels to
reduce the access time be
fore the CD is played.
The
folder structure is not observed during playback.
In order to be able to pla
y a recorded CDR or CDRW, when recordingit is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it ma
y not be played correctly.
It is recommended that the same recording standard is always usedfor a given disc, with as low a speed as possible (4x maximum) for
optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet standard is
recommended.
The audio s
ystem can only play fi les with ".mp3", ".wma" or ".wav"extensions.

A high compression level can degrade the sound quality.

Pla
ylists accepted are types .m3u and .pls.
The s
ystem can recognise up to 5 000 fi les in 500 folders on 8 levels.
It is advisable to restrict fi le names to 20 characters without usin
gspecial characters (e.g. " ? ; ù) to avoid any playing or displaying problems.
302
