2013 PEUGEOT 2008 height

8
Familiarisation
11.Front side window demisting/defrosting
vent.
12.Instrument panel.
13
. Windscreen demisting/defrosting vent. 14 .
Sunshine sensor.
15. Glove box / Passenger's airbagdeactivation.
16.Passenger's airbag.
17. Multifunction screen / Audio system.
18. Central adjustable air vents.
19.Central locking and hazard warningbuttons.
Instruments and controls
1. Cruise control / speed limiter controls. 2.
Steering mounted controls for the touch screen.
3.
Lighting and direction indicator stalk4.
Wiper / screenwash / trip computer stalk. 5.
Bonnet release lever.
6.Steering wheel adjustment control.
7. Driver's airbag.
Horn. 8.Headlamp height adjustment. 9. Switch panel. 10.Side adjustable air vents.
20.
Heating / air conditioning controls.21.12 V accessory socket.
USB por t / auxiliary socket.
Additional USB port.
22. Open storage.
Cup holder. 23. Gear lever. 24.
Grip control switch. 25.Parking brake.26.Panoramic sunroof blind opening andclosing control. 27.
Closed storage compar tment. 28.
Rear 12 V socket.

10
Familiarisation
Sitting comfortably

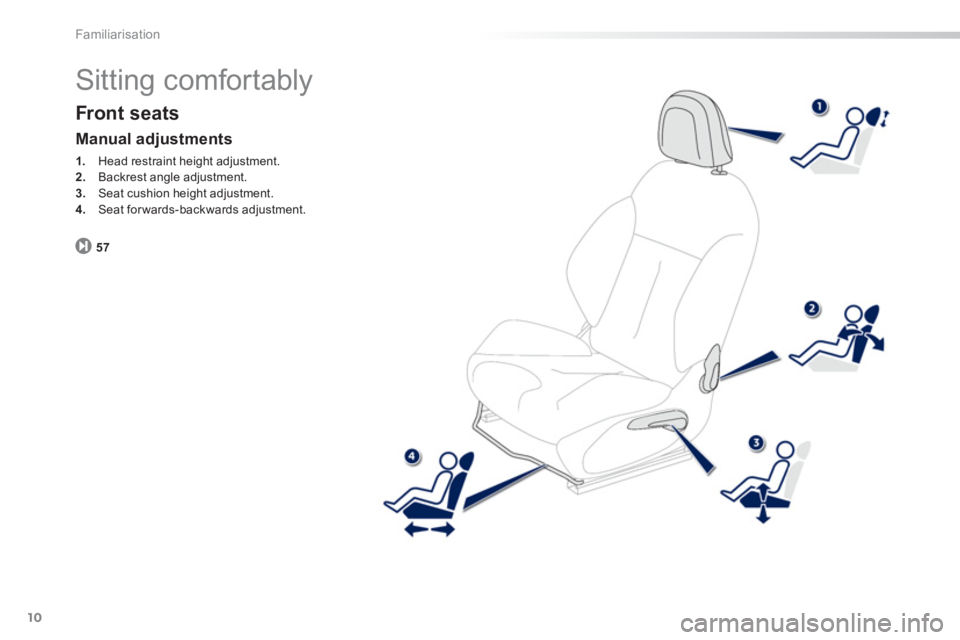

Front seats
57
Manual adjustments
1.
Head restraint height adjustment. 2.
Backrest angle adjustment.3.Seat cushion height adjustment.4.
Seat forwards-backwards adjustment.

.
11
Familiarisation
Sitting comfortably


Head restraint adjustment
58
1.Release the adjustment mechanism.
2. Adjust for height and reach. 3.
Lock the adjustment mechanism.
Steering wheel adjustment
60
For reasons of safety, these operationsmust only be carried out with thevehicle stationary.


Heated seats control
0:
off.
1:low. 2: medium. 3:high. To raise the head restraint, pull it upwards.
To lower it, press the lu
g A
and down on thehead restraint at the same time.
5
8

12
Familiarisation
Sitting comfortably

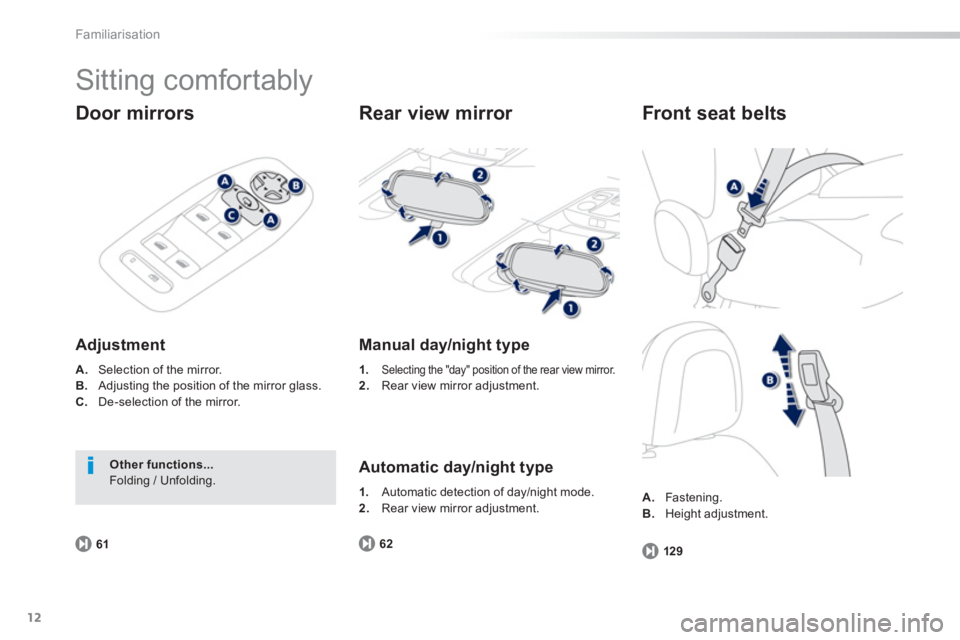

Door mirrors
Adjustment
A.
Selection of the mirror.B.Adjusting the position of the mirror glass. C.De-selection of the mirror.
6
1
Other functions... Folding / Unfolding.


Rear view mirror


Manual day/night type
1.Selecting the "day" position of the rear view mirror.2.
Rear view mirror adjustment.


Automatic day/night type
62
1.Automatic detection of day/night mode.
2. Rear view mirror adjustment.A.Fastening.
B.Height adjustment.


Front seat belts
129

57
3
Comfort

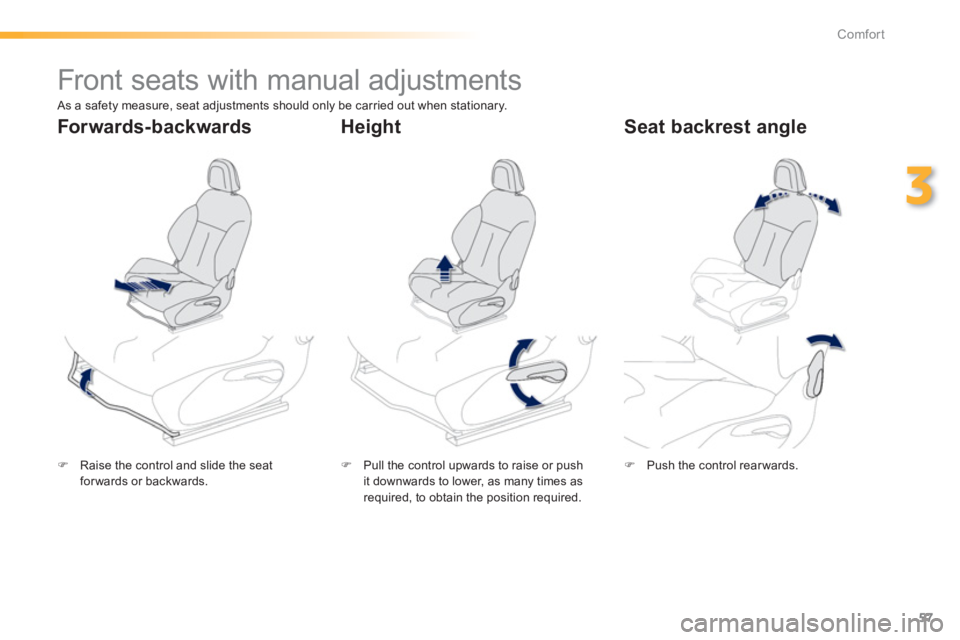

Front seats with manual adjustments
)Raise the control and slide the seatforwards or backwards.
)
Pull the control upwards to raise or push
it downwards to lower, as many times as required, to obtain the position required.
) Push the control rearwards.



Forwards-backwards Height
Seat backrest angle

As a safety measure, seat adjustments should only be carried out when stationary.

58
Comfort
Heated seats control
With the engine running, the front seats can be heated separately.)Use the adjustment dial, placed on the side
of each front seat, to switch on and select
the level of heatin
g required: 0:
Off. 1:Low.2:Medium. 3:
High.

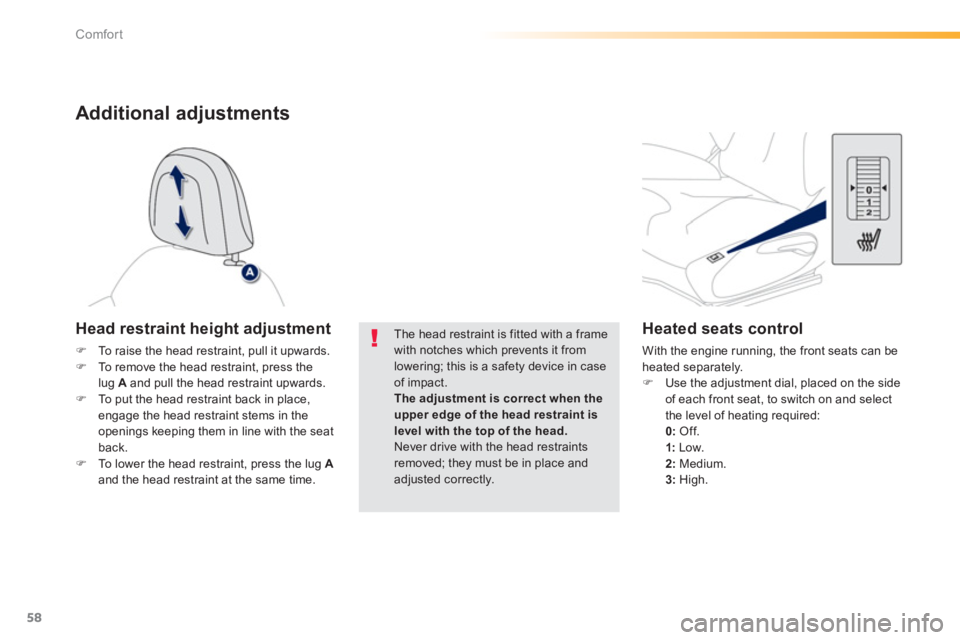

Head restraint height adjustment
)To raise the head restraint, pull it upwards. )To remove the head restraint, press thelug A
and pull the head restraint upwards.)To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat back. )To lower the head restraint, press the lug Aand the head restraint at the same time.
The head restraint is fitted with a framewith notches which prevents it fromlowering; this is a safety device in caseof impact. The adjustment is correct when theupper edge of the head restraint is level with the top of the head.Never drive with the head restraintsremoved; they must be in place andadjusted correctly.

Additional adjustments

60
Comfort








Steering wheel adjustment
)When stationary, pull the control lever toyrelease the adjustment mechanism.)
Adjust the height and reach to suit your
driving position.) Push the control lever to lock the
adjustment mechanism.
As a safety precaution, these operations should only be carried outwhile the vehicle is stationary. These have one position for use
(up) and a stowed position (down).
They can be removed and are interchangeableside to side.To remove a head restraint:)pull the head restraint upwards to the stop, )then, press the lug A .
Rear head restraints


Never drive with the head restraints removed; they must be in place and correctly adjusted.

Correct driving
position

Before taking to the road, carry out these
adjustments in the following order:


- longitudinal position and height of the
driver's seat,

- hei
ght of the driver's seat head restraint,

- height and reach of the steering wheel.

Once these adjustments have been made,ensure that you can see the instrument panel clearly from your driving position.

77
3
Comfort

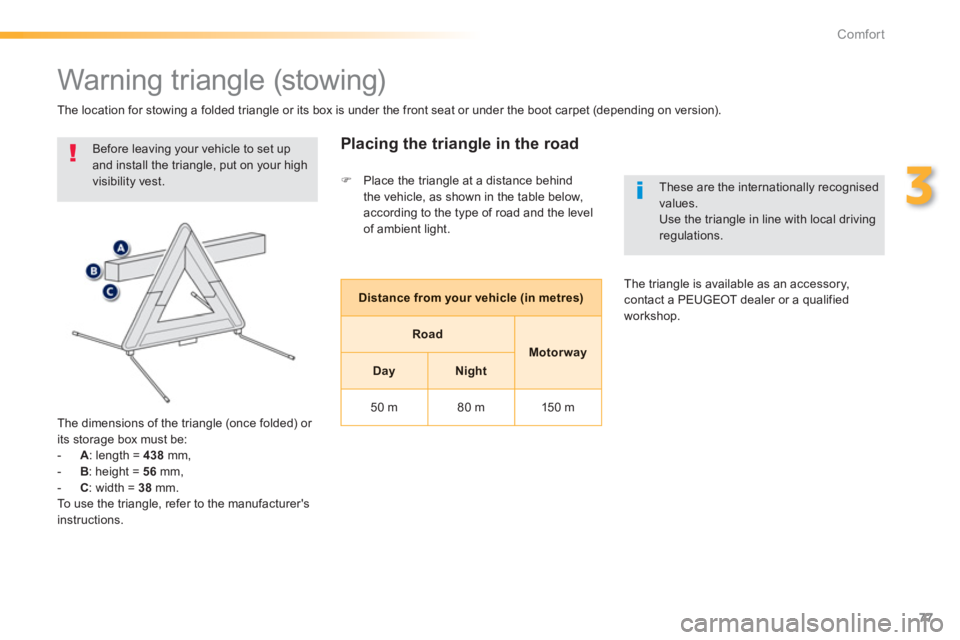

Warning triangle (stowing)

Before leaving your vehicle to set up
and install the triangle, put on your high visibility vest.

The dimensions o
f the triangle (once folded) or
its storage box must be:


- A
: length = 438 mm,

- B: height = 56mm, -C: width = 38 mm.
To use the triangle, refer to the manufacturer'sinstructions.
Placing the triangle in the road


The location for stowing a folded triangle or its box is under the front seat or under the boot carpet (depending on version).
Distance from your vehicle (in metres)
Road
Motorway
DayNight
50 m 80 m15 0 m

These are the internationally recognisedvalues.
Use the triangle in line with local driving regulations.

The triangle is available as an accessory, contact a PEUGEOT dealer or a qualified
workshop.
) Place the triangle at a distance behindthe vehicle, as shown in the table below,
according to the type of road and the level
of ambient light.
