2013 PEUGEOT 2008 warning light

.
.
Contents
Instrument panels 21
Indicator and warning lamps 23
Gauges and indicators 33
Tr i p c o m p u t e r 38
Tr ip computer with touch screen 40
Setting the date and time 43
Instruments and controlsFamiliarisation
Remote control key 44
Alarm 5
1
Electric windows 53
Boot 55
Panoramic sunroof 56
Access
Front seats 57
Rear seats 59
Steering wheel adjustment 60
Mirrors 61
Ventilation 63
Heating 65
Manual air conditioning 65
Dual-zone digital air conditioning 67
Rear screen demist - defrost 70
Interior fi ttings 71
Boot fi ttings 75
Comfort
Starting-stopping the engine 78
Manual parking brake 79
Manual gearbox 80
5-speed electronic gearbox 81
6-speed electronic gear control gearbox 84
Automatic gearbox 88
Gear shift indicator 91
Stop & Star t 92
Hill star t assist 95
Speed limiter 96
Cruise control 98
Parking sensors 101
Park Assist 103
Driving
Lighting controls 107
LED lamps 111
Daytime running lamps 111
Automatic illumination of headlamps 113
Headlamp adjustment 114
Cornering lighting 115
Wiper controls 116
Automatic rain sensitive wipers 118
Courtesy lamps 120
Interior mood lighting 121
Visibility Eco-driving

.
5
Familiarisation

Te m p o r a ry puncture repair kit

This kit is a complete system consisting of a compressor and a sealant car tridge, to allow
the temporary repair of a tyre.
14 5

Panoramic sunroof

Equipped with configurable light guides, this sunroof provides incomparable visibility andlighting in the passenger compartment.
5
6
Rear parking sensors
This system provides a warning whenmanoeuvring backwards by detecting obstacles located behind the vehicle.
101
Exterior

8
Familiarisation
11.Front side window demisting/defrosting
vent.
12.Instrument panel.
13
. Windscreen demisting/defrosting vent. 14 .
Sunshine sensor.
15. Glove box / Passenger's airbagdeactivation.
16.Passenger's airbag.
17. Multifunction screen / Audio system.
18. Central adjustable air vents.
19.Central locking and hazard warningbuttons.
Instruments and controls
1. Cruise control / speed limiter controls. 2.
Steering mounted controls for the touch screen.
3.
Lighting and direction indicator stalk4.
Wiper / screenwash / trip computer stalk. 5.
Bonnet release lever.
6.Steering wheel adjustment control.
7. Driver's airbag.
Horn. 8.Headlamp height adjustment. 9. Switch panel. 10.Side adjustable air vents.
20.
Heating / air conditioning controls.21.12 V accessory socket.
USB por t / auxiliary socket.
Additional USB port.
22. Open storage.
Cup holder. 23. Gear lever. 24.
Grip control switch. 25.Parking brake.26.Panoramic sunroof blind opening andclosing control. 27.
Closed storage compar tment. 28.
Rear 12 V socket.

1
23
Instruments and controls








Indicator and warning lamps
Cer tain warning lamps may come on inone of two modes. Only by relating thetype of lighting to the operating statusof the vehicle can it be ascertainedwhether the situation is normal or whether a fault has occurred.

When the ignition is switched on
Certain warning lamps come on for a few seconds in the instrument panel and/or
instrument panel screen when the vehicle's
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
The switching on of cer tain warning lamps
may be accompanied by an audible signal
and a message in the instrument panel or
multifunction screen.
The warning lamps may come on continuously (fixed) or flash.
Visual indicators informin
g the driver that a system is switched on (indicator or deactivation lamp) or has a fault (warning lamp).

24
Instruments and controls

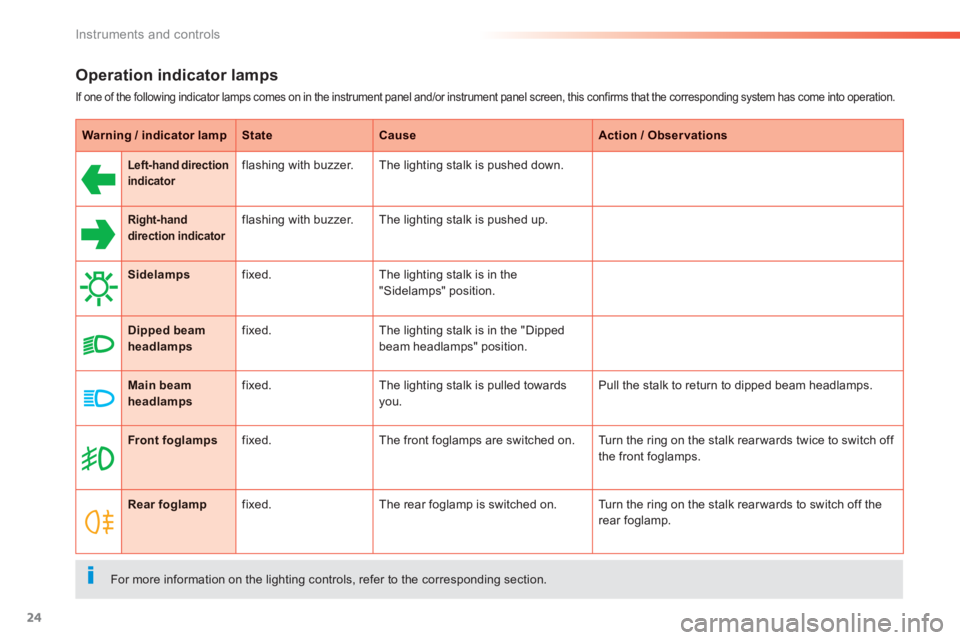

Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.
Warning / indicator lampStateCauseAction / Observations



Left-hand directionindicatorflashing with buzzer. The lighting stalk is pushed down.



Right-hand direction indicatorrflashing with buzzer. The lighting stalk is pushed up.
Sidelampsfixed.The lighting stalk is in the
"Sidelamps" position.
Dipped beamheadlampsfixed.The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam headlampsfixed.The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Front foglampsfixed.The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.
Rear foglampfixed.The rear foglamp is switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamp.

For more information on the lighting controls, refer to the corresponding section.

26
Instruments and controls
Warning / indicator lampStateCauseAction / Observations
Foot on theclutch *fixed.In the STOP mode of Stop & Star t,changing to START mode is refused
because the clutch pedal is not fully
down.You must declutch full
y to allow the change to engineSTA R T m o d e .
Stop & Startfixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start system has put the engine into STOPmode.The warnin
g lamp goes off and the engine restarts
automatically in START mode, as soon as you want tomove off.
flashes for a few seconds, then goesoff.
STOP mode is temporarily unavailable. or STA R T m o d e i s i n v o ke dautomatically. For more in
formation on special cases with STOP mode and START mode, refer to the "Stop & Start"section.
Automatic wipingfixed. The wiper control is pushed downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate the controlstalk downwards or put the stalk into another position.
*
Except for the active matrix instrument panel.

1
33
Instruments and controls

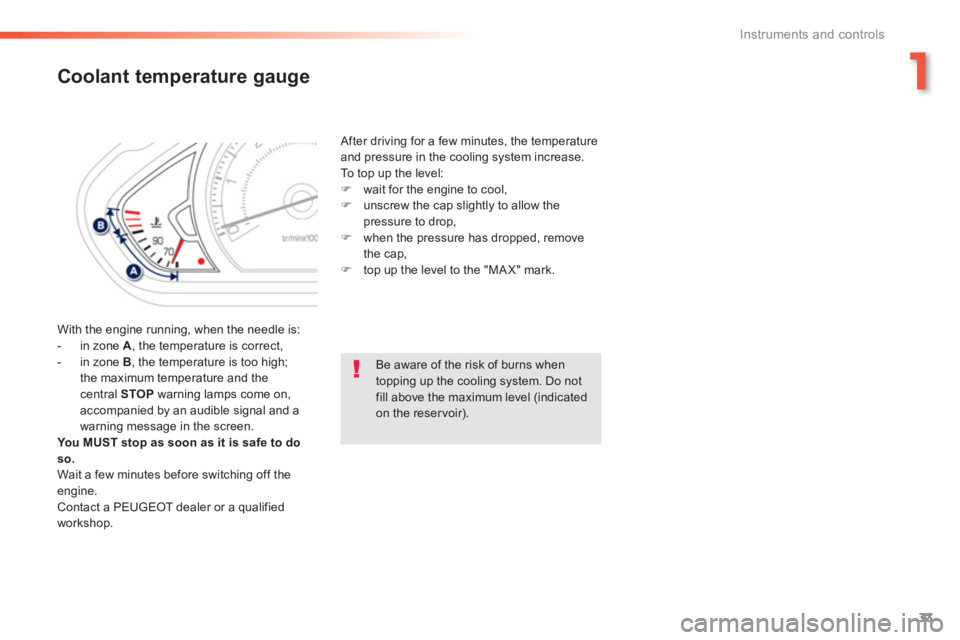

Coolant temperature gauge
With the engine running, when the needle is:


- in zone A
, the temperature is correct,

- in zone B, the temperature is too high;
the maximum temperature and the central STOP
warning lamps come on,accompanied by an audible signal and a
warning message in the screen.
You MUST stop as soon as it is safe to do so. Wait a few minutes before switching off theengine.
Contact a PEUGEOT dealer or a qualified
wor
kshop.
After drivin
g for a few minutes, the temperatureand pressure in the cooling system increase.
To top up the level:
) wait for the engine to cool, )
unscrew the cap slightly to allow the
pressure to drop,
) when the pressure has dropped, remove
the cap,) top up the level to the "MA X" mark.

Be aware of the risk of burns whentopping up the cooling system. Do not fill above the maximum level (indicatedon the reservoir).

47
2
Access
Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes after the ignition is switched off and prevents
starting of the engine by anyone who does not have the key.
Guide-me-home lighting

With the remote control
Make a long press this button to
operate the guide-me-home lighting(switching on the sidelamps, dipped
beams and number plate lamps).

A second press before the end of the timedperiod cancels the guide-me-home lighting.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal anda message in the screen.
In this case, your vehicle will not start; contact
a PEUGEOT dealer as soon as possible.
Keep safely the label attached to thekeys given to you on acquisition of the
vehicle.
