2013 PEUGEOT 2008 warning light

49
2
Access
Secondary control
For mechanically locking and unlocking the doors in the event of a fault with the central
locking system or a battery failure.


Driver's door

Inser t the key in the lock to lock or unlock the door.


Passenger doors
)On the rear doors, check that the child lock
is not on.)Remove the black cap located on the edge
of the door, using the key. )Inser t the key into the aper ture without forcing, then without turning, move the
latch sideways towards the inside of thedoor.
)Remove the key and refit the cap.




Changing the battery

Battery ref.: CR1620 / 3 volts.
Do not throw the remote control batteries away, they contain metalswhich are harmful to the environment.
Take them to an approved collectionpoint.
Remote control problem
Reinitialisation
)
Switch off the ignition.)
Turn the key to position 2 (Ignition).)
Press the closed padlock immediately for a
few seconds.) Switch off the ignition and remove the key
from the ignition switch.
The remote control is fully operational again. Followin
g disconnection of the vehicle battery,replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your
vehicle.) First of all, use the key in the lock to unlock
or lock your vehicle.) Then, reinitialise the remote control.
I
f the problem persists, contact a PEUGEOT
dealer as soon as possible.
If the batter
y is flat, you are informed
by lighting of this warning lamp in the
instrument panel, an audible signal
and a message in the screen.) Unclip the cover using a screwdriver in thecutout.)
Remove the cover.)
Extract the flat battery from its location.
)
Place the new battery into its location
observing the original direction. ) Clip the cover in place.

77
3
Comfort











Warning triangle (stowing)

Before leaving your vehicle to set up
and install the triangle, put on your high visibility vest.

The dimensions o
f the triangle (once folded) or
its storage box must be:


- A
: length = 438 mm,

- B: height = 56mm, -C: width = 38 mm.
To use the triangle, refer to the manufacturer'sinstructions.
Placing the triangle in the road


The location for stowing a folded triangle or its box is under the front seat or under the boot carpet (depending on version).
Distance from your vehicle (in metres)
Road
Motorway
DayNight
50 m 80 m15 0 m

These are the internationally recognisedvalues.
Use the triangle in line with local driving regulations.

The triangle is available as an accessory, contact a PEUGEOT dealer or a qualified
workshop.
) Place the triangle at a distance behindthe vehicle, as shown in the table below,
according to the type of road and the level
of ambient light.

82
Driving
Gear lever positions
N
. Neutral R
. Reverse 1, 2, 3, 4, 5.
Gears in sequential mode AUTO.
This comes on when the automatedmode is selected. It switches off on changing to sequential mode.
)Select position N.)Press the brake pedal fully.)Star t the engine.
Nappears in the instrument panel.


Moving off
N
flashes in the instrument panelscreen if the gear lever is not inposition N
on starting.
)
Place your foot on the brakewhen this warning lamp flashes(e.g.: star ting the engine).

There is an audible signal on engagement of reverse.

When moving off on a slope, accelerate gradually while releasing the parking brake.
)
Select first gear (position Mor A
) or Areverse (position R)R)
Release the parking brake.)
Progressively take your foot off the brakepedal, then move off.
AUTO
and 1
or R
appear in the
instrument panel.

Stopping - Moving off on a slope

When stopping on a slope, do not use the
accelerator to immobilise the vehicle; apply the
parkin
g brake.


Sequential mode
AUTOdisappears and the gearsengaged appear in succession in the
instrument panel.
)After star ting the vehicle, select position Mto change to sequential mode.
The
gear change commands are only carried
out if the engine speed permits.
When driving at low speed, on approachinga stop sign or traffic lights for example,
the gearbox changes down to first gear
automatically.
You must press the brake pedal while star ting
the en
gine.
Automated mode
)Following use of the sequential mode, select position A
to return to the automated mode.
AUT
Oand the gear engaged appear in the instrument panel.

The gearbox then operates in auto-adaptive mode, without any action on the par t of the
driver. It continuously selects the most suitable
gear for:


- optimisation of fuel consumption,

- the drivin
g style,

- the road conditions,

- th
e vehicle load.

90
Driving
Manual operation
)Select position M for sequentialchanging
o
f the four gears.)Push the lever towards the + sign tochange up a gear. )Pull the lever towards the -
sign to change
down a gear.
It is only possible to change from one gear to another if the vehicle speed and engine speedpermit; otherwise, the gearbox will operate
temporarily in automatic mode.
D disappears and the gears engaged appear in succession in the
instrument panel.

Invalid value during manual operation
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).



Stopping the vehicle

Before switching off the engine, you can engage
position Por N
to place the gearbox in neutral.
In both cases, apply the parking brake to
immobilise the vehicle.

Operating fault
When the ignition is on, thelighting of this warning lamp,
accompanied by an audible signal and a
message in the multifunction screen, indicates
a gearbox fault.
In this case, the gearbox switches to back-up mode and is locked in 3rd gear. You may feel
a substantial knock when changing from Pto Rand from N to R
. This will not cause any damage to the gearbox.
Do not exceed 60 mph (10 0 km/h), local speed
restrictions permitting.

Contact a PEUGEOT dealer or a qualified
workshop as soon as possible.
I
f the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D(automatic) to position M (manual) at any time.
When the vehicle is stationary or movingvery slowly, the gearbox selects gear M1automatically. The spor t and snow programmes do not
operate in manual mode.

There is a risk of damage to thegearbox:


- if you press the accelerator and brake pedals at the same time,

- if you force the movement of the gear lever from the Pposition toanother position when the battery isflat.
To reduce fuel consumption when at
a prolonged standstill with the enginerunning (traffic jam...), put the gear lever in the Nposition and apply the parkingbrake.

If the lever is not in position P
, when the Pdriver's door is opened or approximately 45 seconds after the ignition is switchedoff, a warning message appears in the screen.)Return the lever to position P; the
message disappears.

92
Driving











Stop & Start The Stop & Star t system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restar ts automatically - START mode - as soon as you want to move off. The restar t takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Star t system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Operation
Going into engine STOP mode
The "ECO"warning lamp comes
on in the instrument panel and the engine goes into standby:
- with a manual gearbox
, at speeds below
12 mph (20 km/h), when you put the gear lever into neutral, and you release theclutch pedal.
-with a 5-speed electronic gearbox , at
speeds below 5 mph (8 km/h), when you
press the brake pedal or put the gear lever in position N.
Never refuel with the engine in STOPmode; you must switch off the ignition with the key.
For your comfort, during parkingmanoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...

Special cases: STOP mode not available
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph(10 km/h) since the last engine start usingthe key,

- the engine is needed to maintain acomfortable temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge, engine temperature, braking assistance,ambient temperature...) where the engine isneeded to assure control of a system.
A tim
e counter calculates the sum
of the periods in STOP mode
during a journey. It rests itself
to zero every time the ignition is
switched on with the key.
The "ECO"warning lamp flashes for
a few seconds then goes off.
This operation is per fectly normal.

112
Visibility
Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition has been switched off makes the driver's exit easier
when the light is poor.
Manual guide-me-home
lighting
Switching on
)With the ignition off, "flash" the headlampsusing the lighting stalk.
)A fur ther "headlamp flash" switches the
function off.


Switching off

The manual guide-me-home lighting switches
off automatically after a set time.
Parking lamps
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.)Within one minute of switching off the
ignition, operate the lighting control stalk up
or down depending on the traffic side (for example: when parking on the left; lighting
control stalk upwards; the right handsidelamps are on).
Manual
guide-me-home lighting isalso available from the remote controllighting button (see the "Remotecontrol" section). This is con
firmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch o
ff the parking lamps, return the
lighting control stalk to the middle position or switch on the ignition.

113
5
Visibility
The sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver, when a low level of external light is detected or in certain cases of
activation of the windscreen wipers.

As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
o
ff, the lamps are switched off automatically.
Automatic illumination of
headlam
ps

Switching on
)Turn the ring to the "AUTO"position. Activation of the function is accompanied
by a message in the screen.


Switching off
)Turn the ring to another position.
Deactivation of the function is accompanied by a message in the screen.
Automatic guide-me-home lighting

Association with the automatic lighting provides
the guide-me-home lighting with the followingadditional options:
- selection of the lighting duration of 15,
30 or 60 seconds,
- automatic activation o
f guide-me-home lighting when the automatic illumination of
headlamps is in operation.

Operating fault

In the event of a fault with the
sunshine sensor, the lighting comes on, this warning lamp
is displayed in the instrument panel and/or a
message appears in the screen, accompaniedby an audible signal.
Contact a PEUGEOT dealer or a qualified
workshop.

In fog or snow, the sunshine sensor maydetect sufficient light. In this case, the lighting will not come on automatically. Do not cover the sunshine sensor,coupled with the rain sensor and located in the centre of the windscreenbehind the rear view mirror; theassociated functions would no longer be controlled.
Programming

The duration of the guide-me-home
lighting can be set in the vehicleconfiguration menu.

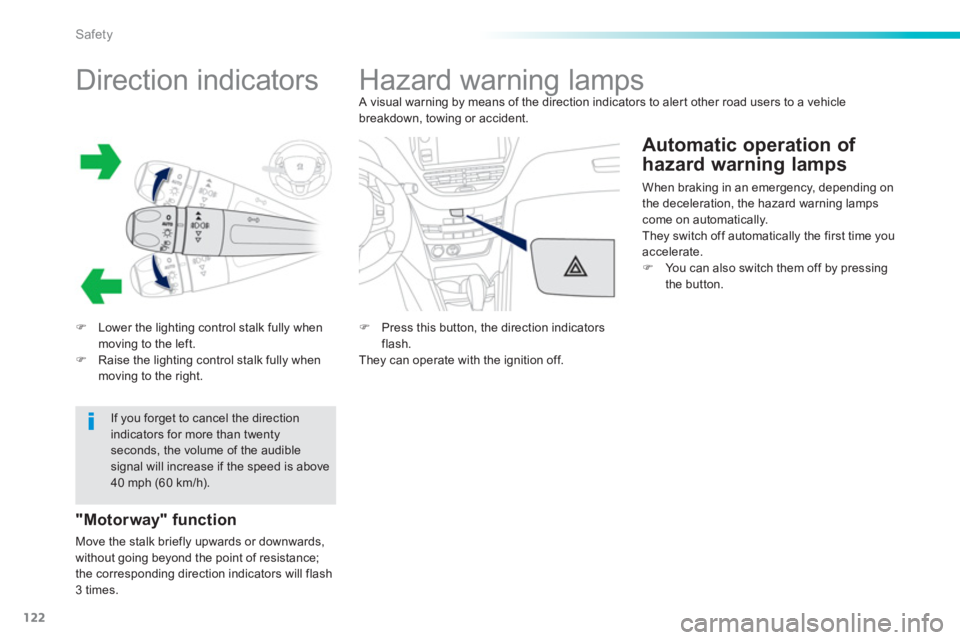

122
Safety














Direction indicators
)Lower the lighting control stalk fully when moving to the left.)Raise the lighting control stalk fully when moving to the right.
"Motorway" function
Move the stalk briefly upwards or downwards,
without going beyond the point of resistance;
the corresponding direction indicators will flash 3 times.


If you forget to cancel the directionindicators for more than twenty seconds, the volume of the audible signal will increase if the speed is above40 mph (60 km/h).







Hazard warning lamps
A visual warning by means of the direction indicators to aler t other road users to a vehiclebreakdown, towing or accident.
Automatic operation of
hazard warnin
g lamps
When braking in an emergency, depending on
the deceleration, the hazard warning lamps come on automatically.
They switch off automatically the first time you accelerate.)You can also switch them off by pressingthe button.

)
Press this button, the direction indicatorsflash.
They can operate with the ignition off.
