2013 PEUGEOT 2008 Owners Manual

127
6
i
Safety











Grip control

Special patented traction control system which
improves traction on snow, mud and sand.
This s
ystem is combined with all-season M+S (Mud and Snow: 215/60 R16) tyres which offer
an excellent compromise between safety, gripand traction.
This system, the operation of which has been
optimised for each situation, allows you to manoeuvre in most conditions of poor grip(encountered during touring use).
The accelerator pedal should be pressed
sufficiently to allow the system to use thepower of the engine. The electronics will ensure optimum management of the variousparameters. Operation at high engine speeds iscompletely normal.
Each time the ignition is switched off, the system returns to standard mode (DSC).
Normal mode
Standard mode which is calibrated for a lowlevel of wheel spin, based on the differentlevels of grip normally encountered on the road.
)
Place the dial in this position.
A message appears in the multifunctionscreen or in the instrument panelscreen confirming the mode selected


Snow mode
Mode which adapts its strategy to theconditions of grip encountered for each of the
two front wheels on moving off.
When moving, the system optimises wheel spin
to provide the best acceleration possible for the
grip available.
)Place the dial in this position.

128
i
Safety

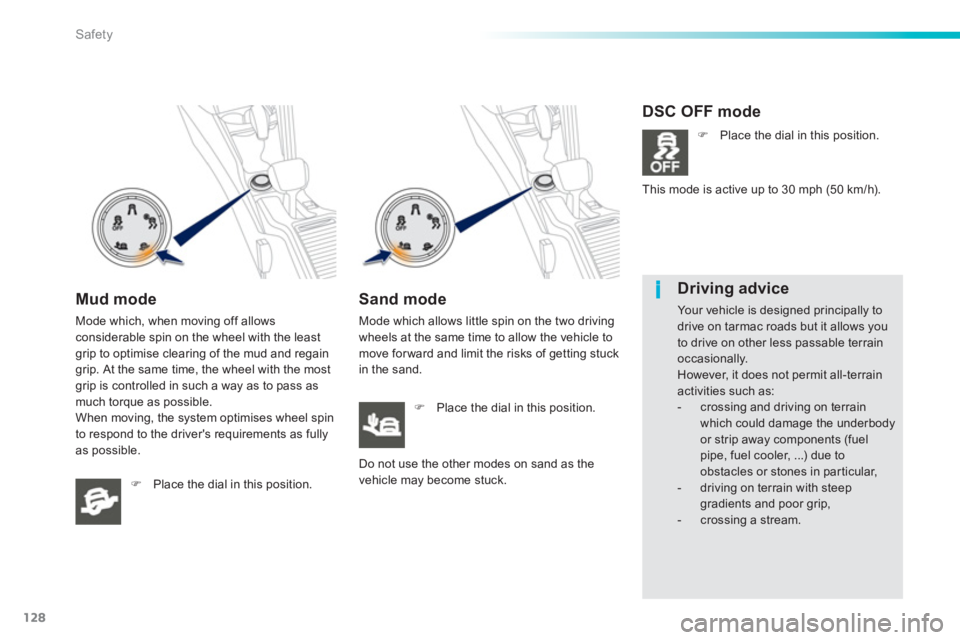

Mud mode
Mode which, when moving off allowsconsiderable spin on the wheel with the leastgrip to optimise clearing of the mud and regain grip. At the same time, the wheel with the mostgrip is controlled in such a way as to pass as much torque as possible.
When moving, the system optimises wheel spin
to respond to the driver's requirements as
fullyas possible.
) Place the dial in this position.



Sand mode
Mode which allows little spin on the two drivingwheels at the same time to allow the vehicle tomove for ward and limit the risks of getting stuck
in the sand.
)Place the dial in this position.
D
o not use the other modes on sand as thevehicle may become stuck.


DSC OFF mode
)
Place the dial in this position.
This mode is active up to 30 mph
(50 km/h).

Driving advice
Your vehicle is designed principally to drive on tarmac roads but it allows you to drive on other less passable terrainoccasionally.
However, it does not permit all-terrain activities such as:


- crossing and driving on terrainwhich could damage the underbody
or strip away components (fuel pipe, fuel cooler, ...) due toobstacles or stones in particular,

- driving on terrain with steepgradients and poor grip,

- crossing a stream.

129
6
Safety

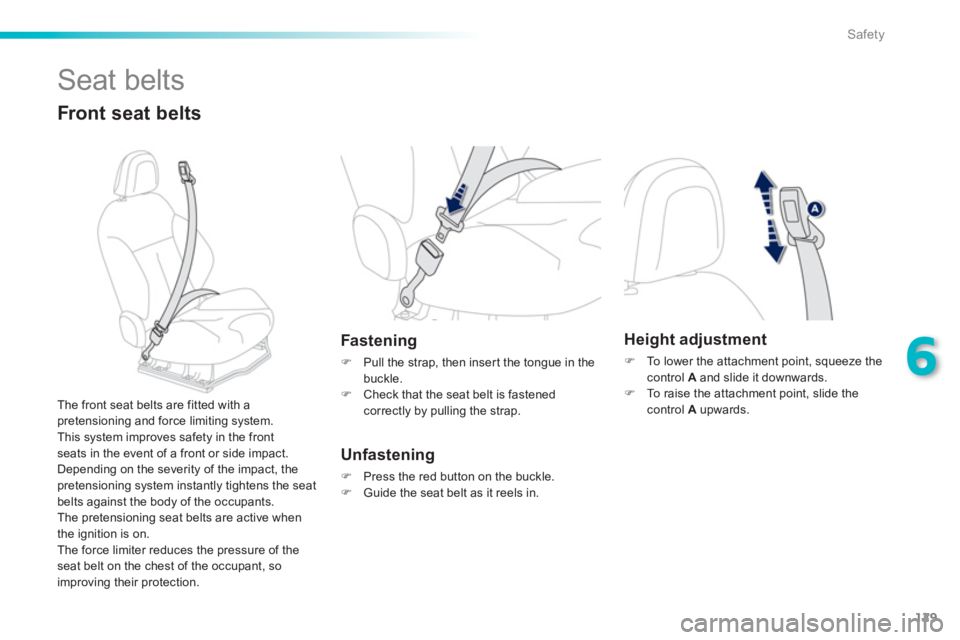

Seat belts


Front seat belts
Fastening
)
Pull the strap, then inser t the tongue in thebuckle. )
Check that the seat belt is fastened correctly by pulling the strap.

Unfastening
)
Press the red button on the buckle. )
Guide the seat belt as it reels in.

Th
e front seat belts are fitted with apretensioning and force limiting system.
This system improves safety in the frontseats in the event of a front or side impact.
Depending on the severity of the impact, thepretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the i
gnition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving their protection.
Height adjustment
)
To lower the attachment point, squeeze the control A
and slide it downwards.)
To raise the attachment point, slide thecontrol A
upwards.

130
Safety

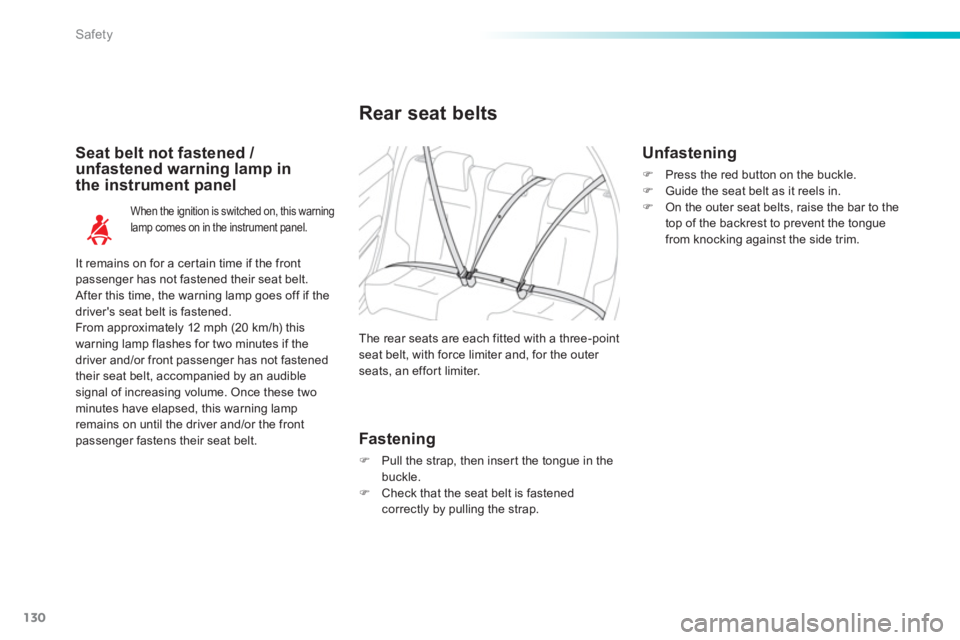

Rear seat belts
The rear seats are each fitted with a three-point
seat belt, with force limiter and, for the outer
seats
, an effort limiter.
When the ignition is switched on, this warning lamp comes on in the instrument panel.
Seat belt not fastened / unfastened warning lamp in the instrument panel

Fastenin
g
)
Pull the strap, then inser t the tongue in the buckle. )
Check that the seat belt is fastened correctly by pulling the strap.


Unfastening
)Press the red button on the buckle.)Guide the seat belt as it reels in.)On the outer seat belts, raise the bar to the
top of the backrest to prevent the tongue from knocking against the side trim.


It r
emains on for a certain time if the frontpassenger has not fastened their seat belt. After this time, the warning lamp goes off if thedriver's seat belt is fastened.
From approximately 12 mph (20 km/h) this
warning lamp flashes for two minutes if the
driver and/or front passenger has not fastened
their seat belt, accompanied by an audiblesignal of increasing volume. Once these two minutes have elapsed, this warning lamp remains on until the driver and/or the frontpassenger fastens their seat belt.

131
6
Safety




The driver must ensure that passengers usethe seat belts correctly and that they are allrestrained securely before setting off.
Wherever you are seated in the vehicle, always fasten your seat belt, even for short journeys.
Do not interchange the seat belt buckles asthey will not fulfil their role fully.
The seat belts are fitted with an inertia reel permitting automatic adjustment of the length of the strap to your size. The seat belt isstowed automatically when not in use.
Before and after use, ensure that the seatbelt is reeled in correctly.
The lower par t of the strap must bepositioned as low as possible on the pelvis.
The upper par t must be positioned in the hollow of the shoulder.
The inertia reels are fitted with an automatic locking device which comes into operation inthe event of a collision, emergency braking or if the vehicle rolls over. You can releasethe device by pulling firmly on the strap and releasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passenger isless than 12 years old or shor ter than one
and a half metres. Never use the same seat belt to secure morethan one person. Never allow a child to travel on your lap.

In order to be effective, a seat belt must:


- be tightened as close to the body as possible,


- be pulled in front of you with a smooth movement, checking that it does nottwist,

- be used to restrain only one person,

- not bear any trace of cuts or fraying,

- not be converted or modified to avoid affecting its per formance.
In accordance with current safety regulations, for all repairs on your vehicle, go to a qualified workshop with the skills and equipment needed, which a PEUGEOT dealer is able to provide.
Have your seat belts checked regularly by a PEUGEOT dealer or a qualified workshop, particularly if the straps show signs of damage.
Clean the seat belt straps with soapywater or a textile cleaning product, sold by PEUGEOT dealers.
After folding or moving a seat or rear bench seat, ensure that the seat belt is positioned and reeled in correctly.
In the event of an impact
Depending on the nature and seriousness of the impact
, thepretensioning device may be deployedbefore and independently of the airbags.Deployment of the pretensioners isaccompanied by a slight discharge of harmless smoke and a noise, due to theactivation of the pyrotechnic cartridgeincorporated in the system.In all cases, the airbag warning lamp comes on.Following an impact, have the seat belts system checked, and if necessary replaced,by a PEUGEOT dealer or a qualified workshop.

132
Safety
Airbags
System designed to maximise the safety of the
occupants (with the exception of the rear centrepassenger) in the event of violent collisions.
The airbags supplement the action of the force-
limiting seat belts (with the exception of the centre rear passenger).
If a collision occurs, the electronic detectors record and analyse the front and side impacts sustained in the impact detection zones:
- in the case of a serious impact, the airbagsare deployed instantly and contribute
towards better protection of the occupants
of the vehicle
(with the exception of the rear centre passenger); immediately after theimpact, the airbags deflate rapidly so that
they do not hinder visibility or the exit of the
occupants,
- in the case of a minor or rear impact
or in cer tain roll-over conditions, the
airbags will not be deployed; the seat belt
alone contributes towards ensuring your protection in these situations.
The airbags do not operate whenthe ignition is switched off.
This equipment will only deploy once.
If a second impact occurs (during thesame or a subsequent accident), theairbag will not be deployed again.
Deployment of the airbag(s) is accompanied by a slight emission of smoke and a noise, due to theactivation of the pyrotechnic cartridgeincorporated in the system.This smoke is not harmful, but sensitiveindividuals may experience slight irritation.
The noise of the detonation may result in a slight loss of hearing for a shorttime.


Impact detection zones
A.
Front impact zone.
B. Side impact zone.
Front airbags


Deployment

The airbags are deployed, except the passenger's
front airbag if it has been deactivated, in the event of
a serious front impact to all or par t of the front impact
z
one A , in the longitudinal centreline of the vehicle on
a horizontal plane and directed from the front to the
rear of the vehicle.
The front airbag inflates between the thorax and head
of the front occupant of the vehicle and the steeringwheel, driver's side, and the dashboard, passenger's
side to cushion their forward movement.
System which protects the driver and frontpassenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the steering wheel; the front passenger's airbag isfitted in the dashboard above the glove box.

133
6
Safety

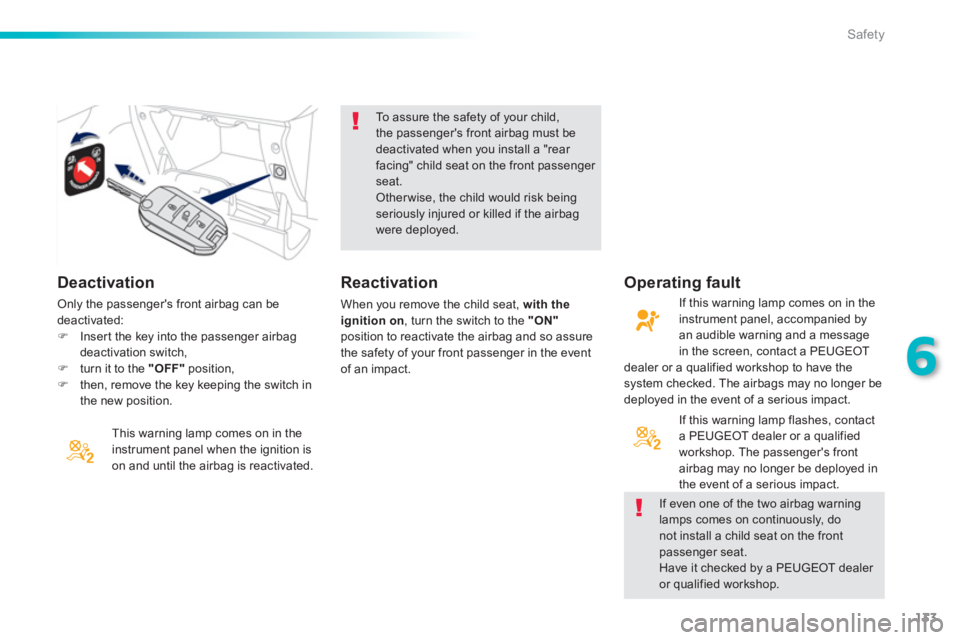

Deactivation
This warning lamp comes on in theinstrument panel when the ignition is
on and until the airbag is reactivated.
To assure the safety of your child,the passenger's front airbag must be deactivated when you install a "rear facing" child seat on the front passenger seat.Other wise, the child would risk beingseriously injured or killed if the airbag were deployed.


If even one of the two airbag warning lamps comes on continuously, donot install a child seat on the frontpassenger seat.
Have it checked by a PEUGEOT dealer or qualified workshop.

Reactivation
When you remove the child seat, with the ignition on , turn the switch to the "ON"position to reactivate the airbag and so assure
the safety of your front passenger in the event
of an impact.

Operating fault
If this warning lamp comes on in the instrument panel, accompanied byan audible warning and a message
in the screen, contact a PEUGEOT
dealer or a qualified workshop to have the system checked. The airbags may no longer be
deployed in the event of a serious impact.
If this warnin
g lamp flashes, contacta PEUGEOT dealer or a qualified
workshop. The passenger's front airbag may no longer be deployed in
the event of a serious impact.
Only the passenger's front airbag can be deactivated:)Inser t the key into the passenger airbag deactivation switch,)turn it to the "OFF"position, )then, remove the key keeping the switch in
the new position.

134
Safety

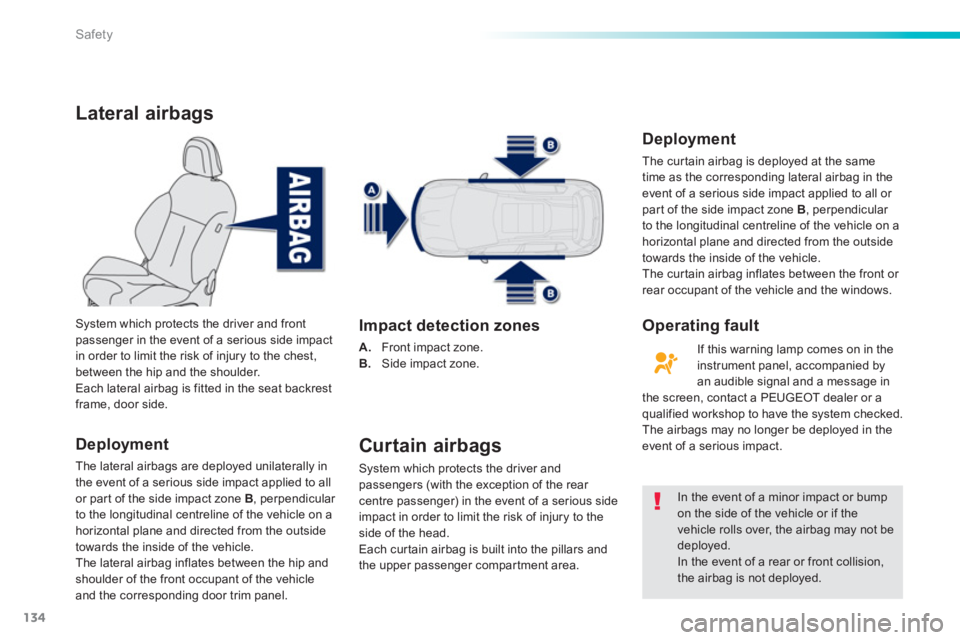

Lateral airbags
Deployment
The lateral airbags are deployed unilaterally in
the event of a serious side impact applied to all
or par t of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip andshoulder of the front occupant of the vehicle and the corresponding door trim panel.
System which protects the driver and frontpassenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airbag is fitted in the seat backrest
frame, door side.

Impact detection zones
A.
Front impact zone.
B. Side impact zone.


Curtain airbags
System which protects the driver and
passengers (with the exception of the rear centre passenger) in the event of a serious side
impact in order to limit the risk of injury to the side of the head.
Each curtain airbag is built into the pillars and
the upper passenger compar tment area.
In the event of a minor impact or bump on the side of the vehicle or if the vehicle rolls over, the airbag may not be
deployed.
In the event of a rear or front collision, the airbag is not deployed.


Deployment

The cur tain airbag is deployed at the same
time as the corresponding lateral airbag in the event of a serious side impact applied to all or par t of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a horizontal plane and directed from the outside
towards the inside of the vehicle.
The cur tain airbag inflates between the front or
rear occupant of the vehicle and the windows.
If this warnin
g lamp comes on in the instrument panel, accompanied by
an audible signal and a message in
the screen, contact a PEUGEOT dealer or aqualified workshop to have the system checked.
The airbags may no longer be deployed in the event of a serious impact.

Operating fault
