MR16DDT ENGINEGUID-D335D9EC-1753-4C7F-815E-51D57D34351D1. Engine oil filler cap (P.8-8)
2. Radiator filler cap (P.8-8)— Vehicle overheat (P.6-10)
3. Brake and clutch* fluid reservoir (P.8-11)
4. Air cleaner (P.8-16)
5. Window washer fluid reservoir (P.8-12) 6. Engine drive belt location (P.8-15)
7. Engine oil dipstick (P.8-8)
8. Engine coolant reservoir (P.8-8)
9. Fuse/fusible link holder (P.8-19)
10. Battery (P.8-13)
— Jump starting (P.6-8)
*: for Manual Transmission (MT) models
Illustrated table of contents0-9
ENGINE COMPARTMENT
Condition:

Black plate (16,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
0-10Illustrated table of contents
GUID-56F49709-8C97-4624-BC9E-EFFB2D8B65F4
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (yellow) (AWD model) 2-13
Anti-lock Braking System
(ABS) warning light2-13
Brake warning light
2-13
Charge warning light2-14
Door open warning light 2-14
Electric power steering warning
light 2-14
Engine oil pressure warning
light
2-14
Intelligent Key system warning
light*2-14
Low fuel warning light
2-15
Low tire pressure warning light 2-15
Low washer fluid warning light* 2-16
P position selecting warning
light* 2-16
Seat belt warning light 2-16
Supplemental air bag warning
light2-17Warning
light Name
Page
Vehicle Dynamic Control (VDC)
warning light 2-17
Indicator light Name Page
All-Wheel Drive (AWD) indica-
tor light (green) (AWD model) 2-17
All-Wheel Drive (AWD) -V indi-
cator light (green) (AWD model)
2-17
Continuously Variable Trans-
mission (CVT) indicator light*2-17
Cruise indicator light
2-18
Engine start operation indicator
light* 2-18
Exterior light indicator
2-18
Front passenger air bag status
light 2-18
High beam indicator light 2-18
Malfunction Indicator Light
(MIL)2-18
Security indicator light
2-19
Turn signal/hazard indicator
lights 2-19
Vehicle Dynamic Control (VDC)
off indicator light2-19*: if so equipped
WARNING AND INDICATOR LIGHTS
Condition:

Black plate (17,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
1 Safety — Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
Rear seats ...
........................................................................\
..... 1-4
Head restraints ...
.................................................................... 1-4
Seat belts ...
........................................................................\
............ 1-9
Precautions on seat belt usage ...
....................................... 1-9
Pregnant women ...
.............................................................. 1-11
Injured persons ...
................................................................. 1-11
Three-point type seat belt ...
.............................................. 1-11
Seat belt extenders ...
.......................................................... 1-14
Seat belt maintenance ...
.................................................... 1-14
Child safety ...
........................................................................\
...... 1-15
Infants ...
........................................................................\
.......... 1-16
Small children ...
.................................................................... 1-16
Larger children ...
.................................................................. 1-16
Child restraints ...
........................................................................\
1-17
Precautions on child restraints ...
..................................... 1-17
Lower Anchors and Tethers for CHildren
System (LATCH) ...
.............................................................. 1-19
Rear-facing child restraint installation
using LATCH ...
..................................................................... 1-21 Rear-facing child restraint installation using the
seat belts
...
........................................................................\
.. 1-23
Forward-facing child restraint installation
using LATCH ...
................................................................... 1-26
Forward-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-27
Installing top tether strap ...
............................................. 1-31
Booster seats ...
.................................................................. 1-31
Supplemental restraint system ...
........................................... 1-35
Precautions on supplemental restraint system ...
....... 1-35
NISSAN Advanced Air Bag System
(front seats) ...
..................................................................... 1-41
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ...
.................................... 1-46
Seat belts with pretensioners (front seats) ...
............. 1-47
Supplemental air bag warning labels ...
....................... 1-49
Supplemental air bag warning light ...
.......................... 1-49
Repair and replacement procedure ...
.......................... 1-50
Condition:

Black plate (18,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
1-2Safety — Seats, seat belts and supplemental restraint system
GUID-9968A6D7-C7DB-4923-8D40-B68E132879F1

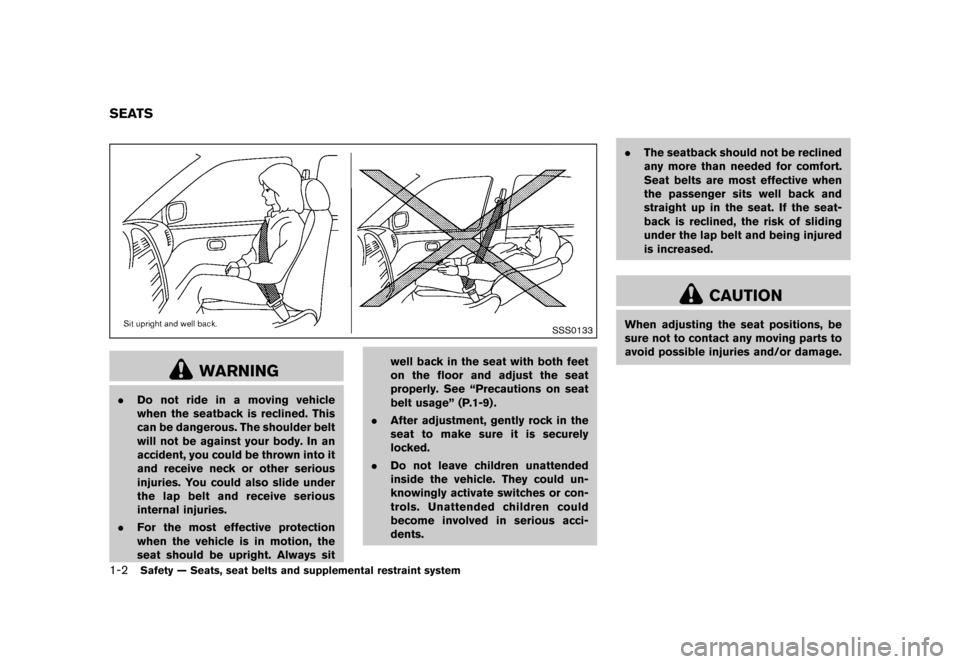

SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat
properly. See “Precautions on seat
belt usage” (P.1-9) .
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
SEATS
Condition:

Black plate (19,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
SSS0792

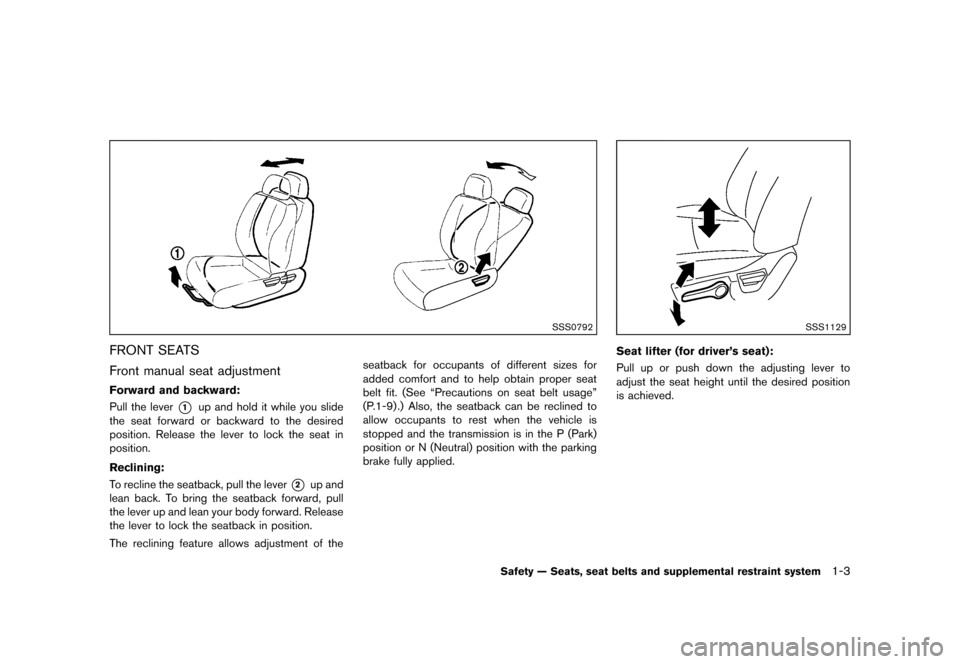

FRONT SEATSGUID-55B40E63-3184-4977-9580-6F5DF10262BF
Front manual seat adjustmentGUID-5F8B59F4-CE83-4388-A330-B31F2E8A1C04
Forward and backward:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-9) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
SSS1129
Seat lifter (for driver’s seat):GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Safety — Seats, seat belts and supplemental restraint system1-3
Condition:

Black plate (20,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
1-4Safety — Seats, seat belts and supplemental restraint system
SSS1142

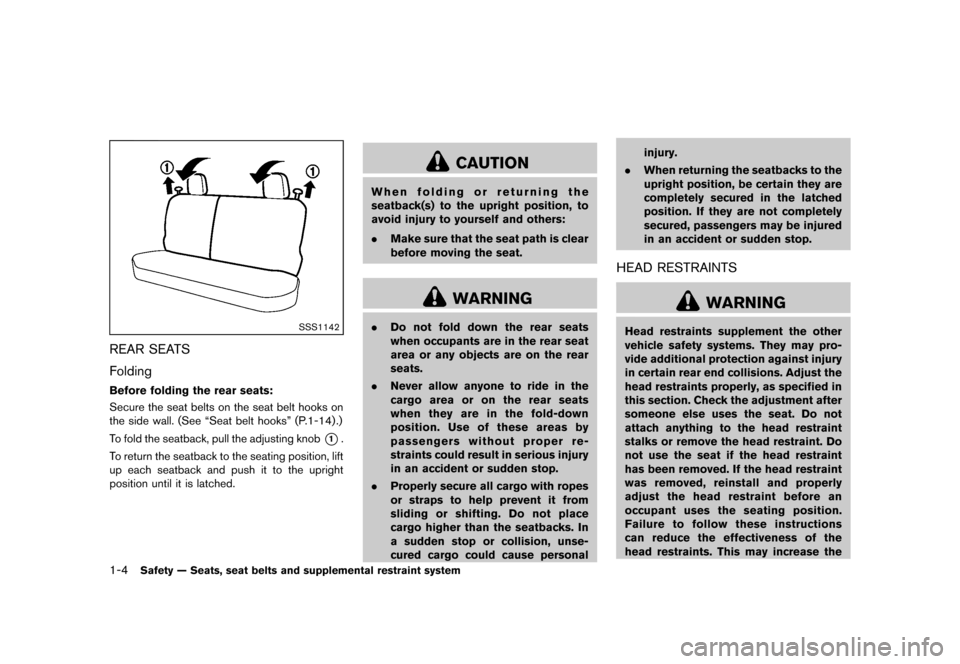

REAR SEATSGUID-2FD3862E-47A4-488D-87D0-EC77846BDDE4
FoldingGUID-93DCD3BA-E481-4D39-82ED-FEB595DFCE01
Before folding the rear seats:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Secure the seat belts on the seat belt hooks on
the side wall. (See “Seat belt hooks” (P.1-14) .)
To fold the seatback, pull the adjusting knob
*1.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.
CAUTION
When folding or returning the
seatback(s) to the upright position, to
avoid injury to yourself and others:
. Make sure that the seat path is clear
before moving the seat.
WARNING
.Do not fold down the rear seats
when occupants are in the rear seat
area or any objects are on the rear
seats.
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious injury
in an accident or sudden stop.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal injury.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
HEAD RESTRAINTSGUID-8F6B0940-703A-44EA-9F15-263BA73C554F
WARNING
Head restraints supplement the other
vehicle safety systems. They may pro-
vide additional protection against injury
in certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head restraint
stalks or remove the head restraint. Do
not use the seat if the head restraint
has been removed. If the head restraint
was removed, reinstall and properly
adjust the head restraint before an
occupant uses the seating position.
Failure to follow these instructions
can reduce the effectiveness of the
head restraints. This may increase the
Condition:

Black plate (21,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
risk of serious injury or death in a
collision.
JVR0051X
The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable. The front head restraints
have multiple adjustment notches. The rear head
restraints have one adjustment notch.
Indicates the seating position is equipped
with a head restraint.
+ Indicates the seating position is not equipped
with a head restraint or adjustable headrest.
SSS0992
Components.GUID-DA49A6E4-F1AC-4350-AD51-CAB31A2EB7021. Head restraint (front shown)
2. Adjustment notches
3. Lock knob
4. Stalks
Safety — Seats, seat belts and supplemental restraint system1-5
Condition:

Black plate (22,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
1-6Safety — Seats, seat belts and supplemental restraint system
SSS0997

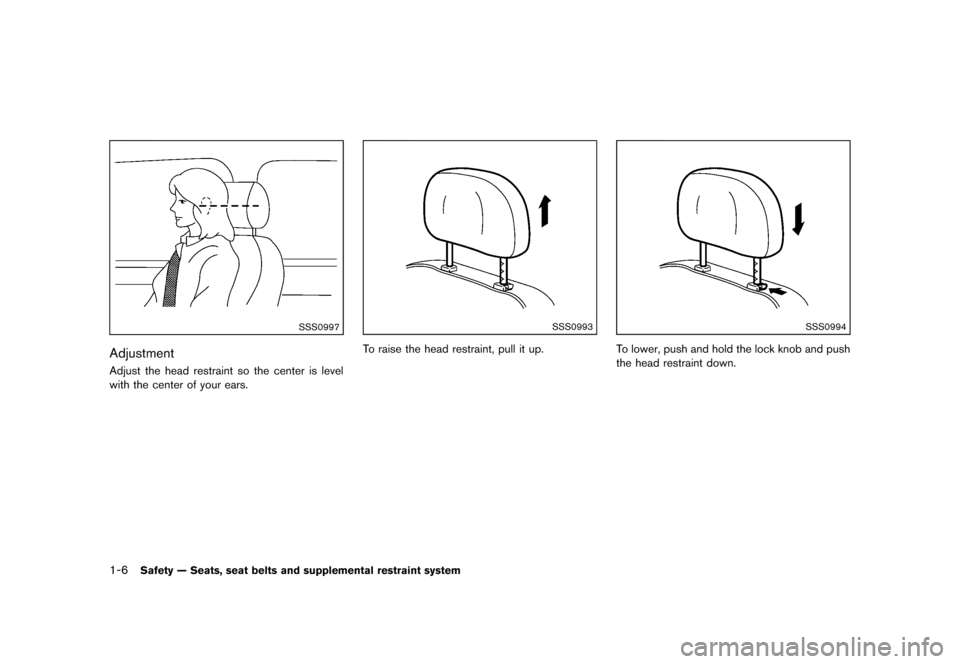

AdjustmentGUID-EB8890F9-0620-49ED-A2CF-1AABFBA6A9FAAdjust the head restraint so the center is level
with the center of your ears.
SSS0993
To raise the head restraint, pull it up.
SSS0994
To lower, push and hold the lock knob and push
the head restraint down.
