2013 NISSAN JUKE Owners Manual

Black plate (263,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

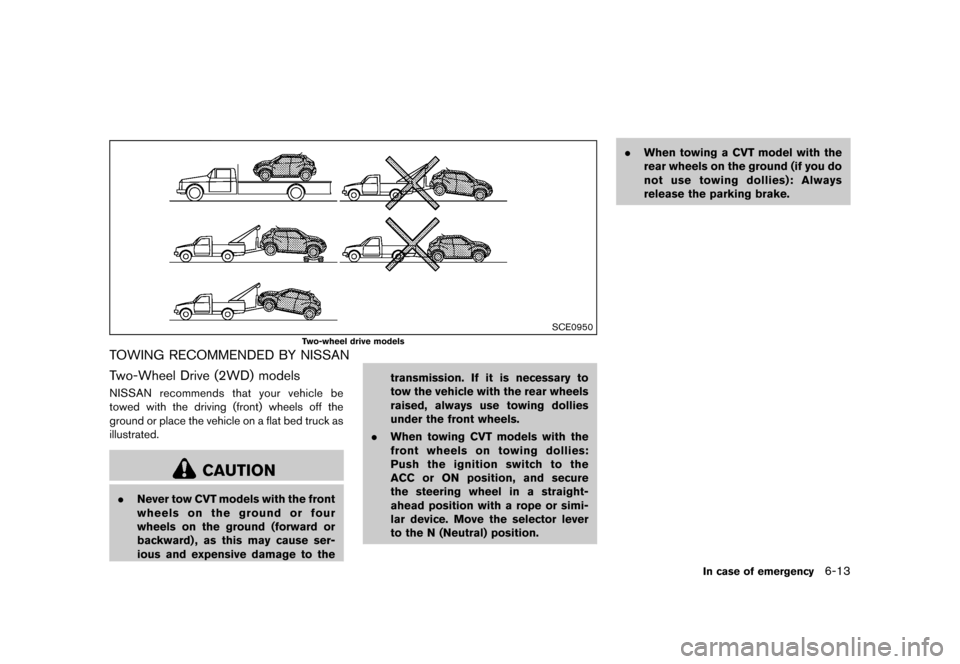

SCE0950
Two-wheel drive models
TOWING RECOMMENDED BY NISSANGUID-09B962BF-4170-4F2F-83C9-E1E70F0C2C59
Two-Wheel Drive (2WD) modelsGUID-52826B00-51B3-4A50-B898-5192FE87088DNISSAN recommends that your vehicle be
towed with the driving (front) wheels off the
ground or place the vehicle on a flat bed truck as
illustrated.
CAUTION
.Never tow CVT models with the front
wheels on the ground or four
wheels on the ground (forward or
backward) , as this may cause ser-
ious and expensive damage to the transmission. If it is necessary to
tow the vehicle with the rear wheels
raised, always use towing dollies
under the front wheels.
. When towing CVT models with the
front wheels on towing dollies:
Push the ignition switch to the
ACC or ON position, and secure
the steering wheel in a straight-
ahead position with a rope or simi-
lar device. Move the selector lever
to the N (Neutral) position. .
When towing a CVT model with the
rear wheels on the ground (if you do
not use towing dollies): Always
release the parking brake.
In case of emergency6-13
Condition:

Black plate (264,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

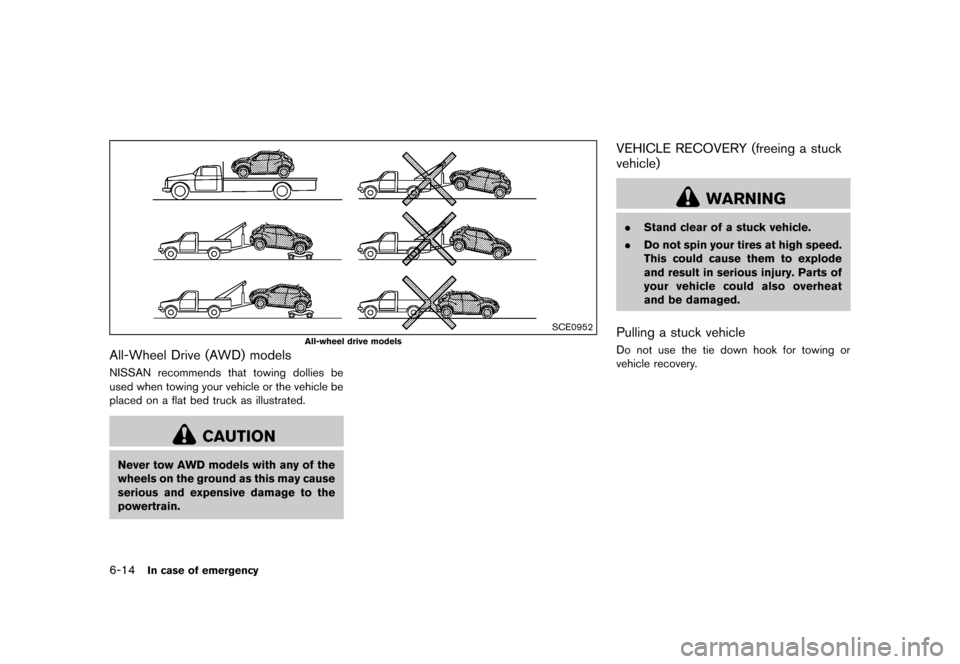

6-14In case of emergency
SCE0952
All-wheel drive models
All-Wheel Drive (AWD) modelsGUID-F1452A8C-FBB7-4968-A917-24030A5251A3NISSAN recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.
CAUTION
Never tow AWD models with any of the
wheels on the ground as this may cause
serious and expensive damage to the
powertrain.
VEHICLE RECOVERY (freeing a stuck
vehicle)
GUID-8BA26C80-AB41-4D31-91EB-1E623D595DAA
WARNING
.Stand clear of a stuck vehicle.
. Do not spin your tires at high speed.
This could cause them to explode
and result in serious injury. Parts of
your vehicle could also overheat
and be damaged.
Pulling a stuck vehicleGUID-732B880F-D49E-4C39-8F62-BB53A9900276Do not use the tie down hook for towing or
vehicle recovery.
Condition:

Black plate (265,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

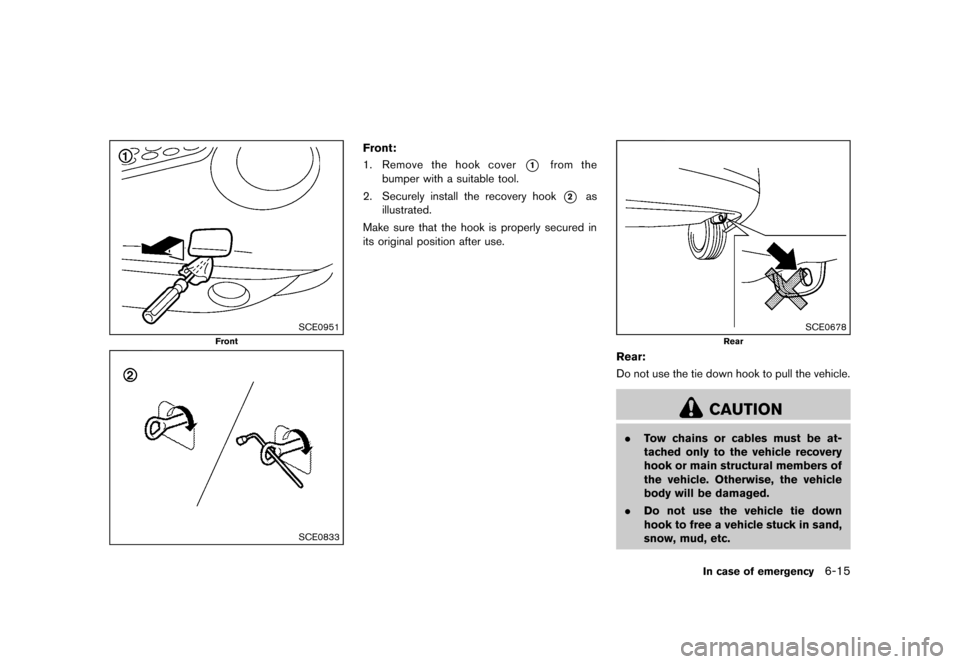

SCE0951
Front
SCE0833
Front:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C531.Remove the hook cover*1from the
bumper with a suitable tool.
2. Securely install the recovery hook
*2as
illustrated.
Make sure that the hook is properly secured in
its original position after use.
SCE0678
Rear
Rear:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Do not use the tie down hook to pull the vehicle.
CAUTION
. Tow chains or cables must be at-
tached only to the vehicle recovery
hook or main structural members of
the vehicle. Otherwise, the vehicle
body will be damaged.
. Do not use the vehicle tie down
hook to free a vehicle stuck in sand,
snow, mud, etc.
In case of emergency6-15
Condition:

Black plate (266,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
6-16In case of emergency
.Never tow a vehicle using the vehi-
cle tie down hook or recovery hook.
. Always pull the cable straight out
from the front of the vehicle. Never
pull on the vehicle at an angle.
. Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.
. Pulling devices such as ropes or
canvas straps are not recommended
for use in vehicle towing or recov-
ery.
Rocking a stuck vehicleGUID-2A461430-45B5-4FEA-9A27-9404CC0BC37BIf your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC)
system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
.Shift back and forth between R (Reverse)and D (Drive) (Continuously Variable Transmission models) or 1st and R
(Reverse) (Manual Transmission models) .
.Apply the accelerator as little as possible
to maintain the rocking motion.
.Release the accelerator pedal beforeshifting between R and D (Continuously
Variable Transmission models) or 1st and
R (Manual Transmission models).
.Do not spin the tires above 35 MPH (55
km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing service
to remove the vehicle.
Condition:

Black plate (267,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

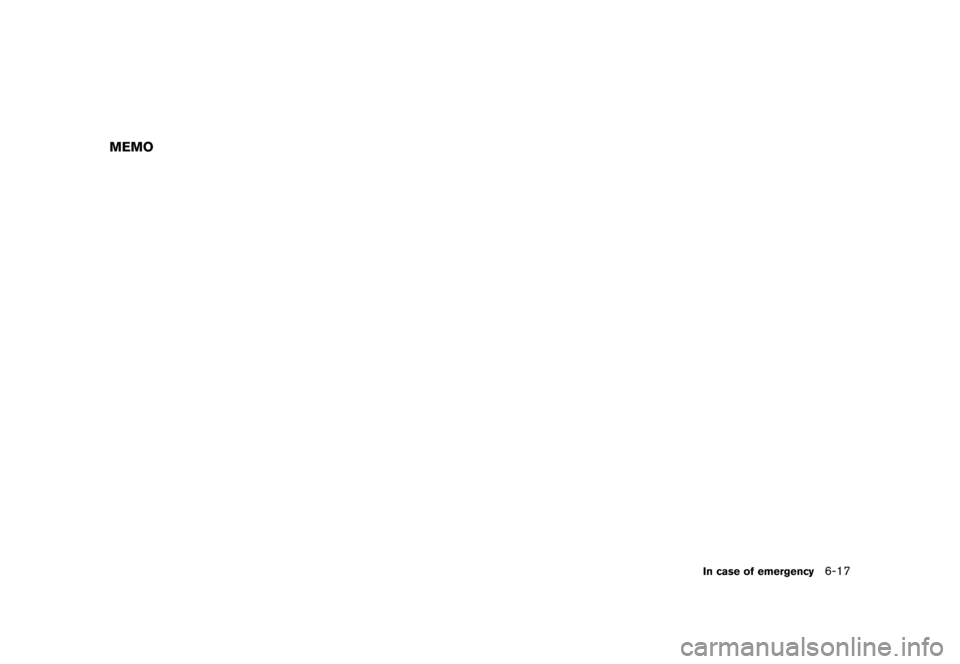

MEMO
In case of emergency6-17
Condition:

Black plate (268,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

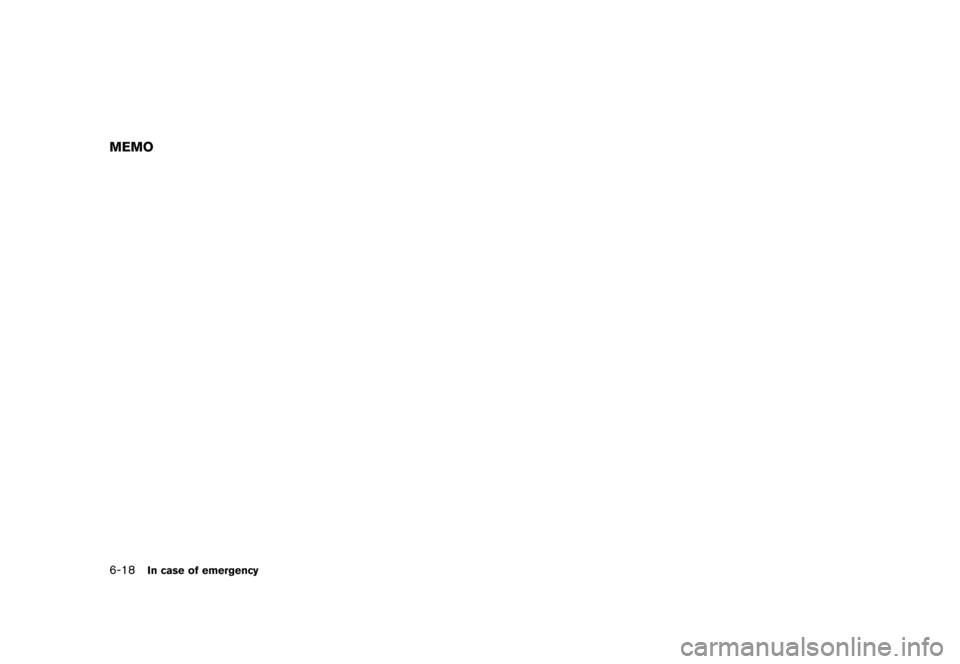

6-18In case of emergency
MEMO
Condition:

Black plate (269,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

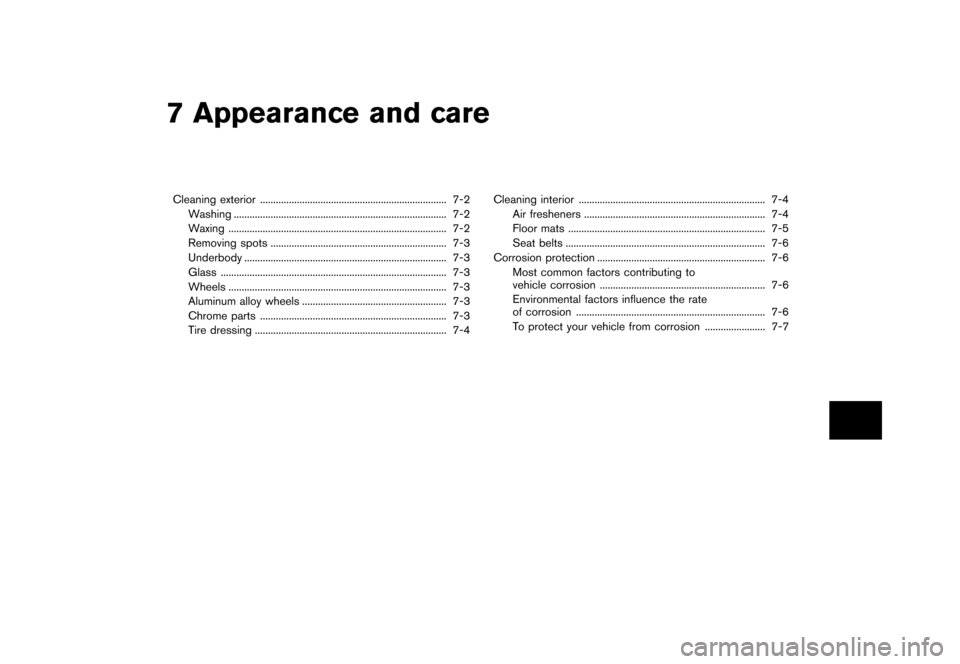

7 Appearance and care
Cleaning exterior...
....................................................................... 7-2
Washing ...
........................................................................\
......... 7-2
Waxing ...
........................................................................\
........... 7-2
Removing spots ...
................................................................... 7-3
Underbody ...
........................................................................\
..... 7-3
Glass ...
........................................................................\
.............. 7-3
Wheels ...
........................................................................\
........... 7-3
Aluminum alloy wheels ...
....................................................... 7-3
Chrome parts ...
....................................................................... 7-3
Tire dressing ...
........................................................................\
. 7-4 Cleaning interior
...
....................................................................... 7-4
Air fresheners ...
..................................................................... 7-4
Floor mats ...
........................................................................\
... 7-5
Seat belts ...
........................................................................\
.... 7-6
Corrosion protection ...
................................................................ 7-6
Most common factors contributing to
vehicle corrosion ...
............................................................... 7-6
Environmental factors influence the rate
of corrosion ...
........................................................................\
7-6
To protect your vehicle from corrosion ...
....................... 7-7
Condition:

Black plate (270,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

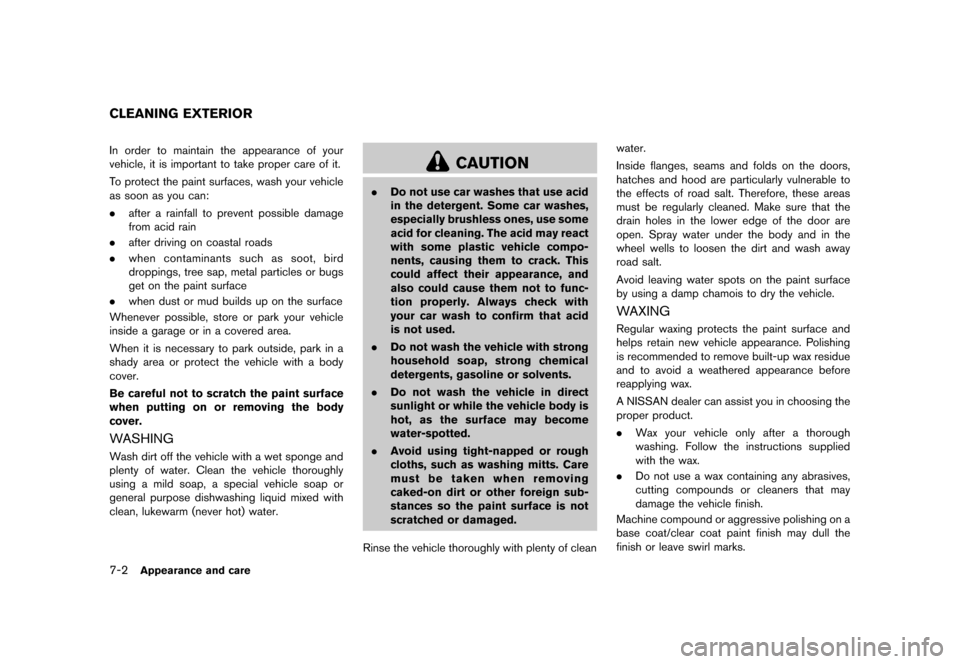

7-2Appearance and care
GUID-A755C59E-96E5-4928-B560-61064A7BF708In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
To protect the paint surfaces, wash your vehicle
as soon as you can:
.after a rainfall to prevent possible damage
from acid rain
. after driving on coastal roads
. when contaminants such as soot, bird
droppings, tree sap, metal particles or bugs
get on the paint surface
. when dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.
WASHINGGUID-C55956CD-3D46-45AD-807C-40DA5D820D73Wash dirt off the vehicle with a wet sponge and
plenty of water. Clean the vehicle thoroughly
using a mild soap, a special vehicle soap or
general purpose dishwashing liquid mixed with
clean, lukewarm (never hot) water.
CAUTION
. Do not use car washes that use acid
in the detergent. Some car washes,
especially brushless ones, use some
acid for cleaning. The acid may react
with some plastic vehicle compo-
nents, causing them to crack. This
could affect their appearance, and
also could cause them not to func-
tion properly. Always check with
your car wash to confirm that acid
is not used.
. Do not wash the vehicle with strong
household soap, strong chemical
detergents, gasoline or solvents.
. Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.
. Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.
Rinse the vehicle thoroughly with plenty of clean water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
WAXINGGUID-9372BA49-79E0-4BB9-ABBA-346233965B83Regular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
A NISSAN dealer can assist you in choosing the
proper product.
.
Wax your vehicle only after a thorough
washing. Follow the instructions supplied
with the wax.
. Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.
Machine compound or aggressive polishing on a
base coat/clear coat paint finish may dull the
finish or leave swirl marks.
CLEANING EXTERIOR
