2013 NISSAN JUKE Owners Manual

Black plate (175,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
SAA2782
1. MUTE button
2. DISP (display)/TEXT button
3. FM·AM radio band select button
4. CD PLAY button
5. Radio station preset buttons
6. iPod
®button
7. AUX (auxiliary)/SAT band select button 8. Audio display
9. CLOCK button
10. CD EJECT button
11. iPod
®MENU button
12. SEEK/TRACK button
13. ENTER button
14 BACK button 15. PWR (power) button/VOL (volume) control knob
16 AUX IN jack
17. AUDIO button
18. TUNE/FF·REW FOLDER button
19. SCAN/RPT (repeat) button
FM-AM-SAT* RADIO WITH COMPACT
DISC (CD) PLAYER (Type A)
GUID-E75A3896-BAE7-4DE0-AE9F-0B6F11D630F2For all operation precautions, see “Audio opera-
tion precautions” (P.4-20) .
The satellite radio mode* requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.
It may take some time to receive the activation
signal after subscribing to the SiriusXM Satellite
Radio. After receiving the activation signal, an
available channel list will be automatically
updated in the radio. Place the ignition position
from LOCK to ACC to update the channel list.
*: if so equipped
Heater, air conditioner, audio and phone systems4-31
Condition:

Black plate (176,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-32Heater, air conditioner, audio and phone systems

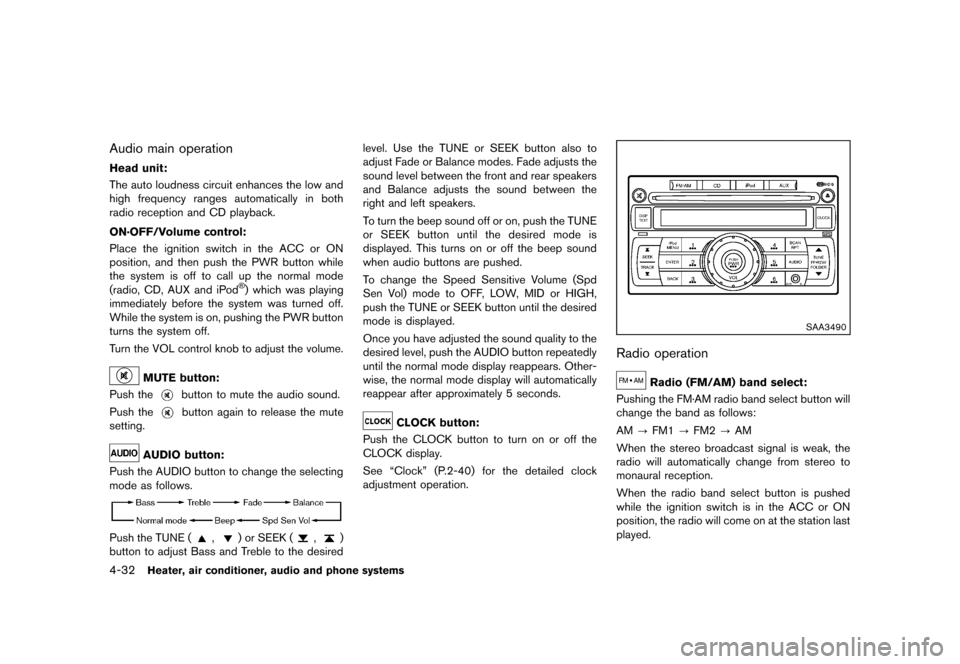

Audio main operationGUID-B7DABF3E-5C88-4BBA-86D6-737C31A851CA
Head unit:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
ON·OFF/Volume control:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Place the ignition switch in the ACC or ON
position, and then push the PWR button while
the system is off to call up the normal mode
(radio, CD, AUX and iPod
®) which was playing
immediately before the system was turned off.
While the system is on, pushing the PWR button
turns the system off.
Turn the VOL control knob to adjust the volume.
MUTE button:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Push thebutton to mute the audio sound.
Push the
button again to release the mute
setting.
AUDIO button:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Push the AUDIO button to change the selecting
mode as follows.
NOS2545
Push the TUNE (,) or SEEK (,)
button to adjust Bass and Treble to the desired level. Use the TUNE or SEEK button also to
adjust Fade or Balance modes. Fade adjusts the
sound level between the front and rear speakers
and Balance adjusts the sound between the
right and left speakers.
To turn the beep sound off or on, push the TUNE
or SEEK button until the desired mode is
displayed. This turns on or off the beep sound
when audio buttons are pushed.
To change the Speed Sensitive Volume (Spd
Sen Vol) mode to OFF, LOW, MID or HIGH,
push the TUNE or SEEK button until the desired
mode is displayed.
Once you have adjusted the sound quality to the
desired level, push the AUDIO button repeatedly
until the normal mode display reappears. Other-
wise, the normal mode display will automatically
reappear after approximately 5 seconds.
CLOCK button:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Push the CLOCK button to turn on or off the
CLOCK display.
See “Clock” (P.2-40) for the detailed clock
adjustment operation.
SAA3490
Radio operationGUID-22EF80F5-05BF-4F5B-A66D-F3494E16E043
Radio (FM/AM) band select:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Pushing the FM·AM radio band select button will
change the band as follows:
AM
?FM1 ?FM2 ?AM
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
When the radio band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the station last
played.
Condition:

Black plate (177,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

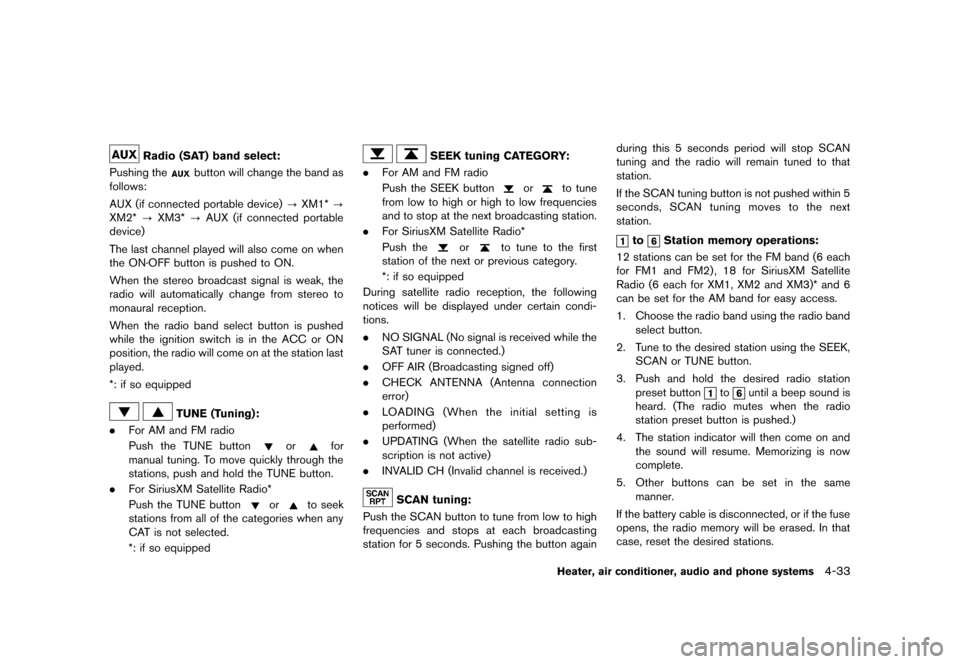

Radio (SAT) band select:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Pushing thebutton will change the band as
follows:
AUX (if connected portable device) ?XM1* ?
XM2* ?XM3* ?AUX (if connected portable
device)
The last channel played will also come on when
the ON·OFF button is pushed to ON.
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
When the radio band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the station last
played.
*: if so equipped
TUNE (Tuning):GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53. For AM and FM radio
Push the TUNE button
orfor
manual tuning. To move quickly through the
stations, push and hold the TUNE button.
. For SiriusXM Satellite Radio*
Push the TUNE button
orto seek
stations from all of the categories when any
CAT is not selected.
*: if so equipped
SEEK tuning CATEGORY:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53. For AM and FM radio
Push the SEEK button
orto tune
from low to high or high to low frequencies
and to stop at the next broadcasting station.
. For SiriusXM Satellite Radio*
Push the
orto tune to the first
station of the next or previous category.
*: if so equipped
During satellite radio reception, the following
notices will be displayed under certain condi-
tions.
. NO SIGNAL (No signal is received while the
SAT tuner is connected.)
. OFF AIR (Broadcasting signed off)
. CHECK ANTENNA (Antenna connection
error)
. LOADING (When the initial setting is
performed)
. UPDATING (When the satellite radio sub-
scription is not active)
. INVALID CH (Invalid channel is received.)
SCAN tuning:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Push the SCAN button to tune from low to high
frequencies and stops at each broadcasting
station for 5 seconds. Pushing the button again during this 5 seconds period will stop SCAN
tuning and the radio will remain tuned to that
station.
If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next
station.
toStation memory operations:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C5312 stations can be set for the FM band (6 each
for FM1 and FM2) , 18 for SiriusXM Satellite
Radio (6 each for XM1, XM2 and XM3)* and 6
can be set for the AM band for easy access.
1. Choose the radio band using the radio band
select button.
2. Tune to the desired station using the SEEK, SCAN or TUNE button.
3. Push and hold the desired radio station preset button
tountil a beep sound is
heard. (The radio mutes when the radio
station preset button is pushed.)
4. The station indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations.
Heater, air conditioner, audio and phone systems4-33
Condition:

Black plate (178,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-34Heater, air conditioner, audio and phone systems
*: if so equipped
Radio Data System (RDS):
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53RDS stands for Radio Data System, and is a
data information service transmitted by some
radio stations on the FM band (not AM band)
encoded within a regular radio broadcast.
Currently, most RDS stations are in large cities,
but many stations are now considering broad-
casting RDS data.
RDS can display:
.Station call sign, such as “WHFR 98.3”.
. Station name, such as “The Groove”.
. Music or programming type such as “Clas-
sical”, “Country” or “Rock”.
. Traffic reports about delays or construction.
If the station broadcasts RDS information, the
RDS icon is displayed.
RADIO DISPLAY change:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the DISP/TEXT button is pushed during
the FM or SAT radio mode, the radio display will
change in the following order.
. For FM radio:
Frequency ↔PS (Programme Service)/PTY
(Programme type)
. For SiriusXM Satellite Radio*:
Category Name ?Channel Name ?Artist/ Feature
?Song/Program
In the FM radio mode, pushing the DISP/TEXT
button will switch the frequency display to the
PTY display (if available) , and if the DISP/TEXT
button is not pushed again within 5 seconds, it
will automatically switch to the PS display. If PTY
is not available, pushing the DISP/TEXT button
will only switch between the frequency display
and the PS display.
*: if so equipped
SAA3490
Compact Disc (CD) player operationGUID-D502B92D-F238-4029-B2CB-742EE1B4757EPlace the ignition switch in the ACC or ON
position, and insert the CD into the slot with the
label side facing up. The CD will be guided
automatically into the slot and start playing.
After loading the disc, the number of tracks on
the disc will appear on the display.
If the radio is already operating, it will auto-
matically turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the PWR button will start
the CD.
Do not use 3.1 in (8 cm) discs.
Condition:

Black plate (179,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
CD PLAY:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the CD button is pushed with the system
off and the CD loaded, the system will turn on
and the CD will start to play.
When the CD button is pushed with the CD
loaded and the radio playing, the radio will
automatically be turned off and the CD will start
to play.
CD play information:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the DISP/TEXT button is pushed for less
than 1.5 seconds while the CD is being played,
the disc information display will change as
follows:
CD:
NOS2585
CD with MP3 or WMA:
NOS2586
FF (Fast Forward) , REW (Re-
wind):
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53CD:
When the
(fast forward) or(rewind)
button is pushed while the CD is being played,
the CD will play while fast forwarding or
rewinding. When the button is released, the
CD will return to normal play speed.
CD with MP3 or WMA:
When the
orbutton is pushed for less
than 1.5 seconds while the CD is being played,
the folders in the CD will change.
When the
orbutton is pushed for more
than 1.5 seconds while the CD is being played,
the CD will play while forwarding or rewinding.
When the button is released, the CD will return
to the normal play speed.
APS (Automatic Program
Search) FF, APS REW:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the(APS FF) button is pushed while
the CD is being played, the program next to the
present one will start to play from its beginning.
Push several times to skip through programs.
The CD will advance the number of times the
button is pushed. (When the last program on the
CD is skipped through, the first program will be
played.) When the
(APS REW) button is pushed,
the program being played returns to its begin-
ning. Push several times to skip back through
programs. The CD will go back the number of
times the button is pushed.
SCAN tuning:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the SCAN tuning button is pushed for
more than 1.5 seconds while the CD is being
played, the beginning of all the tracks of CD will
be played for 10 seconds in sequence.
Pushing the button again during this 10 second
period will stop SCAN tuning.
If the SCAN tuning button is not pushed within
10 seconds, SCAN tuning moves to the next
disc program.
RANDOM (RDM)/REPEAT (RPT):GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the RPT button is pushed for less than
1.5 seconds while the CD is being played, the
play pattern can be changed as follows:
CD:
NOS2554
CD with MP3 or WMA:
NOS2587
Heater, air conditioner, audio and phone systems4-35
Condition:

Black plate (180,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-36Heater, air conditioner, audio and phone systems

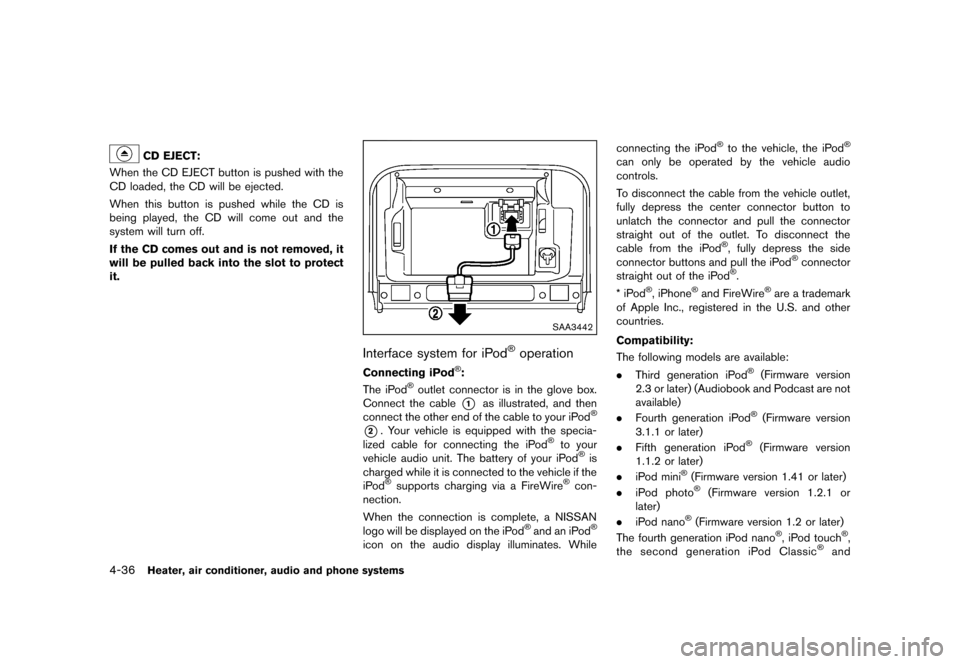

CD EJECT:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will come out and the
system will turn off.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.
SAA3442
Interface system for iPod®operationGUID-E9618423-6A39-41CB-AD05-CBE5AAEC79E4
Connecting iPod®:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53The iPod®outlet connector is in the glove box.
Connect the cable
*1as illustrated, and then
connect the other end of the cable to your iPod®
*2. Your vehicle is equipped with the specia-
lized cable for connecting the iPod®to your
vehicle audio unit. The battery of your iPod®is
charged while it is connected to the vehicle if the
iPod
®supports charging via a FireWire®con-
nection.
When the connection is complete, a NISSAN
logo will be displayed on the iPod
®and an iPod®
icon on the audio display illuminates. While connecting the iPod
®to the vehicle, the iPod®
can only be operated by the vehicle audio
controls.
To disconnect the cable from the vehicle outlet,
fully depress the center connector button to
unlatch the connector and pull the connector
straight out of the outlet. To disconnect the
cable from the iPod
®, fully depress the side
connector buttons and pull the iPod®connector
straight out of the iPod®.
* iPod®, iPhone®and FireWire®are a trademark
of Apple Inc., registered in the U.S. and other
countries.
Compatibility:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53The following models are available:
. Third generation iPod®(Firmware version
2.3 or later) (Audiobook and Podcast are not
available)
. Fourth generation iPod
®(Firmware version
3.1.1 or later)
. Fifth generation iPod
®(Firmware version
1.1.2 or later)
. iPod mini
®(Firmware version 1.41 or later)
. iPod photo®(Firmware version 1.2.1 or
later)
. iPod nano
®(Firmware version 1.2 or later)
The fourth generation iPod nano®, iPod touch®,
the second generation iPod Classic®and
Condition:

Black plate (181,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

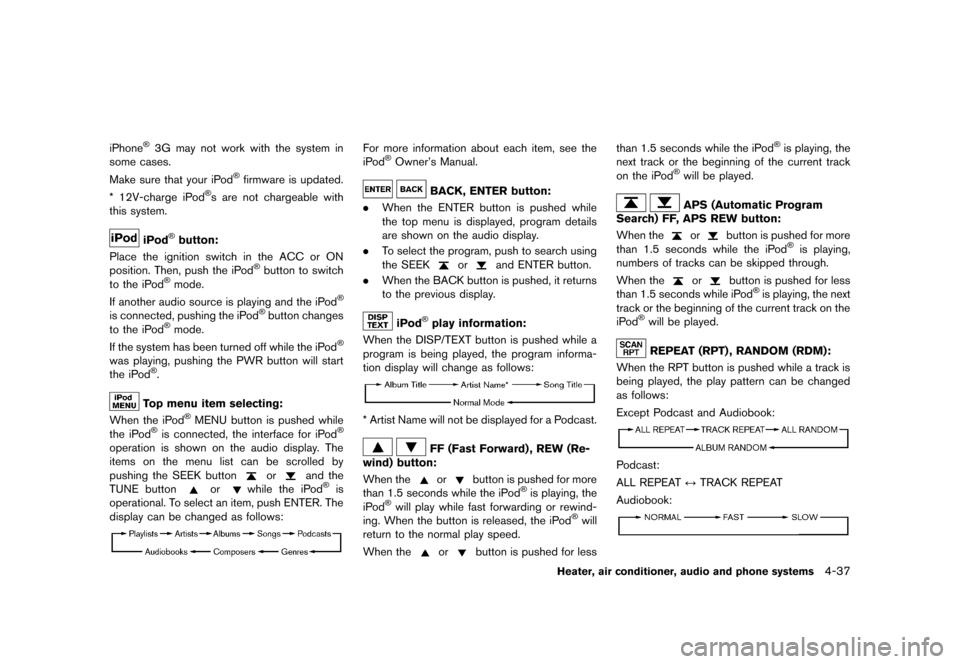

iPhone®3G may not work with the system in
some cases.
Make sure that your iPod
®firmware is updated.
* 12V-charge iPod®s are not chargeable with
this system.
iPod®button:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Place the ignition switch in the ACC or ON
position. Then, push the iPod®button to switch
to the iPod®mode.
If another audio source is playing and the iPod®
is connected, pushing the iPod®button changes
to the iPod®mode.
If the system has been turned off while the iPod®
was playing, pushing the PWR button will start
the iPod®.
Top menu item selecting:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the iPod®MENU button is pushed while
the iPod®is connected, the interface for iPod®
operation is shown on the audio display. The
items on the menu list can be scrolled by
pushing the SEEK button
orand the
TUNE button
orwhile the iPod®is
operational. To select an item, push ENTER. The
display can be changed as follows:
NOS2559
For more information about each item, see the
iPod®Owner’s Manual.
BACK, ENTER button:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53. When the ENTER button is pushed while
the top menu is displayed, program details
are shown on the audio display.
. To select the program, push to search using
the SEEK
orand ENTER button.
. When the BACK button is pushed, it returns
to the previous display.
iPod®play information:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the DISP/TEXT button is pushed while a
program is being played, the program informa-
tion display will change as follows:
NOS2560
* Artist Name will not be displayed for a Podcast.
FF (Fast Forward) , REW (Re-
wind) button:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When theorbutton is pushed for more
than 1.5 seconds while the iPod®is playing, the
iPod®will play while fast forwarding or rewind-
ing. When the button is released, the iPod®will
return to the normal play speed.
When the
orbutton is pushed for less than 1.5 seconds while the iPod
®is playing, the
next track or the beginning of the current track
on the iPod
®will be played.
APS (Automatic Program
Search) FF, APS REW button:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When theorbutton is pushed for more
than 1.5 seconds while the iPod®is playing,
numbers of tracks can be skipped through.
When the
orbutton is pushed for less
than 1.5 seconds while iPod®is playing, the next
track or the beginning of the current track on the
iPod
®will be played.
REPEAT (RPT) , RANDOM (RDM):GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53When the RPT button is pushed while a track is
being played, the play pattern can be changed
as follows:
Except Podcast and Audiobook:
NOS2562
Podcast:
ALL REPEAT ↔TRACK REPEAT
Audiobook:
NOS2563
Heater, air conditioner, audio and phone systems4-37
Condition:

Black plate (182,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-38Heater, air conditioner, audio and phone systems
AUX (Auxiliary) inputGUID-D1BA2306-2732-4447-BE01-C29A18700078
AUX IN jack:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53The AUX IN jack is located on the audio unit.
The AUX IN audio input jack accepts any
standard analog audio input such as from a
portable cassette tape/CD player, MP3 player or
laptop computer.
NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.
AUX (Auxiliary) button:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53With an AUX device plugged in, push the AUX
button repeatedly until the display changes to
the AUX mode.
When the AUX button is pushed with no device
plugged into the jack, the audio system does not
change to the AUX mode.
SAA3425
1. XM band select button
2. CD insert slot
3. CD EJECT button
4. TUNE/SCROLL knob and AUDIO control button
5. Radio station preset buttons
6. AUX button
7. ON·OFF button/VOLUME control knob8.
FF (forward)/REW (rewind) or SEEK/CATE-
GORY button
9. CD button
10. FM·AM band select button
No satellite radio reception is available unless a
SiriusXM Satellite Radio subscription is active.
Condition:
