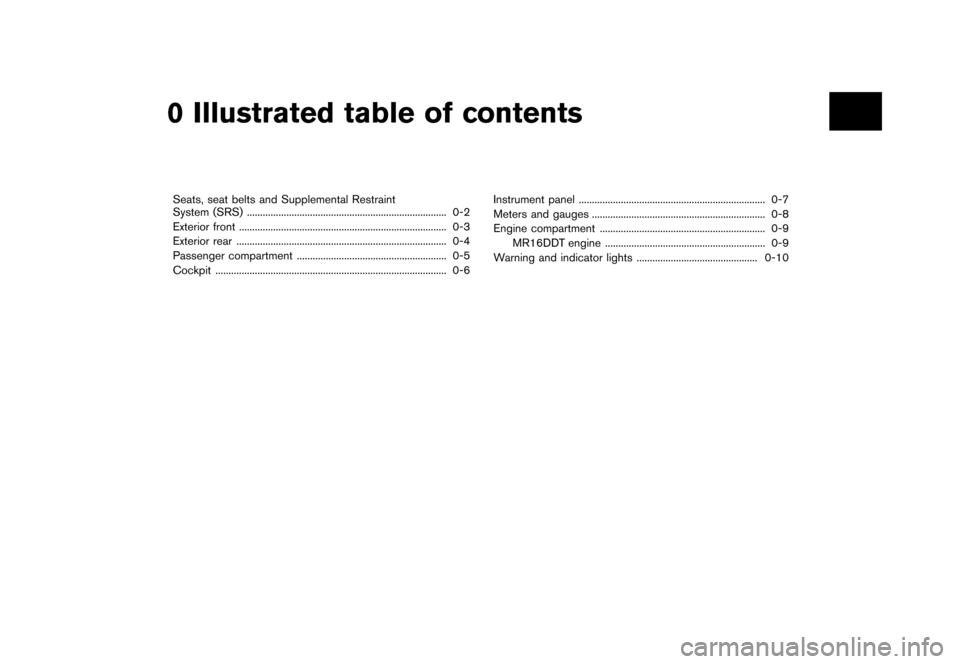

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS)...
........................................................................\
.... 0-2
Exterior front ...
........................................................................\
....... 0-3
Exterior rear ...
........................................................................\
........ 0-4
Passenger compartment ...
......................................................... 0-5
Cockpit ...
........................................................................\
................ 0-6 Instrument panel
...
....................................................................... 0-7
Meters and gauges ...
.................................................................. 0-8
Engine compartment ...
............................................................... 0-9
MR16DDT engine ...
............................................................. 0-9
Warning and indicator lights ...
.............................................. 0-10
Condition:

Black plate (8,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
0-2Illustrated table of contents
GUID-52AF6180-E2C9-4318-AF4E-9DE2FF882623
SSI0765

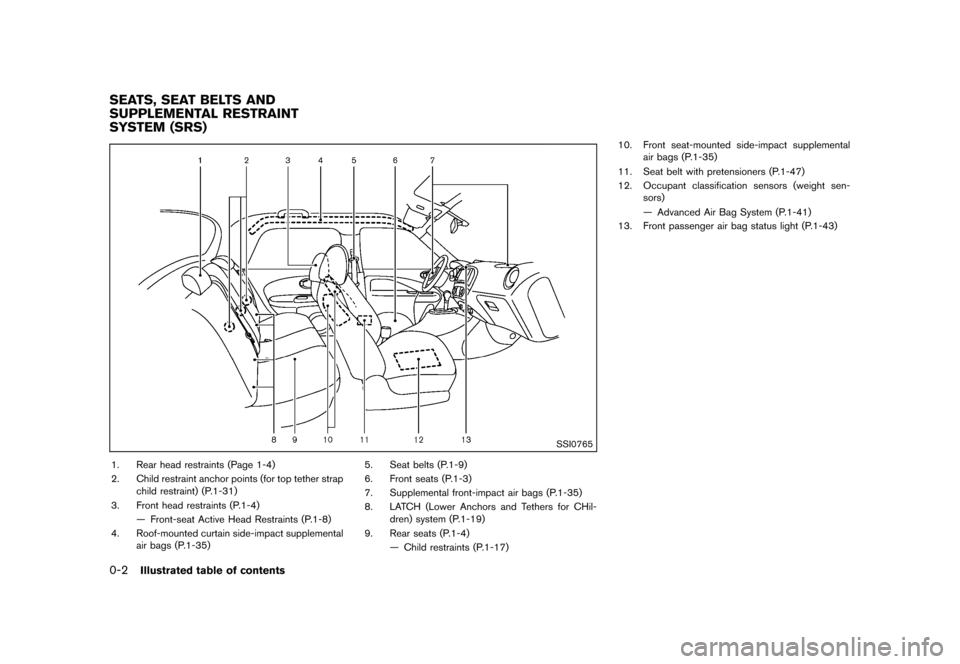

1. Rear head restraints (Page 1-4)
2. Child restraint anchor points (for top tether strapchild restraint) (P.1-31)
3. Front head restraints (P.1-4) — Front-seat Active Head Restraints (P.1-8)
4. Roof-mounted curtain side-impact supplemental air bags (P.1-35) 5. Seat belts (P.1-9)
6. Front seats (P.1-3)
7. Supplemental front-impact air bags (P.1-35)
8. LATCH (Lower Anchors and Tethers for CHil-
dren) system (P.1-19)
9. Rear seats (P.1-4) — Child restraints (P.1-17) 10. Front seat-mounted side-impact supplemental
air bags (P.1-35)
11. Seat belt with pretensioners (P.1-47)
12. Occupant classification sensors (weight sen- sors)
— Advanced Air Bag System (P.1-41)
13. Front passenger air bag status light (P.1-43)
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
Condition:

Black plate (9,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-CFE71A9F-8404-4B1C-84DD-FF8048FB8B69
SSI0766
1. Hood (P.3-20)
2. Windshield wiper and washer— Switch operation (P.2-32)
— Blade replacement (P.8-17)
— Window washer fluid (P.8-12)
3. Parking lights, turn signal lights and front side marker lights — Switch operation (P.2-35)
— Bulb replacement (P.8-27)
4. Moonroof* (P.2-47)
5. Side turn signal lights — Switch operation (P.2-38)
— Bulb replacement (P.8-28)
6. Power windows (P.2-45) 7. Outside mirrors (P.3-25)
8. License plate installation (P.9-11)
9. Recovery hook (P.6-14)
10. Fog lights*
— Switch operation (P.2-38)
— Bulb replacement (P.8-28)
11. Headlights — Switch operation (P.2-35)
— Bulb replacement (P.8-28)
12. Tires — Wheels and tires (P.8-30, P.9-7)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System (TPMS)
(P.2-15, P.5-4)
13. Doors — Keys (P.3-2)
— Door locks (P.3-4)
— Remote keyless entry system* (P.3-7)
— Intelligent Key system* (P.3-11)
— Security system (P.2-29)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT
Condition:

Black plate (10,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
0-4Illustrated table of contents
GUID-CB027B35-0C4A-475A-B68D-3A7DA1020D00
SSI0767
1. Lift gate (P.3-21)— Intelligent Key system* (P.3-11)
2. Rear window wiper and washer — Switch operation (P.2-33)
— Window washer fluid (P.8-12)
3. High-mounted stop light (P.8-26)
4. Antenna (P.4-48) — Satellite radio antenna* (P.4-20)
5. Rear window defroster (P.2-34)
6. Fuel-filler door — Operation (P.3-21)
— Fuel recommendation (P.9-3)
7. Rearview camera* (P.4-8)
8. Rear combination lights — Bulb replacement (P.8-28)
9. Child safety rear door lock (P.3-7)
*: if so equipped
EXTERIOR REAR
Condition:

Black plate (11,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-7405A9C6-9DB6-43D6-BB85-7D8784BD39F1
JVC0184X

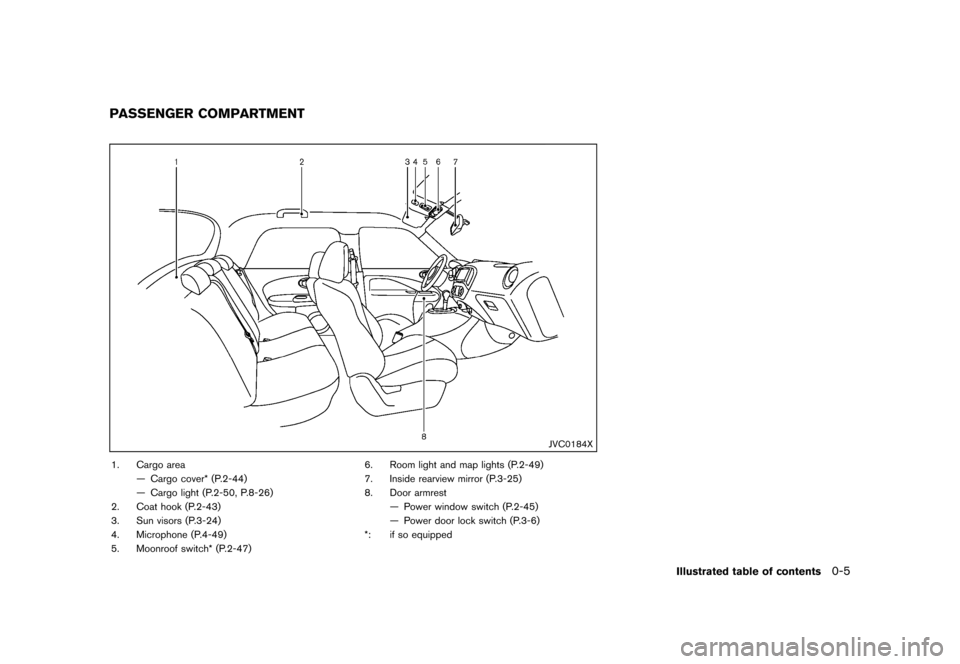

1. Cargo area— Cargo cover* (P.2-44)
— Cargo light (P.2-50, P.8-26)
2. Coat hook (P.2-43)
3. Sun visors (P.3-24)
4. Microphone (P.4-49)
5. Moonroof switch* (P.2-47) 6. Room light and map lights (P.2-49)
7. Inside rearview mirror (P.3-25)
8. Door armrest
— Power window switch (P.2-45)
— Power door lock switch (P.3-6)
*: if so equipped
Illustrated table of contents0-5
PASSENGER COMPARTMENT
Condition:

Black plate (12,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
0-6Illustrated table of contents
GUID-B18D921D-58BF-4EF2-ABA7-71D7C369DE14
SSI0769
1. Outside mirror remote control switch (P.3-25)
2. Headlight, fog light and turn signal switch— Headlight (P.2-35)
— Turn signal light (P.2-38)
— Fog light* (P.2-38)
3. Steering wheel — Electric power steering system (P.5-37) — Horn (P.2-38)
— Driver’s supplemental air bag (P.1-35)
4. Wiper and washer switch (P.2-32)
5. Selector lever or shift lever — Continuously Variable Transmission (CVT)
(P.5-17)
— Manual Transmission (MT) (P.5-22) 6. Fuse box cover (P.8-21)
7. Vehicle Dynamic Control (VDC) OFF switch
(P.5-40)
8. All-Wheel Drive (AWD) switch* (P.5-32)
9. Tilting steering wheel lever (P.3-24)
10. Steering-wheel-mounted controls (left side) — Audio control (P.4-47)
— Bluetooth
®Hands-Free Phone System con-
trol (P.4-49)
11. Ignition switch (models without Intelligent Key system) (P.5-10)
12. Steering-wheel-mounted controls (right side) — Cruise control switches (P.5-29)
13. Heated seat switch* (P.2-39)
*: if so equipped
COCKPIT
Condition:

Black plate (13,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-E541DB03-EC76-48F2-8AC1-CDA28F389925
SSI0770
1. Meters and gauges (P.2-5)
2. Center ventilator (P.4-12)
3. Audio system* or Navigation system** (P.4-20)— Clock* (P.2-40)
4. Hazard warning flasher switch (P.6-2)
5. Integrated Control System* (P. 2-21) — Clock (P.2-23) — Drive mode (P.5-24)
— Heater and air conditioner control (P.4-13)
— Defroster switch (P.2-34)
5. Heater and air conditioner control (models
without Integrated Control System) (P.4-13)
— Defroster switch (P.2-34)
6. Front passenger supplemental air bag (P.1-35) 7. Side ventilator (P.4-12)
8. Fuel-filler door release handle (P.3-21)
9. Hood release handle (P.3-20)
10. Push-button ignition switch (models with Intel-
ligent Key system) (P.5-12)
11. AUX/USB connector* (P.4-24)
12. Parking brake (P.5-28)
13. Cup holder (P.2-42)
14. Power outlet (P.2-41)
15. Glove box (P.2-43)
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual.
Illustrated table of contents0-7
INSTRUMENT PANEL
Condition:

Black plate (14,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
0-8Illustrated table of contents
GUID-ADD7704B-E089-476F-B602-46E63AF51822
SIC4601

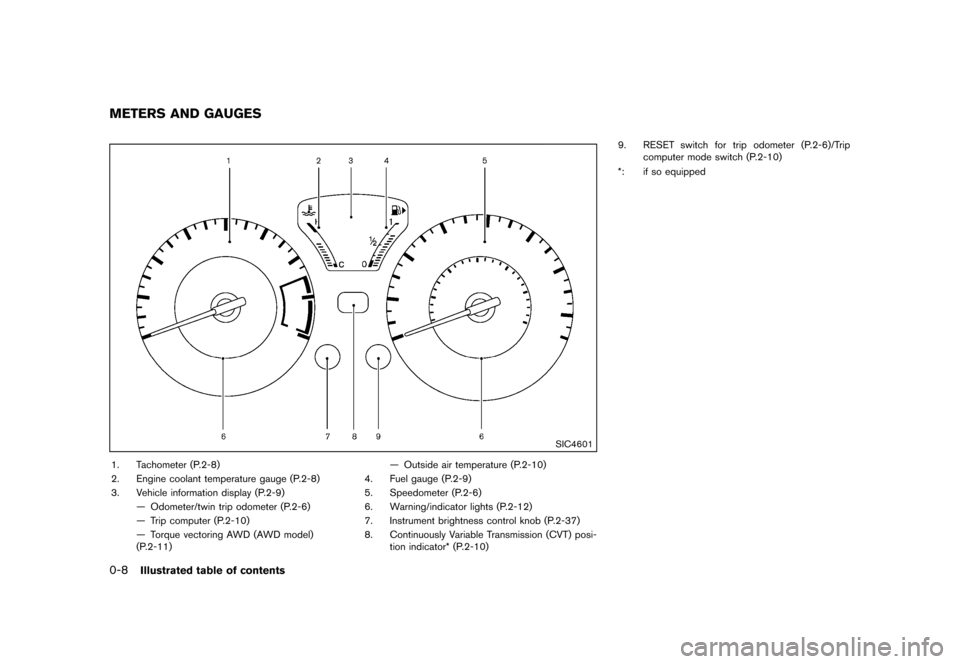

1. Tachometer (P.2-8)
2. Engine coolant temperature gauge (P.2-8)
3. Vehicle information display (P.2-9)— Odometer/twin trip odometer (P.2-6)
— Trip computer (P.2-10)
— Torque vectoring AWD (AWD model)
(P.2-11) — Outside air temperature (P.2-10)
4. Fuel gauge (P.2-9)
5. Speedometer (P.2-6)
6. Warning/indicator lights (P.2-12)
7. Instrument brightness control knob (P.2-37)
8. Continuously Variable Transmission (CVT) posi- tion indicator* (P.2-10) 9. RESET switch for trip odometer (P.2-6)/Trip
computer mode switch (P.2-10)
*: if so equipped
METERS AND GAUGES
