2013 NISSAN JUKE Owners Manual

Black plate (103,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

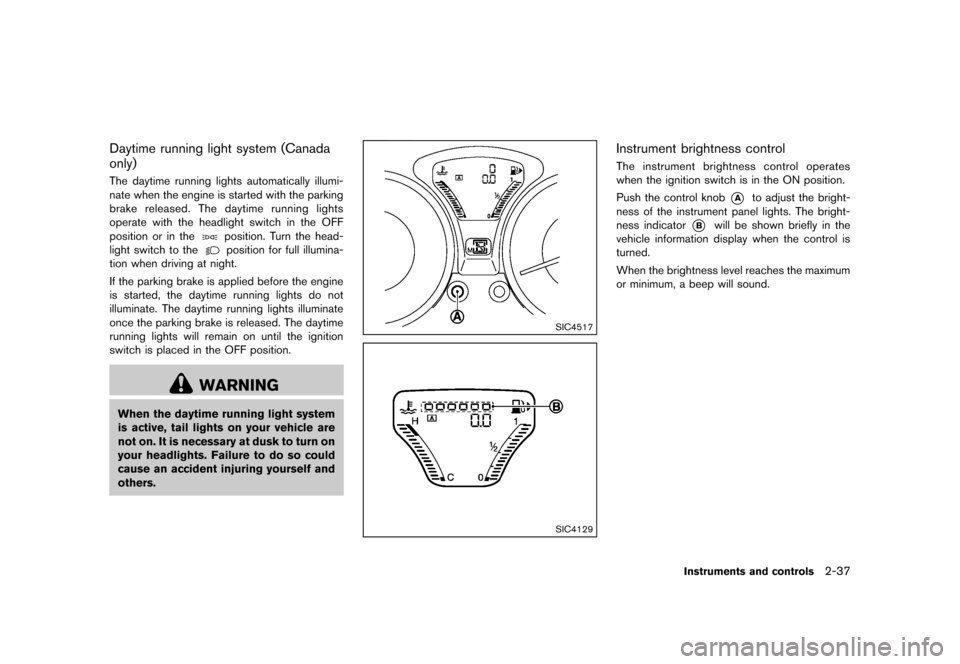

Daytime running light system (Canada
only)
GUID-62FCD516-90BE-43E6-ACAB-5CD8364D8567The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights
operate with the headlight switch in the OFF
position or in the
position. Turn the head-
light switch to the
position for full illumina-
tion when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
switch is placed in the OFF position.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
SIC4517
SIC4129
Instrument brightness controlGUID-955DB8AF-41FD-4C7B-B17D-A344031AD5BBThe instrument brightness control operates
when the ignition switch is in the ON position.
Push the control knob
*Ato adjust the bright-
ness of the instrument panel lights. The bright-
ness indicator
*Bwill be shown briefly in the
vehicle information display when the control is
turned.
When the brightness level reaches the maximum
or minimum, a beep will sound.
Instruments and controls2-37
Condition:

Black plate (104,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-38Instruments and controls

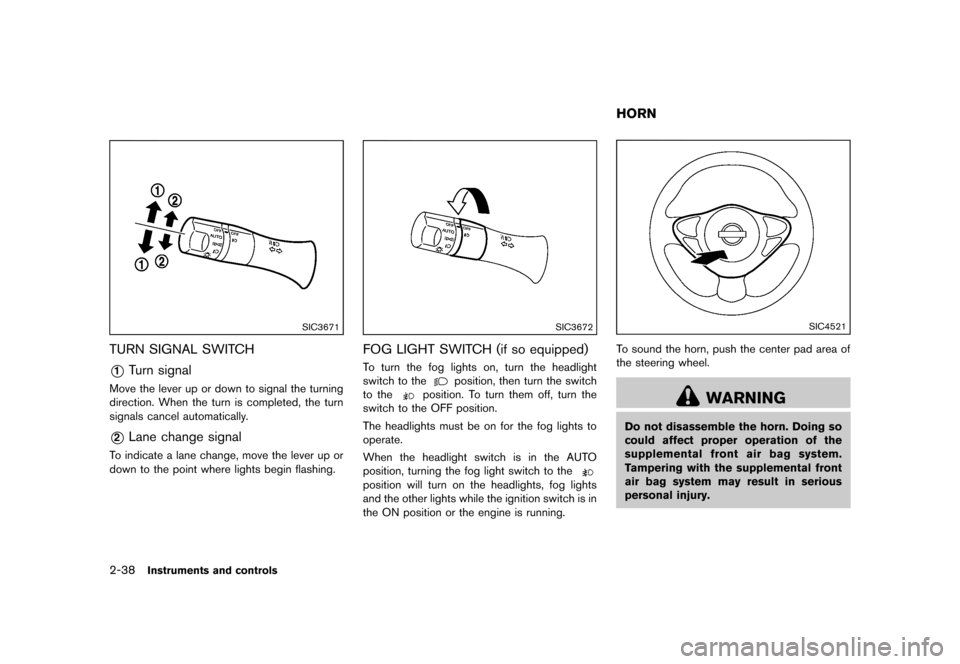

SIC3671
TURN SIGNAL SWITCHGUID-DF12F6F8-A1D7-4024-A4DF-46D972E49E9C
*1Turn signalGUID-3CF2F736-4960-4B96-B5CF-1271A559F90AMove the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
*2Lane change signalGUID-BCAE5264-DA08-4A37-B0F2-FDE7D90FCC8FTo indicate a lane change, move the lever up or
down to the point where lights begin flashing.
SIC3672
FOG LIGHT SWITCH (if so equipped)GUID-8A44D476-039A-440B-9B7F-71C22E22C8D1To turn the fog lights on, turn the headlight
switch to the
position, then turn the switch
to the
position. To turn them off, turn the
switch to the OFF position.
The headlights must be on for the fog lights to
operate.
When the headlight switch is in the AUTO
position, turning the fog light switch to the
position will turn on the headlights, fog lights
and the other lights while the ignition switch is in
the ON position or the engine is running.
GUID-BCFDC961-0310-45F1-A715-1044C3AF17A3
SIC4521
To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
HORN
Condition:

Black plate (105,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-214BC187-5FC2-47C2-A34A-24AAF5D08E52
SIC4544
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” (P.5-40) .)
GUID-AF2D0C38-8F40-4385-9E9C-0A71DCA2931A
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
body parts that contact the seat. Use of
the seat heater by such people could
result in serious injury.
CAUTION
. The battery could run down if the
seat heater is operated while the
engine is not running.
. Do not use the seat heater for
extended periods or when no one
is using the seat.
. Do not put anything on the seat
which insulates heat, such as a
blanket, cushion, seat cover, etc.
Otherwise, the seat may become
overheated.
. Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in damage to the heater.
. Any liquid spilled on the heated seat
should be removed immediately
with a dry cloth.
. When cleaning the seat, never use
gasoline, thinner, or any similar
materials.
. If any malfunctions are found or the
heated seat does not operate, turn
the switch off and have the system
checked by a NISSAN dealer.
Instruments and controls2-39
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH HEATED SEATS (if so equipped)
Condition:

Black plate (106,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-40Instruments and controls
SIC2770
The seats are warmed by built-in heaters. The
switches located on the center console can be
operated independently of each other.
1. Start the engine.
2. Select heat range.
*1For high heat, push the HI (High) side of
the switch.
*2For low heat, push the LO (Low) side of
the switch.
The indicator light in the switch
*3will
illuminate when the heater is on.
3. To turn off the heater, return the switch to the level position. Make sure the indicator
light goes off. The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
GUID-8EF3F7B9-ECF4-4984-877D-7948CE13B956The digital clock (in the audio unit) displays time
when the ignition switch is in the ACC or ON
position. The clock ON or OFF mode can be
selected. For details of the digital clock in the
INTEGRATED CONTROL SYSTEM, refer to
“Clock Time Setting” (P.2-23) . For details of
the digital clock in the NAVIGATION SYSTEM,
refer to “Clock” (P.4-7).
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
CLOCK (if so equipped)
Condition:

Black plate (107,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

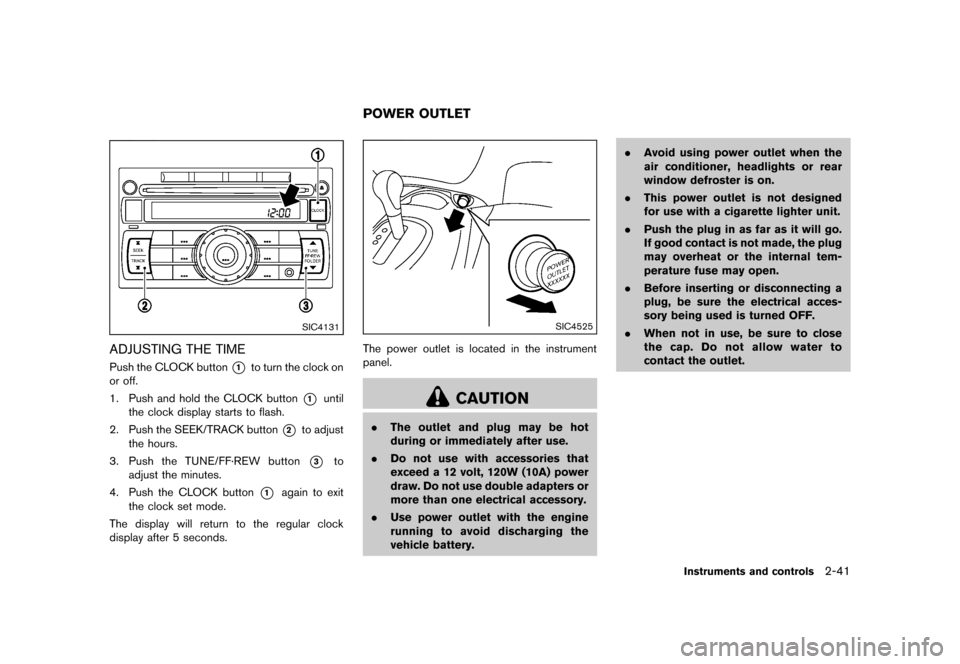

SIC4131
ADJUSTING THE TIMEGUID-4EA21DCA-A547-4E75-A7F5-CCE270C99194Push the CLOCK button*1to turn the clock on
or off.
1. Push and hold the CLOCK button
*1until
the clock display starts to flash.
2. Push the SEEK/TRACK button
*2to adjust
the hours.
3. Push the TUNE/FF·REW button
*3to
adjust the minutes.
4. Push the CLOCK button
*1again to exit
the clock set mode.
The display will return to the regular clock
display after 5 seconds.
GUID-850FEE13-D4FF-4D25-97B5-E92230D21302
SIC4525
The power outlet is located in the instrument
panel.
CAUTION
. The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. Use power outlet with the engine
running to avoid discharging the
vehicle battery. .
Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. When not in use, be sure to close
the cap. Do not allow water to
contact the outlet.
Instruments and controls2-41
POWER OUTLET
Condition:

Black plate (108,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-42Instruments and controls

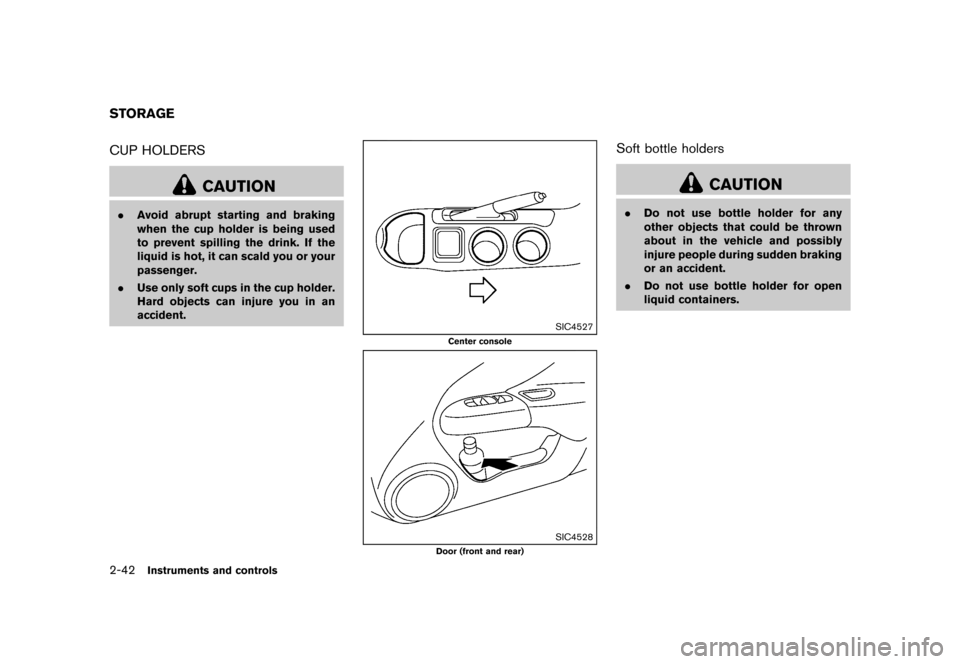

GUID-11FFEB74-6D4E-4717-B00A-F5FBAB2E5908CUP HOLDERSGUID-FC8FAFBC-BCD6-43B2-98A8-26203EF5F9DB
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC4527
Center console
SIC4528
Door (front and rear)
Soft bottle holdersGUID-1A4FBEC5-2F7E-4330-AFDC-3E00F421B6AB
CAUTION
.Do not use bottle holder for any
other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.
. Do not use bottle holder for open
liquid containers.
STORAGE
Condition:

Black plate (109,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

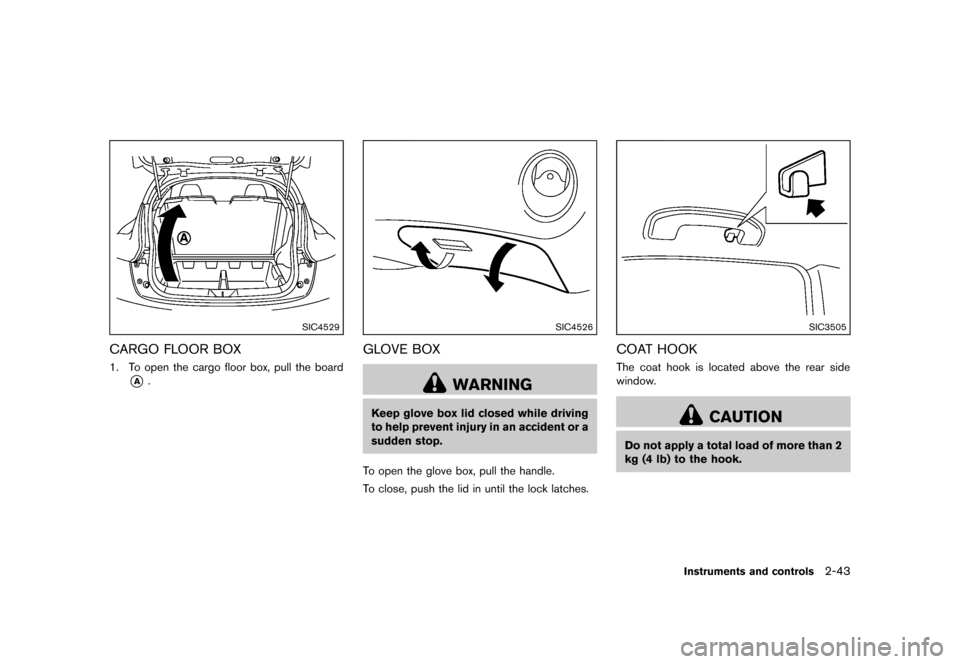

SIC4529
CARGO FLOOR BOXGUID-45F8D0E0-09C1-4BF0-AFEC-F04387391A771. To open the cargo floor box, pull the board
*A.
SIC4526
GLOVE BOXGUID-EA635502-9936-47A9-B2CA-4F1ACC30F00B
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle.
To close, push the lid in until the lock latches.
SIC3505
COAT HOOKGUID-8181D445-70B5-442B-A1BA-CF086D65AB6DThe coat hook is located above the rear side
window.
CAUTION
Do not apply a total load of more than 2
kg (4 lb) to the hook.
Instruments and controls2-43
Condition:

Black plate (110,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-44Instruments and controls

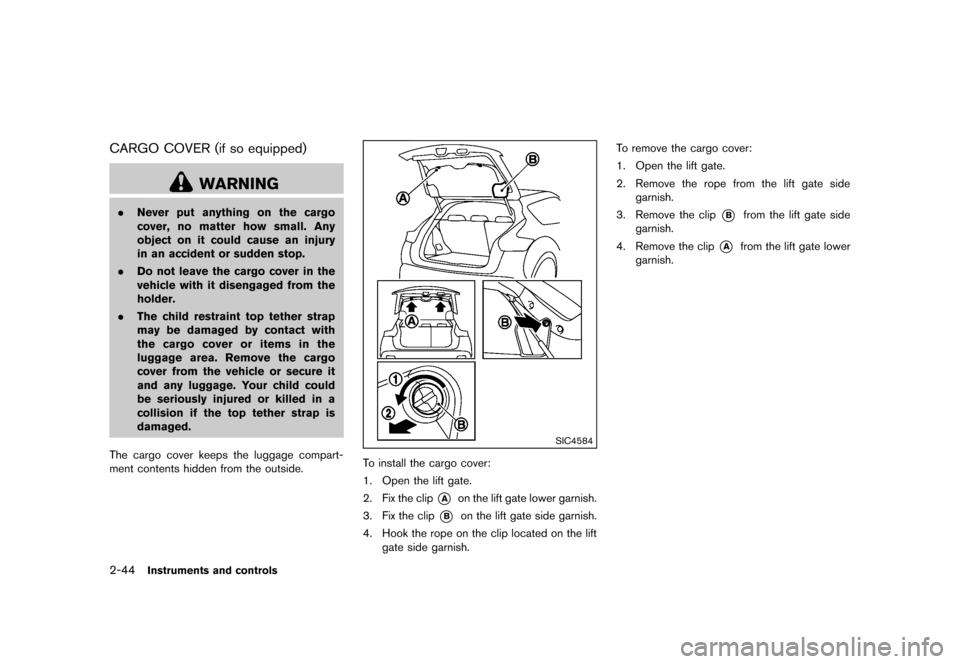

CARGO COVER (if so equipped)GUID-B2FCE0EE-8505-4710-86C2-50A0D5588C33
WARNING
.Never put anything on the cargo
cover, no matter how small. Any
object on it could cause an injury
in an accident or sudden stop.
. Do not leave the cargo cover in the
vehicle with it disengaged from the
holder.
. The child restraint top tether strap
may be damaged by contact with
the cargo cover or items in the
luggage area. Remove the cargo
cover from the vehicle or secure it
and any luggage. Your child could
be seriously injured or killed in a
collision if the top tether strap is
damaged.
The cargo cover keeps the luggage compart-
ment contents hidden from the outside.
SIC4584
To install the cargo cover:
1. Open the lift gate.
2. Fix the clip
*Aon the lift gate lower garnish.
3. Fix the clip
*Bon the lift gate side garnish.
4. Hook the rope on the clip located on the lift gate side garnish. To remove the cargo cover:
1. Open the lift gate.
2. Remove the rope from the lift gate side
garnish.
3. Remove the clip
*Bfrom the lift gate side
garnish.
4. Remove the clip
*Afrom the lift gate lower
garnish.
