2013 NISSAN JUKE Owners Manual

Black plate (87,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-F75DC192-4AA8-4A55-AE59-59A76A90EBC4The Integrated Control System is located below
the audio system or navigation system (if so
equipped) . Two Integrated Control System
modes can be selected: Drive mode and
Climate Control mode.
Depending on which Integrated Control System
mode is selected (Drive mode or Climate
Control mode) , the screen display and some
button functions will change.
.Drive mode
In the Drive mode, three types of driving
modes can be selected: NORMAL, SPORT
and ECO. See “Drive mode” (P.5-24). In
addition, while in the Drive mode, SETUP,
Drive information and ECO information can
be displayed and adjusted. See “Drive
mode” (P.2-21) .
. Climate Control mode
In the Climate Control mode, the climate
control can be set and adjusted. See
“Automatic air conditioner (with Integrated
Control System)” (P.4-17) .
DRIVE MODEGUID-8018E7B4-28B9-4333-857E-2A3D1B7D7F1BWhen the Drive mode select button is pressed,
the display and buttons appear as shown.
SIC4623
1. Drive mode select button
2. SETUP button
3. Drive mode NORMAL button
4. Drive mode SPORT button
5. Drive mode ECO button
6. Display screen
7. Drive information button 8. ECO information button
9. ENTER button/Selection dial
SETUP FUNCTIONGUID-5B5DBB47-0C64-4C41-8AF1-443319848F1AWhile in the Drive mode, the following items can
be set up by pressing the SETUP button.
Instruments and controls2-21
INTEGRATED CONTROL SYSTEM (if
so equipped)
Condition:

Black plate (88,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-22Instruments and controls

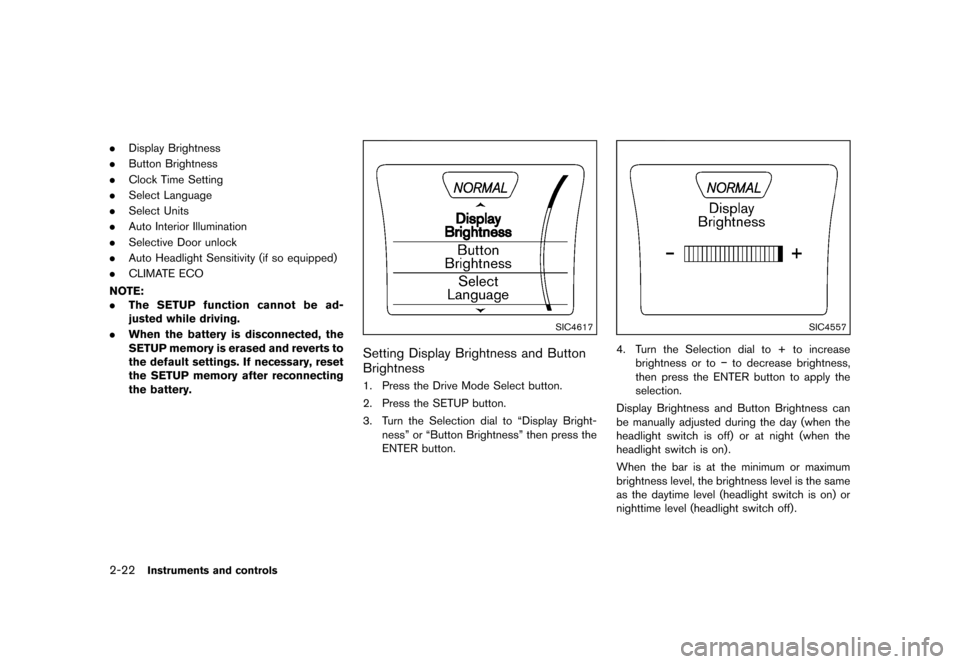

.Display Brightness
. Button Brightness
. Clock Time Setting
. Select Language
. Select Units
. Auto Interior Illumination
. Selective Door unlock
. Auto Headlight Sensitivity (if so equipped)
. CLIMATE ECO
NOTE:
. The SETUP function cannot be ad-
justed while driving.
. When the battery is disconnected, the
SETUP memory is erased and reverts to
the default settings. If necessary, reset
the SETUP memory after reconnecting
the battery.
SIC4617
Setting Display Brightness and Button
Brightness
GUID-27E9F256-C04B-4006-9271-055B958717481. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to “Display Bright-
ness” or “Button Brightness” then press the
ENTER button.
SIC4557
4. Turn the Selection dial to + to increasebrightness or to −to decrease brightness,
then press the ENTER button to apply the
selection.
Display Brightness and Button Brightness can
be manually adjusted during the day (when the
headlight switch is off) or at night (when the
headlight switch is on) .
When the bar is at the minimum or maximum
brightness level, the brightness level is the same
as the daytime level (headlight switch is on) or
nighttime level (headlight switch off) .
Condition:

Black plate (89,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

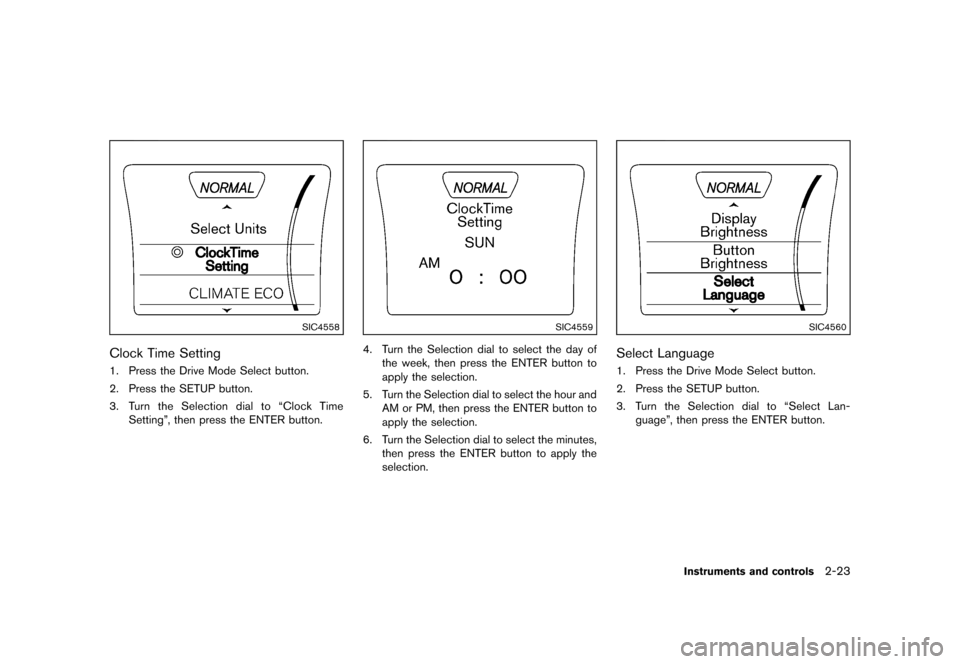

SIC4558
Clock Time SettingGUID-2812E6D3-7933-4DFF-89C0-F87C597066681. Press the Drive Mode Select button.
2. Press the SETUP button.
3.Turn the Selection dial to “Clock Time
Setting”, then press the ENTER button.
SIC4559
4. Turn the Selection dial to select the day of
the week, then press the ENTER button to
apply the selection.
5. Turn the Selection dial to select the hour and AM or PM, then press the ENTER button to
apply the selection.
6. Turn the Selection dial to select the minutes, then press the ENTER button to apply the
selection.
SIC4560
Select LanguageGUID-BEC48047-A67F-46E3-90C7-828B6A0EEAA11. Press the Drive Mode Select button.
2. Press the SETUP button.
3.Turn the Selection dial to “Select Lan-
guage”, then press the ENTER button.
Instruments and controls2-23
Condition:

Black plate (90,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-24Instruments and controls

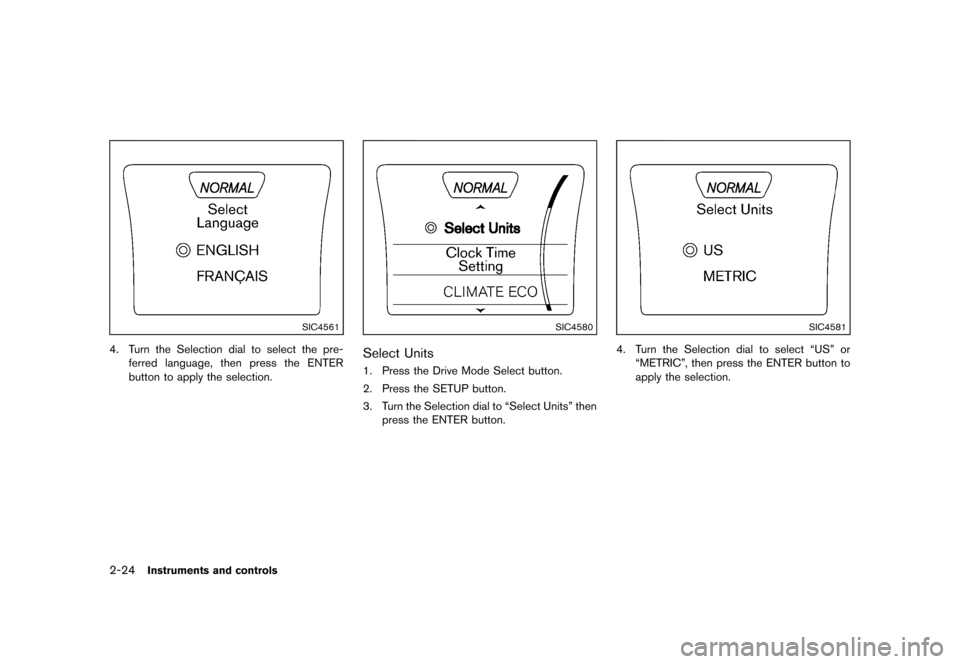

SIC4561
4. Turn the Selection dial to select the pre-ferred language, then press the ENTER
button to apply the selection.
SIC4580
Select UnitsGUID-774E4284-E836-45B2-9C03-2EB133B47B951. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to “Select Units” thenpress the ENTER button.
SIC4581
4. Turn the Selection dial to select “US” or
“METRIC”, then press the ENTER button to
apply the selection.
Condition:

Black plate (91,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

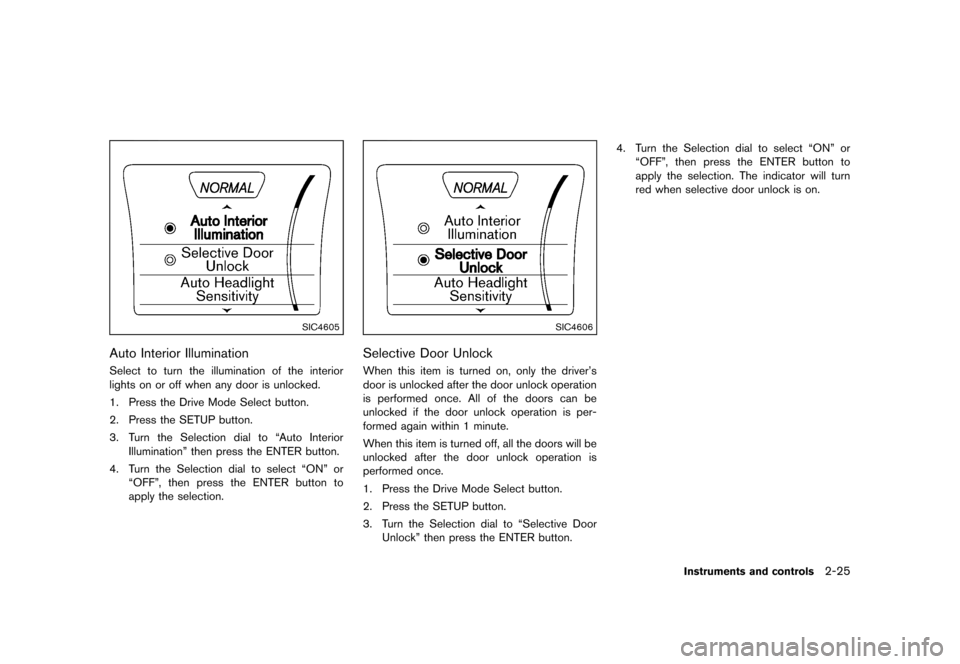

SIC4605
Auto Interior IlluminationGUID-73C0C534-32F7-4478-94B8-BD493A21A348Select to turn the illumination of the interior
lights on or off when any door is unlocked.
1. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to “Auto InteriorIllumination” then press the ENTER button.
4. Turn the Selection dial to select “ON” or “OFF”, then press the ENTER button to
apply the selection.
SIC4606
Selective Door UnlockGUID-D7CB0C67-3FC9-41B8-9A49-41124D8166DAWhen this item is turned on, only the driver’s
door is unlocked after the door unlock operation
is performed once. All of the doors can be
unlocked if the door unlock operation is per-
formed again within 1 minute.
When this item is turned off, all the doors will be
unlocked after the door unlock operation is
performed once.
1. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to “Selective DoorUnlock” then press the ENTER button. 4. Turn the Selection dial to select “ON” or
“OFF”, then press the ENTER button to
apply the selection. The indicator will turn
red when selective door unlock is on.
Instruments and controls2-25
Condition:

Black plate (92,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-26Instruments and controls

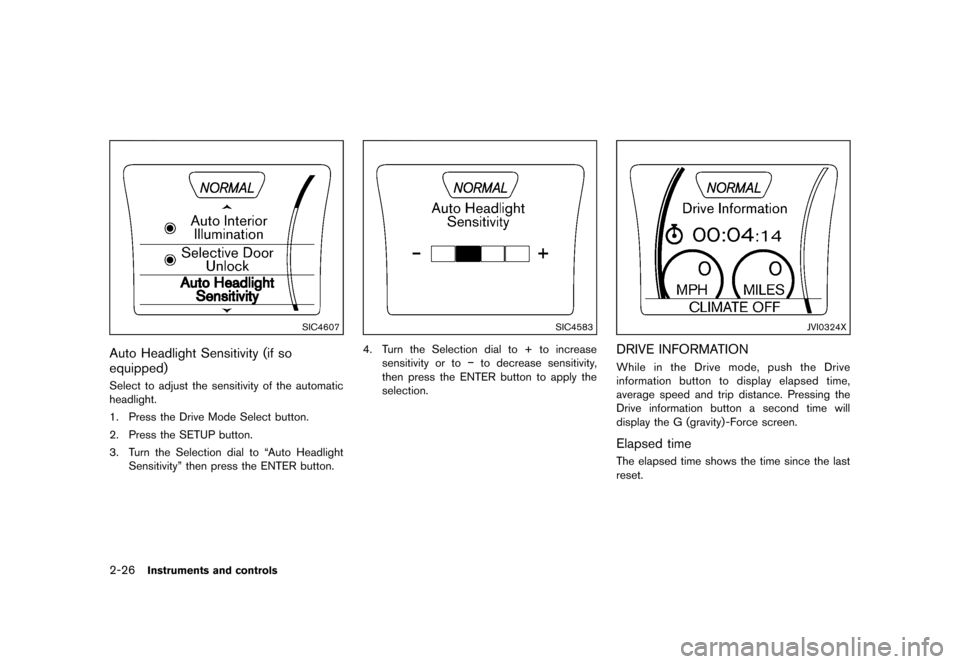

SIC4607
Auto Headlight Sensitivity (if so
equipped)
GUID-E8605F81-0011-489E-98B9-32D5ACC252FESelect to adjust the sensitivity of the automatic
headlight.
1. Press the Drive Mode Select button.
2. Press the SETUP button.
3. Turn the Selection dial to “Auto HeadlightSensitivity” then press the ENTER button.
SIC4583
4. Turn the Selection dial to + to increase
sensitivity or to −to decrease sensitivity,
then press the ENTER button to apply the
selection.
JVI0324X
DRIVE INFORMATIONGUID-443C1D2D-7D0F-41E4-987B-D7415D0970E8While in the Drive mode, push the Drive
information button to display elapsed time,
average speed and trip distance. Pressing the
Drive information button a second time will
display the G (gravity) -Force screen.
Elapsed timeGUID-55BB1392-875D-4CF0-9E85-7CCFF5D0F10EThe elapsed time shows the time since the last
reset.
Condition:

Black plate (93,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

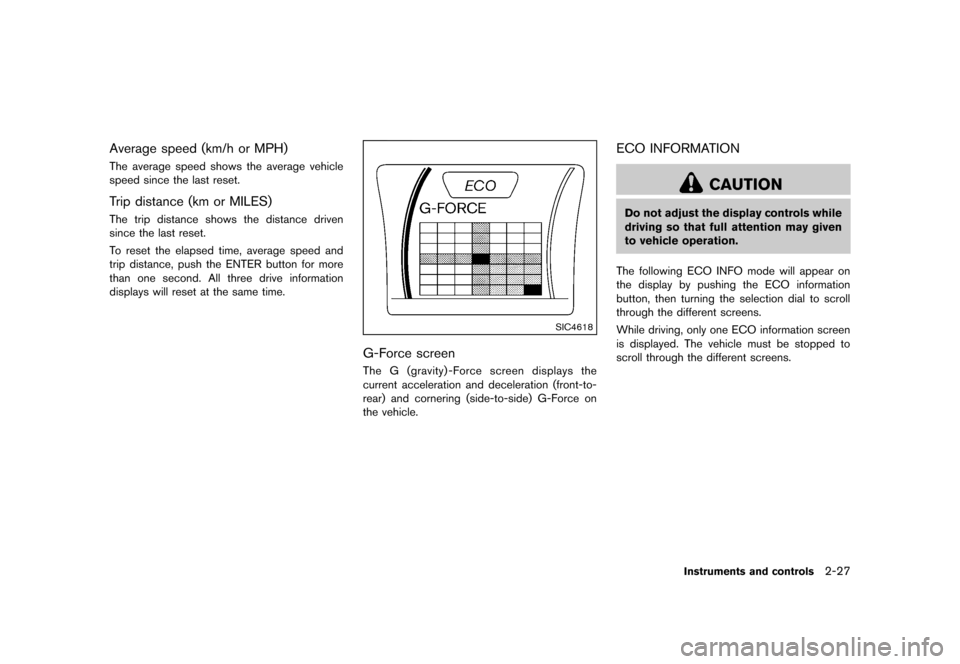

Average speed (km/h or MPH)GUID-9C3C1498-7E06-42C4-96D5-12BCDDAA68EBThe average speed shows the average vehicle
speed since the last reset.
Trip distance (km or MILES)GUID-FE7A52DC-03FE-40C7-8350-CD409A5F214FThe trip distance shows the distance driven
since the last reset.
To reset the elapsed time, average speed and
trip distance, push the ENTER button for more
than one second. All three drive information
displays will reset at the same time.
SIC4618
G-Force screenGUID-7CA54F31-AFA0-446D-97A9-40A1CD8D276AThe G (gravity) -Force screen displays the
current acceleration and deceleration (front-to-
rear) and cornering (side-to-side) G-Force on
the vehicle.
ECO INFORMATIONGUID-FF86F9FC-E590-4E56-85D1-34E86F1F19FD
CAUTION
Do not adjust the display controls while
driving so that full attention may given
to vehicle operation.
The following ECO INFO mode will appear on
the display by pushing the ECO information
button, then turning the selection dial to scroll
through the different screens.
While driving, only one ECO information screen
is displayed. The vehicle must be stopped to
scroll through the different screens.
Instruments and controls2-27
Condition:

Black plate (94,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-28Instruments and controls

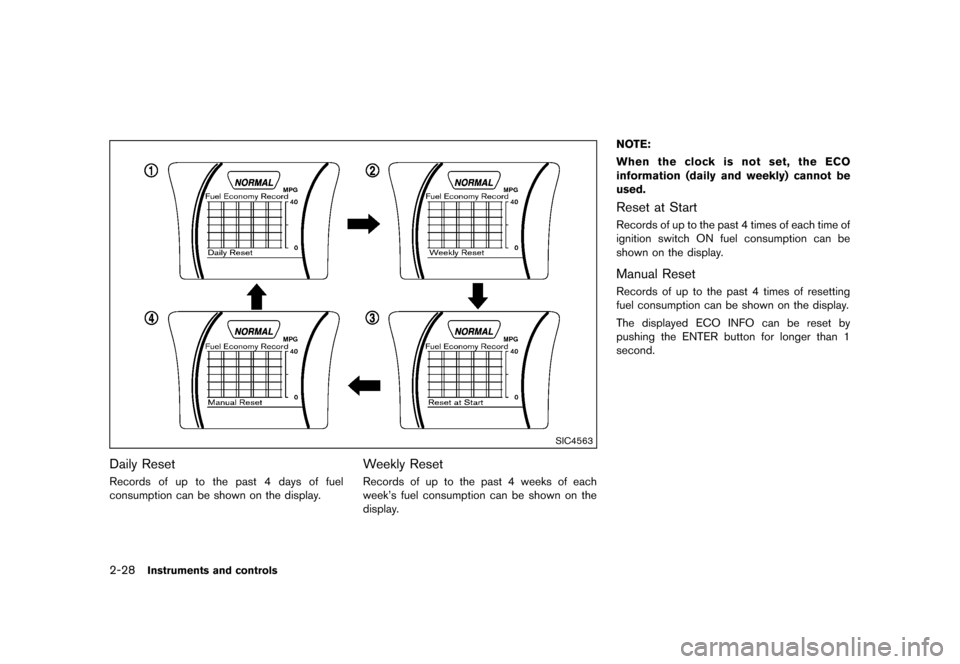

SIC4563
Daily ResetGUID-9E852481-4855-4C98-AD8C-A7AF08E10E28Records of up to the past 4 days of fuel
consumption can be shown on the display.
Weekly ResetGUID-EB7B5C4A-19C8-433E-AFD3-A165E5C4C2E8Records of up to the past 4 weeks of each
week’s fuel consumption can be shown on the
display.NOTE:
When the clock is not set, the ECO
information (daily and weekly) cannot be
used.
Reset at StartGUID-F852259B-B08A-4BC8-BAC5-9ACC5A687EEBRecords of up to the past 4 times of each time of
ignition switch ON fuel consumption can be
shown on the display.
Manual ResetGUID-B6A62823-AFB2-4ADC-A65B-72B63B1719C0Records of up to the past 4 times of resetting
fuel consumption can be shown on the display.
The displayed ECO INFO can be reset by
pushing the ENTER button for longer than 1
second.
