2013 NISSAN JUKE Owners Manual

Black plate (143,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

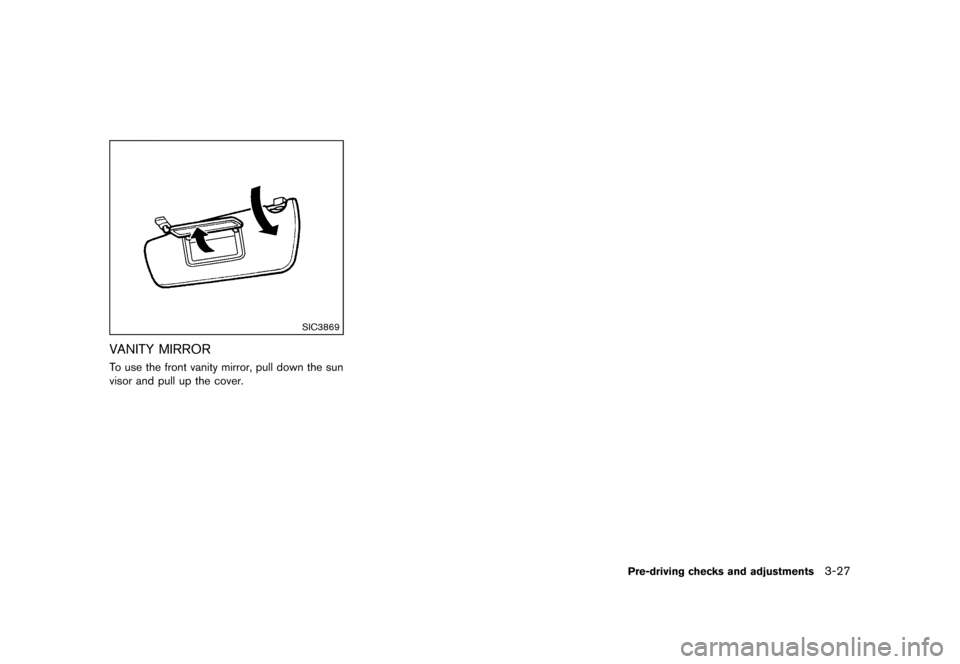

SIC3869
VANITY MIRRORGUID-21E8F75F-AC0C-4F4E-9E32-61A89D0A8B52To use the front vanity mirror, pull down the sun
visor and pull up the cover.
Pre-driving checks and adjustments3-27
Condition:

Black plate (144,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

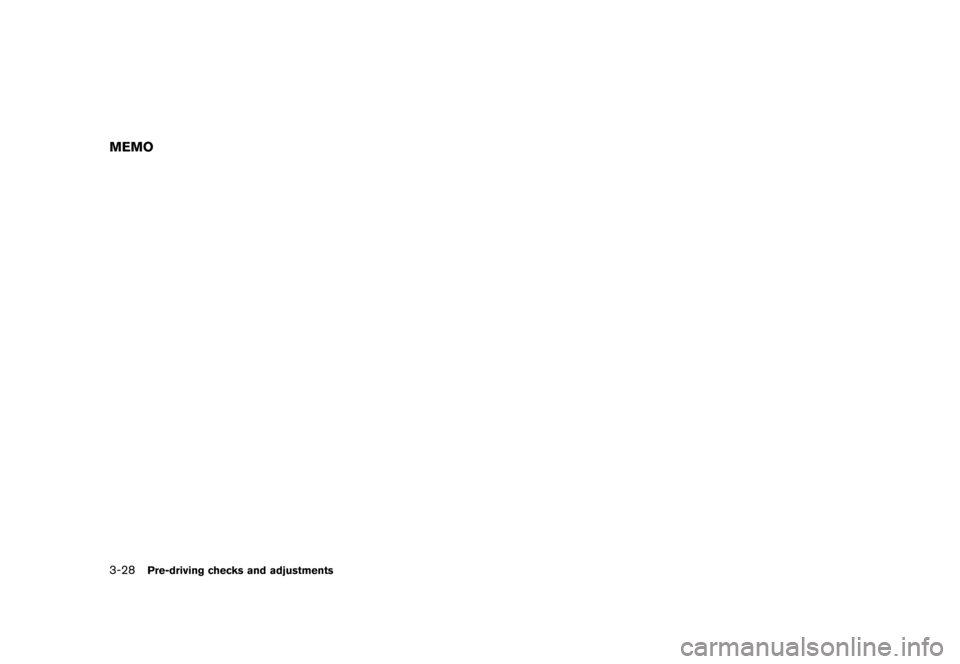

3-28Pre-driving checks and adjustments
MEMO
Condition:

Black plate (145,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4 Heater, air conditioner, audio and phone sys-tems
Safety note ...
........................................................................\
.......... 4-2
Control panel buttons — color screen with navigation
system (if so equipped) ...
.......................................................... 4-2
How to use touch screen ...
................................................. 4-3
How to use the BACK button ...
......................................... 4-5
How to use brightness control and display
ON/OFF button ...
................................................................... 4-5
How to use the setup button ...
........................................... 4-5
Rearview monitor (if so equipped) ...
....................................... 4-8
How to read the displayed lines ...
..................................... 4-9
Difference between predictive and
actual distances ...
................................................................ 4-10
Operating tips ...
................................................................... 4-11
Ventilators ...
........................................................................\
......... 4-12
Center ventilators ...
............................................................. 4-12
Side ventilators ...
................................................................. 4-12
Heater and air conditioner ...
................................................... 4-13
Manual air conditioner (if so equipped) ...
..................... 4-13
Automatic air conditioner (with Integrated
Control System) ...
............................................................... 4-17
Operating tips (for automatic air conditioner) ...
.......... 4-19 In-cabin microfilter
...
......................................................... 4-19
Servicing air conditioner ...
.............................................. 4-20
Audio system ...
........................................................................\
.. 4-20
Audio operation precautions ...
....................................... 4-20
FM-AM-SAT radio with Compact Disc (CD) player
(Type A) ...
........................................................................\
.... 4-31
FM-AM-SAT radio with Compact Disc (CD) player
(Type B) ...
........................................................................\
.... 4-39
CD/USB memory care and cleaning ...
........................ 4-47
Steering wheel switch for audio control ...
.................. 4-47
Antenna ...
........................................................................\
.... 4-48
Car phone or CB radio ...
........................................................ 4-49
Bluetooth
®Hands-Free Phone System ...
........................... 4-49
Regulatory information ...
.................................................. 4-51
Using the system ...
........................................................... 4-51
Control buttons ...
............................................................... 4-53
Getting started ...
............................................................... 4-54
List of voice commands ...
............................................... 4-55
Speaker Adaptation (SA) mode ...
................................. 4-59
Troubleshooting guide ...
.................................................. 4-61
Condition:

Black plate (146,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-2Heater, air conditioner, audio and phone systems
GUID-A94094A4-AFB5-4790-B5D0-B9A753AE417A
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-E5647B06-BF23-4C28-86BD-1F2657EDCFE0
SAA3377
1.(brightness control) button (P.4-5)
2. Display screen
3. MAP button*
4. NAV button*
5. TRAF button*
6. SETUP button (P.4-5)
7.
BACK button (P.4-5) 8. TUNE/SCROLL knob (P.4-39)
9. Power button/Volume control knob (P.4-39)
*For navigation system control buttons, refer to
the separate Navigation System Owner’s Man-
ual.
When you use this system, make sure the
engine is running.
SAFETY NOTE
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)
Condition:

Black plate (147,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can
be selected by touching the screen.
HOW TO USE TOUCH SCREENGUID-7CCFD255-7CCA-4FE0-A64E-C9A30213AA2F
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, never use a
rough cloth, alcohol, benzine, thin-
ner or any kind of solvent or paper
towel with a chemical cleaning
agent. They will scratch or deterio-
rate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction. To help ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
.
ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.
SAA3422
Touch screen operationGUID-CD4EA79D-C541-401C-AA35-FFD7D9FF5056
Selecting the item:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Touch an item to select. For example, to select
the “Audio” key, touch the “Audio” key
*1on
the screen.
Heater, air conditioner, audio and phone systems4-3
Condition:

Black plate (148,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-4Heater, air conditioner, audio and phone systems
SAA3387
Adjusting the item:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53For screens where an item can be adjusted
incrementally, such as when adjusting the bass
and treble for the audio system, touch the “+”
key
*1or the “−” key*2to adjust the settings
of an item.
When there are more items than can be
displayed on one screen, touch the up arrow
*3to scroll up the page or touch the down
arrow
*4to scroll down the page.
SAA3388
Other items are adjusted by selecting one of a
set number of conditions. For example, the
Display Mode can be set to “Automatic”, “Day”
or “Night”. To adjust this type of item, touch the
item
*1. The item will cycle through the
available settings and the red indicator lights
to the left of the setting condition
*2will come
on or turn off accordingly.
SAA3389
Inputting characters:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Touch the letter key*1.
There are some options available when inputting
characters.
. 123/ABC:
Changes the available character set to
numbers.
. Space:
Inserts a space.
. Delete:
Deletes the last inputted character with one
touch. Touch and hold the “Delete” key to
delete all of the characters.
Condition:

Black plate (149,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
.OK:
Completes the character input.
Touch screen maintenanceGUID-A06315D6-6E46-45A2-8099-31B0E0B76BC2If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first and then wipe
the screen.
HOW TO USE THE BACK BUTTONGUID-3740FEE7-3592-425C-A33E-F3B5A6086A14Push theBACK button to return to the
previous screen.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-5C8B1E99-76BC-4973-B280-12CEBBF52F12To change the display brightness, push the
button. Pushing the button again will change the
display to the day or the night display.
If no operation is performed within 5 seconds,
the display will return to the previous display.
Push and hold the
button for more than two
seconds to turn the display off. Push the button
again to turn the display on.
SAA3390
HOW TO USE THE SETUP BUTTONGUID-446AA637-171D-454C-8490-20F3BA575AD2When the SETUP button is pushed, the Setup
screen will appear on the display. You can select
and/or adjust several functions, features and
modes that are available for your vehicle.
SAA3423
Audio setupGUID-202AEEA4-723F-43FA-BBF0-B9676A7F0A5ASelect the “Audio” key to adjust the following
items to the preferred setting. These settings
can also be displayed by pushing the AUDIO
button (TUNE/SCROLL knob).
Bass, Treble, Balance and Fade:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Controls the sound of the audio system. Balance
adjusts the sound between the left and right
speakers. Fade adjusts the sound between the
front and rear speakers.
Speed Volume:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Controls the level to which the volume is
adjusted as the vehicle’s driving speed changes.
Choose a setting between 1 and 5 or choose 0
Heater, air conditioner, audio and phone systems4-5
Condition:

Black plate (150,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-6Heater, air conditioner, audio and phone systems
to disable the feature entirely.
AUX Level:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Available options are Quiet, Medium
and Loud.
Navigation setupGUID-3EFB012C-F2C5-41F3-BBBB-4485DDADCA81Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
XM setupGUID-11A982AF-5034-427F-9B90-77832221F770For SiriusXM Satellite Radio setup, refer to “FM-
AM-SAT radio with Compact Disc (CD) player
(Type B)” (P.4-39).SAA3391
System setupGUID-AADB642F-B2B4-44E5-97CC-DC2DAA28F744Select the “System” key to select and/or adjust
various functions of the system. A screen with
additional options will appear.
SAA3392
Display:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Display” key to adjust the appear-
ance of the display. The following settings can
be adjusted:
.Brightness:
The brightness of the display can be set to Very
Bright, Bright, Default, Dark or Very Dark. Touch
the “Brightness” key to cycle through the
options.
. Display Mode:
The display can be adjusted to fit the level of
lighting in the vehicle. Touch the “Display Mode”
key to cycle through the options. “Day” and
“Night” modes are suited for the respective
