3. Pull the bulb out of the socket.
4. To install the bulb, perform the removal
steps in reverse.
NOTE l When installing the lamp, insert tab (C) first
then align and insert tab (D). Vehicle care and Maintenance
8-35 8
OHAE13E1
Page 234 of 258
Page 235 of 258

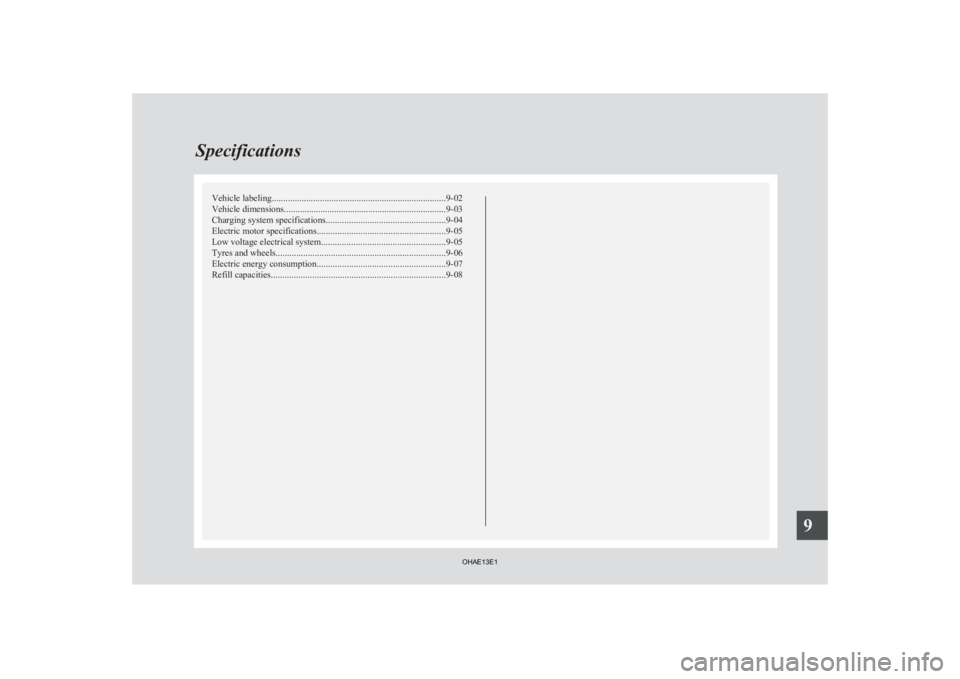

Vehicle labeling
............................................................................ 9-02
Vehicle dimensions....................................................................... 9-03
Charging system specifications .................................................... 9-04
Electric motor specifications ........................................................ 9-05
Low voltage electrical system ...................................................... 9-05
Tyres and wheels.......................................................................... 9-06
Electric energy consumption ........................................................ 9-07
Refill capacities ............................................................................ 9-08Specifications
9
OHAE13E1
Page 236 of 258
Vehicle labeling
E01100102899
Vehicle identification number
The
vehicle identification number is stamped in the
location shown in the illustration. Vehicle information code plate
The
vehicle information code plate is riveted as
shown in the illustration. The plate shows model code, engine model, trans-
mission
model and body colour code, etc. Please
use this number when ordering replacement parts. 1- Model code
2-
Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code
7- Exterior code Electric motor number
The electric motor number is stamped on the flange
of
the electric motor frame as shown in the illustra-
tions. *: Front of the vehicleSpecifications
9-02
9
OHAE13E1
Page 237 of 258
Vehicle dimensions
E011002026691 Front track
1,310 mm2 Overall width
1,475 mm3 Front overhang
500 mm4 Wheel base
2,550 mm5 Rear overhang
425 mm6 Overall length
3,475 mm7 Ground clearance (unladen)
150 mm8 Overall height (unladen)
1,610 mm9 Rear track
1,270 mmMinimum turning radius Body
4.75 mWheel
4.5 m Specifications
9-03 9
OHAE13E1
Page 238 of 258

Charging system specifications
E01101900021Regular charging system Rated input voltage
AC 230V (single phase)Rated input frequency
50 Hz/60 HzMaximum rated current
10 A*1
, 8 A *1 Maximum power consumption
3.3 kVA*2 Applicable standards Charging cable (with
connector and control
box)
EN61851-1:2001
EN61851-21:2002 IEC61851-1:2001
IEC61851-21:2001 IEC62196-1:2003 HD21.13
EN50306-4 On board charger
EN61851-1:2001
EN61851-21:2002 IEC61851-1:2001
IEC61851-21:2001 Leakage current sensitivity in cable control box
20 mACharging mode
Based on IEC61851-1:2001
Mode 2/Case B *1
Mode 3/Case C *2
*1 : When using a genuine charging cable with control box
*2 : When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment) Quick charging system Applicable standards
EN61851-1:2001
EN61851-21:2002 IEC61851-1:2001
IEC61851-21:2001 CHAdeMO Maximum input current
125 ARegular charging/Quick charging
system
IP degrees
IP44: When a charge connector is connected
IP55: When charging lid is closed and vehicle is moving Specifications
9-04
9
OHAE13E1
Page 239 of 258
Electric motor specifications
E01100602458Electric motor model
Y4F1Maximum output
(ECE net)
49 kW/2,500 to
8,000 r/min Maximum torque
180 Nm/0 to
2,000 r/min Maximum 30 minutes
power
(ECE net)
35 kW Low voltage electrical system
E01100802232 Voltage
12 V Auxiliary bat-
tery Type (JIS) 34B19L (S)
Capacity (5HR) 27Ah Specifications
9-05 9
OHAE13E1
Page 240 of 258
Tyres and wheels
E01100902884Item Front Rear
Tyre
145/65R15 72S 175/55R15 77SWheel Size
15x4J 15x5JOffset
35 mmNOTE
l Contact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle. Specifications
9-06
