2013 Lexus GS300h Owner's Manual

6895-6. Using the storage featurers
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)
Open (press the button)
Unlock with the mechanical
key
Lock with the mechanical key
Glove box light
The glove box light turns on when the tail lights are on.
Trunk opener main switch
The trunk opener main switch is located in the glove box. (P. 188)
Removing the insert
The insert inside the glove box can be removed.
The glove box door
An SRS knee airbag for the front passenger’s seat is built into the glove box
door.
(P. 44)
Glove box
1
2
3

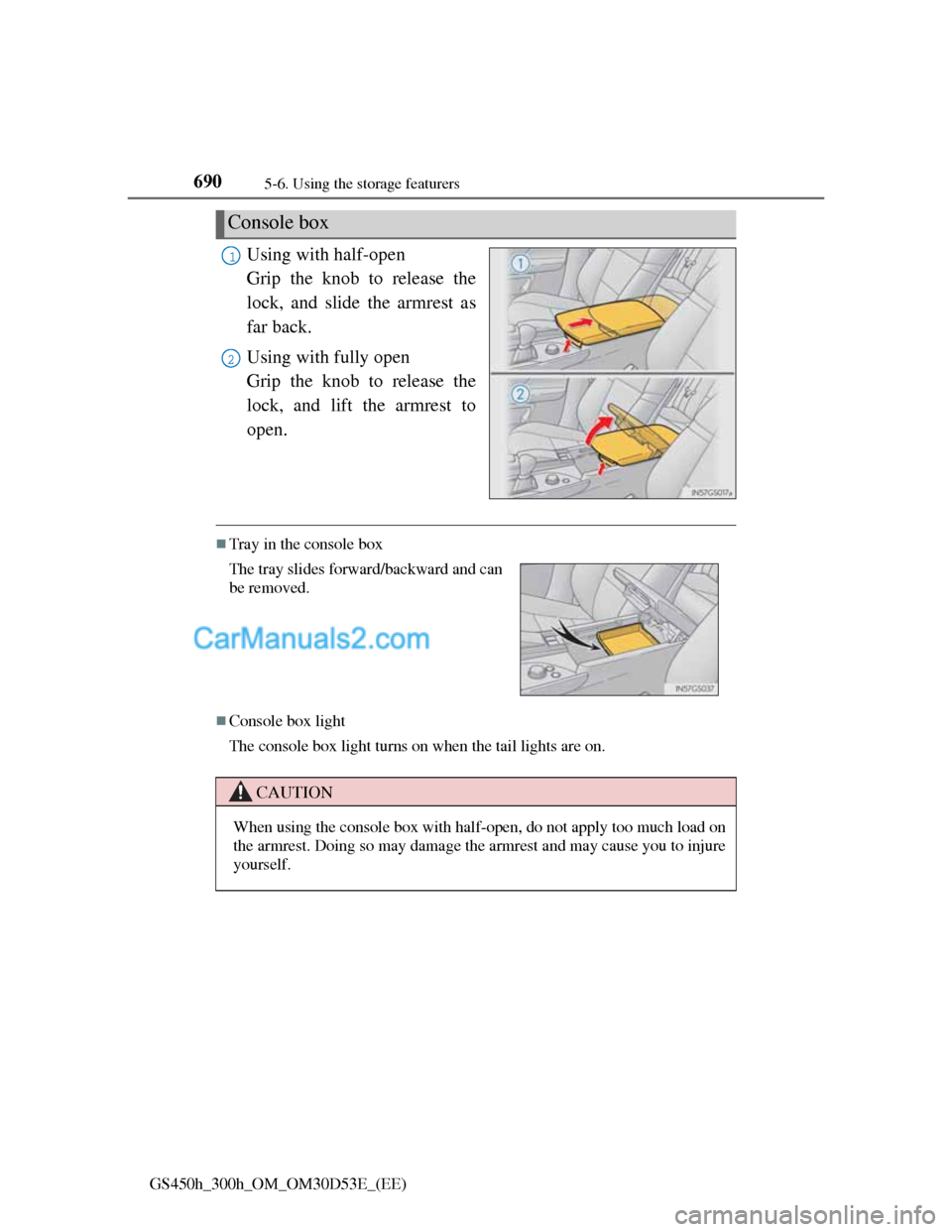

6905-6. Using the storage featurers
GS450h_300h_OM_OM30D53E_(EE)
Using with half-open
Grip the knob to release the
lock, and slide the armrest as
far back.
Using with fully open
Grip the knob to release the
lock, and lift the armrest to
open.
Tray in the console box
Console box light
The console box light turns on when the tail lights are on.
Console box
1
2
The tray slides forward/backward and can
be removed.
CAUTION
When using the console box with half-open, do not apply too much load on
the armrest. Doing so may damage the armrest and may cause you to injure
yourself.

6915-6. Using the storage featurers
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)
Front
To open, press down and
release the cup holder lid.
Rear
To open, pull down the arm-
rest and press in and release
the rear cup holder on the arm-
rest.
Removing the separate tray (front cup holder)
When stowing the cup holders (rear cup holder)
Stow the cup holder with the armrest down. The cup holder cannot be stowed
if the armrest is not down.
Cup holders
The cup holder insert may be removed for
cleaning.

6925-6. Using the storage featurers
GS450h_300h_OM_OM30D53E_(EE)
CAUTION
Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.
NOTICE
To prevent damage to the rear cup holder
Stow the cup holder before stowing the armrest.

6935-6. Using the storage featurers
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)
Auxiliary boxes
Type AType B
Press in the button. Pull up the lever to release the
lock and lift the lid.
Type C (if equipped)
Open the lid.
CAUTION
Using the auxiliary boxes (type C)
Do not use the auxiliary box as an ashtray.
Doing so may cause a fire.

6945-6. Using the storage featurers
GS450h_300h_OM_OM30D53E_(EE)
Trunk features
Raise the hooks when needed.
The cargo hooks are provided for
securing loose items.
Pull the strap when using the
hook.
Cargo hooks
Luggage hook
First-aid kit storage net

6955-6. Using the storage featurers
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)
Loosen the belt
Tighten the belt
Luggage mat
Type AType B
Pull the strap upwards to lift up
the luggage mat.Pull the lever upwards to lift up
the luggage mat.
The lever can be hooked on the
luggage hook.
Warning reflector storage belt
1
2

6965-6. Using the storage featurers
GS450h_300h_OM_OM30D53E_(EE)
CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
NOTICE
Luggage hook weight capacity
Do not hang any object heavier than 5 kg (11 lb.) on the luggage hook.
