2013 Lexus GS300h Owner's Manual

8307-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)
If a warning light turns on or a warning buzzer
sounds
The following warning indicates a possible problem in the brake
system. Immediately stop the vehicle in a safe place and contact
any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then goes
off, this does not necessarily indicate a malfunction in the system.
However, if this continues to occur, have the vehicle inspected by
any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
Wa r n i n g
lightWarning light/Details
Brake system warning light (warning buzzer)
• Low brake fluid
• Malfunction in the electronically controlled brake sys-
tem

8317-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)
The following warning indicates the possibility of damage to the
vehicle that may lead to an accident. Immediately stop the vehicle
in a safe place and contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
Failure to investigate the cause of the following warnings may lead
to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional imme-
diately.
Stop the vehicle immediately.
Wa r n i n g
lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Wa r n i n g
lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The emission control system (if equipped);
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic hybrid transmission control system (if
equipped)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system

8327-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Wa r n i n g
lightWarning light/Details

8337-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
(Flashes)
(If equipped)
Pre-crash safety system warning light
Indicates a malfunction in the pre-crash safety system
The warning light will operate as follows, even when the
system is not malfunctioning:
• The light will flash quickly when the system is operat-
ing.
(P. 406)
• The light will turn on when the pre-crash safety system
is disabled. (P. 408)
• The light will flash when the system cannot temporarily
be used. (P. 862)
Slip indicator
Indicates a malfunction in:
•The VSC system; or
• The TRC system
The light will flash when the VSC or the TRC system is
operating.
(Flashes)
(If equipped)
“AFS OFF” indicator
Indicates a malfunction in the adaptive front-lighting sys-
tem
(Flashes)
Brake hold operated indicator
Indicates a malfunction in the brake hold system
(Flashes)
Parking brake indicator
Indicates a malfunction in the parking brake system
Brake system warning light
Indicates a malfunction in:
• The electronically controlled brake system;
• The regenerative braking system; or
• The parking brake system
Wa r n i n g
lightWarning light/Details

8347-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)

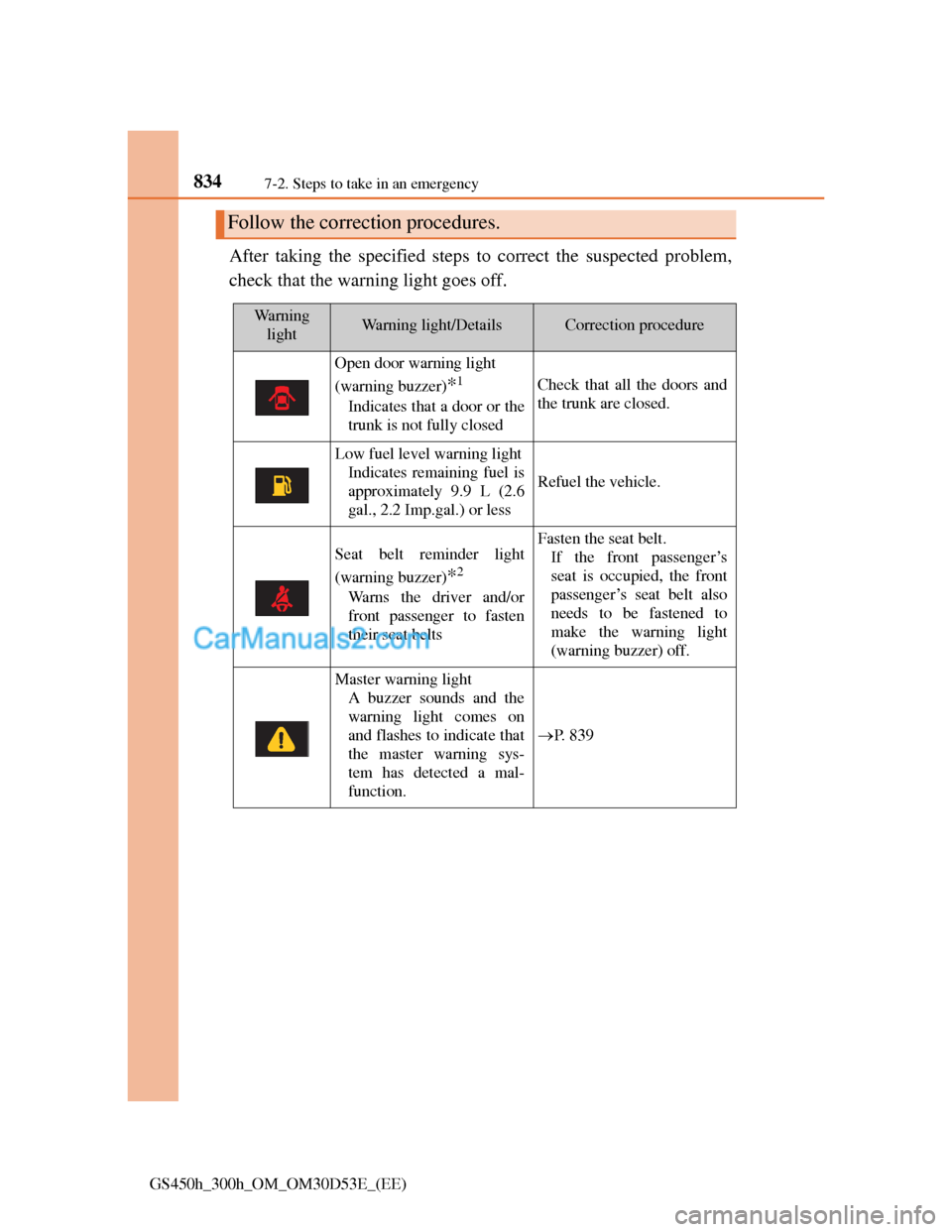

After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Follow the correction procedures.
Wa r n i n g
lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door or the
trunk is not fully closed
Check that all the doors and
the trunk are closed.
Low fuel level warning light
Indicates remaining fuel is
approximately 9.9 L (2.6
gal., 2.2 Imp.gal.) or less
Refuel the vehicle.
Seat belt reminder light
(warning buzzer)
*2
Warns the driver and/or
front passenger to fasten
their seat belts
Fasten the seat belt.
If the front passenger’s
seat is occupied, the front
passenger’s seat belt also
needs to be fastened to
make the warning light
(warning buzzer) off.
Master warning light
A buzzer sounds and the
warning light comes on
and flashes to indicate that
the master warning sys-
tem has detected a mal-
function.
P. 8 3 9

8357-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)
*1: Open door warning buzzer:
P. 8 4 8
*2: Driver’s and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the
driver and front passenger that his or her seat belt is not fastened. The
buzzer sounds intermittently for 30 seconds after the vehicle reaches a
speed of 20 km/h (12 mph). Then, if the seat belt is still unfastened, the
buzzer will sound in a different tone for 90 more seconds.
(If equipped)
Tire pressure warning light
When the light comes on:
Low tire inflation pressure
such as
• Natural causes (P.
836)
• Flat tire (P. 871, 885)
Adjust the tire inflation pres-
sure to the specified level.
The light will turn off after
a few minutes. In case the
light does not turn off even
if the tire inflation pressure
is adjusted, have the sys-
tem checked by any autho-
rized Lexus dealer or
repairer, or another duly
qualified and equipped
professional.
When the light comes on
after blinking for 1 minute:
Malfunction in the tire pres-
sure warning systemHave the system checked by
any authorized Lexus dealer
or repairer, or another duly
qualified and equipped pro-
fessional.
Wa r n i n g
lightWarning light/DetailsCorrection procedure

8367-2. Steps to take in an emergency
GS450h_300h_OM_OM30D53E_(EE)
Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger, and
the warning light may not operate properly.
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.
When the tire pressure warning light comes on
Carry out the following procedure after the tire temperature has lowered suf-
ficiently.
Check the tire inflation pressure and adjust to the appropriate level.
If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature. In
this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).

8377-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30D53E_(EE)
When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off
even though the flat tire has been replaced with the spare tire.
Conditions that the tire pressure warning system may not function properly
P. 7 6 0
If the tire pressure warning light frequently comes on after blinking for 1 min-
ute
If the tire pressure warning light frequently comes on after blinking for 1
minute when the power switch is turned to ON mode, have it checked by any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional.
Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
