2013 Lexus GS300h Owner's Manual

571-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30D53E_(EE)
Insert the mechanical key into
the cylinder and rotate to the
“OFF” position.
The “OFF” indicator light turns on
(only when the power switch is in
ON mode).
“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Neither “ON” nor “OFF” comes on.
The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the front seat passenger airbag, front passenger
knee airbag and front passenger side airbag
CAUTION
When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as long
as the airbag manual on-off system is set to off.
If the airbag manual on-off system is left on, the strong impact of the airbag
deployment (inflation) may cause serious injury or even death.
When a child restraint system is not installed on the front passenger seat
Ensure that the airbag manual on-off system is set to on.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

581-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)
Safety information for children
It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
Use the rear door child-protector lock or the window lock switch
to avoid children opening the door while driving or operating the
power window accidentally. (P. 184, 215)
Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, trunk, seats
etc.
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
CAUTION
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal
to children.

591-1. For safe use
1
GS450h_300h_OM_OM30D53E_(EE)
For safety and security

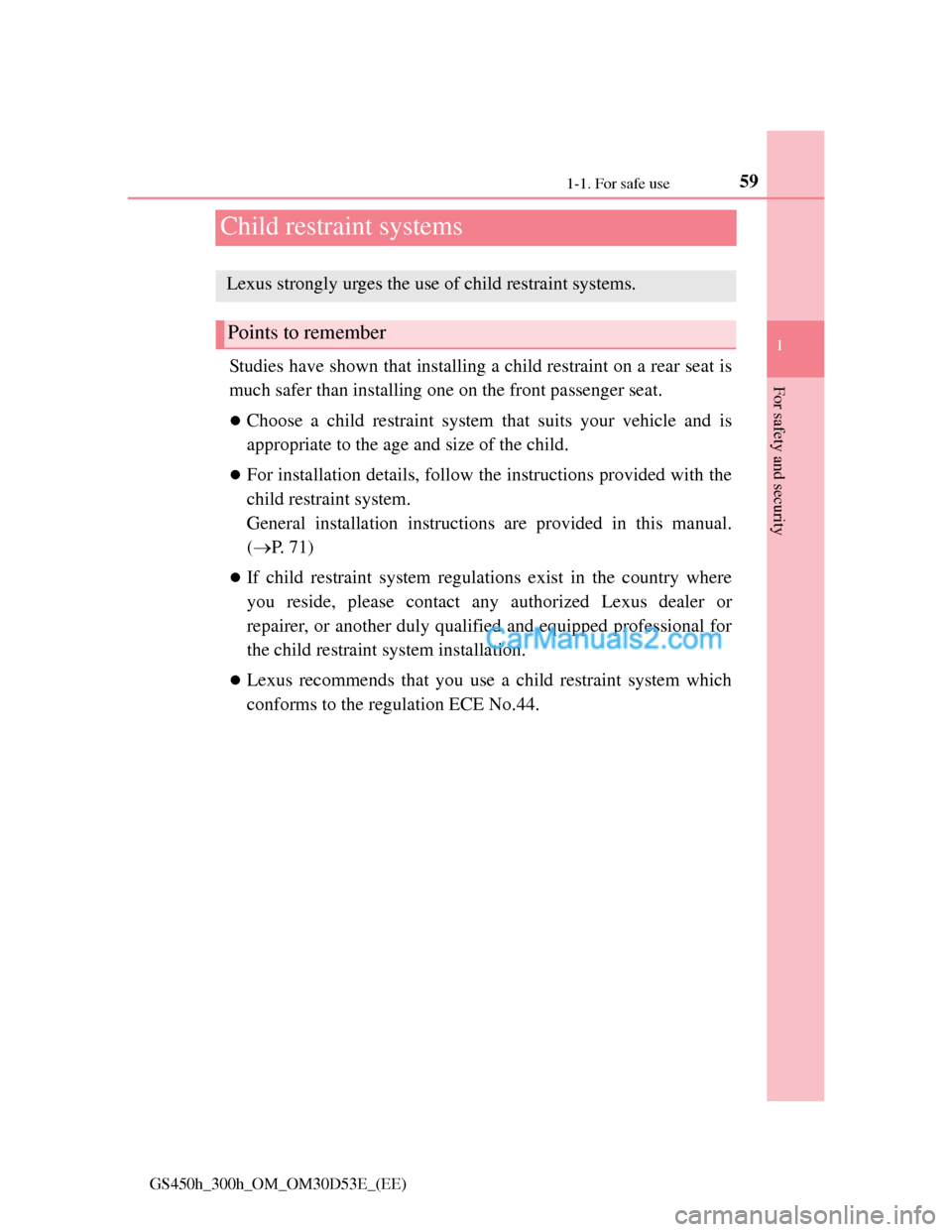

Child restraint systems
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.
Choose a child restraint system that suits your vehicle and is
appropriate to the age and size of the child.
For installation details, follow the instructions provided with the
child restraint system.
General installation instructions are provided in this manual.
(P. 71)
If child restraint system regulations exist in the country where
you reside, please contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional for
the child restraint system installation.
Lexus recommends that you use a child restraint system which
conforms to the regulation ECE No.44.
Lexus strongly urges the use of child restraint systems.
Points to remember

601-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)
Child restraint systems are classified into the following 5 groups
according to the regulation ECE No.44:
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II: 15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III: 22 to 36 kg (49 to 79 lb.) (6 years - 12 years)
In this owner’s manual, the following 3 types of popular child
restraint systems that can be secured with the seat belts are
explained:
Types of child restraints
Baby seat Child seat
Equal to Group 0 and 0+ of ECE
No.44Equal to Group 0+ and I of
ECE No.44
Junior seat
Equal to Group II and III of ECE
No.44

611-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30D53E_(EE)

621-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)
Information provided in the table shows your child restraint system
suitability for various seating positions.
Child restraint system suitability for various seating positions
Front passenger seat
Rear seatAirbag manual
on-off switch
ONOFFOutboardCenter
0
Up to 10 kg (22 lb.)
(0 - 9 months)X
Never putU
*1U, L X
0+
Up to 13 kg (28 lb.)
(0 - 2 years)X
Never putU
*1U, L X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)Rear-
facing — X
Never put
U
*1U*2X
Forward-
facing —
UF
*1
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)UF
*1U*1U*2X
Mass groupsSeating
position

631-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30D53E_(EE)
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint systems
approved for use in this mass group.
UF: Suitable for forward-facing “universal” category child
restraint systems approved for use in this mass group.
L: Suitable for child restraint systems shown in the child restraint
system list.
X: Not suitable seat position for children in this mass group.
*1: Adjust the front seatback to the most upright position. Move the front seat
to the rearmost position.
If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
If the passenger seat is equipped with a vertical height adjuster, it must be
placed in the upper most position.
Follow these procedures:
• For installing a baby seat with support base
If the baby seat interferes with the seatback when latching the baby seat
into the support base, adjust the seatback rearward until there is no
interference.
• For installing a forward-facing child seat
If there is gap between the child seat and the seatback, tilt the seatback
rearward until good contact is achieved.
If the seat belt shoulder anchor is ahead of the child seat belt guide,
move the seat cushion forward.
• For installing a junior seat
If the child in your child restraint system is in a very upright position,
adjust the seatback to the most comfortable position.
If the seat belt shoulder anchor is ahead of the child seat belt guide,
move the seat cushion forward.
*2: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.

641-1. For safe use
GS450h_300h_OM_OM30D53E_(EE)
The child restraint system mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint system which is different from the system
mentioned in the table can be used, but the suitability of the sys-
tems must be carefully checked with the child restraint system
manufacturer concerned and the seller of those seats.
Child restraint system list
Mass groupsChild restraint systemsCategory
0
Up to 10 kg (22 lb.)
(0 - 9 months)LEXUS G 0+, BABYSAFE PLUS
with SEAT BELT FIXATION,
BASE PLATFORM
Semi-universal
0+
Up to 13 kg (28 lb.)
(0 - 2 years)LEXUS G 0+, BABYSAFE PLUS
with SEAT BELT FIXATION,
BASE PLATFORM
Semi-universal
