2013 FORD FOCUS Owners Manual

3. Turn on the radio. Select either a tuned FM station or a CD.
4. Adjust the volume as desired.
5. Turn on your portable music player and adjust its volume to
12the
maximum.
6. Press AUX until LINE or LINE IN appears in the display. You should
hear music from your device even if it is low.
7. Adjust the volume on your portable music player until it reaches the
volume level of the FM station or CD. Do this by switching back and
forth between the AUX and FM or CD controls.
USB PORT (IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
The USB port allows you to plug in
media playing devices, memory
sticks and charge devices (if
supported). See theSYNCchapter
for more information.
LINE IN
Audio System137
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

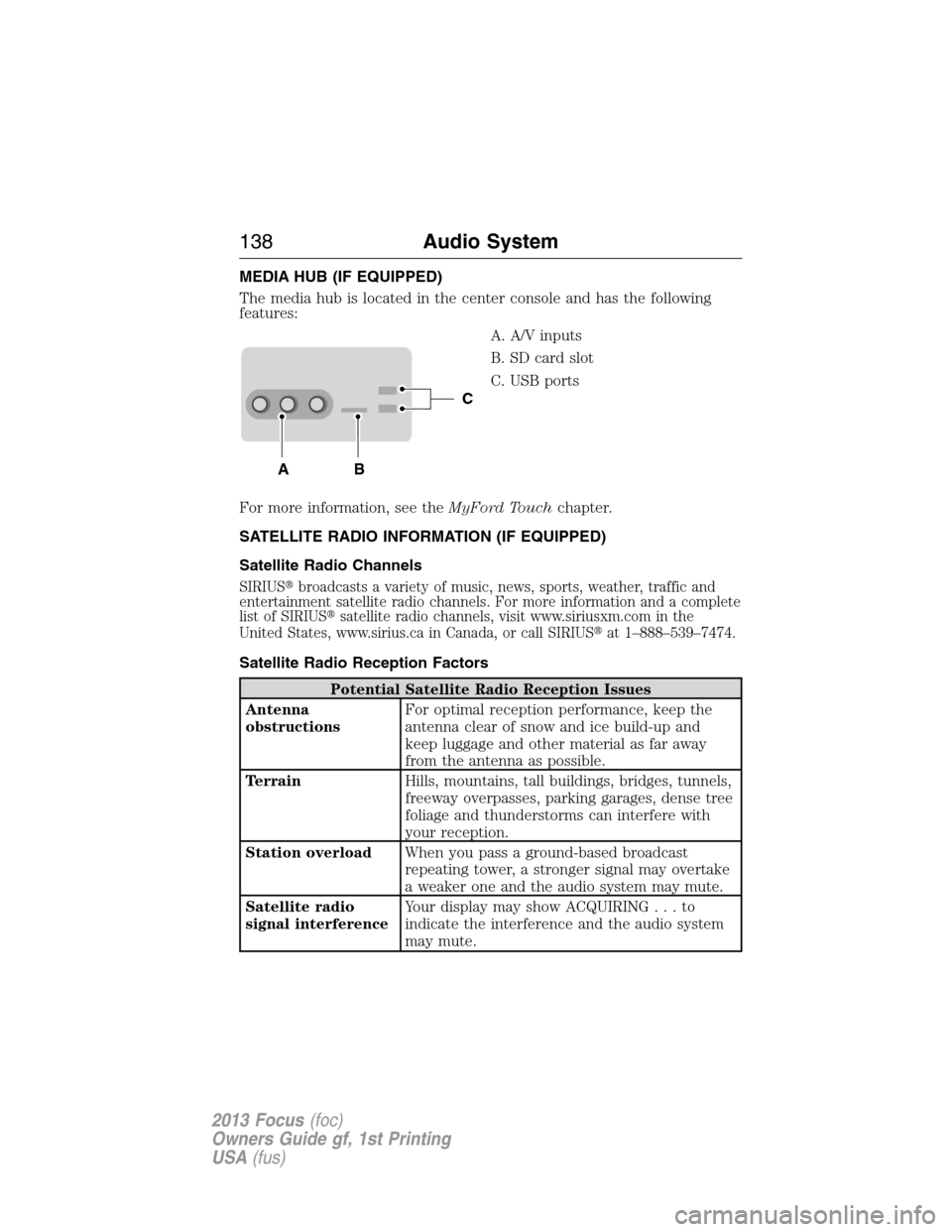

MEDIA HUB (IF EQUIPPED)
The media hub is located in the center console and has the following
features:
A. A/V inputs
B. SD card slot
C. USB ports
For more information, see theMyFord Touchchapter.
SATELLITE RADIO INFORMATION (IF EQUIPPED)
Satellite Radio Channels
SIRIUSbroadcasts a variety of music, news, sports, weather, traffic and
entertainment satellite radio channels. For more information and a complete
list of SIRIUSsatellite radio channels, visit www.siriusxm.com in the
United States, www.sirius.ca in Canada, or call SIRIUSat 1–888–539–7474.
Satellite Radio Reception Factors
Potential Satellite Radio Reception Issues
Antenna
obstructionsFor optimal reception performance, keep the
antenna clear of snow and ice build-up and
keep luggage and other material as far away
from the antenna as possible.
TerrainHills, mountains, tall buildings, bridges, tunnels,
freeway overpasses, parking garages, dense tree
foliage and thunderstorms can interfere with
your reception.
Station overloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may overtake
a weaker one and the audio system may mute.
Satellite radio
signal interferenceYour display may show ACQUIRING...to
indicate the interference and the audio system
may mute.
C
BA
138Audio System
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

SIRIUSSatellite Radio Service
Note:SIRIUSreserves the unrestricted right to change, rearrange, add or
delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming changes.
SIRIUSsatellite radio is a
subscription-based satellite radio
service that broadcasts a variety of
music, sports, news, weather, traffic
and entertainment programming.
Your factory-installed SIRIUS
satellite radio system includes
hardware and a limited subscription term which begins on the date of
sale or lease of the vehicle. See your authorized dealer for availability.
For more information on extended subscription terms (a service fee is
required), the online media player and a complete list of SIRIUS
satellite radio channels, and other features, please visit
www.siriusxm.com in the United States, www.sirius.ca in Canada, or call
SIRIUSat 1–888–539–7474.
Satellite Radio Electronic Serial Number (ESN)
You need your ESN to activate, modify or track your satellite radio
account. When in satellite radio mode, you can view this number by
pressing SIRIUS and memory preset 1 at the same time.
Troubleshooting
SIRIUSTroubleshooting Tips
Radio Display Condition Possible Action
Acquiring Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
Sat Fault/SIRIUS
system failureInternal module or
system failure present.If this message does
not clear shortly, or
with an ignition key
cycle, your receiver
may have a fault. See
your authorized dealer
for service.
Audio System139
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

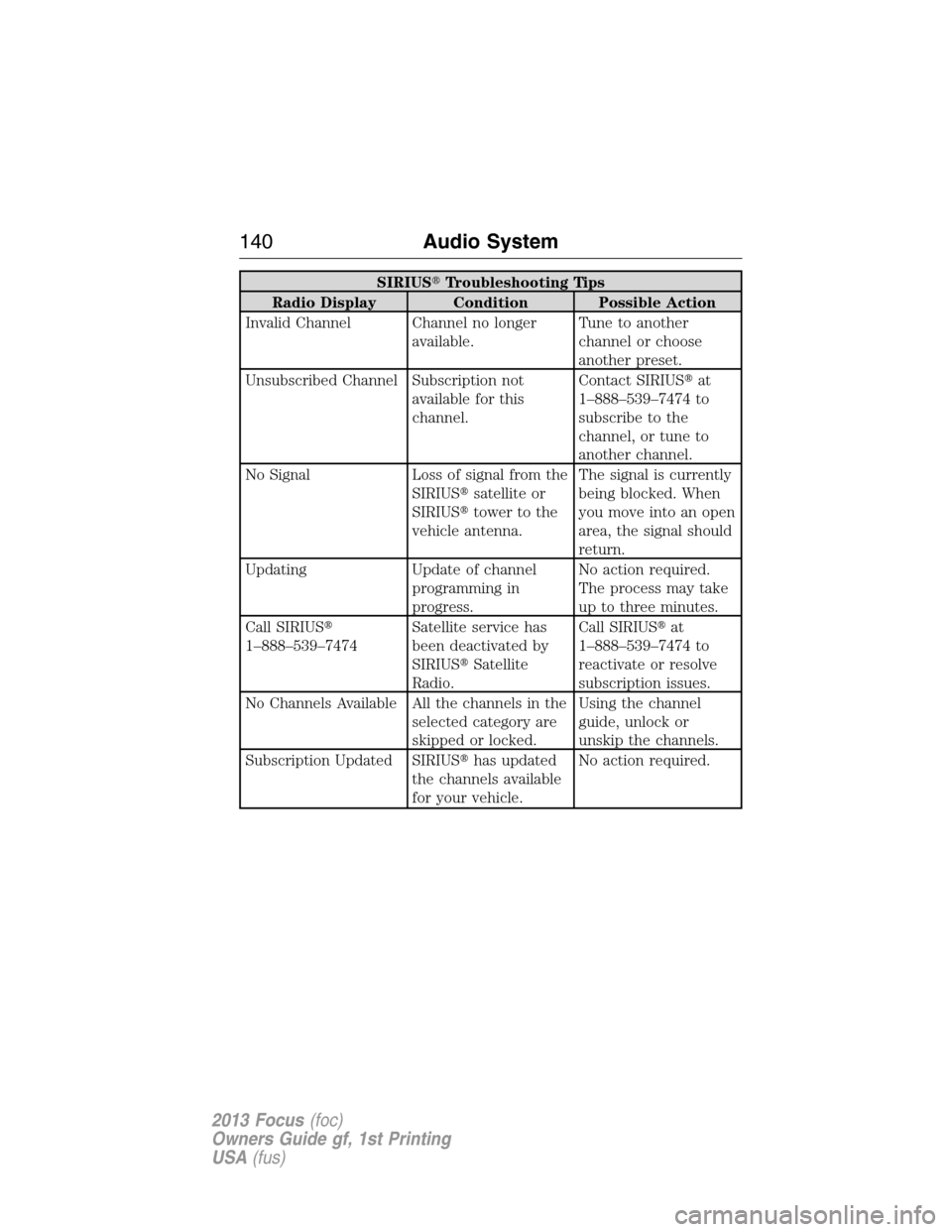

SIRIUSTroubleshooting Tips
Radio Display Condition Possible Action
Invalid Channel Channel no longer
available.Tune to another
channel or choose
another preset.
Unsubscribed Channel Subscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
No Signal Loss of signal from the
SIRIUSsatellite or
SIRIUStower to the
vehicle antenna.The signal is currently
being blocked. When
you move into an open
area, the signal should
return.
Updating Update of channel
programming in
progress.No action required.
The process may take
up to three minutes.
Call SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUSSatellite
Radio.Call SIRIUSat
1–888–539–7474 to
reactivate or resolve
subscription issues.
No Channels Available All the channels in the
selected category are
skipped or locked.Using the channel
guide, unlock or
unskip the channels.
Subscription Updated SIRIUShas updated
the channels available
for your vehicle.No action required.
140Audio System
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

MANUAL CLIMATE CONTROL
A.Fan speed control:Controls the volume of air circulated in your
vehicle. Adjust to select the desired fan speed or switch off. If you
switch the fan off, the windshield may fog up.
B.Recirculated air:Press to switch between outside air and
recirculated air. When you select recirculated air, the button illuminates
and the air currently in the passenger compartment recirculates. This
can reduce the time needed to cool the interior and reduce unwanted
odors from entering your vehicle.
C.Temperature control:Controls the temperature of the air circulated
in your vehicle. Adjust to select the desired temperature. If you select
MAX A/C, the system distributes recirculated air through the instrument
panel air vents. This mode is more economical and efficient than normal
air conditioning.
Note:When the temperature control is in the MAX A/C position, neither
the air conditioning or recirculated air can be turned off.
D.Air conditioning:Press to switch the air conditioning on or off. Air
conditioning cools your vehicle using outside air. To improve air
conditioning when starting your vehicle, drive with the windows slightly
open for two to three minutes.
012
3
4
MAXA/C
A/C
AB
F
CDE
Climate Control141
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

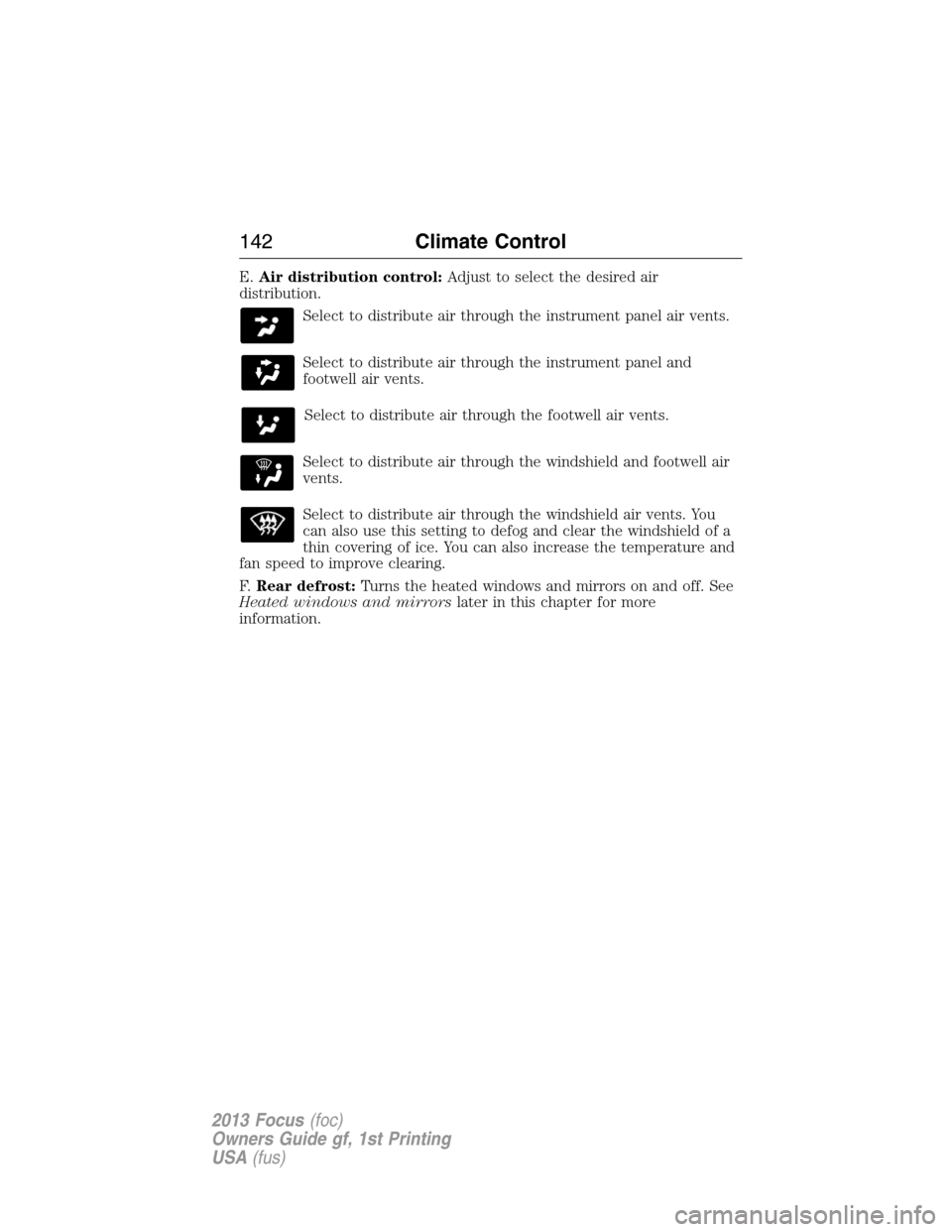

E.Air distribution control:Adjust to select the desired air
distribution.
Select to distribute air through the instrument panel air vents.
Select to distribute air through the instrument panel and
footwell air vents.
Select to distribute air through the footwell air vents.
Select to distribute air through the windshield and footwell air
vents.
Select to distribute air through the windshield air vents. You
can also use this setting to defog and clear the windshield of a
thin covering of ice. You can also increase the temperature and
fan speed to improve clearing.
F.Rear defrost:Turns the heated windows and mirrors on and off. See
Heated windows and mirrorslater in this chapter for more
information.
142Climate Control
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

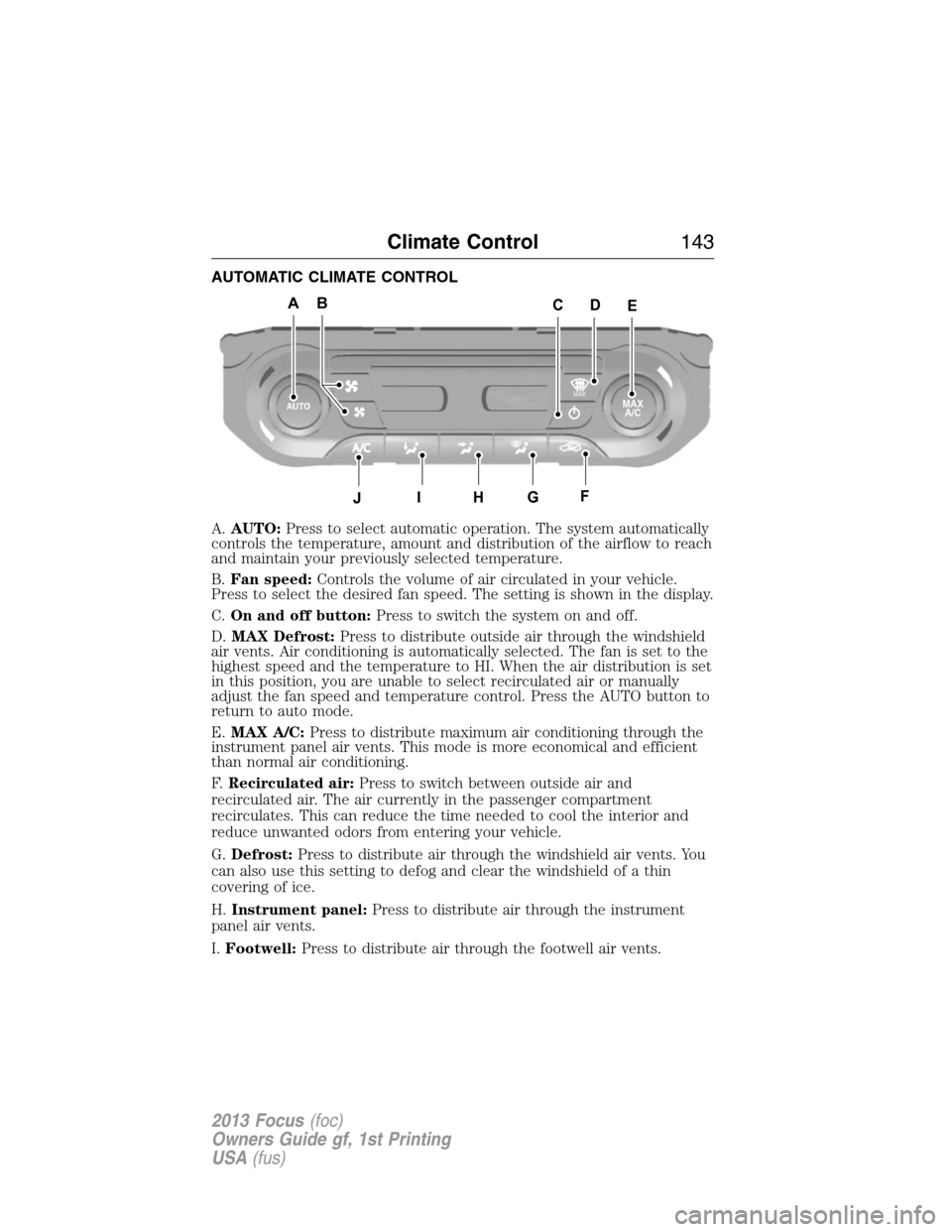

AUTOMATIC CLIMATE CONTROL
A.AUTO:Press to select automatic operation. The system automatically
controls the temperature, amount and distribution of the airflow to reach
and maintain your previously selected temperature.
B.Fan speed:Controls the volume of air circulated in your vehicle.
Press to select the desired fan speed. The setting is shown in the display.
C.On and off button:Press to switch the system on and off.
D.MAX Defrost:Press to distribute outside air through the windshield
air vents. Air conditioning is automatically selected. The fan is set to the
highest speed and the temperature to HI. When the air distribution is set
in this position, you are unable to select recirculated air or manually
adjust the fan speed and temperature control. Press the AUTO button to
return to auto mode.
E.MAX A/C:Press to distribute maximum air conditioning through the
instrument panel air vents. This mode is more economical and efficient
than normal air conditioning.
F.Recirculated air:Press to switch between outside air and
recirculated air. The air currently in the passenger compartment
recirculates. This can reduce the time needed to cool the interior and
reduce unwanted odors from entering your vehicle.
G.Defrost:Press to distribute air through the windshield air vents. You
can also use this setting to defog and clear the windshield of a thin
covering of ice.
H.Instrument panel:Press to distribute air through the instrument
panel air vents.
I.Footwell:Press to distribute air through the footwell air vents.
ABAAEAAC
J
D
AHAGAFAI
MAX
A/C
Climate Control143
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

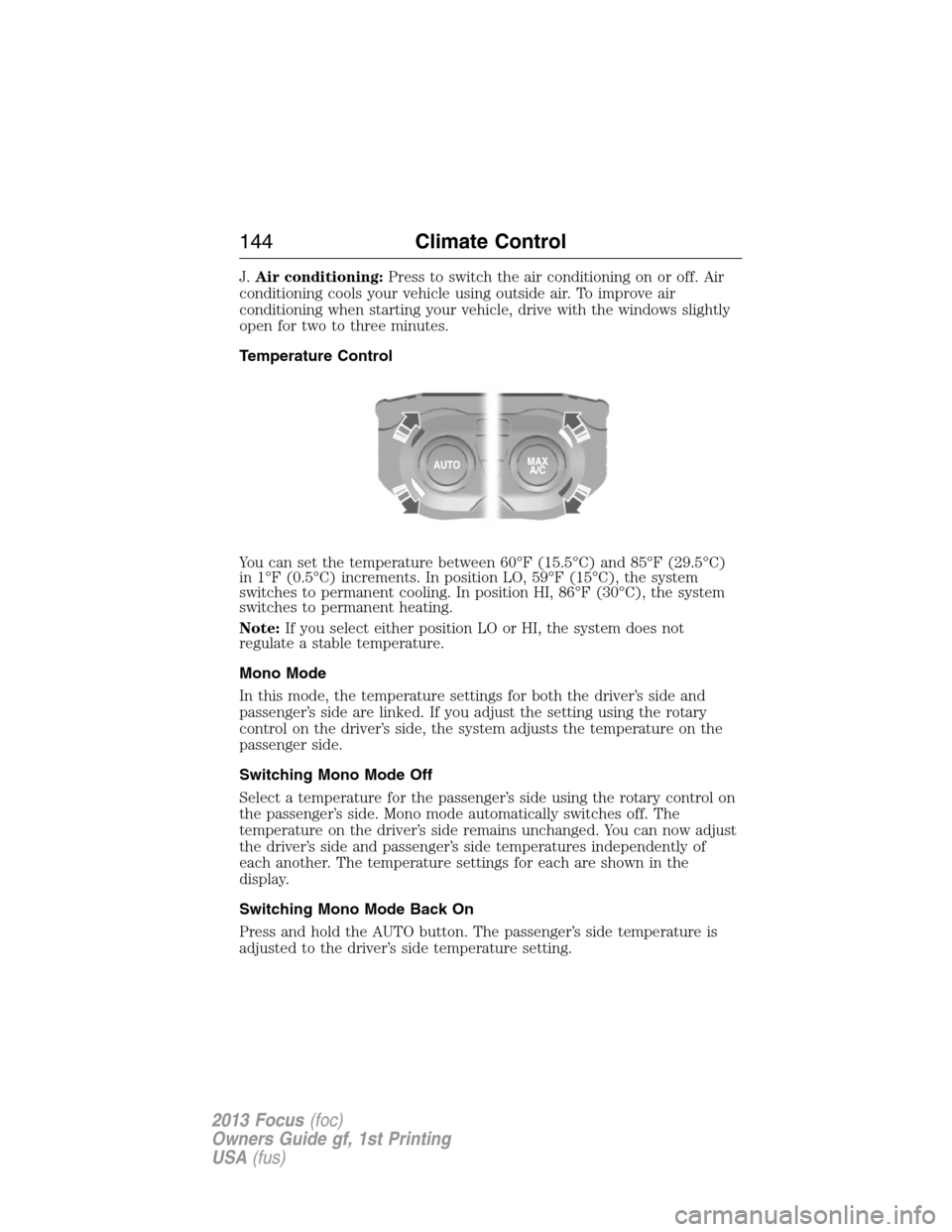

J.Air conditioning:Press to switch the air conditioning on or off. Air
conditioning cools your vehicle using outside air. To improve air
conditioning when starting your vehicle, drive with the windows slightly
open for two to three minutes.
Temperature Control
You can set the temperature between 60°F (15.5°C) and 85°F (29.5°C)
in 1°F (0.5°C) increments. In position LO, 59°F (15°C), the system
switches to permanent cooling. In position HI, 86°F (30°C), the system
switches to permanent heating.
Note:If you select either position LO or HI, the system does not
regulate a stable temperature.
Mono Mode
In this mode, the temperature settings for both the driver’s side and
passenger’s side are linked. If you adjust the setting using the rotary
control on the driver’s side, the system adjusts the temperature on the
passenger side.
Switching Mono Mode Off
Select a temperature for the passenger’s side using the rotary control on
the passenger’s side. Mono mode automatically switches off. The
temperature on the driver’s side remains unchanged. You can now adjust
the driver’s side and passenger’s side temperatures independently of
each another. The temperature settings for each are shown in the
display.
Switching Mono Mode Back On
Press and hold the AUTO button. The passenger’s side temperature is
adjusted to the driver’s side temperature setting.
144Climate Control
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
