2013 FORD FOCUS Owners Manual

Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Engine oil
4,5
2.0L engine
4.5 quarts (4.3L)•MotorcraftSAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•MotorcraftSAE
5W-20 Full Synthetic
Motor Oil (US)
•MotorcraftSAE
5W-20 Super Premium
Motor Oil (Canada)
•MotorcraftSAE
5W-20 Synthetic Motor
Oil (Canada)•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C945-A and API
Certification Mark
Engine coolant
6
2.0L engine
5.3 quarts (5.0L)MotorcraftOrange
Antifreeze/Coolant
PredilutedVC-3DIL-B (US)
CVC-3DIL-B (Canada) /
WSS-M97B44-D2
Capacities and Specifications305
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Windshield washer
fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer
Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank12.4 gallons
(46.9L)——
1Use only MotorcraftDOT 4 LV High Performance Brake Fluid or equivalent meeting
WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than the recommended fluid may
cause brake system damage.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MotorcraftDual Clutch Transmission Fluid should only
use MotorcraftDual Clutch Transmission Fluid. Refer toscheduled maintenanceto determine
the correct service interval. Use of any fluid other than the recommended fluid may cause
transmission damage.4Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A, SAE 5W-20 and display the API Certification
Mark.5Your engine has been designed to be used with Ford engine oil, which gives a fuel economy
benefit while maintaining the durability of your engine. Using oils other than the one specified
can result in longer engine cranking periods, reduced engine performance, reduced fuel economy
and increased emission levels.6Add the coolant type originally equipped in your vehicle.
306Capacities and Specifications
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

MOTORCRAFT PART NUMBERS
Component 2.0L GDI engine / 2.0L GTDI
EcoBoost engine
Air filter element FA-1908
1
Oil filter FL-910- S2
Battery BXT-96R-500/BXT-96R-590
Spark plugs3
Cabin air filter FP70
Windshield wiper blade WW-2802 (driver side) / WW-2803
(passenger side)
1Failure to use the correct air filter element may result in severe engine
damage. The customer warranty may be void for any damage to the
engine if the correct air filter element is not used.
2Only use the specified replacement oil filter. The use of a non-specified
oil filter can result in engine damage.
3For spark plug replacement, see your authorized dealer. Refer to your
scheduled maintenance information for the appropriate intervals for
changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
Capacities and Specifications307
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number
XXXXXXXXXXXXXXXXX
308Capacities and Specifications
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

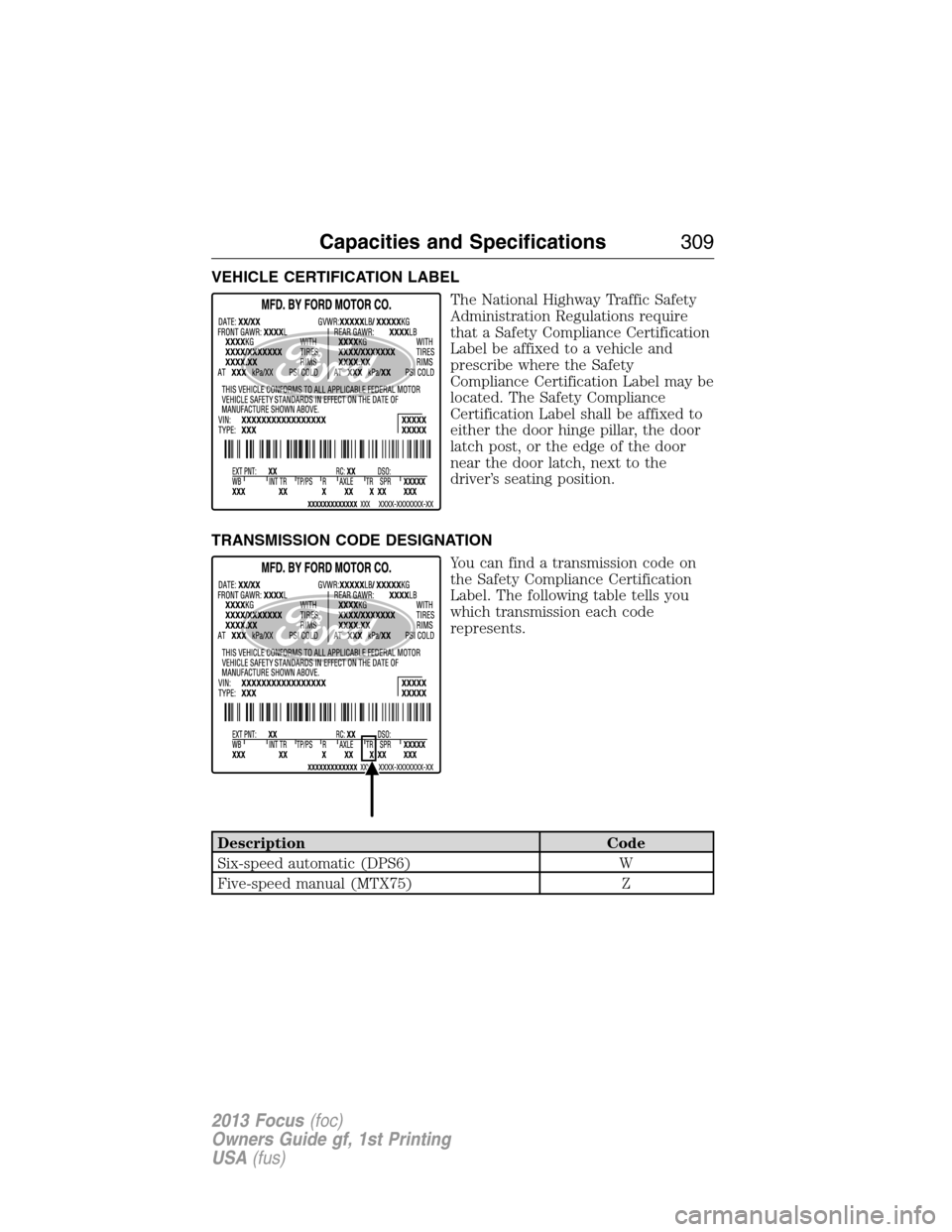

VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance Certification
Label be affixed to a vehicle and
prescribe where the Safety
Compliance Certification Label may be
located. The Safety Compliance
Certification Label shall be affixed to
either the door hinge pillar, the door
latch post, or the edge of the door
near the door latch, next to the
driver’s seating position.
TRANSMISSION CODE DESIGNATION
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Six-speed automatic (DPS6) W
Five-speed manual (MTX75) Z
Capacities and Specifications309
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

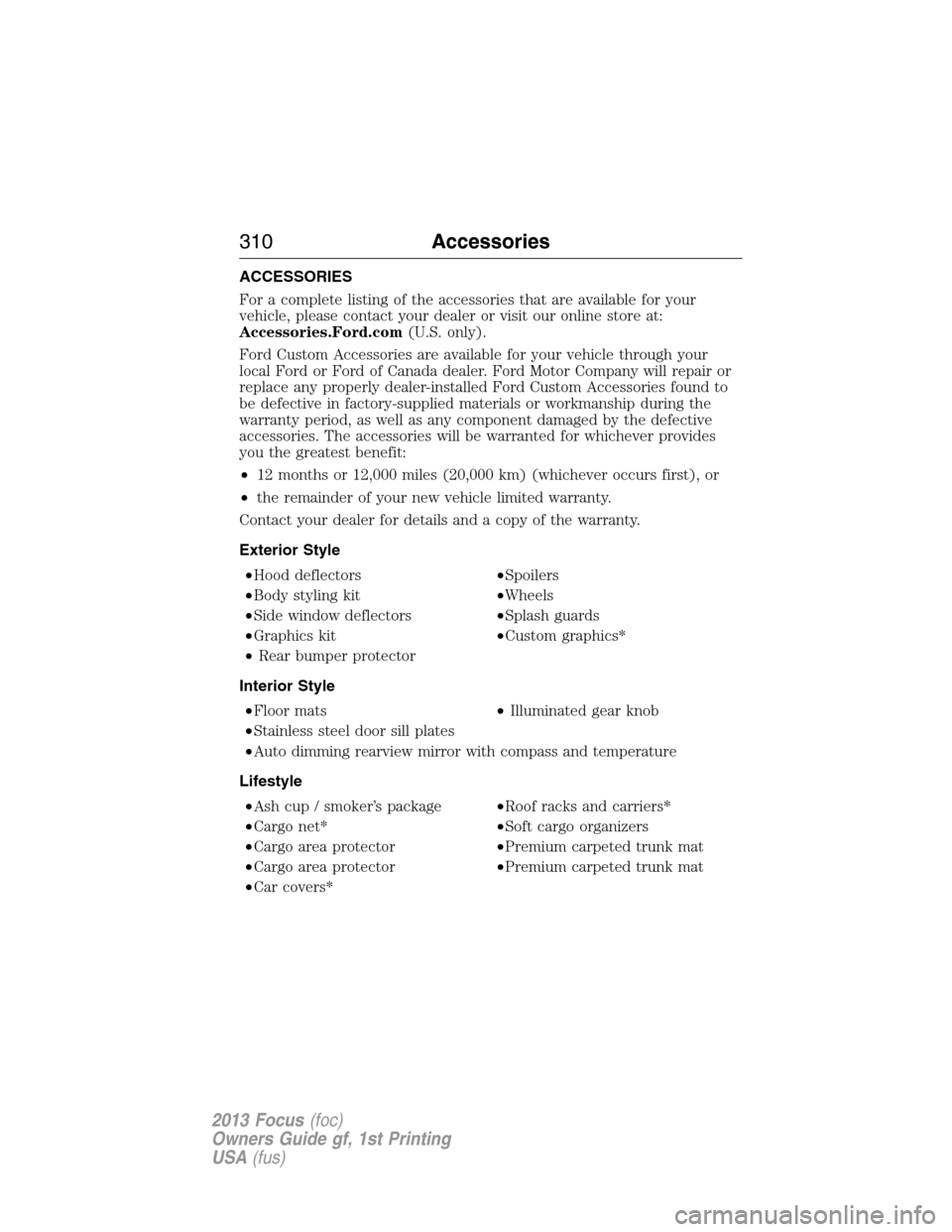

ACCESSORIES
For a complete listing of the accessories that are available for your
vehicle, please contact your dealer or visit our online store at:
Accessories.Ford.com(U.S. only).
Ford Custom Accessories are available for your vehicle through your
local Ford or Ford of Canada dealer. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Exterior Style
•Hood deflectors•Spoilers
•Body styling kit•Wheels
•Side window deflectors•Splash guards
•Graphics kit•Custom graphics*
•Rear bumper protector
Interior Style
•Floor mats•Illuminated gear knob
•Stainless steel door sill plates
•Auto dimming rearview mirror with compass and temperature
Lifestyle
•Ash cup / smoker’s package•Roof racks and carriers*
•Cargo net*•Soft cargo organizers
•Cargo area protector•Premium carpeted trunk mat
•Cargo area protector•Premium carpeted trunk mat
•Car covers*
310Accessories
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Peace of mind
•Keyless entry keypad•Wheel locks
•Remote start•Bumper mounted parking assist
system*
•Vehicle security systems•Car cover
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the amateur radio antennas in the
area of the driver’s side hood.
•Any non-Ford custom electrical or electronic accessories or
components that are added to the vehicle by the authorized dealer or
the owner, may adversely affect battery performance and durability,
and may also adversely affect the performance of other electrical
systems in the vehicle.
Accessories311
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

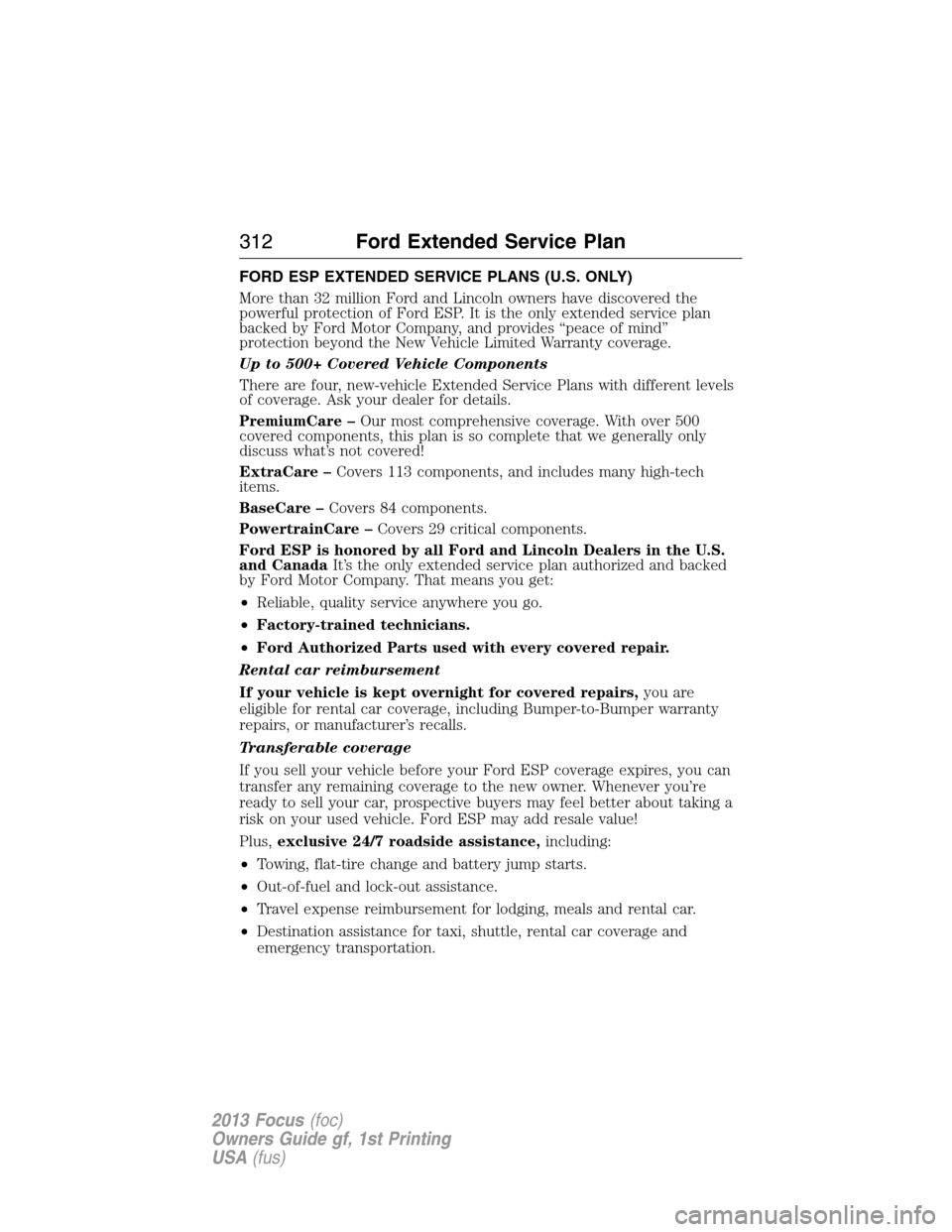

FORD ESP EXTENDED SERVICE PLANS (U.S. ONLY)
More than 32 million Ford and Lincoln owners have discovered the
powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask your dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford and Lincoln Dealers in the U.S.
and CanadaIt’s the only extended service plan authorized and backed
by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Ford Authorized Parts used with every covered repair.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
312Ford Extended Service Plan
