2013 FORD FOCUS Owners Manual

HINTS ON CONTROLLING THE INTERIOR CLIMATE
General Hints
Note:Prolonged use of recirculated air may cause the windows to fog
up.
Note:A small amount of air may be felt from the footwell air vents
regardless of the air distribution setting.
Note:To reduce humidity build-up inside your vehicle, do not drive with
the system switched off or with recirculated air always switched on.
Note:Do not place objects under the front seats as this may interfere
with the airflow to the rear seats.
Note:Remove any snow, ice or leaves from the air intake area at the
base of the windshield.
Manual Climate Control
Note:To reduce fogging of the windshield during humid weather, adjust
the air distribution control to the windshield air vents position. Increase
the temperature and fan speed to improve clearing if required.
Automatic Climate Control
Note:Do not adjust the settings when your vehicle interior is extremely
hot or cold. The system automatically adjusts to the previously stored
settings. For the system to function efficiently, the instrument panel and
side air vents should be fully open.
Note:At low ambient temperatures with AUTO selected, the air stream
is directed toward the windshield and side windows for as long as the
engine remains cold.
Note:When the system is switched off, outside air is prevented from
entering your vehicle.
Note:When the system is in AUTO mode, and the interior and exterior
temperatures are high, the system automatically selects recirculated air
to maximize cooling of the interior. When the selected air temperature is
reached, the system automatically selects outside air.
Note:When you select windshield defrosting and defogging, the
instrument panel and footwell level functions automatically switch off
and air conditioning switches on. Outside air flows into your vehicle.
Climate Control145
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Heating the Interior Quickly
Vehicles with Manual Climate
ControlVehicles with Automatic
Climate Control
1 Adjust the fan speed to the
highest speed setting.Press the high fan speed button
control.
2 Adjust the temperature control
to the highest setting.Adjust the temperature control
to the highest setting.
3 Adjust the air distribution
control to the footwell air vents
position.Press the footwell button to
distribute air to the footwell air
vents.
Recommended Settings for Heating
Vehicles with Manual Climate
ControlVehicles with Automatic
Climate Control
1 Adjust the fan speed to the
second speed setting.Press the slow fan speed button.
2 Adjust the temperature control
to the midway point of the hot
settings.Adjust the temperature control
to the midway point of the hot
settings.
3 Adjust the air distribution
control to the footwell and
windshield air vents position.Press the footwell and
windshield air distribution
buttons.
4 Close the instrument panel air
vents. Open the side air vents
and direct them toward the side
windows.
146Climate Control
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

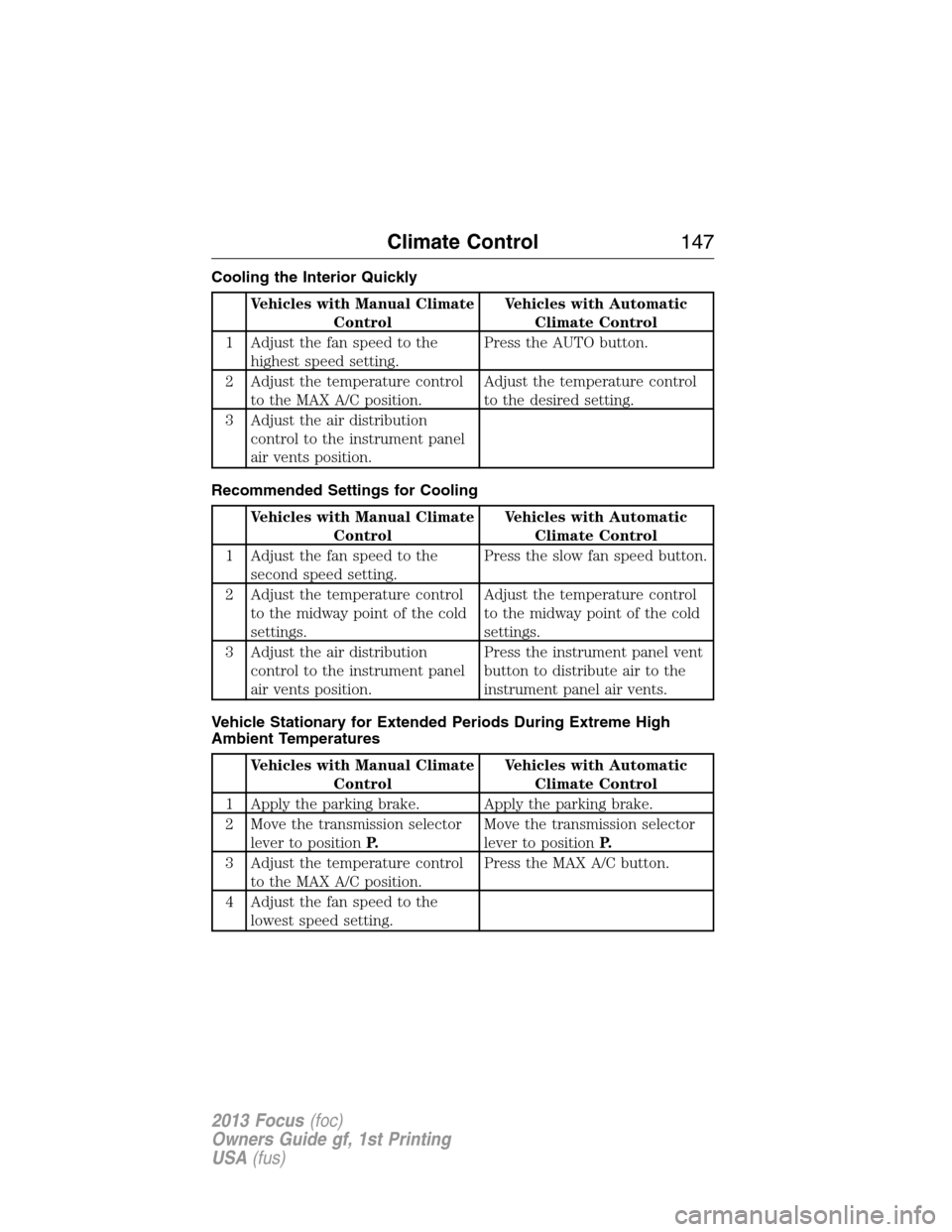

Cooling the Interior Quickly
Vehicles with Manual Climate
ControlVehicles with Automatic
Climate Control
1 Adjust the fan speed to the
highest speed setting.Press the AUTO button.
2 Adjust the temperature control
to the MAX A/C position.Adjust the temperature control
to the desired setting.
3 Adjust the air distribution
control to the instrument panel
air vents position.
Recommended Settings for Cooling
Vehicles with Manual Climate
ControlVehicles with Automatic
Climate Control
1 Adjust the fan speed to the
second speed setting.Press the slow fan speed button.
2 Adjust the temperature control
to the midway point of the cold
settings.Adjust the temperature control
to the midway point of the cold
settings.
3 Adjust the air distribution
control to the instrument panel
air vents position.Press the instrument panel vent
button to distribute air to the
instrument panel air vents.
Vehicle Stationary for Extended Periods During Extreme High
Ambient Temperatures
Vehicles with Manual Climate
ControlVehicles with Automatic
Climate Control
1 Apply the parking brake. Apply the parking brake.
2 Move the transmission selector
lever to positionP.Move the transmission selector
lever to positionP.
3 Adjust the temperature control
to the MAX A/C position.Press the MAX A/C button.
4 Adjust the fan speed to the
lowest speed setting.
Climate Control147
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Side Window Defogging in Cold Weather
Vehicles with Manual Climate
ControlVehicles with Automatic
Climate Control
1 Adjust the air distribution
control to the instrument panel
and footwell air vents positions.Press the windshield defrosting
and defogging button.
2 Press the A/C button. Adjust the temperature control
to the desired setting.
3 Adjust the temperature control
to the desired setting.
4 Adjust the fan speed to the
highest setting.
5 Direct the instrument panel side
air vents toward the side
windows.
6 Close the instrument panel
vents.
Maximum Cooling Performance in Instrument Panel or Instrument
Panel and Footwell Positions
Both Manual and Automatic Climate Control
1 Adjust the temperature control to the lowest setting.
2 Press the A/C and recirculated air buttons.
3 Adjust the fan speed to the highest setting initially and then
adjust it to suit the desired comfort level.
HEATED WINDOWS AND MIRRORS (IF EQUIPPED)
Heated Rear Window
Note:The ignition must be switched on to use this feature.
Press the button to clear the rear window of thin ice and fog. Press the
button again within 10 minutes to switch it off. It switches off
automatically after 10 minutes, or when you switch the ignition off.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside of the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
148Climate Control
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

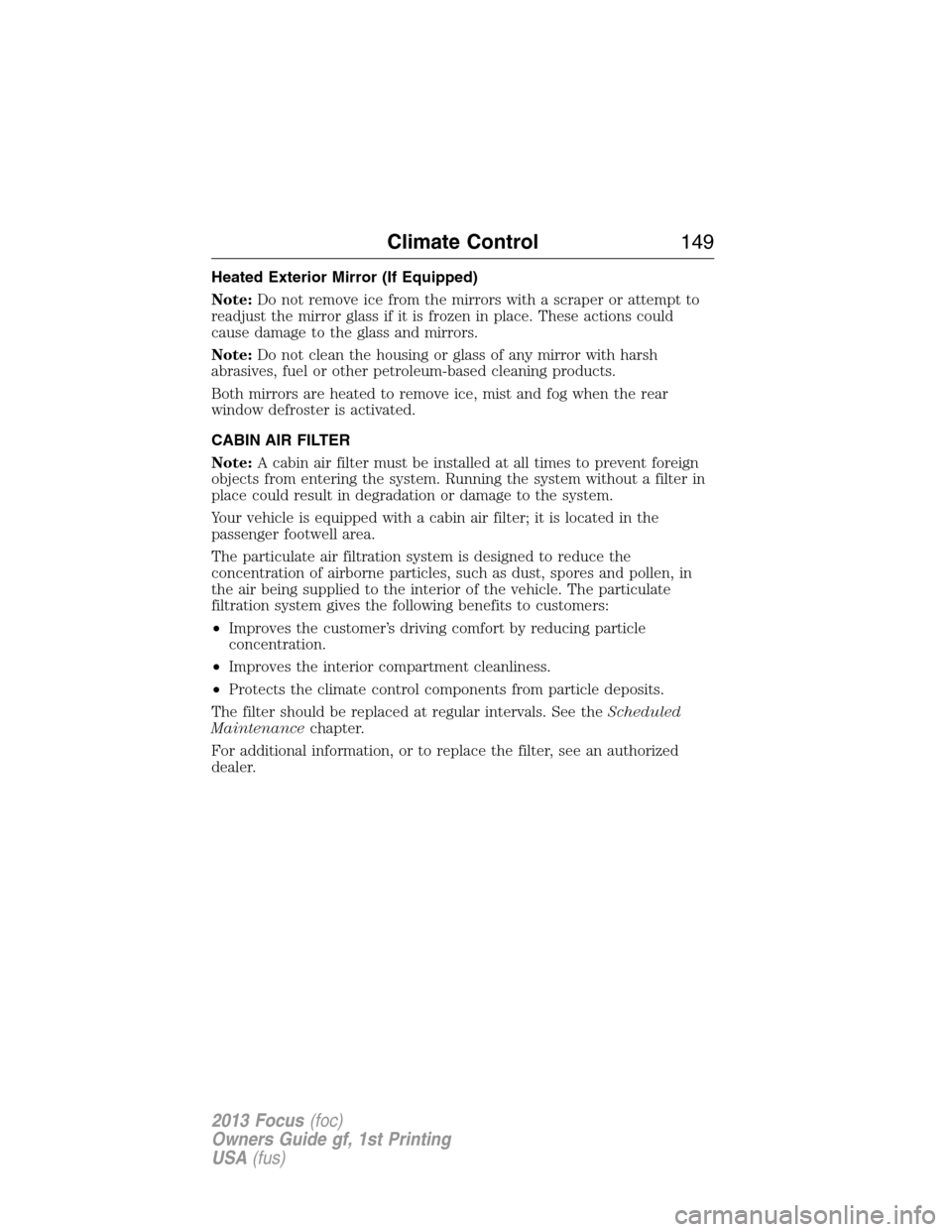

Heated Exterior Mirror (If Equipped)
Note:Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions could
cause damage to the glass and mirrors.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Both mirrors are heated to remove ice, mist and fog when the rear
window defroster is activated.
CABIN AIR FILTER
Note:A cabin air filter must be installed at all times to prevent foreign
objects from entering the system. Running the system without a filter in
place could result in degradation or damage to the system.
Your vehicle is equipped with a cabin air filter; it is located in the
passenger footwell area.
The particulate air filtration system is designed to reduce the
concentration of airborne particles, such as dust, spores and pollen, in
the air being supplied to the interior of the vehicle. The particulate
filtration system gives the following benefits to customers:
•Improves the customer’s driving comfort by reducing particle
concentration.
•Improves the interior compartment cleanliness.
•Protects the climate control components from particle deposits.
The filter should be replaced at regular intervals. See theScheduled
Maintenancechapter.
For additional information, or to replace the filter, see an authorized
dealer.
Climate Control149
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

REMOTE START CLIMATE OPERATION
The climate control system adjusts the cabin temperature during remote
start.
You cannot adjust the system during remote start operation. Turn the
ignition on to return the system to its previous settings. You can now
make adjustments. You will need to turn certain vehicle-dependent
features back on, such as:
•heated seats
•heated mirrors
•heated rear window.
You can adjust the settings using the information display controls. See
theInformation Displayschapter.
Automatic Climate Systems
Automatic Settings
You can set the climate control to operate in AUTO mode through the
information display setting: Remote Start > Climate Control > Heater –
A/C > Auto. The climate control system automatically sets the interior
temperature to 72°F (22°C).
In hot weather, the system is set to 72°F (22°C).
In moderate weather, the system either heats or cools (based on
previous settings). The rear defroster and heated mirrors are not
automatically turned on.
In cold weather, the system is set to 72°F (22°C). The rear defroster and
heated mirrors are automatically turned on.
Last Settings
You can set the climate control to operate using the last climate control
settings through the information display setting: Remote Start > Climate
Control > Heater – A/C > Last Settings. The climate control system
automatically uses the settings last selected before the vehicle was
turned off.
Heated and Cooled Devices
The climate control system controls other heated and cooled devices
inside the vehicle. These devices (if available, and selected to AUTO in
the information displays) may also be switched on during remote start.
Heated devices are typically switched on during cold weather, and cooled
devices during hot weather.
150Climate Control
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

SITTING IN THE CORRECT POSITION
WARNING:Sitting improperly out of position or with the seat
back reclined too far can take off weight from the seat cushion
and affect the decision of the passenger sensing system, resulting in
serious injury or death in a crash. Always sit upright against your seat
back, with your feet on the floor.
WARNING:Do not recline the seat back as this can cause the
occupant to slide under the seat’s safety belt, resulting in severe
personal injury in the event of a collision.
WARNING:Do not place objects higher than the seat backs to
reduce the risk of injury in a collision or during heavy braking or
when stopping suddenly.
When you use them properly, the
seat, head restraint, safety belt and
airbags will provide optimum
protection in the event of a
collision. We recommend that you
follow these guidelines:
•Do not recline the seat back more than 30 degrees from vertical.
•Sit in an upright position with the base of your spine as far back as
possible.
•Adjust the head restraint so that the top of it is level with the top of
your head and as far forward as possible, remaining comfortable.
•Keep sufficient distance between yourself and the steering wheel. We
recommend a minimum of 10 inches (250 millimeters) between your
breastbone and the airbag cover.
Seats151
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

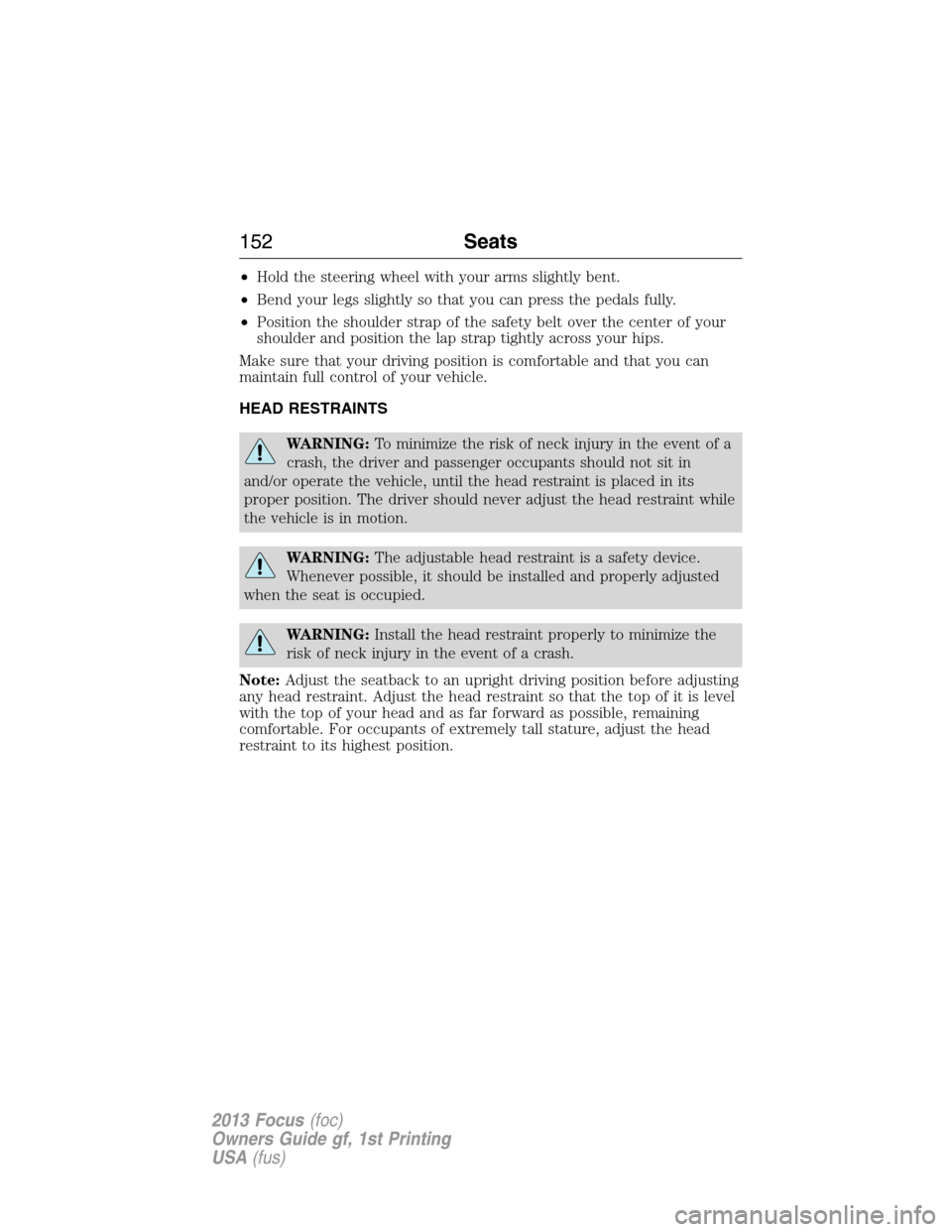

•Hold the steering wheel with your arms slightly bent.
•Bend your legs slightly so that you can press the pedals fully.
•Position the shoulder strap of the safety belt over the center of your
shoulder and position the lap strap tightly across your hips.
Make sure that your driving position is comfortable and that you can
maintain full control of your vehicle.
HEAD RESTRAINTS
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint while
the vehicle is in motion.
WARNING:The adjustable head restraint is a safety device.
Whenever possible, it should be installed and properly adjusted
when the seat is occupied.
WARNING:Install the head restraint properly to minimize the
risk of neck injury in the event of a crash.
Note:Adjust the seatback to an upright driving position before adjusting
any head restraint. Adjust the head restraint so that the top of it is level
with the top of your head and as far forward as possible, remaining
comfortable. For occupants of extremely tall stature, adjust the head
restraint to its highest position.
152Seats
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
