2013 FORD FOCUS Owners Manual

6. Lift and hold the switch until the window is fully closed.
7. Open the window and then try to close it automatically.
8. Reset and repeat the procedure if the window does not close
automatically.
Accessory Delay (If Equipped)
You can use the window switches for several minutes after the you
switch the ignition off, or until either front door is opened.

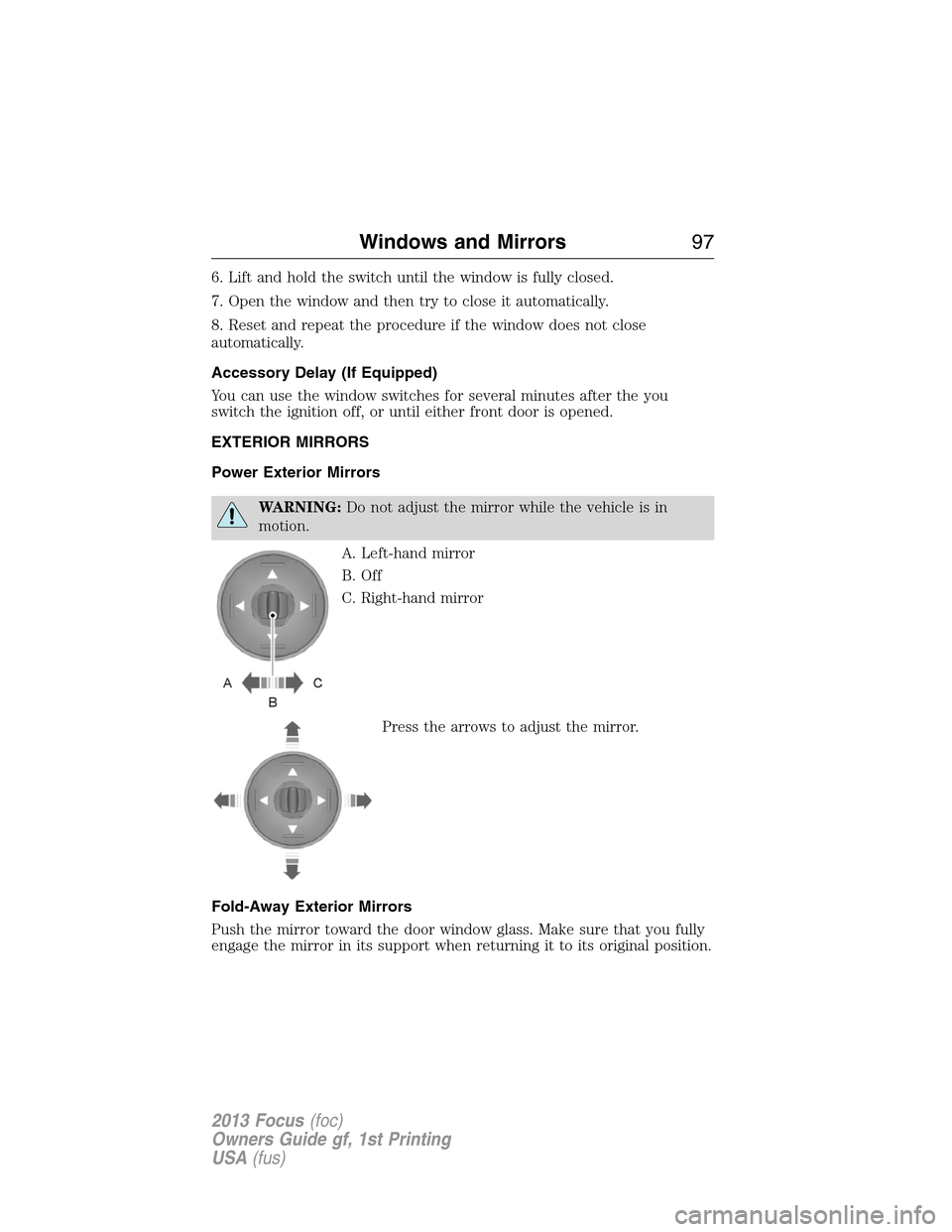

EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
A. Left-hand mirror
B. Off
C. Right-hand mirror
Press the arrows to adjust the mirror.
Fold-Away Exterior Mirrors
Push the mirror toward the door window glass. Make sure that you fully
engage the mirror in its support when returning it to its original position.
Windows and Mirrors97
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

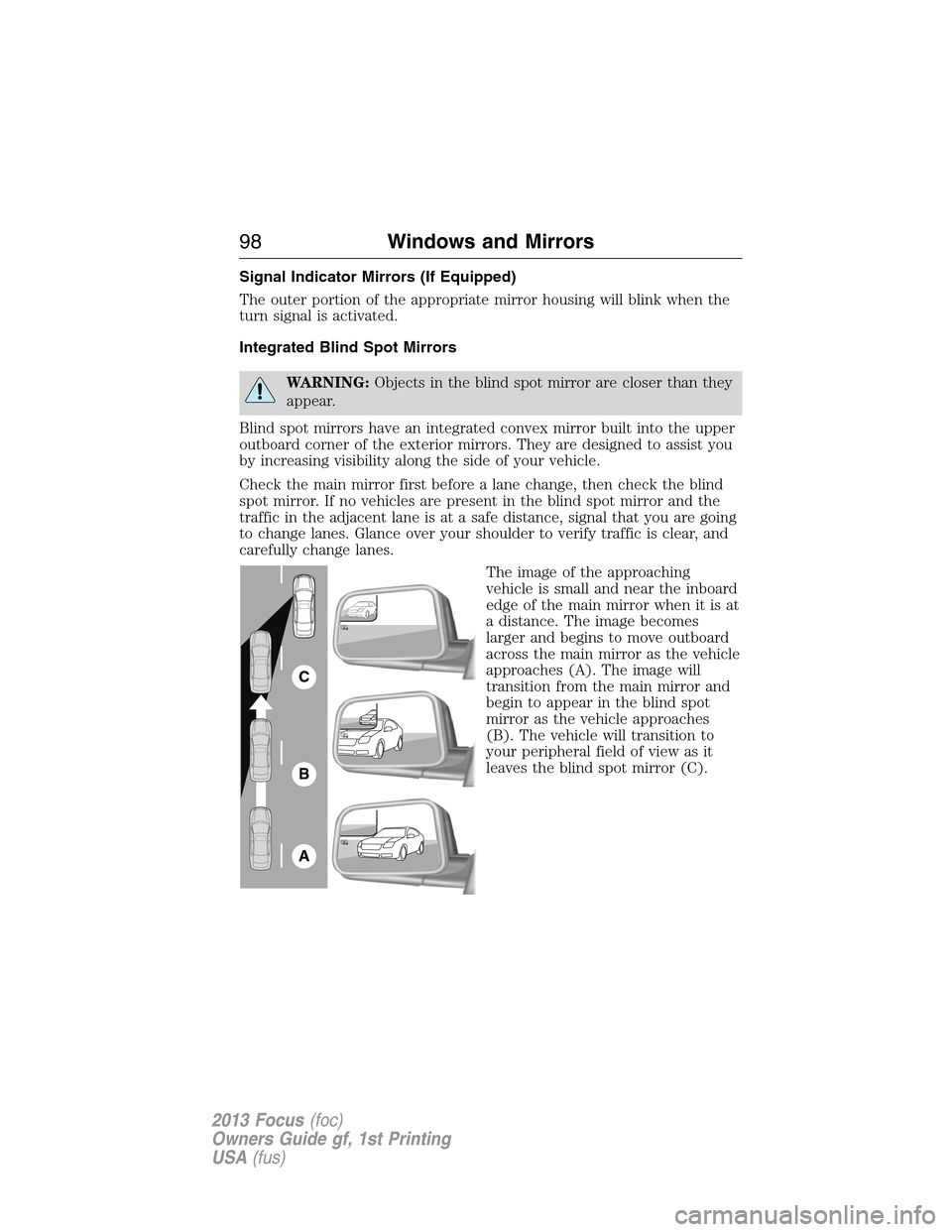

Signal Indicator Mirrors (If Equipped)
The outer portion of the appropriate mirror housing will blink when the
turn signal is activated.
Integrated Blind Spot Mirrors
WARNING:Objects in the blind spot mirror are closer than they
appear.
Blind spot mirrors have an integrated convex mirror built into the upper
outboard corner of the exterior mirrors. They are designed to assist you
by increasing visibility along the side of your vehicle.
Check the main mirror first before a lane change, then check the blind
spot mirror. If no vehicles are present in the blind spot mirror and the
traffic in the adjacent lane is at a safe distance, signal that you are going
to change lanes. Glance over your shoulder to verify traffic is clear, and
carefully change lanes.
The image of the approaching
vehicle is small and near the inboard
edge of the main mirror when it is at
a distance. The image becomes
larger and begins to move outboard
across the main mirror as the vehicle
approaches (A). The image will
transition from the main mirror and
begin to appear in the blind spot
mirror as the vehicle approaches
(B). The vehicle will transition to
your peripheral field of view as it
leaves the blind spot mirror (C).
A
B
C
98Windows and Mirrors
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

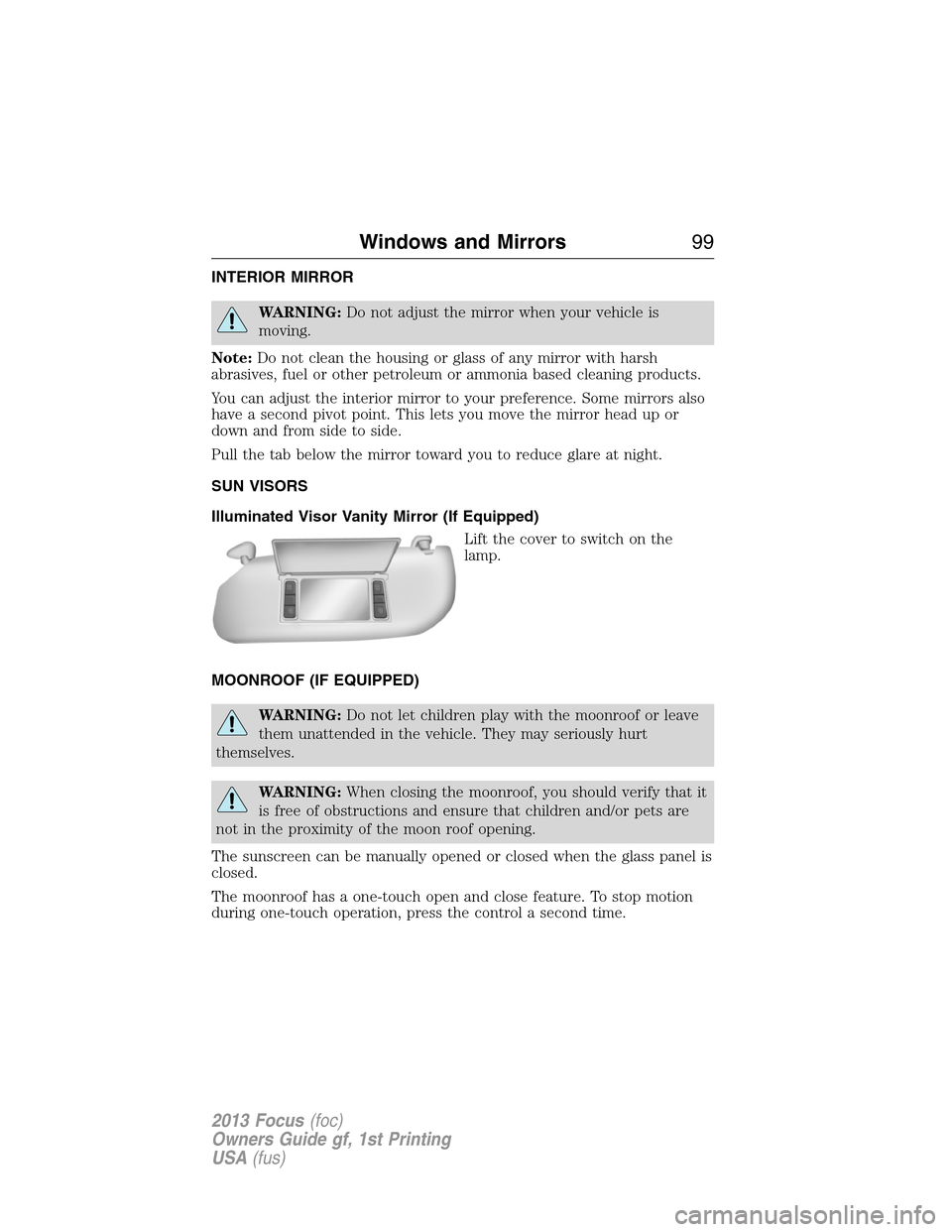

INTERIOR MIRROR
WARNING:Do not adjust the mirror when your vehicle is
moving.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum or ammonia based cleaning products.
You can adjust the interior mirror to your preference. Some mirrors also
have a second pivot point. This lets you move the mirror head up or
down and from side to side.
Pull the tab below the mirror toward you to reduce glare at night.
SUN VISORS
Illuminated Visor Vanity Mirror (If Equipped)
Lift the cover to switch on the
lamp.
MOONROOF (IF EQUIPPED)
WARNING:Do not let children play with the moonroof or leave
them unattended in the vehicle. They may seriously hurt
themselves.
WARNING:When closing the moonroof, you should verify that it
is free of obstructions and ensure that children and/or pets are
not in the proximity of the moon roof opening.
The sunscreen can be manually opened or closed when the glass panel is
closed.
The moonroof has a one-touch open and close feature. To stop motion
during one-touch operation, press the control a second time.
Windows and Mirrors99
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

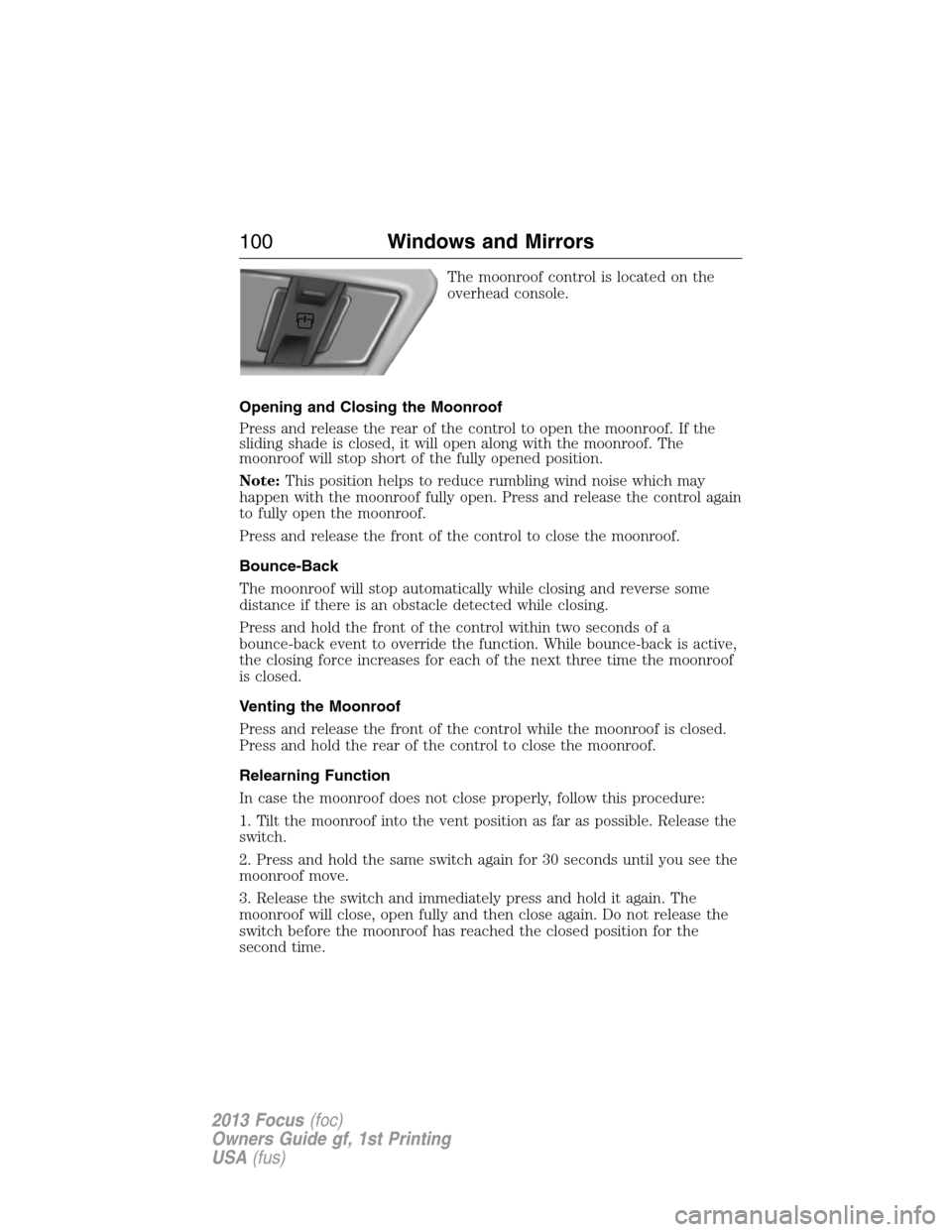

The moonroof control is located on the
overhead console.
Opening and Closing the Moonroof
Press and release the rear of the control to open the moonroof. If the
sliding shade is closed, it will open along with the moonroof. The
moonroof will stop short of the fully opened position.
Note:This position helps to reduce rumbling wind noise which may
happen with the moonroof fully open. Press and release the control again
to fully open the moonroof.
Press and release the front of the control to close the moonroof.
Bounce-Back
The moonroof will stop automatically while closing and reverse some
distance if there is an obstacle detected while closing.
Press and hold the front of the control within two seconds of a
bounce-back event to override the function. While bounce-back is active,
the closing force increases for each of the next three time the moonroof
is closed.
Venting the Moonroof
Press and release the front of the control while the moonroof is closed.
Press and hold the rear of the control to close the moonroof.
Relearning Function
In case the moonroof does not close properly, follow this procedure:
1. Tilt the moonroof into the vent position as far as possible. Release the
switch.
2. Press and hold the same switch again for 30 seconds until you see the
moonroof move.
3. Release the switch and immediately press and hold it again. The
moonroof will close, open fully and then close again. Do not release the
switch before the moonroof has reached the closed position for the
second time.
100Windows and Mirrors
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Safety Mode
The system enters a safety mode when it detects a malfunction. The
moonroof will move about 0.5 seconds at a time and then stop again.
Press the switch repeatedly until the moonroof is closed. Have the
system checked by your authorized dealer immediately.
Windows and Mirrors101
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

GAUGES
A. Information display. SeeInformation Displaysfor more information.
B. Speedometer
C. Engine coolant temperature gauge
D. Fuel gauge
E. Tachometer
Engine coolant temperature gauge
Shows the temperature of the engine coolant. At normal operating
temperature, the needle will remain in the center section. If the needle
enters the red section, the engine is overheating. Stop the engine, switch
the ignition off and determine the cause once the engine has cooled
down.
Note:Do not restart the engine until the cause of overheating has been
resolved.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
0 20406080
10 0
12 0
14 0
110
1013 0
15 0
10 012 0
14 0
16 0
18 0
0 20 40
306080
200
220
240
5070
90
102Instrument Cluster
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Fuel gauge
Switch the ignition on. The fuel gauge will indicate approximately how
much fuel is left in the fuel tank. The fuel gauge may vary slightly when
the vehicle is moving or on a gradient. The arrow adjacent to the fuel
pump symbol indicates on which side of your vehicle the fuel filler door
is located.
WARNING LAMPS AND INDICATORS
The following warning lamps and indicators will alert you to a vehicle
condition that may become serious. Some lamps will illuminate when you
start your vehicle to make sure they work. If any lamps remain on after
starting your vehicle, refer to the respective system warning lamp for
further information.
Note:Some warning indicators appear in the information display and
function the same as a warning lamp but do not display when you start
your vehicle.
Airbag – Front
If it fails to illuminate on startup, continues to flash or remains
on, it indicates a malfunction. Have the system checked by your
authorized dealer. A chime will sound when there is a
malfunction in the indicator light.
Anti-Lock Braking System
If it illuminates when you are driving, this indicates a
malfunction. You will continue to have the normal braking
system (without ABS) unless the brake warning lamp is also
illuminated. Have the system checked by your authorized dealer.
Battery
If it illuminates while driving, it indicates a malfunction. Switch
off all unnecessary electrical equipment and have the system
checked by your authorized dealer.
Blind Spot Monitor (if equipped)
It will illuminate when this feature is deactivated or in
conjunction with a message.
Instrument Cluster103
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Brake System
It will illuminate when the parking brake is engaged and the
ignition is on.
If it illuminates when you are driving, check that the parking
brake is not engaged. If the parking brake is not engaged, this indicates
low brake fluid level or a brake system malfunction. Have the system
checked immediately by your authorized dealer.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Have the vehicle checked by your authorized dealer as soon as possible.
Driving extended distances with the parking brake engaged can cause
brake failure and the risk of personal injury.
Cruise Control (if equipped)
It will illuminate when you switch this feature on.
Direction Indicator
Illuminates when the left or right turn signal or the hazard
warning flasher is turned on. If the indicators flash faster, check
for a burned out bulb.
Engine Oil
If it illuminates with the engine running or when you are
driving, this indicates a malfunction. Stop your vehicle as soon
as it is safe to do so and switch the engine off. Check the
engine oil level.
Note:Do not resume your journey if it illuminates despite the level
being correct. Have the system checked by your authorized dealer.
Fasten Safety Belt
It will illuminate and a chime will sound to remind you to fasten
your safety belt.
104Instrument Cluster
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
