2013 FORD FOCUS ECO mode

Stability Control 190
AdvanceTrac.......................................191
Parking Aids 192
Sensing system.......................................192
Active park assist.....................................195
Rear-view camera system...............................199
Cruise Control 204
Driving Aids 206
Eco Mode...........................................206
Steering............................................207
Load Carrying 209
Vehicle loading.......................................209
Towing 215
Trailertowing........................................215
Wrecker towing......................................215
Recreational towing...................................216
Driving Hints 219
Economical driving....................................219
Floormats..........................................221
Roadside Emergencies 223
Getting roadside assistance..............................223
Hazard warning flashers................................224
Fuel cut-off switch....................................224
Jump-starting the vehicle...............................225
Customer Assistance 228
Reporting safety defects (U.S. only).......................235
Reporting safety defects (Canada only).....................235
Fuses 236
Changing a fuse......................................236
Fuse specification chart................................237
Table of Contents5
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

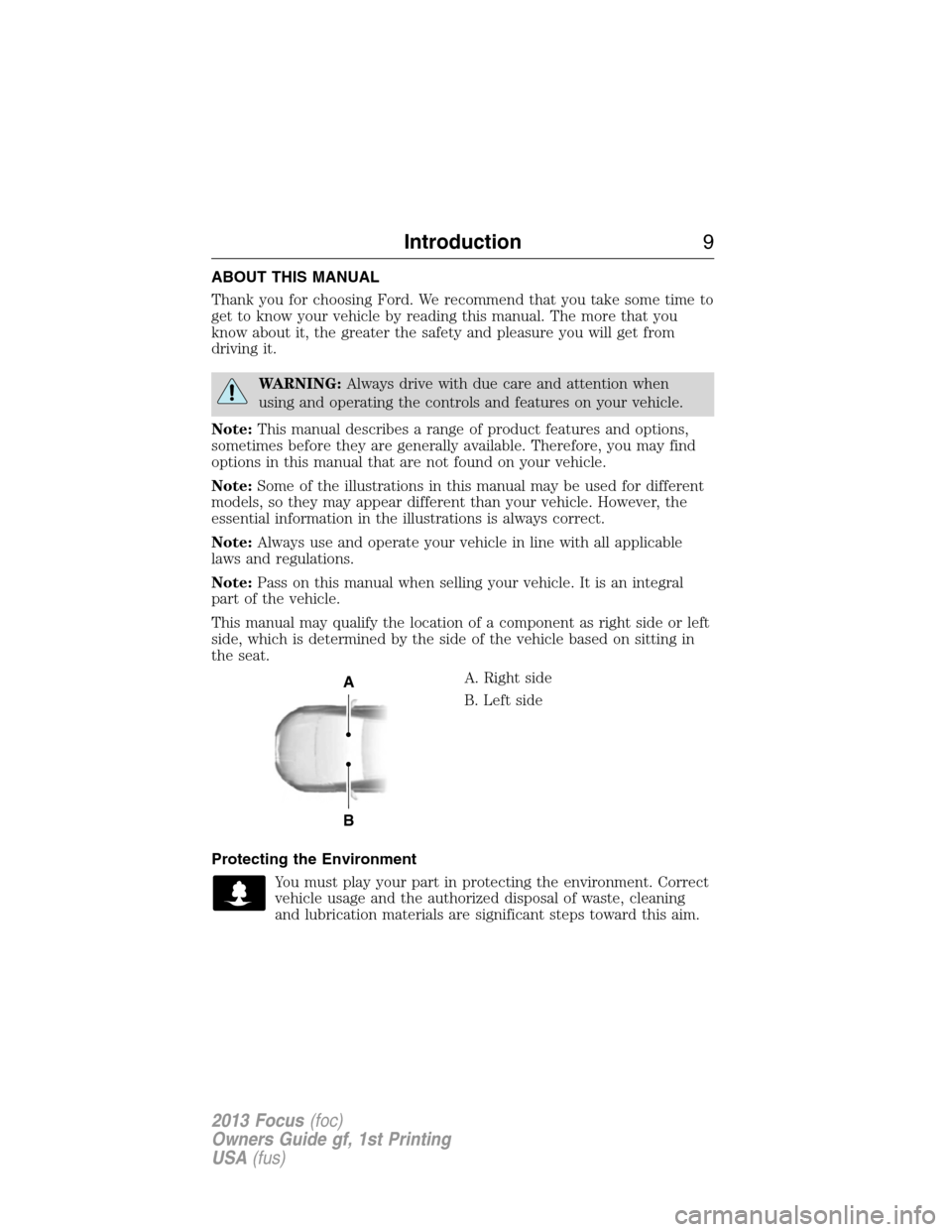

ABOUT THIS MANUAL
Thank you for choosing Ford. We recommend that you take some time to
get to know your vehicle by reading this manual. The more that you
know about it, the greater the safety and pleasure you will get from
driving it.
WARNING:Always drive with due care and attention when
using and operating the controls and features on your vehicle.
Note:This manual describes a range of product features and options,
sometimes before they are generally available. Therefore, you may find
options in this manual that are not found on your vehicle.
Note:Some of the illustrations in this manual may be used for different
models, so they may appear different than your vehicle. However, the
essential information in the illustrations is always correct.
Note:Always use and operate your vehicle in line with all applicable
laws and regulations.
Note:Pass on this manual when selling your vehicle. It is an integral
part of the vehicle.
This manual may qualify the location of a component as right side or left
side, which is determined by the side of the vehicle based on sitting in
the seat.
A. Right side
B. Left side
Protecting the Environment
You must play your part in protecting the environment. Correct
vehicle usage and the authorized disposal of waste, cleaning
and lubrication materials are significant steps toward this aim.
A
B
Introduction9
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

WARNING:Safety belts and seats can become hot in a vehicle
that has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you place a child
anywhere near them.
WARNING:Front and rear seat occupants, including pregnant
women, should wear safety belts for optimum protection in an
accident.
All seating positions in this vehicle have lap and shoulder safety belts. All
occupants of the vehicle should always properly wear their safety belts,
even when an airbag supplemental restraint system is provided.
The safety belt system consists of:
•Lap and shoulder safety belts.
•Shoulder safety belt with automatic locking mode, (except driver
safety belt).
•Height adjuster at the front outboard seating positions
•Safety belt pretensioner at the front outboard seating positions.
•Belt tension sensor at the front outboard passenger seating position.
•Safety belt warning light and chime. SeeSafety belt warning
light and indicator chimelater in this chapter.
•Crash sensors and monitoring system with readiness
indicator. SeeCrash sensors and airbag indicatorin the
Supplemental Restraints Systemchapter.
The safety belt pretensioners at the front seating positions are designed
to tighten the safety belts when activated. In frontal and near-frontal
collisions, the safety belt pretensioners may be activated alone or, if the
collision is of sufficient severity, together with the front airbags. The
pretensioners may also activate when a side curtain airbag is deployed.
34Safety Belts
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Deactivating and Activating the Belt-MinderFeature (If Equipped)
WARNING:While the design allows you to deactivate your
Belt-Minder, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you leave
the Belt-Mindersystem activated for yourself and others who may use
the vehicle. To reduce the risk of injury, do not deactivate/activate the
Belt-Minderfeature while driving the vehicle.
Note:The driver and front passenger Belt-Minderare deactivated and
activated independently. When deactivating or activating one seating
position, do not buckle the other position as this will terminate the process.
Read Steps1-4thoroughly before proceeding with the deactivation
or activation programming procedure.
The driver and front passenger Belt-Minderfeatures can be deactivated
or activated by performing the following procedure:
Before following the procedure, make sure that:
•The parking brake is set
•The transmission selector lever is in positionP(automatic
transmission) or in neutral (manual transmission)
•The ignition is off
•The driver and front passenger safety belts are unbuckled
1. Turn the ignition on. DO NOT START THE ENGINE.
2. Wait until the safety belt warning light turns off (approximately one
minute).
•Once the next step is started, the procedure must be completed
within 60 seconds.
3. For the seating position being disabled, buckle then unbuckle the safety
belt four times at a moderate speed, ending in the unbuckled state.
•After Step 3, the safety belt warning light will turn on.
4. While the safety belt warning light is on, buckle and then unbuckle the
safety belt.
•After Step 4, the safety belt warning light will flash three times for
confirmation.
•This will disable the Belt-Minder feature for that seating position if it
is currently enabled.
•This will enable the Belt-Minderfeature for that seating position if it
is currently disabled.
Safety Belts41
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

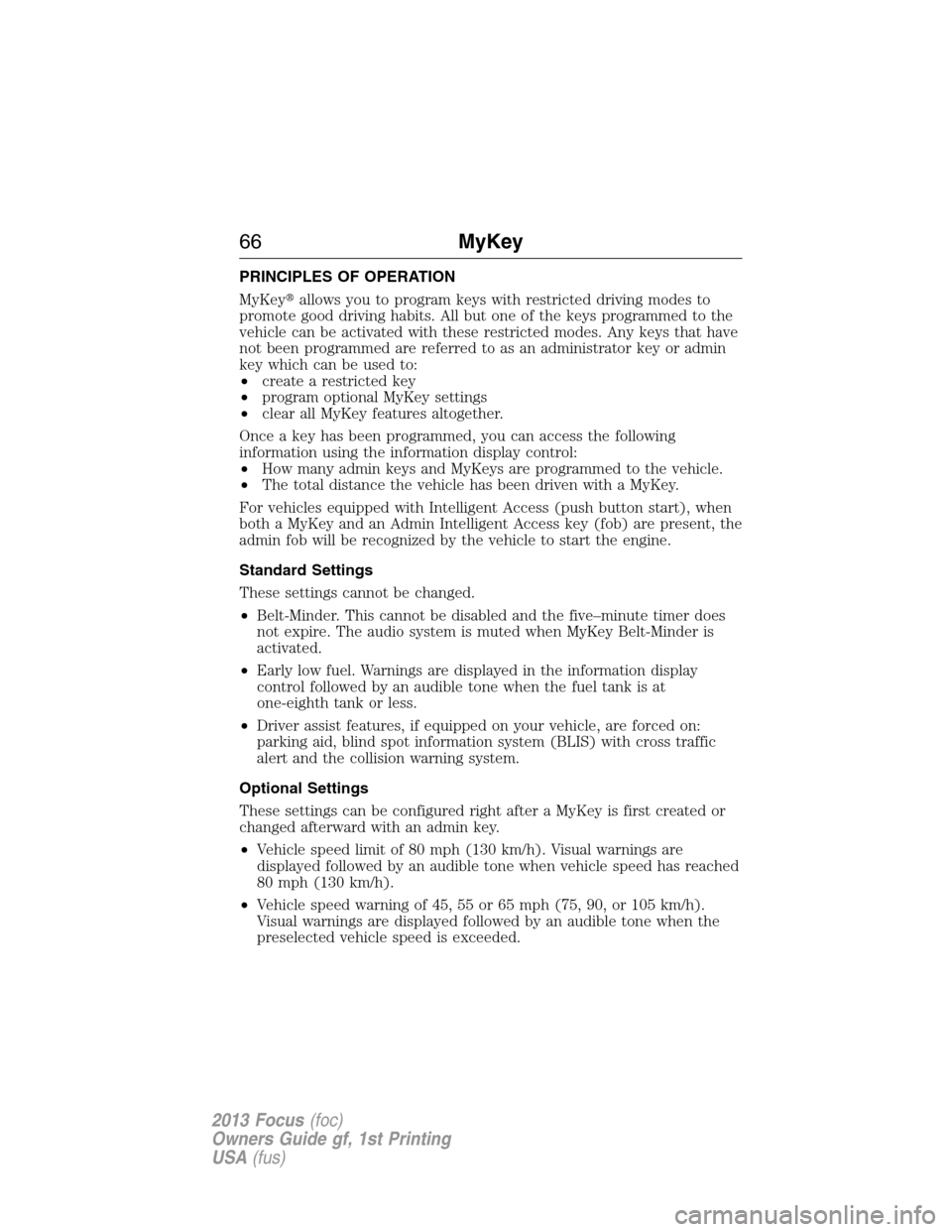

PRINCIPLES OF OPERATION
MyKeyallows you to program keys with restricted driving modes to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated with these restricted modes. Any keys that have
not been programmed are referred to as an administrator key or admin
key which can be used to:
•create a restricted key
•program optional MyKey settings
•clear all MyKey features altogether.
Once a key has been programmed, you can access the following
information using the information display control:
•How many admin keys and MyKeys are programmed to the vehicle.
•The total distance the vehicle has been driven with a MyKey.
For vehicles equipped with Intelligent Access (push button start), when
both a MyKey and an Admin Intelligent Access key (fob) are present, the
admin fob will be recognized by the vehicle to start the engine.
Standard Settings
These settings cannot be changed.
•Belt-Minder. This cannot be disabled and the five–minute timer does
not expire. The audio system is muted when MyKey Belt-Minder is
activated.
•Early low fuel. Warnings are displayed in the information display
control followed by an audible tone when the fuel tank is at
one-eighth tank or less.
•Driver assist features, if equipped on your vehicle, are forced on:
parking aid, blind spot information system (BLIS) with cross traffic
alert and the collision warning system.
Optional Settings
These settings can be configured right after a MyKey is first created or
changed afterward with an admin key.
•Vehicle speed limit of 80 mph (130 km/h). Visual warnings are
displayed followed by an audible tone when vehicle speed has reached
80 mph (130 km/h).
•Vehicle speed warning of 45, 55 or 65 mph (75, 90, or 105 km/h).
Visual warnings are displayed followed by an audible tone when the
preselected vehicle speed is exceeded.
66MyKey
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Unlocking the Doors (Two-Stage Unlock)
Type 1
Type 2
Press the button to unlock the driver’s door.
Press the button again within three seconds to unlock all doors. The turn
signals will flash.
Press and hold both the lock and unlock buttons on the remote control
for four seconds to disable or enable two-stage unlocking. Disabling
two-stage unlocking allows all vehicle doors to unlock with one press of
the button. The turn signals will flash twice to indicate the unlocking
mode was changed. The unlocking mode will be applied to the remote
control and intelligent access (if equipped).
Intelligent access at the driver’s door will unlock all doors when
two-stage unlocking is disabled.
Locking the doors
Type 1
Type 2
Press the button to lock all the doors. The turn signals will illuminate.
Press the button again within three seconds to confirm that all the doors
are closed. The doors will lock again, the horn will chirp and the turn
signals will illuminate if all the doors and the liftgate/trunk are closed.
Note:If any door or the liftgate/trunk is not closed, or if the hood is not
closed on vehicles equipped with an anti-theft alarm or remote start, the
horn will chirp twice and the lamps will not flash.
Opening the luggage compartment
Press twice to open the luggage compartment.
Ensure that the trunk is closed and latched before driving your vehicle.
Failure to properly latch the trunk may cause objects to fall out or block
the driver’s rear view.
Locks73
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

4. Press the power door lock button three times.
5. Switch the ignition on. The horn will chirp indicating the programming
mode has been entered.
Autolock:Once in programming mode, each subsequent short press
(less than 1 second) of the power door lock button will toggle autolock
between on and off.
Autounlock:Each subsequent long press (more than 2 seconds) of the
power door lock button will toggle autounlock between on and off.
Note:The autounlock feature can be enabled or disabled independently
of the autolock feature.
Illuminated Entry
The interior lamps and select exterior lamps illuminate when the remote
entry system is used to unlock the door(s).
The illuminated entry system will turn off the lights if:
•the ignition is on,
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Illuminated Exit
The interior lamps and select exterior lamps will illuminate when all
doors are closed, the ignition is turned off and the key is removed from
the ignition (integrated keyhead transmitter only).
The lamps will turn off if all the doors remain closed and:
•25 seconds elapse
•the key is inserted in the ignition (integrated keyhead transmitter
only)
•theSTART/STOPbutton is pressed (intelligent access key only).
76Locks
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Battery Saver
If the courtesy lamps, dome lamps or headlamps are left on, the battery
saver will shut them off 10 minutes after the ignition has been turned
off.
Accessory Mode Battery Saver for Intelligent Access Keys
(If Equipped)
If you shut off the engine and leave the ignition in the on or accessory
mode, the ignition will shut off after 30 minutes.
TRUNK RELEASE
Press the button located on the
instrument panel to the left of the
steering wheel.
To open the trunk with the outside release button:
Press the release button located
above the license plate if your vehicle
is unlocked or if the intelligent access
transmitter is within 3 feet (1 meter)
of the trunk.
Note:If your vehicle is locked and you press the trunk button on the
remote control once, you will have 20 seconds to press the outside
release button.
Locks77
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
