47Monitoring
Black panel
System allowing cer tain displays to be switched
off for night driving.
The instrument panel remains illuminated with
onl
y the vehicle speed and cruise control or speed limiter information, if in use.
If there is an aler t or a change in a function
or to a setting, the black panel mode isinterrupted.
Activation
) With the lighting on, press the left handbutton of the instrument panel several
times to progressively reduce the
dashboard lighting level.) Press the button again to reduce the lighting to the minimum level and switch off
the interior mood lighting.) Press the button again to activate the black
panel.

Tr i p c o m p u t e r
Monochrome screen A
Information displays
)Press the button, located at the end of the
wiper stalk, to display the various items of
trip computer information in succession.
The trip computer provides the following
information:


-
range,

- current
fuel consumption,

-
Stop & Star t time counter,

-
distance travelled,

- avera
ge fuel consumption,
- avera
ge speed.
)The next press then returns you tothe normal display. S
ystem that gives you current information on your journey (range, fuel consumption…).


Zero reset
)Press the control for more thantwo seconds to reset to zero the distance
travelled, the average fuel consumption and the average speed.

49Monitoring

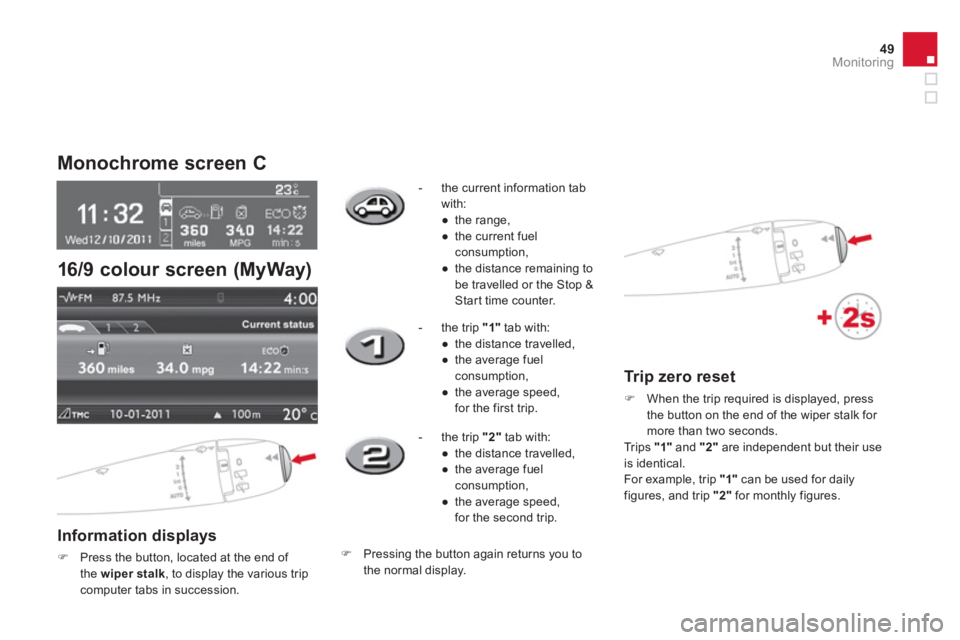

Monochrome screen C


Information displays
)Press the button, located at the end of
the wiper stalk
, to display the various tripcomputer tabs in succession.- th
e current information tabwith:
●
the range,
●
th
e current fuel consumption,
●
the distance remaining to
be travelled or the Stop &
Start time counter.
- the trip "1"
t
ab with:
●
the distance travelled,
●
the average fuelconsumption,
●
the average speed,for the first trip.
- t
he trip "2"tab with:
●
the distance travelled,
●
the average fuelconsumption,
●
the average speed,
for the second trip.

)
Pressing the button again returns you to
the normal display.
16/9 colour screen (MyWay)


Trip zero reset
)
When the trip required is displayed, press
the button on the end of the wiper stalk for more than two seconds.
Trips "1"
and "2"are independent but their useis identical.
For example, trip "1"can be used for daily figures, and trip "2"for monthly figures.

A few definitions…

Range
(miles or km)
This indicates the distance
which can still be travelled with the fuelremaining in the tank in relation to the average
fuel consumption over the last few miles
(kilometres) travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuelconsumption
(mpg or l/100 km or km/l) This is the average fuel consumption since the last trip computer zero reset.
Average speed
(mph or km/h)This is the average speed calculatedsince the last trip computer zero reset(ignition on).


Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip computer zero reset.
Stop & Start timecounter
(minutes/seconds or hours/minutes)
If your vehicle is fitted with Stop &Star t, a time counter calculates the time spent
in STOP mode during a journey. It resets to zero every time the ignition isswitched on with the key.


This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.

If dashes are displayed continuously while driving in place of the digits, contact a CITROËN dealer or a qualified workshop.
This function is only displayed from 20 mph (30 km/h).
When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).
Distance remaining to
destination
(miles or km)
This is the distance remaining to be travelled
to the final destination. It can be entered bythe user.
If the distance is not entered, dashes are
displayed in place of the digits.

51Monitoring

002
Multifunction screens
Identify your multifunction screen in this section, to adjust or view vehiclesettings and information, by means of the user-friendly menus.

Monochrome screen A
This displays the following information:
- time,
- date,
- ambient temperature
(this flashes if there isa risk of ice),
- status of the doors and boot,
- audio sources (radio, CD...),
- trip computer (refer to the "Instruments andControls" section).
Warning messages (e.g.: "Emission control
system faulty") or information messages(e.g.: "Boot open") may appear temporarily.
These can be cleared by pressing the "ESC"button.
Displays on the screen

From the control panel of your Audio system, you can:)
press the "MENU"
button to gain access to
the main menu,
)
press the " " or " " buttons to scroll
through the items on the screen,) press the "MODE"button to change
the permanent application (date, audio source...), ) press the "
" or "
" buttons to change
a setting value, ) press the "OK"button to confirm,or )
press the "ESC"button to abandon
the operation in progress.

Controls
)Press the "MENU"
button to gain access
to the main menu
, then press the "  " or " " buttons to scroll through the variousmenus:
- radio-CD,
- vehicle configuration,
- options,
- displa
y settings,
- languages,
-
units. )Press the "OK"button to select the menurequired.

Main menu
