2013 CITROEN DS3 CABRIO DAG Handbook (in English)

23Familiarisation
Driving safely
1.
Selecting/Switching off speed limiter mode. 2.Decrease the programmed value.3.Increase the programmed value.4.
Speed limiter on/off.


Speed limiter "LIMIT"
174
1.Selecting/Switching off cruise control mode.
2. Decrease the programmed value. 3.
Increase the programmed value. 4.
Cruise control Off/Resume.
Cruise control "CRUISE"


176

The cruise control or speed limiter mode
appears in the instrument panel when it isselected.

Display in the instrument panel


Cruise control

S
peed limiter


The values must be set with the engine running. In order to be programmed or activated, the
vehicle speed must be higher than 25 mph (40 km/h), with at least fourth gear engaged
on a manual gearbox (second gear on an
electronic or automatic gearbox).

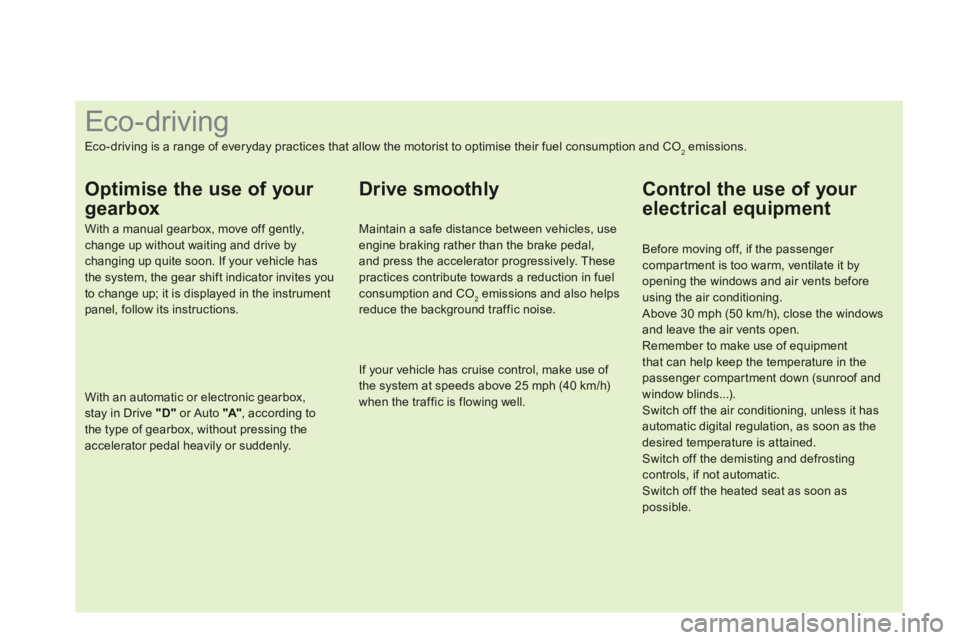

Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently,change up without waiting and drive by changing up quite soon. If your vehicle has the system, the gear shift indicator invites youto change up; it is displayed in the instrumentpanel, follow its instructions.
With an automatic or electronic gearbox, stay in Drive "D"or Auto "A"
, according to the type of gearbox, without pressing theaccelerator pedal heavily or suddenly.


Drive smoothly


Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These practices contribute towards a reduction in fuel consumption and CO2emissions and also helpsreduce the background traffic noise.


If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.



Control the use of your
electrical equipment


Before moving off, if the passenger compartment is too warm, ventilate it by opening the windows and air vents before using the air conditioning. Above 30 mph (50 km/h), close the windowsand leave the air vents open.
Remember to make use of equipment that can help keep the temperature in thepassenger compar tment down (sunroof and window blinds...). Switch off the air conditioning, unless it hasautomatic digital regulation, as soon as the
desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic. Switch off the heated seat as soon as possible.

25
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats. Limit the loads carried in the vehicle andreduce wind resistance (roof bars, roof rack,bicycle carrier, trailer...). Use a roof box in preference. Remove roof bars and roof racks after use.


At the end of winter, remove snow tyres andrefit your summer tyres.



Observe the recommendations
on maintenance


Check the tyre pressures regularly, whencold, referring to the label in the door aperture, driver's side.
Carry out this check in par ticular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.


Have your vehicle ser viced regularly (engineoil, oil filter, air filter...) and obser ve theschedule of operations recommended by the manufacturer.




When refuelling, do not continue after the 3 rd
cut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settledown to a consistent average.
Switch off the headlamps and front foglamps when the level of light does not require their use.

Avoid running the engine before moving off,particularly in winter; your vehicle will warmup much faster while driving.

As a passenger, if you avoid connecting your multimedia devices (film, music, videogame...), you will contribute towards limitingthe consumption of electrical energy, and soof fuel. Disconnect your por table devices beforeleaving the vehicle.

001
Instruments and controls
To h e l p you understand the information presented in the instrument panel, this section describes the three back-lit dials, the location andpurpose of each warning and indicator lamp, and explains the information provided by your trip computer.

Petrol - Diesel instrument panels, manual, electronic or automatic
gearbox
Provided with permanent back-lighting, the instrument panel groups together the vehicle's dials and indicator and warning lamps.
1.Rev counter.Indicates the speed of rotation of the
engine (x 1 000 rpm).2.Vehicle speed.Indicates the current speed of the moving
vehicle (mph or km/h).3.Engine coolant temperature.Indicates the temperature of the engine coolant liquid.
Dials
7.Lighting dimmer button. Adjusts the level of the instrument and controls illumination and the interior moodlighting.
4.Display screen.5.Fuel level. Indicates the quantity of fuel remaining in
the tank.
6.Display management button. Alternates display between range and trip
mileage recorder.

Servicing information.
Resets the selected function to zero (trip
distance recorder or ser vice indicator
).
For more information, refer to the
paragraph relating to the button or function and its associated display.

29Monitoring

Screen
E.Ser vice indicator(miles or km), then Total mileage recorderThese two functions are displayedsuccessively when switching on the ignitionF.Engine oil level indicatorrAppears a few seconds after switching on
the ignition, then disappears.
A
.Speed limiter (mph or km/h) or
Cruise control.B. Gear shift indicator.C.Electronicor automatic gearboxinformation.D.Range (miles or km) or Trip mileage recorder.

RACING petrol instrument panel, manual gearbox Provided with permanent back-lighting, the instrument panel groups together the vehicle's dials and indicator and warning lamps.
1.Rev counter.Indicates the speed of rotation of the
engine (x 1 000 rpm).2.Vehicle speed.Indicates the current speed of the moving
vehicle (mph or km/h).3.Engine coolant temperature.Indicates the temperature of the engine coolant liquid.
Dials
7.Lighting dimmer button. Adjusts the level of the instrument and controls illumination and the interior moodlighting.
4.Display screen.5.Fuel level. Indicates the quantity of fuel remaining in
the tank.
6.Display management button. Alternates display between range and trip
mileage recorder.
Servicing information.
Resets the selected function to zero (trip
distance recorder or ser vice indicator).
For more information, refer to the
paragraph relating to the button or function and its associated display.
