2013 CITROEN DS3 CABRIO DAG Handbook (in English)

111Visibility
Temporarily keeping the dipped beam headlamps on after the vehicle's ignition hasbeen switched off makes the driver's exit easier
when the light is poor.

Switching on
)With the ignition off, "flash" the headlamps
using the lighting stalk. )A fur ther "headlamp flash" switches the function off.

Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
Manual guide-me-home
lighting

switched on automatically, without any action on
the part of the driver, when a low level of external
light is detected or in certain cases of activation of
the windscreen wipers.

As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automaticall
y.
Automatic illumination of headlamps
Activation
)
Turn ring to the "AU TO "position. The
automatic illumination of headlamps is
accompanied by a message in the screen.

Deactivation
)
Turn ring to a position other than "AU TO ".
Deactivation is accompanied by a message
in the screen.

Association with the automatic "Guide-me-home" lighting

Association with the automatic illumination of
headlamps provides "guide-me-home" lighting
with the following additional options:


- selection of the lighting duration to 15, 30or 60 seconds in the functions that can
be set in the vehicle configuration menu(except in the case of the monochrome screen A, for which the duration is set:
60 seconds),

- automatic activation of "guide-me-home"lighting when automatic illumination of
headlamps is in operation.



Operating fault

In the event of a fault with thesunshine sensor, the lightingcome on, this warning lamp is displayed in
the instrument panel and/or a message appears
in the screen, accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
workshop.
In fog or snow, the sunshine sensor may detect sufficient light. Therefore, the lighting will not come onautomatically.
Do not cover the sunshine sensor,coupled with the rain sensor and located in the centre of the windscreenbehind the rear view mirror; theassociated functions would no longer be controlled.

113Visibility

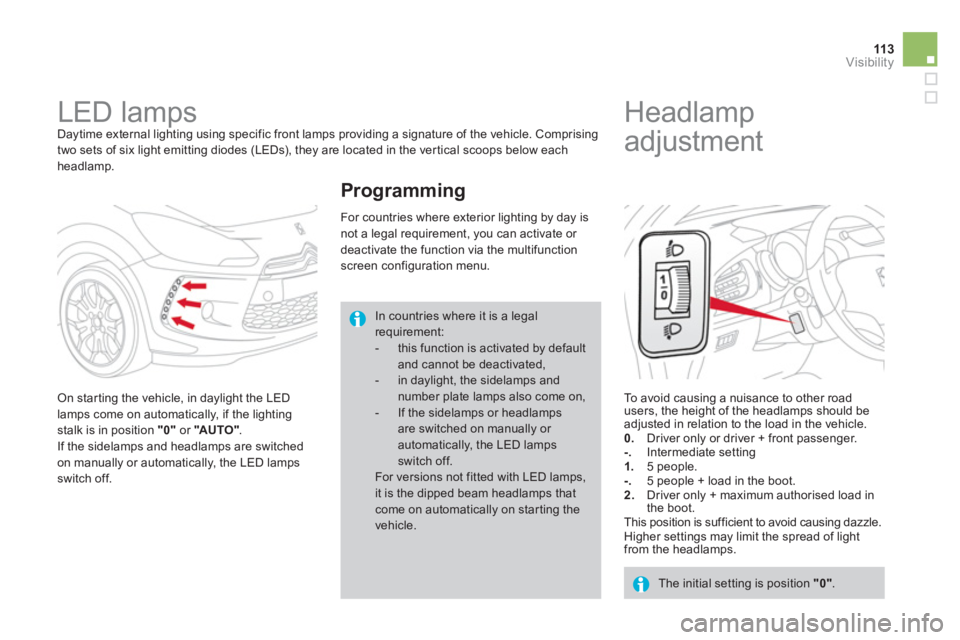

LED lamps
Daytime external lighting using specific front lamps providing a signature of the vehicle. Comprising
two sets of six light emitting diodes (LEDs), they are located in the ver tical scoops below each
headlamp.

On star ting the vehicle, in daylight the LED
lamps come on automatically, if the lighting
stalk is in position "0"or "AUTO".
If the sidelamps and headlamps are switched
on manually or automatically, the LED lampsswitch off.
For countries where exterior lighting by day is not a legal requirement, you can activate or deactivate the function via the multifunction
screen configuration menu.





Headlamp
adjustment
To avoid causing a nuisance to other road
users, the height of the headlamps should be
adjusted in relation to the load in the vehicle.
0.Driver only or driver + front passenger. -.Intermediate setting 1. 5 people. -. 5 people + load in the boot.2. Driver only + maximum authorised load in
the boot.
This position is sufficient to avoid causing dazzle.

Higher settings may limit the spread of lightfrom the headlamps.

The initial setting is position "0"
.
Programming
In countries where it is a legalrequirement:- this function is activated by default and cannot be deactivated,- in daylight, the sidelamps and number plate lamps also come on, - If the sidelamps or headlampsare switched on manually or automatically, the LED lamps switch off.For versions not fitted with LED lamps, it is the dipped beam headlamps thatcome on automatically on star ting the vehicle.

System for selection and control of the variousfront and rear wiping modes for the elimination
of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibilityprogressively according to the climaticconditions.








Wiper controls
Programming
Various automatic wiper control modes are also available according to the following options:
- automatic rain sensitive windscreen wipers,
- rear wiping on engaging reverse gear.



Model with AUTO wiping


The wiper commands are issued directly by the
driver by means of the stalk Aand the ring B.

Manual controls


Windscreen wipers
A. Wiping speed selection stalk:
sin
gle wipe (press down and release),
automatic, then sin
gle wipe (see
following page).
fast (heavy rain),
normal
(moderate rain),
intermittent
(proportional to the
speed of the vehicle),
park,
or


Model without AUTO wiping

115
Visibility
B. Rear wiper selection ring:
Rear wiper

If a significant accumulation of snow or ice is present, or when using a tailgate bicycle carrier, deactivate the automatic rear wiper via the multifunction screenconfiguration menu. park,
intermittent wi
pe,
wash-wipe
(set duration).
Reverse gear
When reverse gear is engaged, the rear wiper will come into operation if the windscreen wipers are operating.
Programming
The function is activated or deactivated via thevehicle configuration menu.
This function is activated b
y default.

Windscreen wash

Pull the wiper stalk towards you. The
windscreen wash, then the windscreen wipers,
operate for a pre-determined time.

windscreen wipers
The windscreen wipers operate automatically,
without any action on the par t of the driver, if rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of
the rainfall.
Activation
This is controlled manually by the driver bypushing stalk Ato the "AU TO "position.
It is accompanied by the illumination of this indicator lamp in the instrument panel and amessage in the multifunction screen.


Switching off

This is controlled manually by the driver by moving stalk A
upwards, returning it to position A"0".
It is accompanied b
y the indicator lamp
in the instrument panel going off and a
message in the multifunction screen.
The automatic wiping must be reactivated if the ignition has been off for more than one minute, by pushingstalk Adownwards.

11 7Visibility

Operating fault

If an automatic wiping fault occurs, the wipers
will operate in intermittent mode.
Have it checked by a CITROËN dealer or a qualified workshop.
To retain the effectiveness of the "flat-blade" wiper blades, it is advisable to:


- handle them with care,

- clean them regularly using soapywater,

- not use them to hold a sheet of cardboard against the windscreen,

- replace them at the first signs of wear.


Do not cover the rain sensor, linked with the sunshine sensor and located inthe centre of the windscreen behind the rear view mirror. Switch off the automatic wiping whenusing an automatic car wash.
In winter, it is advisable to wait until the windscreen is completely clear of ice before activating the automatic wiping.
This
position allows the wiper blades to be liftedfor winter parking, cleaning or replacement without damaging the bonnet.
In the minute following switching off of
the ignition, any action on the wiper stalkpositions the wipers vertically.
To park the wipers after this has been done,
switch on the ignition and operate the wiper stalk.
Vertical windscreen wiper
position

A.Courtesy lampB.Map reading lamps











Courtesy lamp
In this position, the cour tesy lamp comes on gradually:


Courtesy lamp



- when the vehicle is unlocked,

- when the key is removed from the ignition,

- when a door is opened,

- when the remote control locking button is
activated, in order to locate your vehicle.
It switches off
gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is closed.
Permanentl
y off.
Permanent li
ghting.
With the "permanent lighting" mode, theduration of lighting varies, depending on the circumstances: - with the ignition off, approximatelyten minutes,- in energy economy mode, approximately thirty seconds,- with the engine running, unlimited.



Map reading lamps
)With the ignition on, press thecorresponding switch.
