2013 CITROEN DS3 CABRIO DAG Handbook (in English)

95
Access
Do not throw the remote control batteries away, they contain metalswhich are harmful to the environment.
Take them to an approved collectionpoint.
Lost keys

Visit a CITROËN dealer with the vehicle's registration document, your personalidentification documents and if possible the key code label.
The CITROËN dealer will be able to find the key code and the transponder code required to order a new key.


Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.


Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by theemergency ser vices more difficult in an emergency. As a safety precaution (with children on board), remove the key from the ignition switch
when you leave the vehicle, even for a shor t time.


Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system; this couldcause malfunctions.


When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to ensure that only your keys can be used to open and star t the vehicle.

1.Driver's electric window switch.2.Passenger's electric window switch.














Window controls System which opens or closes a window manually or automatically. It is fitted with anti-pinch protection on the driver's side.
The electric window switches remain operational for approximately 45 seconds after the ignition isswitched off or until a door is opened.If, during this period of 45 seconds, youopen a door while operating a window, the window stops. The window switch will then only be operative after the ignition is switched on again.
)Press or pull the switch. The
window stops as soon as the
switch is released.



Passenger's electric
window
There are two methods of operation:

Driver's electric window
-manual mode)Press or pull the switch without passing
the point of resistance. The window
stops as soon as the switch is released.
-automatic mode)Press or pull the switch fully. The window
opens or closes completely when theswitch is released. )Pressing or pulling the switch again
stops the movement of the window.

97
Access
In the event of unwanted opening of the window on closing (for example in the presence of frost): )
press the switch beyond the pointof resistance and release it; thewindow opens completely, )
then immediately pull the switchwithout going beyond the point of resistance until the window closesfully,)
continue to hold the switch for approximately one second after thewindow has closed. The safety anti-pinch function is not active during these operations.


Safety anti-pinch
On the driver's side, the one-touch front electric
window has a safety anti-pinch function.
When the window rises and meets an obstacle,
it stops and partially lowers again.
Reinitialisation
Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of contact during operationof the windows, reverse the movement of the window. To do this, press thecorresponding switch.
When the driver operates thepassenger electric window switch, they should ensure that no one is preventing correct closing of the window.
The driver should ensure that thepassenger uses the electric windowcorrectly.
Be aware of children when operatingthe windows. In the event of a malfunction
you have to
reinitialise the operation of the electricwindows: ) release the switch and pull it again until the
window closes completely,) hold the switch for approximately
one second after closing, ) press the switch to lower the window
automatically.The safety anti-pinch function is not activeduring these operations.

Doors
From out side
)After unlocking the vehicle using theremote control or the key, pull the door handle.



From inside
)
Pull the door lever to open the door; thisunlocks this vehicle completely.




Closing

When a door is not closed correctly:
-when the engine is running,this warning lamp comes on,
accompanied by a message in
the multifunction screen for a
few seconds,
-when the vehicle is moving(speedhigher than 6 mph (10 km/h)), this warning
lamp comes on, accompanied by anaudible signal and a message in the multifunction screen for a few seconds.

99Access
System which provides full manual locking or
unlocking of the doors from the inside.
Manual centralised control

Locking
)Press button Ato lock the vehicle.
The red indicator lamp on the button comes on.
Unlocking
) Press button A
again to unlock the vehicle.
The red indicator lamp on the button
switches off.
If one of the doors is open, central locking from the inside does not take place.
If the vehicle is locked from the outside,the red indicator lamp flashes andbutton A
is inactive.
)In this case, use the remote control or the key to unlock the vehicle.




Automatic centralised
control

System which provides full automatic locking or unlocking of the doors and the boot while
driving.
You can activate or deactivate this function.


Locking

When the speed exceeds 6 mph (10 km/h), the doors and the boot lock automatically.

Unlocking
)
Above 6 mph (10 km/h), press button Ato unlock the doors and the boot
temporarily.


If one of the doors is open, theautomatic central locking does not take place.
If the boot is open, the automatic central locking of the doors is active.

Activation
)Press button Afor more than two seconds.
A confirmation message appears on themultifunction screen, accompanied by an audible signal.
Deactivation
)Press button Aagain for more than
two seconds.
A confirmation message appears on themultifunction screen, accompanied by an
audible signal.
To lock or unlock the doors mechanically in the
event of a central locking system failure or flatbattery.
Emergency control


Locking the driver's door
)
Inser t the key in the lock, then turn it to
the right.



Unlocking the driver's door
)
Inser t the key in the lock, then turn it to
the left.



Locking the passenger's door
)Remove the black cap, on the edge of the
door, using the key. )Inser t the key in the cavity, then turn it fully. )Remove the key and refit the cap.



Unlocking the passenger's door
)Pull the interior door opening control.
In the event of a fault with the central locking system, you must disconnectthe battery to lock the boot and so ensure the complete locking of the vehicle.

101Access











Boot


Opening
)After unlocking the vehicle using theremote control or the key, pull the handleand raise the tailgate.
Closing
)
Lower the tailgate using the interior grab
handle.
If the tail
gate is not closed correctly:
-when the engine is running ,
this warning lamp comes on,
accompanied by a messageon the multifunction screen for a few seconds,
-when the vehicle is moving (speed above6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message on the multifunction screen for a few seconds.
System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.
Tailgate release
Unlocking
)
Fold back the rear benchseat to gainaccess to the lock from inside the boot.)
Insert a small screwdriver into hole Aof thelock to unlock the tailgate.

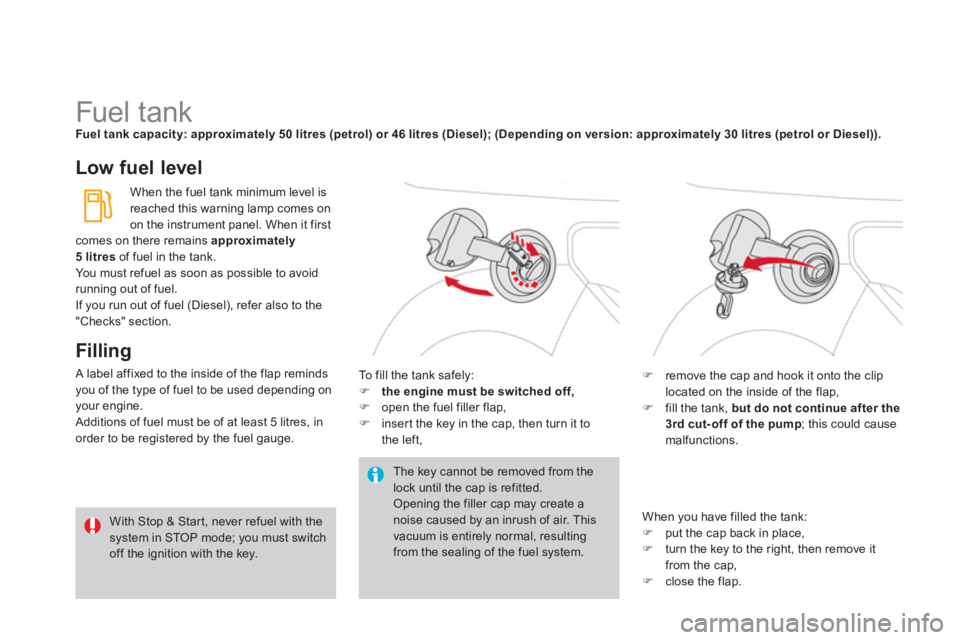

Fuel tank Fuel tank capacity: approximately 50 litres (petrol) or 46 litres (Diesel); (Depending on version: approximately 30 litres (petrol or Diesel)).
Low fuel level
Fillin
g
A label affixed to the inside of the flap remindsyou of the type of fuel to be used depending onyour engine.
Additions of fuel must be of at least 5 litres, in
order to be re
gistered by the fuel gauge.
The key cannot be removed from the lock until the cap is refitted. Opening the filler cap may create a noise caused by an inrush of air. This vacuum is entirely normal, resultingfrom the sealing of the fuel system. To
fill the tank safely: )the engine must be switched off,)
open the fuel filler flap,)
inser t the key in the cap, then turn it to
the left,
)remove the cap and hook it onto the clip
located on the inside of the flap, )fill the tank, but do not continue after the
3rd cut- off of the pump ; this could cause
malfunctions.
When
you have filled the tank:)put the cap back in place,)turn the key to the right, then remove it from the cap,)close the flap. Wh
en the fuel tank minimum level is reached this warning lamp comes on
on the instrument panel. When it firstcomes on there remains approximately 5 litres
of fuel in the tank.
You must refuel as soon as possible to avoid running out of fuel.
If you run out of fuel (Diesel), refer also to the
"Checks" section.
With Stop & Star t, never refuel with the system in STOP mode; you must switch off the ignition with the key.
