In order to use the system properly, refer to the following table when you have to change wheels/tyres:OperationSensors on wheels fitted
on car Failure indication
Action necessary
– –YESContact a dedicated Alfa
Romeo Dealership
Wheel change with winter
tyres NO
YESContact a dedicated Alfa
Romeo Dealership
Wheel change with winter
tyres YES
NO –
Wheel change with others of
a different size (*) YES
NO –(*)Given as an alternative in the Owner Handbook as well as in the Registration Document; available from Lineaccessori Alfa Romeo.
54
GETTING TO KNOW YOUR CAR
24-9-2013 11:49 Pagina 54

WARNING
46) The presence of the TPMS doesnot permit the driver to neglect
regular checks of the tyre
pressure, including for the spare
wheel.
47) Tyre pressure must be checked with tyres rested and cold. Should
it become necessary for whatever
reason to check pressure with
warm tyres, do not reduce
pressure even though it is higher
than the prescribed value. Repeat
the check when the tyres are
cold.
48) Should one or more wheels be fitted without sensors, the system
will no longer be available and,
in addition to the TPMS warning
light flashing for less than one
minute before becoming constant,
a warning message will be shown
on the display, until 4 wheels
with sensors are fitted again. 49) The TPMS cannot warn of
sudden decreases in tyre pressure
(for example when a tyre bursts).
In this case, stop the car, braking
with caution and avoiding abrupt
steering.
50) Replacing standard tyres with winter tyres (and vice versa)
requires TPMS adjustment that
must only be performed by a
dedicated Alfa Romeo Dealership.
51) Changes in outside temperature may cause tyre pressures to vary.
The TPMS system may
temporarily indicate insufficient
pressure. In this case, check the
tyre pressure when cold and, if
necessary, restore the inflation
values.
52) When a tyre is removed, it is advisable to replace the rubber
valve seal as well: contact a
dedicated Alfa Romeo Dealership.
Tyre and/or rim fitting/removal
operations require specific
precautions; to avoid damaging or
fitting the sensors incorrectly,
tyre and/or rim fitting/removal
operations should only be carried
out by specialised staff. Contact
a dedicated Alfa Romeo
Dealership. 53) Strong radio-frequency
interference could inhibit the
regular operation of the TPMS.
This condition will be indicated by
a message on the display. The
message will disappear
automatically as soon as the
radio-frequency interference
ceases to affect the system.
54) The tyre repair kit (Fix&Go) provided with the car (for
versions/markets, where
provided) is compatible with the
TPMS sensors; using sealants not
equivalent with that in the original
kit may adversely affect its
operation. If sealants not
equivalent with the original one
are used, it is recommended to
have the TPMS sensors checked
by a qualified repair centre.
55
24-9-2013 11:49 Pagina 55

REFUELLING THE
CAR
IN BRIEF
The car features the "Fast Fuel"
system, which prevents refuelling
with incorrect fuels (e.g. diesel for a
petrol engine).
Stop the engine before refuelling.
Only refuel with unleaded petrol with
octane rating (RON) not less than
95, in compliance with the European
specification EN228. In particular,
the 4C’s engine has been designed
to comply with all emission limits
while simultaneously guaranteeing
minimal consumption and maximum
performance, using premium-quality
unleaded petrol with octane rating
(RON) of 98 or higher.
In order to prevent damage to the
catalytic converter never introduce
even the smallest amount of leaded
petrol, even in the event of an
emergency.
IMPORTANT An inefficient catalytic
converter leads to harmful exhaust
emissions, thus contributing to air
pollution. IMPORTANT Never introduce leaded
petrol to the tank, even in small
amounts in an emergency, as this
would damage the catalytic converter
beyond repair.
FILLING THE TANK
To ensure that you fill the tank
completely, top up twice after the first
click of the fuel supply gun. Avoid
further top-ups, which could cause
faults in the fuel supply system.
REFUELLING
PROCEDURE
The car features a "Fast Fuel" device,
integrated with the opening for the fuel
tank: it opens and recloses
automatically when the fuel supply gun
is inserted/removed.
The "Fast Fuel" device is provided with
an inhibitor which prevents refuelling
with incorrect fuel.
The refuelling procedure described
below is illustrated on the label fig. 56
located inside the fuel flap. The label
also indicates the fuel type (UNLEADED
FUEL=petrol).
Procedure
❒
open flap A fig. 57, pulling it
outwards;
❒ introduce the dispenser in the filler
and refuel;
❒ after refuelling, before removing the
dispenser, wait for at least 10
seconds in order for the fuel to flow
inside the tank;
❒ then remove the dispenser from the
filler and close flap A.
Flap A fig. 57 is provided with a dust
cover gaiter B which prevents deposits
of impurities and dust at the end of
the filler when the flap is closed.
55) 56) 57)
56
A0L0045
56
GETTING TO KNOW YOUR CAR
24-9-2013 11:49 Pagina 56

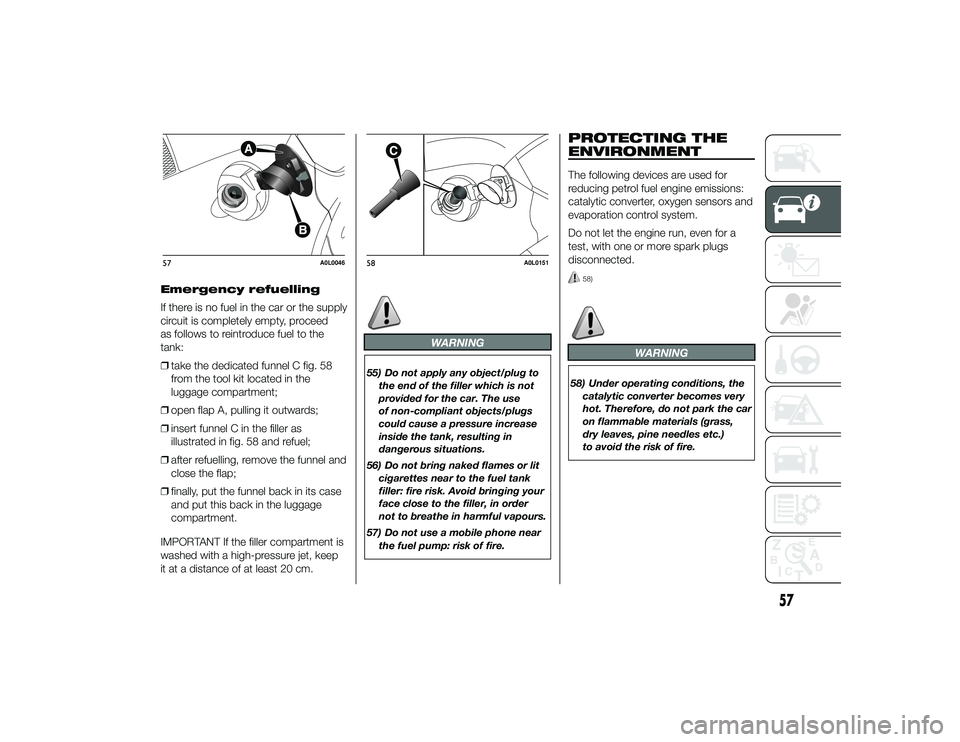

Emergency refuelling
If there is no fuel in the car or the supply
circuit is completely empty, proceed
as follows to reintroduce fuel to the
tank:
❒take the dedicated funnel C fig. 58
from the tool kit located in the
luggage compartment;
❒ open flap A, pulling it outwards;
❒ insert funnel C in the filler as
illustrated in fig. 58 and refuel;
❒ after refuelling, remove the funnel and
close the flap;
❒ finally, put the funnel back in its case
and put this back in the luggage
compartment.
IMPORTANT If the filler compartment is
washed with a high-pressure jet, keep
it at a distance of at least 20 cm.
WARNING
55) Do not apply any object/plug to the end of the filler which is not
provided for the car. The use
of non-compliant objects/plugs
could cause a pressure increase
inside the tank, resulting in
dangerous situations.
56) Do not bring naked flames or lit cigarettes near to the fuel tank
filler: fire risk. Avoid bringing your
face close to the filler, in order
not to breathe in harmful vapours.
57) Do not use a mobile phone near the fuel pump: risk of fire.
PROTECTING THE
ENVIRONMENTThe following devices are used for
reducing petrol fuel engine emissions:
catalytic converter, oxygen sensors and
evaporation control system.
Do not let the engine run, even for a
test, with one or more spark plugs
disconnected.
58)
WARNING
58) Under operating conditions, thecatalytic converter becomes very
hot. Therefore, do not park the car
on flammable materials (grass,
dry leaves, pine needles etc.)
to avoid the risk of fire.
57
A0L0046
58
A0L0151
57
24-9-2013 11:49 Pagina 57

58
This page is intentionally left blank
24-9-2013 11:49 Pagina 58
