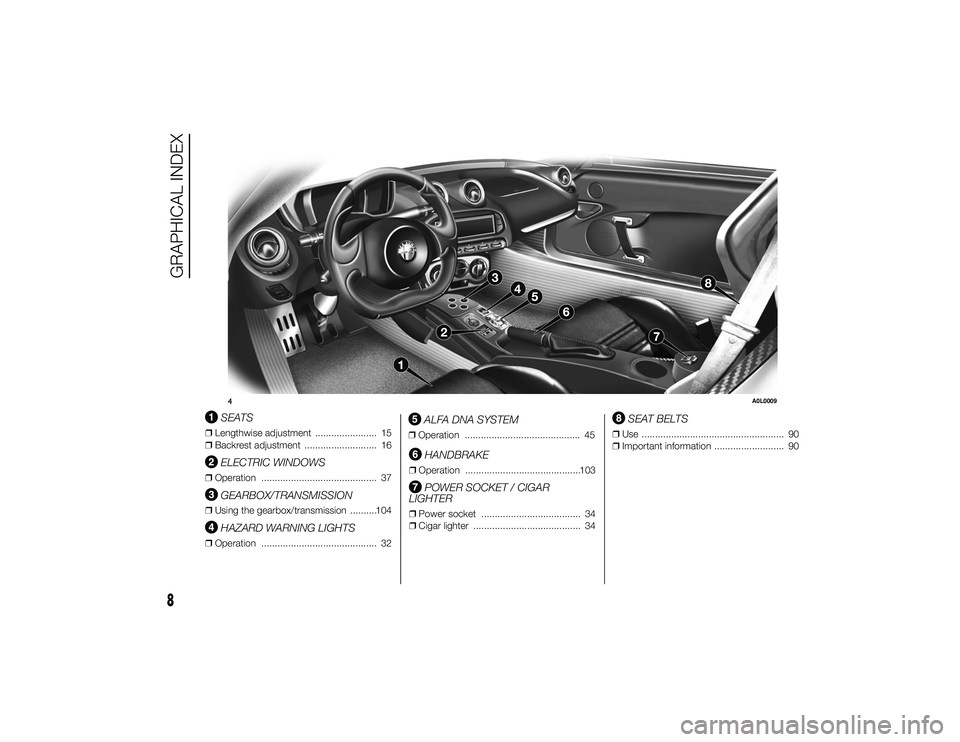

SEATS
❒Lengthwise adjustment ....................... 15
❒ Backrest adjustment ........................... 16
ELECTRIC WINDOWS
❒Operation ........................................... 37
GEARBOX/TRANSMISSION
❒Using the gearbox/transmission ..........104
HAZARD WARNING LIGHTS
❒Operation ........................................... 32
ALFA DNA SYSTEM
❒Operation ........................................... 45
HANDBRAKE
❒Operation ...........................................103
POWER SOCKET / CIGAR
LIGHTER
❒ Power socket ..................................... 34
❒ Cigar lighter ........................................ 34
SEAT BELTS
❒Use ..................................................... 90
❒ Important information .......................... 90
4
A0L0009
8
GRAPHICAL INDEX
24-9-2013 11:49 Pagina 8

GETTING TO KNOW YOUR CAR
In-depth knowledge of your new car
starts here.
The booklet that you are reading simply
and directly explains how it is made
and how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see what is described here for
yourself.SYMBOLS ...................................... 10
ALFA ROMEO CODE SYSTEM ....... 10
THE KEYS....................................... 11
ALARM ........................................... 13
IGNITION SWITCH .......................... 14
SEATS ............................................ 15
STEERING WHEEL ......................... 17
REAR VIEW MIRRORS .................... 18
CLIMATE CONTROL ....................... 19
CLIMATIC COMFORT ..................... 20
HEATING AND VENTILATION.......... 21
MANUAL CLIMATE CONTROL........ 24
EXTERIOR LIGHTS ......................... 2
WINDOW CLEANING ...................... 28
CRUISE CONTROL ......................... 29
ROOF LIGHT................................... 31
CONTROLS .................................... 32
INTERIOR FITTINGS ....................... 33
DOORS ........................................... 36
ELECTRIC WINDOWS .................... 37
LUGGAGE COMPARTMENT /
BONNET ......................................... 38
HEADLIGHTS.................................. 40
ESC (ELECTRONIC STABILITY
CONTROL) SYSTEM ....................... 41
“ALFA DNA” SYSTEM (DYNAMIC
CAR CONTROL SYSTEM)............... 45 EOBD SYSTEM (EUROPEAN ON
BOARD DIAGNOSIS) ...................... 48
RADIO SYSTEM .............................. 49
ACCESSORIES PURCHASED BY
THE OWNER .................................. 49
PARKING SENSORS....................... 50
TPMS (TYRE PRESSURE
MONITORING SYSTEM) ................. 53
REFUELLING THE CAR .................. 56
PROTECTING THE
ENVIRONMENT .............................. 57
9
24-9-2013 11:49 Pagina 9
7

SYMBOLSSome car components have coloured
labels whose symbols indicate
precautions to be observed when using
this component. Under the bonnet
there is also a label that summarises all
the symbols.
ALFA ROMEO CODE
SYSTEM
IN BRIEF
This is an electronic engine locking
system which increases protection
against attempted thefts of the car. It
is automatically activated when the
ignition key is removed.
There is an electronic device in each
key which can identify the signal
emitted, when the engine is started,
from an aerial built into the ignition
switch. The signal, which changes
each time the engine is started, is the
“password”, by means of which the
control unit recognises the key and
enables starting.
1)
Operation
Each time the car is started by turning
the ignition key to MAR-ON, the Alfa
Romeo CODE system control unit
sends an acknowledgement code to
the engine management control unit to
deactivate the inhibitor.
The code is sent only if the Alfa Romeo
CODE system control unit has
recognised the code transmitted by the
key. Each time the ignition key is turned to
STOP, the Alfa Romeo CODE system
deactivates the functions of the engine
management control unit.
Irregular operation
If, during starting, the code is not
correctly recognised, the
digital
warning light switches on in the display.
In this case, turn the key to STOP and
then to MAR-ON; if it is still locked,
try again with the other keys that come
with the vehicle. If it is still not possible
to start the engine, contact the
dedicated Alfa Romeo Dealership.
Activation of warning
light while driving
❒ If the
digital warning light on the
display switches on, this means that
the system is running a self-diagnosis
(for example due to a voltage drop).
❒ If thedigital warning light remains
on, contact the dedicated Alfa
Romeo Dealership.
10
GETTING TO KNOW YOUR CAR
24-9-2013 11:49 Pagina 10

IMPORTANT
1) The electronic components insidethe key may be damaged if the
key is subjected to sharp knocks.
In order to ensure complete
efficiency of the electronic
devices inside the key, it should
never be exposed to direct
sunlight.
THE KEYSKEY WITHOUT REMOTE
CONTROL
Operation
The metal insert A fig. 5 operates:
❒the ignition switch;
❒ the door lock.
KEY WITH REMOTE
CONTROL
Operation
(for versions/markets, where provided)
The metal insert A fig. 6 operates:
❒ the ignition switch;
❒ the door lock.
Press button B to open/close the metal
insert.
1)
Door unlocking
Briefly press button
: unlocking of
doors, timed switching on of internal
roof light and double flashing of
direction indicators (for versions/
markets, where provided).
The doors are unlocked automatically if
the fuel cut-off system intervenes.
If when locking the doors, one or more
doors are not closed correctly, the
LED flashes quickly together with the
direction indicators.
Door locking
Briefly press button: locking of
doors, switching off of internal roof light
and single flashing of direction
indicators (for versions/markets, where
provided).
5
A0L0005
6
A0L0006
11
24-9-2013 11:49 Pagina 11

If one or more door are open, the doors
will not be locked. This is indicated by
a rapid flashing of the direction
indicators (for versions/markets, where
provided). The doors will be locked if
the tailgate is open however.
When a speed of more than 20 km/h is
reached, the doors will be locked
automatically if this specific function
was set.
When the doors are locked from
outside the car (using the remote
control), LED A fig. 7 will switch on for a
few seconds and then start flashing
(deterrent function).
When the doors are locked from inside
the car (by pressing the
button
on the dashboard) the LED will remain
on constantly. REQUESTING
ADDITIONAL REMOTE
CONTROLS
The system can recognise up to 8
remote controls. Should a new remote
control be necessary, go to the
dedicated Alfa Romeo Dealership,
taking an ID document and the car
ownership documents.
REPLACING THE
BATTERY IN THE KEY
WITH REMOTE CONTROL
Procedure
❒
press button A fig. 8 and move the
metal insert B to opening position;
turn screw C to
using a fine
bit screwdriver;
❒ remove battery compartment D and
replace battery E, respecting the
polarity; reinsert compartment D in
the key and secure it by turning
screw C to
.
1)
WARNING
1) Press button B fig. 6 only with the
key away from your body,
especially your eyes and from
objects which could get damaged
(e.g. your clothes). Do not leave
the key unattended, to prevent
people, especially children, from
inadvertently pressing the button.
7
A0L0007
8
A0L0008
12
GETTING TO KNOW YOUR CAR
24-9-2013 11:49 Pagina 12

IMPORTANT
1) Used batteries may be harmful tothe environment if not disposed of
correctly. They must be disposed
of as specified by law in the
special containers or taken to the
dedicated Alfa Romeo Dealership,
which will take care of their
disposal.
ALARM(for versions/markets, where provided)
Operation
The alarm activates in the following
cases:
❒wrongful opening of one of the doors
or the tailgate (perimeter protection);
❒ wrongful operation of the ignition
switch (key turned to MAR-ON);
❒ cutting of the battery leads;
❒ movement inside the passenger
compartment (volumetric protection);
❒ anomalous lifting/tilting of the car.
Operation of the alarm is indicated by
an acoustic and visual signal (flashing of
the direction indicators for several
seconds). The alarm activation modes
may vary according to the market.
There is a maximum number of
acoustic/visual cycles. When this is
reached the system returns to normal
operation.
IMPORTANT The engine locking
function is guaranteed by the Alfa
Romeo CODE, which is automatically
activated when the key is extracted
from the ignition switch.
IMPORTANT The alarm is adapted to
meet requirements in various countries. Activation
With the doors and tailgate closed and
the ignition key either turned to STOP
or removed, point the key with remote
control towards the car then press
and release the
button.
For versions/markets, where provided,
the system emits an acoustic signal
and activates door locking.
A self-diagnosis stage lasting
approximately 30 seconds precedes
the activation of the alarm: during this,
the LED flashes on the dashboard at
a frequency of about one flash per
second.
After the self-diagnosis stage, the LED
flashes at a lower frequency (one flash
every 3 seconds approx.).
If, after the alarm is switched on, a
second acoustic signal is emitted
and/or a visual signal via the LED on
the dashboard, wait about 4 seconds
and switch off the alarm by pressing the
button, check that the doors and
tailgate are closed correctly and then
reactivate the system by pressing
the
button.
If the alarm emits an acoustic signal
even when the doors and tailgate are
closed correctly, a system malfunction
has occurred: in this case, contact a
dedicated Alfa Romeo Dealership.
13
24-9-2013 11:49 Pagina 13
