SCHEDULED
SERVICINGCorrect servicing is essential in
guaranteeing a long life for the car
under the best conditions.
This is why Alfa Romeo has
programmed a series of checks and
servicing operations every 20,000 km.
Check the items on the Scheduled
Servicing Plan (e.g. periodically check
level of liquids, tyre pressure, etc.)
before 20.000 km and between these
services deadlines.Scheduled Servicing is offered by the
dedicated Alfa Romeo Dealership
at predefined intervals. If, during each
operation, in addition to the ones
scheduled, the need arises for further
replacements or repairs, these may
be carried out only with your explicit
agreement.
IMPORTANT
2000 km before the maintenance is
due, a dedicated message appears on
the display, along with
warning
light. The Scheduled Servicing services are
set out by the Manufacturer. Failure
to have them carried out may invalidate
the warranty.
It is advisable to inform the dedicated
Alfa Romeo Dealership of any small
operating irregularities without waiting
for the next service.
134
SERVICING AND MAINTENANCE
24-9-2013 11:50 Pagina 134

SCHEDULED SERVICING PLAN1750 Turbo Petrol VERSIONSThousands of kilometres20 40 60 80 100 120
Months 12 24 36 48 60 72
Check battery charge status and recharge if necessary ●●●●●●
Check tyre conditions/wear and adjust pressure, if required ●●●●●●
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, luggage compartment,
passenger compartment, glove compartment, instrument panel
warning lights, etc.) ●●●●●●
Check vehicle fastenings ●●●
Check mechanical components fastenings ●●●●●●
Check operation of windscreen wiper/washer system and adjust
jets, if necessary ●●●●●●
Check position/wear of windscreen wiper blade ●●●●●●
Check cleanliness of boot lock, cleanliness and lubrication of
linkages ●●●●●●
Visually inspect condition of: exterior bodywork, carbon
monocoque, aerodynamic bottom, pipes and hoses (exhaust, fuel
supply system, brakes), rubber elements (boots, driveshaft boots,
sleeves, bushes, etc.) ●●●●●●
Check condition and wear of front brake pads and discs, and
operation of pad wear indicator ●●●●●●
135
24-9-2013 11:50 Pagina 135

Thousands of kilometres20 40 60 80 100 120
Months 12 24 36 48 60 72
Check condition and wear of rear brake pads and discs, and
operation of pad wear indicator ●●●●●●
Check and, if necessary, top-up fluid levels (engine cooling,
brakes, windscreen washer, etc.) ●●●●●●
Visually inspect condition of the accessory drive belt(s) ●
Inspect the conditions of toothed timing drive belt ●
Check handbrake lever travel and adjust, if necessary (or every 12
months) ●●●●●●
Check exhaust emissions/smokiness ●●●
Check engine control system operation (through diagnosis socket) ●●●●●●
Check and possible top up of oil level for the dual clutch
automatic transmission ●
Replace spark plugs (#) ●●
Replace accessory drive belt(s) ●
Replace toothed timing drive belt (*) ●(#) The following are essential to ensure correct operation and prevent serious damage to the engine: only use spark plugs of the same make and type which are
specially certified for such engines (see the information in the “Engine” paragraph in the “Technical specifications” section); strictly comply with the spark plug
replacement interval given in the Scheduled Servicing Plan; for spark plug replacement, it is advisable to contact the dedicated Alfa Romeo Dealership.
(*) Irrespective of the mileage, the timing drive belt must be changed every 4 years for heavy-duty use (cold climates, town use, long periods of idling) or at least every 5 years.
136
SERVICING AND MAINTENANCE
24-9-2013 11:50 Pagina 136

Thousands of kilometres20 40 60 80 100 120
Months 12 24 36 48 60 72
Replace the air cleaner cartridge ●●●●●●
Change engine oil and replace oil filter (**)
Change brake fluid (or every 24 months) ●●●(**) The actual interval for changing the oil and replacing the engine oil filter depends on the vehicle usage conditions and is signalled by the warning light or
message (if present) on the instrument panel or every 12 months.
137
24-9-2013 11:50 Pagina 137

PERIODIC CHECKSEvery 1,000 km or before long
journeys, check and, if necessary, top
up the following:
❒engine coolant level;
❒ brake fluid;
❒ screen washer fluid;
❒ tyre inflation pressure and condition;
❒ operation of lighting system
(headlamps, direction indicators,
hazard warning lights, etc.);
❒ operation of screen washing/wiping
system and positioning/wear of
wiper blade.
Every 3,000 km, check and top up if
required: engine oil level.
HEAVY-DUTY USE OF
THE CARIf the car is used mainly under one of
the following conditions:
❒ if the car is used under demanding
conditions, e.g. on track;
❒ dusty roads;
❒ short, repeated journeys (less than
7–8 km) at sub-zero outside
temperatures;
❒ engine often idling or driving long
distances at low speeds or long
periods of inactivity;
the following checks must be carried
out more often than indicated in the
Scheduled Servicing Plan:
❒ check of front and rear disc brake
pad condition and wear;
❒ check cleanliness of tailgate locks,
cleanliness and lubrication of linkage;
❒ visually inspect conditions of: engine,
gearbox, transmission, pipes and
hoses (exhaust - fuel system -
brakes) and rubber elements (boots -
sleeves - bushes - etc.);
❒ check battery charge and battery
fluid level (electrolyte);
❒ visually inspect condition of the
accessory drive belts; ❒
check and, if necessary, change
engine oil and replace oil filter;
❒ check and, if necessary, replace air
cleaner.
Using the car on track should be
regarded as an exception. The car has
been designed and produced for road
use.
138
SERVICING AND MAINTENANCE
24-9-2013 11:50 Pagina 138

CHECKING LEVELS.The topping-up plug B and the dipstick A for checking the engine oil level and the reservoir C for the engine coolant can be
accessed by lifting the tailgate (see the procedure in the "Bonnet/Luggage Compartment" paragraph in the "Knowing your car"
chapter).
19)113) 114) 115)110
A0L0152
139
24-9-2013 11:50 Pagina 139

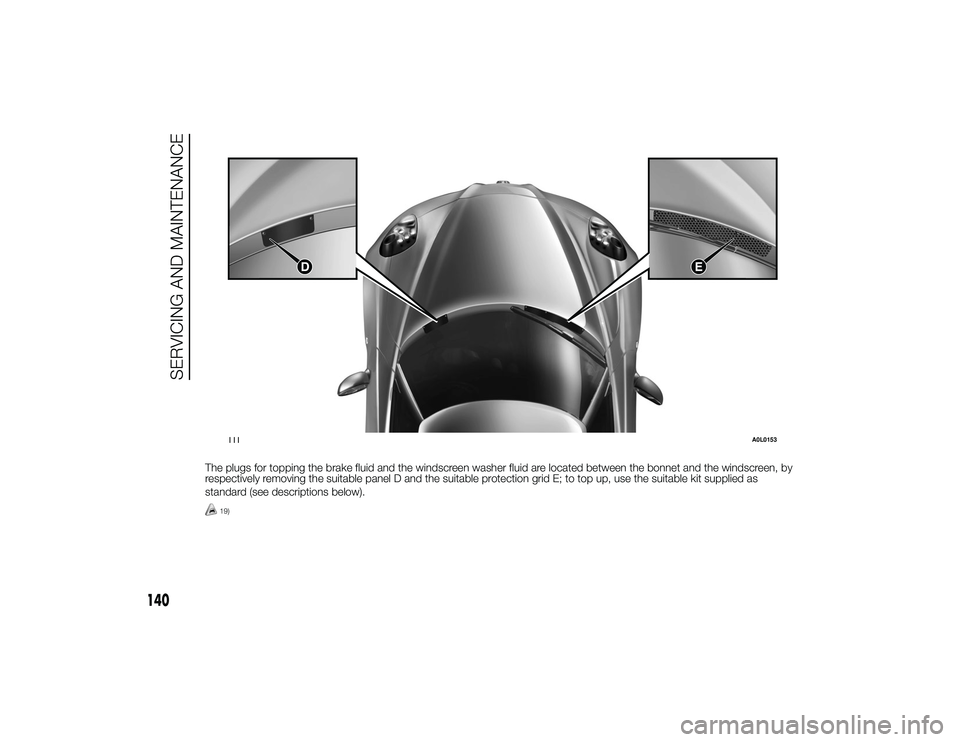

The plugs for topping the brake fluid and the windscreen washer fluid are located between the bonnet and the windscreen, by
respectively removing the suitable panel D and the suitable protection grid E; to top up, use the suitable kit supplied as
standard (see descriptions below).
19)111
A0L0153
140
SERVICING AND MAINTENANCE
24-9-2013 11:50 Pagina 140

ENGINE OIL
Check that the oil level is between the
MIN and MAX marks on the dipstick
A fig. 110.
For this check, take out the dipstick
from its seat, clean it with a lint-free
cloth, reinsert the dipstick; take it out
again and check the oil level.
116)
If the oil level is near or under the MIN
mark, add oil through the filler B fig.
110 until it reaches the MAX mark.
20)
Take out the engine oil dipstick A, clean
it with a lint-free cloth and reinsert it.
Extract the engine oil dipstick again and
check that the level is between the
MIN and MAX marks on the dipstick.
116)
The range between the MIN and MAX
levels corresponds to approximately
1 litre of oil.
Engine oil consumption
21)
3)
The maximum engine oil consumption
is usually 400 grams every 1,000 km.
When the car is new, the engine needs
to run in, therefore the engine oil
consumption can only be considered
stabilised after the first 5,000 - 6,000
km.IMPORTANT After adding or changing
the oil, let the engine run for a few
seconds and wait a few minutes after
stopping it before you check the level.
ENGINE COOLANT
22)
117)
The coolant level must be checked
when the engine is cold and must
range between the MIN and MAX
marks on the reservoir.
If the level is too low, unscrew reservoir
plug C fig. 110 and add the fluid
described in the "Fluids and lubricants"
paragraph of the "Technical
Specifications" chapter.
WINDSCREEN WASHER
FLUID
118) 119)
To check the windscreen washer fluid
level, proceed as follows:
❒
to avoid any interference during the
procedure, lift the windscreen wiper
blade according to the "Windscreen
wiper" paragraph in the
"Maintenance and care" chapter;
❒ loosen the 4 self-tapping screws A
fig. 112 using the supplied
screwdriver. Remove the bonnet
grille;
❒ release the plug from the opening; ❒
leaving the plug close to the opening,
put a finger on the central hole B fig.
113 in the plug and remove it: the
level can be seen on the control pipe
C fig. 114 due to capillarity;
❒ after the check, reinsert the plug B
with the control pipe C in the initial
position;
❒ reposition the bonnet grille and
tighten the 4 self-tapping screws A.
WARNING Re-close the plug holding it
horizontally (not directed towards the
bonnet) to prevent the opening tang
from remaining locked in a position
difficult to reach.
It is recommended to check the
windscreen washer fluid regularly, in
particular in driving conditions needing
a heavier use of the windscreen washer.
112
A0L0130
141
