PRESERVING THE
BODYWORK
Paintwork
5)
27) 28)
Touch up abrasions and scratches
immediately.
Maintenance of paintwork consists of
washing the car: the frequency
depends on the conditions and
environment where the car is used. For
example, in highly polluted areas, or if
the roads are spread with salt, it is
advisable to wash the car more
frequently.
To correctly wash the car, proceed as
follows:
❒if high pressure jets or cleaners are
used to wash the car, keep a
distance of at least 40 cm from the
bodywork to avoid damage or
alteration. It should be remembered
that the build up of water can
damage the car over a period of
time;
❒ wash the bodywork using a low
pressure jet of water;
❒ wipe a sponge with a slightly soapy
solution over the bodywork,
frequently rinsing the sponge;
❒ rinse well with water and dry with a
jet of air or a chamois leather. Dry the less visible parts (e.g. door
frames, bonnet, headlight frames, etc.)
with special care, as water may
stagnate more easily in these areas.
The car should not be taken to a closed
area immediately, but left outside so
that residual water can evaporate.
Do not wash the car after it has been
left in the sun or with the tailgate hot:
this may alter the shine of the
paintwork.
Exterior plastic parts must be cleaned
in the same way as the rest of the car.
Avoid parking under trees as much
as possible; the resin from trees dulls
the paintwork.
IMPORTANT Bird droppings must be
washed off immediately and thoroughly
as the acid they contain is particularly
aggressive.
Windows
Use specific detergents and clean
cloths to prevent scratching or altering
the transparency.
Front headlights
Use a soft cloth soaked in water and
detergent for washing cars.
IMPORTANT Never use aromatic
substances (e.g. petrol) or ketenes (e.g.
acetone) for cleaning the plastic lenses
of the front headlights.
Engine compartment
At the end of the winter the engine
compartment should be carefully
washed, without directing the
jet against any electronic control unit.
Have this operation performed at a
specialised workshop.
IMPORTANT The washing should take
place with the engine cold and the
ignition key in the STOP position. After
the washing operation, make sure
that the various protections (e.g. rubber
caps and guards) have not been
removed or damaged.
150
SERVICING AND MAINTENANCE
24-9-2013 11:50 Pagina 150

IMPORTANT
5) Detergents cause water pollution.Only wash your car in areas
equipped to collect and treat
wastewater from this type
of activity.
IMPORTANT
27) In order to preserve the aestheticappearance of the paint abrasive
products and/or polishes should
not be used for cleaning the car.
28) Avoid washing with water cannons, rollers and/or brushes in
washing stations. Then, wash
the car, only by hand, using
pH-neutral detergents; dry it with
a wet chamois leather.
INTERIORS
132) 133)
Periodically check the cleanliness of the
interior, beneath the mats, also to
prevent damage to carbon parts.
To remove and reposition the mats in
the passenger compartment, proceed
as follows:
❒undo the screws with folding ring A
fig. 123, driver side and passenger
side;
❒ separate the Velcro fabric strips B in
the front area under the mats, lifting
them from the floor.
Reposition the mats on the floor,
making sure that the holes at the back
of the mats coincide with the screw
housings on the floor.
To reposition, proceed as follows: ❒
tighten the screws with folding ring A
fig. 123 in the housings on the floor;
❒ unite the Velcro fabric strips of the
mats with those on the floor, taking
care to apply light pressure and
ensure that the fastening is efficient.
134)
SEATS AND FABRIC OR
MICROFIBRE PARTS
Remove dust with a soft brush or a
vacuum cleaner. For better cleaning of
microfibre trim (including the steering
wheel, for versions/markets, where
provided) we advise you to moisten the
brush. Rub the seats with a sponge
moistened with a solution of water and
neutral detergent.
LEATHER SEATS
(for versions/markets, where provided)
Remove the dry dirt with a chamois
or slightly damp cloth, without exerting
too much pressure. Remove any liquid
or grease stains using an absorbent
dry cloth, without rubbing. Then clean
with a soft cloth or chamois moistened
with water and mild soap. If the stain
persists, use specific products and
observe the instructions carefully.
123
A0L0143
151
24-9-2013 11:50 Pagina 151

IMPORTANT Never use alcohol. Make
sure that the cleaning products used
contain no alcohol or alcohol
derivatives, even in small quantities.
PLASTIC AND COATED
PARTS
Clean interior plastic parts with a damp
cloth (if possible made from microfibre),
and a solution of water and neutral,
non-abrasive detergent. To clean oily or
persistent stains, use specific products
free from solvents and designed to
maintain the original appearance and
colour of the components.
Remove any dust using a microfibre
cloth, if necessary moistened with
water. The use of paper tissues is not
recommended as these may leave
residues.
IMPORTANT Do not use alcohol,
petrols or derivatives to clean
the instrument panel display.LEATHER PARTS
(for versions/markets, where provided)
Use only water and neutral soap to
clean these parts. Never use alcohol or
alcohol-based products. Before using
a specific product for cleaning interiors,
make sure that it does not contain
alcohol and/or alcohol based
substances.
WARNING
132) Never use flammable products,
such as petroleum ether or
modified petrol, to clean the
inside of the car. The electrostatic
charges which are generated by
rubbing during the cleaning
operation may cause a fire.
133) Do not keep aerosol cans in the car: they might explode. Aerosol
cans must not be exposed to
temperatures above 50°C.
Temperatures may greatly exceed
this value inside a car exposed
to direct sunlight. 134) There should be no obstacles
on the floor underneath the
pedals; make sure that mats are
always flat and do not interfere
with the pedals.
152
SERVICING AND MAINTENANCE
24-9-2013 11:50 Pagina 152

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your car is made
and works is contained in this chapter
and illustrated with data, tables and
graphics. For the enthusiasts and the
technician, but also just for those who
want to know every detail of their
car.IDENTIFICATION DATA....................154
ENGINE CODES - BODY
VERSIONS ......................................156
ENGINE ..........................................157
FUEL SUPPLY .................................158
TRANSMISSION .............................159
BRAKES .........................................160
SUSPENSION .................................161
STEERING ......................................162
WHEELS .........................................163
DIMENSIONS ..................................167
PERFORMANCE .............................168
WEIGHTS .......................................169
REFUELLING ..................................170
FLUIDS AND LUBRICANTS ............171
FUEL CONSUMPTION ....................174
CO2 EMISSIONS ............................175
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................176
153
24-9-2013 11:50 Pagina 153

IDENTIFICATION
D ATAThe identification data of the car are:
❒VIN plate;
❒ Chassis marking;
❒ Bodywork paint identification plate;
❒ Engine marking.
VIN PLATE
This is located on the body behind the
driver side seat backrest and bears
the following data fig. 124:BType-approval number.CVehicle type identification code.DChassis serial number.EMaximum permitted weight of vehicle
fully laden.FMaximum authorised weight of
vehicle fully laden plus trailer.
GMaximum permitted weight on first
(front) axle.HMaximum permitted weight on
second (rear) axle.IEngine type.LBodywork version code.M
Number for spare parts.
NCorrect fume coefficient value.
CHASSIS
IDENTIFICATION
VIN (Vehicle
Identification Number)
plate
This is located on the dashboard at the
bottom of the windscreen fig. 125. Marking
Marking A fig. 126 is printed on the
passenger compartment floor panel,
near the passenger side seat.
The marking includes:
❒
type of vehicle;
❒ chassis serial number.
124
A0L0088
125
A0L0158
126
A0L0089
154
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 154

ENGINE MARKING
This is stamped on the cylinder block
and includes the type and the
manufacturing serial number.
127
A0L0090
155
24-9-2013 11:50 Pagina 155
BODYWORK PAINT
IDENTIFICATION PLATE
It is applied under the tailgate and
shows the following data fig. 127:
APaint manufacturer.
B Colour name.
C Colour code.
D Respray and touch up colour code.

ENGINE CODES - BODY VERSIONSVersionsEngine codeBody versions
1750 Turbo Petrol 960A1000960CXB1A 01
156
TECHNICAL SPECIFICATIONS
24-9-2013 11:50 Pagina 156

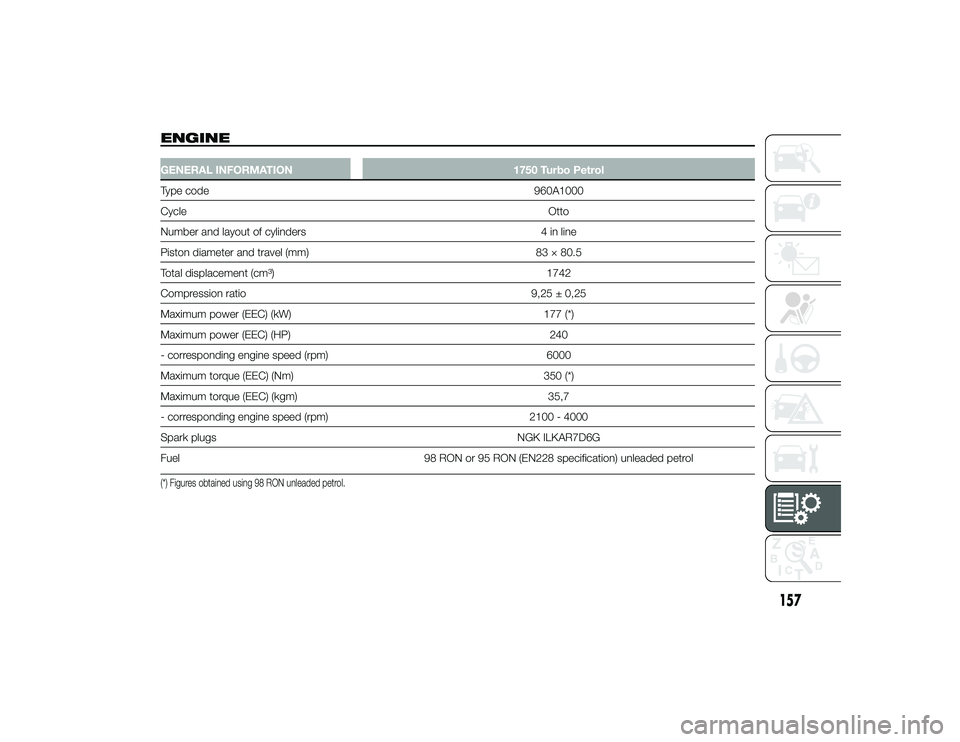

ENGINEGENERAL INFORMATION1750 Turbo Petrol
