2012 TOYOTA DYNA 100/150 Owners Manual (in English)

IN CASE OF AN EMERGENCY171

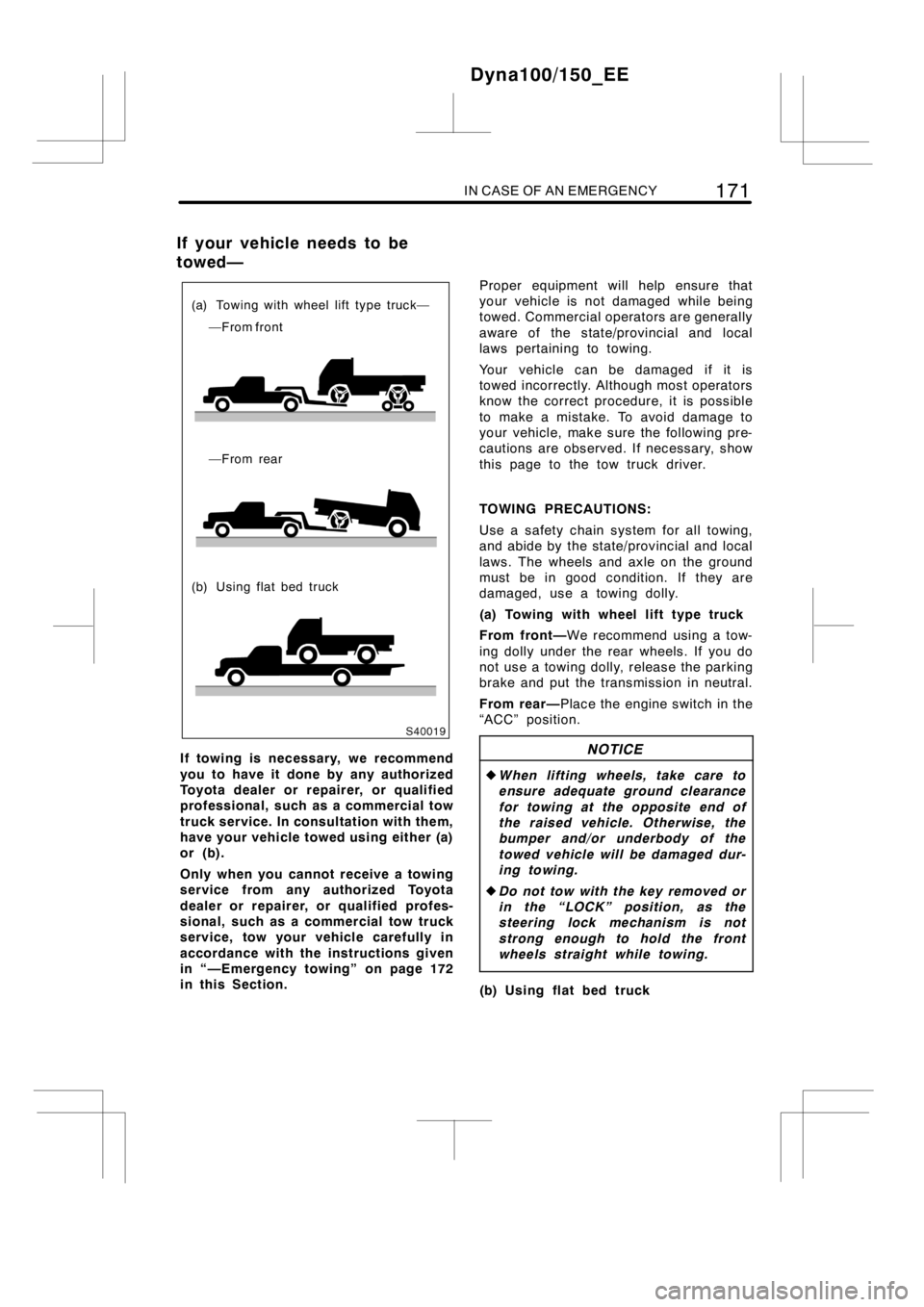

(a) Towing with wheel lift type truck—
—From front
—From rear
(b) Using flat bed truck
If towing is necessary, we recommend
you to have it done by any authorized
Toyota dealer or repairer, or qualified
professional, such as a commercial tow
truck service. In consultation with them,
have your vehicle towed using either (a)
or (b).
Only when you cannot receive a towing
service from any authorized Toyota
dealer or repairer, or qualified profes-
sional, such as a commercial tow truck
service, tow your vehicle carefully in
accordance with the instructions given
in “—Emergency towing” on page 172
in this Section.Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.
(a) Towing with wheel lift type truck
From front—We recommend using a tow-
ing dolly under the rear wheels. If you do
not use a towing dolly, release the parking
brake and put the transmission in neutral.
From rear—Place the engine switch in the
“ACC” position.NOTICE
zWhen lifting wheels, take care to
ensure adequate ground clearance
for towing at the opposite end of
the raised vehicle. Otherwise, the
bumper and/or underbody of the
towed vehicle will be damaged dur-
ing towing.
zDo not tow with the key removed or
in the “LOCK” position, as the
steering lock mechanism is not
strong enough to hold the front
wheels straight while towing.
(b) Using flat bed truck
Dyna100/150_EE
If your vehicle needs to be
towed—

172IN CASE OF AN EMERGENCY

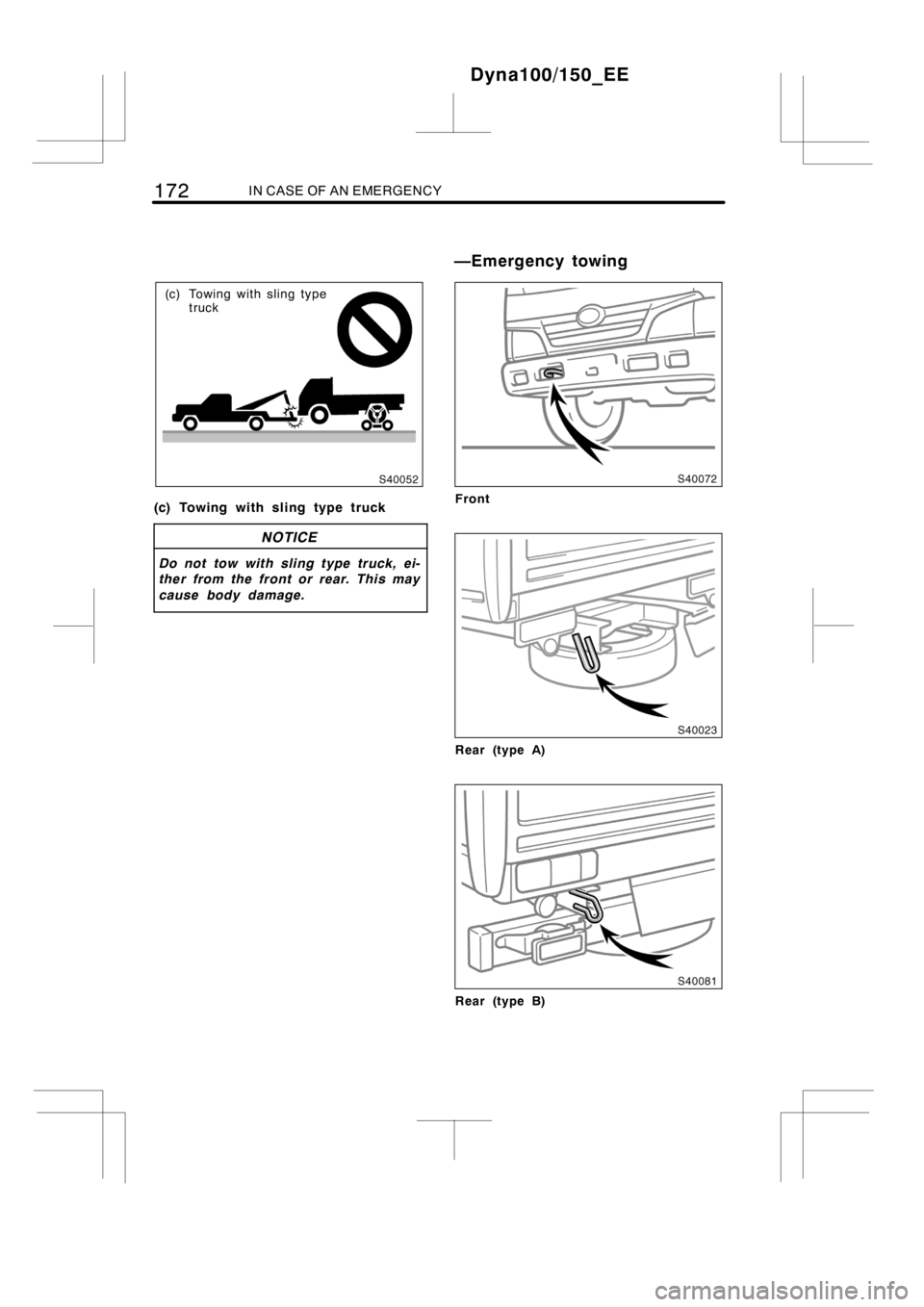

(c) Towing with sling type
truck
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
Front
Rear (type A)
Rear (type B)
Dyna100/150_EE
—Emergency towing

IN CASE OF AN EMERGENCY173
If towing is necessary, we recommend
you to have it done by any authorized
Toyota dealer or repairer, or qualified
professional, such as a commercial tow
truck service.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to one of the following parts:
Front: Front emergency towing hook
Rear: Rear emergency towing eyelet
Use extreme caution when towing the
vehicle.
NOTICE
Only use specified towing hook or
eyelet; otherwise your vehicle may be
damaged.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hard−surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing the
vehicle. Avoid sudden starts or errat-
ic driving maneuvers which would
place excessive stress on the emer-
gency towing hook or eyelet and tow-
ing cable or chain. The hook or eye-
let and towing cable or chain may
break and cause serious injury or
damage.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing hook or eyelet provided.
Before towing, release the parking brake
and put the transmission in neutral. The
engine switch must be in “ACC” (engine
off) or “ON” (engine running) position.
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
Dyna100/150_EE

174IN CASE OF AN EMERGENCY
DBefore emergency towing, check that
the hook or eyelet is not broken or
damaged and that the installation bolts
are not loose.
DFasten the towing cable or chain se-
curely to the hook or eyelet.
DDo not jerk the hook or eyelet. Apply
steady and even force.
DTo avoid damaging the hook or eyelet,
do not pull from the side or at a verti-
cal angle. Always pull straight ahead.You can purchase a new key at any
authorized Toyota dealer or repairer, or
another duly qualified and equipped
professional, if you can give them the
key number.
See the suggestion given in “Keys” on
page 12 in Section 1−2.
If your key is locked in the vehicle and
you cannot get a duplicate, many autho-
rized Toyota dealers, repairers or other
duly qualified and equipped professionals
can still open the door for you, using their
special tools. If you must break a window
to get in, we suggest breaking the side
window because it is the least expensive
to replace. Be extremely cautious to avoid
cuts from the glass.
Dyna100/150_EE
—Emergency towing hook or
eyelet precautionsIf you lose your keys

IN CASE OF AN EMERGENCY175
Only in an emergency, such as if it
becomes impossible to stop the vehicle
in the normal way, stop the vehicle us-
ing the following procedure:
1. Steadily step on the brake pedal with
both feet and firmly depress it. Do not
pump the brake pedal repeatedly as
this will increase the effort required to
slow the vehicle.
2. Shift the shift lever to neutral.
If the shift lever is shifted to neutral:
3. After slowing down, stop the vehicle in
a safe place by the road.
4. Stop the engine.
If the shift lever cannot be shifted to
neutral:
3. Keep depressing the brake pedal with
both feet to reduce vehicle speed as
much as possible.

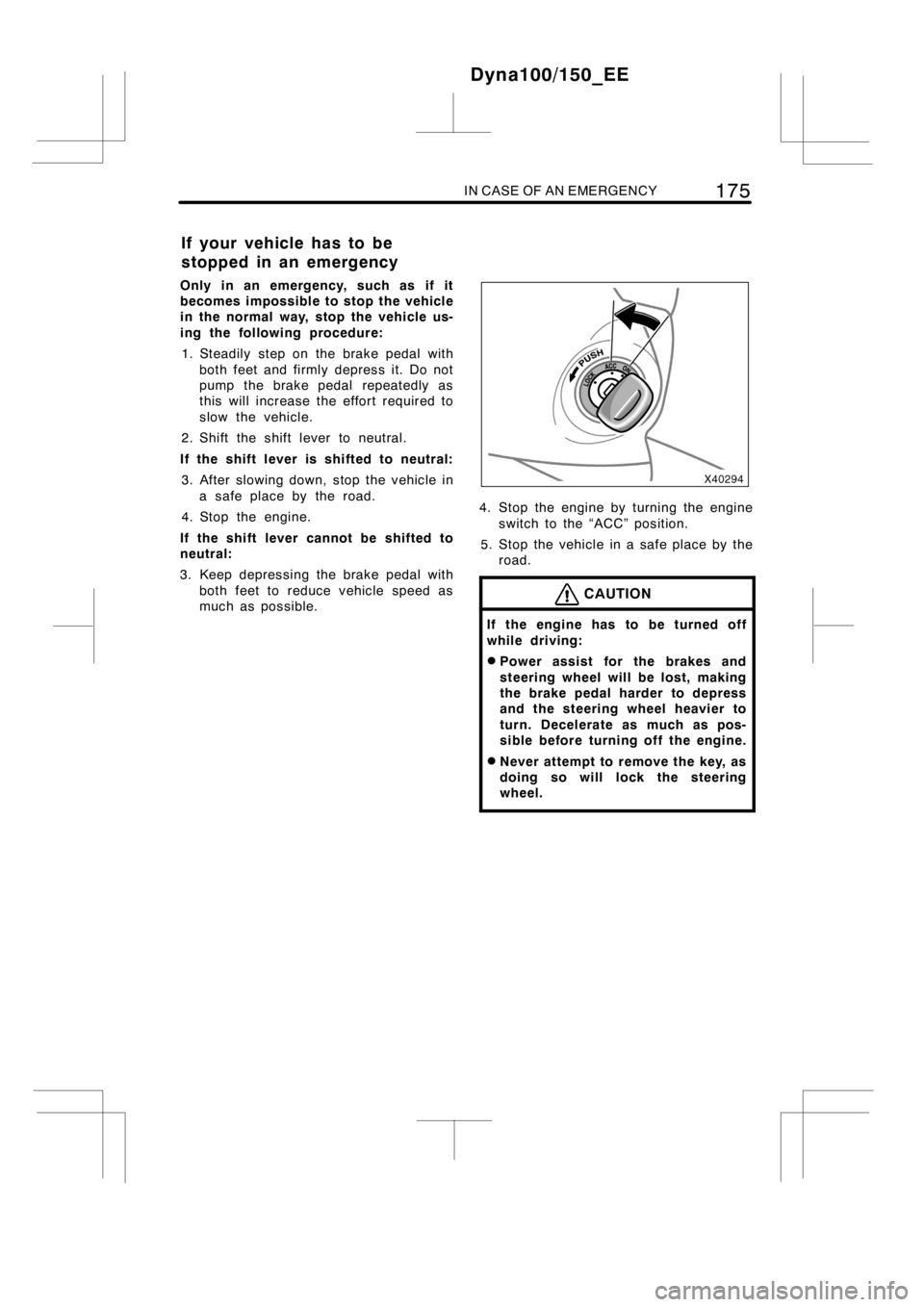

4. Stop the engine by turning the engine
switch to the “ACC” position.
5. Stop the vehicle in a safe place by the
road.
CAUTION
If the engine has to be turned off
while driving:
DPower assist for the brakes and
steering wheel will be lost, making
the brake pedal harder to depress
and the steering wheel heavier to
turn. Decelerate as much as pos-
sible before turning off the engine.
DNever attempt to remove the key, as
doing so will lock the steering
wheel.
Dyna100/150_EE
If your vehicle has to be
stopped in an emergency

176IN CASE OF AN EMERGENCY
Dyna100/150_EE

CORROSION PREVENTION AND APPEARANCE CARE177
Section 5
CORROSION PREVENTION AND
APPEARANCE CARE
DProtecting your Toyota from corrosion 178...............
DWashing and waxing your Toyota 179....................
DCleaning the interior 181...............................
Dyna100/150_EE

178CORROSION PREVENTION AND APPEARANCE CARE
Toyota, through the diligent research, de-
sign and use of the most advanced
technology available, helps prevent corro-
sion and provides you with the finest qual-
ity vehicle construction. Now, it is up to
you. Proper care of your Toyota can help
ensure long−term corrosion prevention.
The most common causes of corrosion
to your vehicle are:
DThe accumulation of road salt, dirt and
moisture in hard−to−reach areas under
the vehicle.
DChipping of paint, or undercoating
caused by minor accidents or by
stones and gravel.
Care is especially important if you live
in particular areas or operate your ve-
hicle under certain environmental condi-
tions:
DRoad salt or dust control chemicals will
accelerate corrosion, as will the pres-
ence of salt in the air near the sea−
coast or in areas of industrial pollution.
DHigh humidity accelerates corrosion es-
pecially when temperatures range just
above the freezing point.
DWetness or dampness to certain parts
of your vehicle for an extended period
of time, may cause corrosion even
though other parts of the vehicle may
be dry.
DHigh ambient temperatures can cause
corrosion to those components of the
vehicle which do not dry quickly due to
lack of proper ventilation.
The above signifies the necessity to keep
your vehicle, particularly the underside, as
clean as possible and to repair any dam-
age to paint or protective coatings as
soon as possible.To help prevent corrosion on your
Toyota, follow these guidelines:
Wash your vehicle frequently.It is, of
course, necessary to keep your vehicle
clean by regular washing, but to prevent
corrosion, the following points should be
observed:
DIf you drive on salted roads in the
winter or if you live near the ocean,
you should hose off the undercarriage
at least once a month to minimize cor-
rosion.
DHigh pressure water or steam is effec-
tive for cleaning the vehicle’s underside
and wheel housings. Pay particular
attention to these areas as it is difficult
to see all the mud and dirt. It will do
more harm than good to simply wet the
mud and debris without removing. The
lower edge of doors, rocker panels and
frame members have drain holes which
should not be allowed to clog with dirt
as trapped water in these areas can
cause corrosion.
DWash the underside of the vehicle thor-
oughly when winter is over.
See “Washing and waxing your Toyota” on
page 179 for more tips.
Check the condition of your vehicle’s
paint and trim.If you find any chips or
scratches in the paint, touch them up im-
mediately to prevent corrosion from start-
ing. If the chips or scratches have gone
through the bare metal, have a qualified
body shop make the repair.
Check the interior of your vehicle.Wa-
ter and dirt can accumulate under the
floor mats and could cause corrosion. Oc-
casionally check under the mats to make
sure the area is dry. Be particularly care-
ful when transporting chemicals, cleans-
ers, fertilizers, salt, etc.; these should be
transported in proper containers. If a spill
or leak should occur, immediately clean
and dry the area.
Dyna100/150_EE
Protecting your Toyota from
corrosion
