2012 TOYOTA DYNA 100/150 Owners Manual (in English)

OVERVIEW OF INSTRUMENTS AND CONTROLS3
1. Headlight and turn signal switches
2. Wiper and washer switches
3. DPF (Diesel Particulate Filter) system
manual regeneration switch
(If equipped)
4. Emergency flasher switch
5. Air conditioning controls
6. Audio system
7. Rear fog light switch8. Auxiliary box
9. Cup holder
10. Headlight beam level control dial
11 . A s h t r a y
12. Cigarette lighter
13. Heater idle up switch
14. Engine switch
15. Tilt and telescopic steering lock
release lever
Dyna100/150_EE

4OVERVIEW OF INSTRUMENTS AND CONTROLS
1. Side defroster outlets
2. Glove box
3. Interior light
4. Center vents
5. Instrument cluster
6. Side vents7. Brake fluid reservoir cover
8. Window lock switch
9. Power window switches
10. Manual transmission gear shift lever
11. Parking brake lever
Dyna100/150_EE
"Right−hand drive vehicles

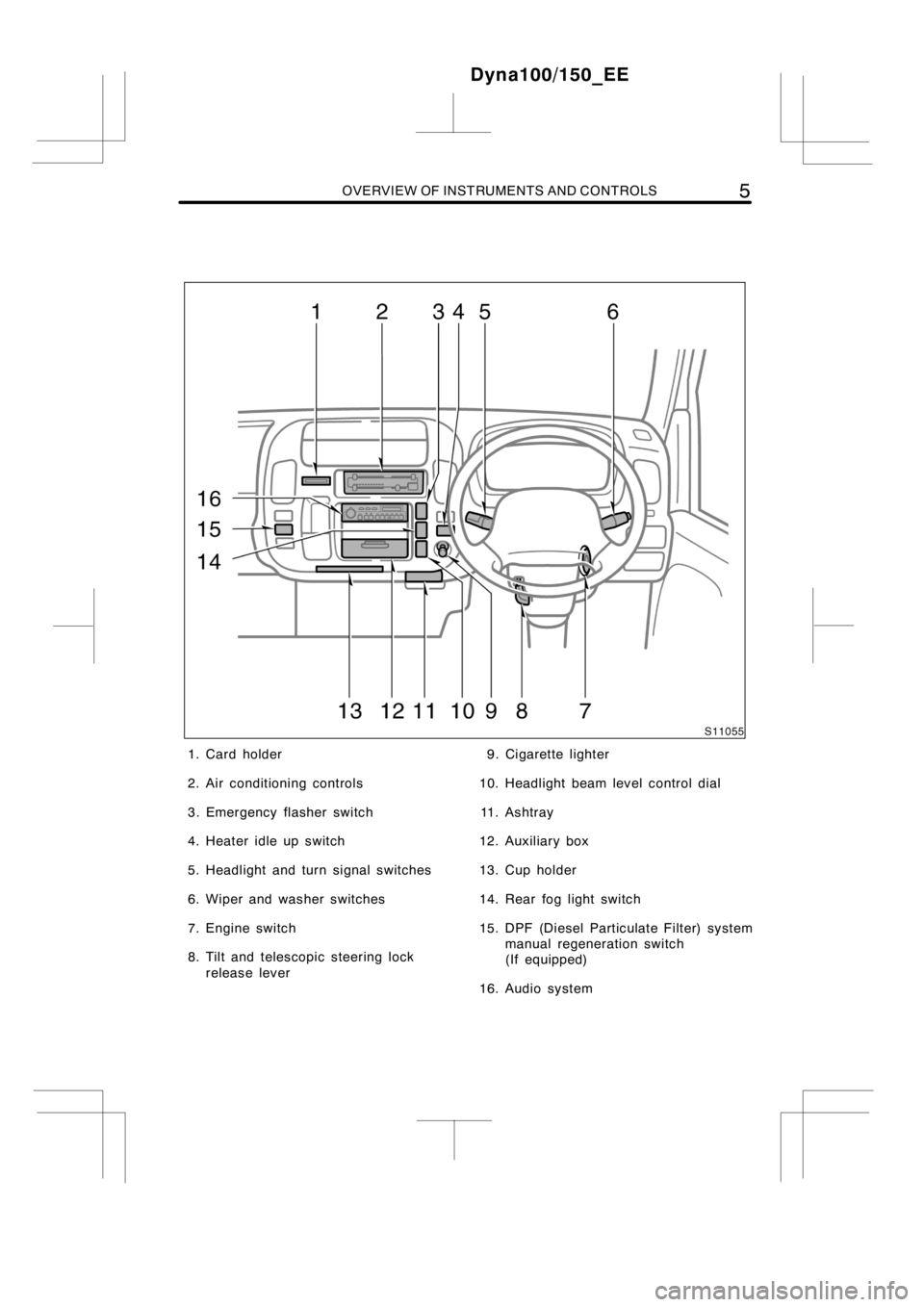

OVERVIEW OF INSTRUMENTS AND CONTROLS5
1. Card holder
2. Air conditioning controls
3. Emergency flasher switch
4. Heater idle up switch
5. Headlight and turn signal switches
6. Wiper and washer switches
7. Engine switch
8. Tilt and telescopic steering lock
release lever9. Cigarette lighter
10. Headlight beam level control dial
11 . A s h t r a y
12. Auxiliary box
13. Cup holder
14. Rear fog light switch
15. DPF (Diesel Particulate Filter) system
manual regeneration switch
(If equipped)
16. Audio system
Dyna100/150_EE

6OVERVIEW OF INSTRUMENTS AND CONTROLS
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Trip meter reset knob4. Odometer and two trip meters
5. Fuel gauge
6. Engine coolant temperature gauge
Dyna100/150_EE
Instrument cluster overview
"Without tachometer

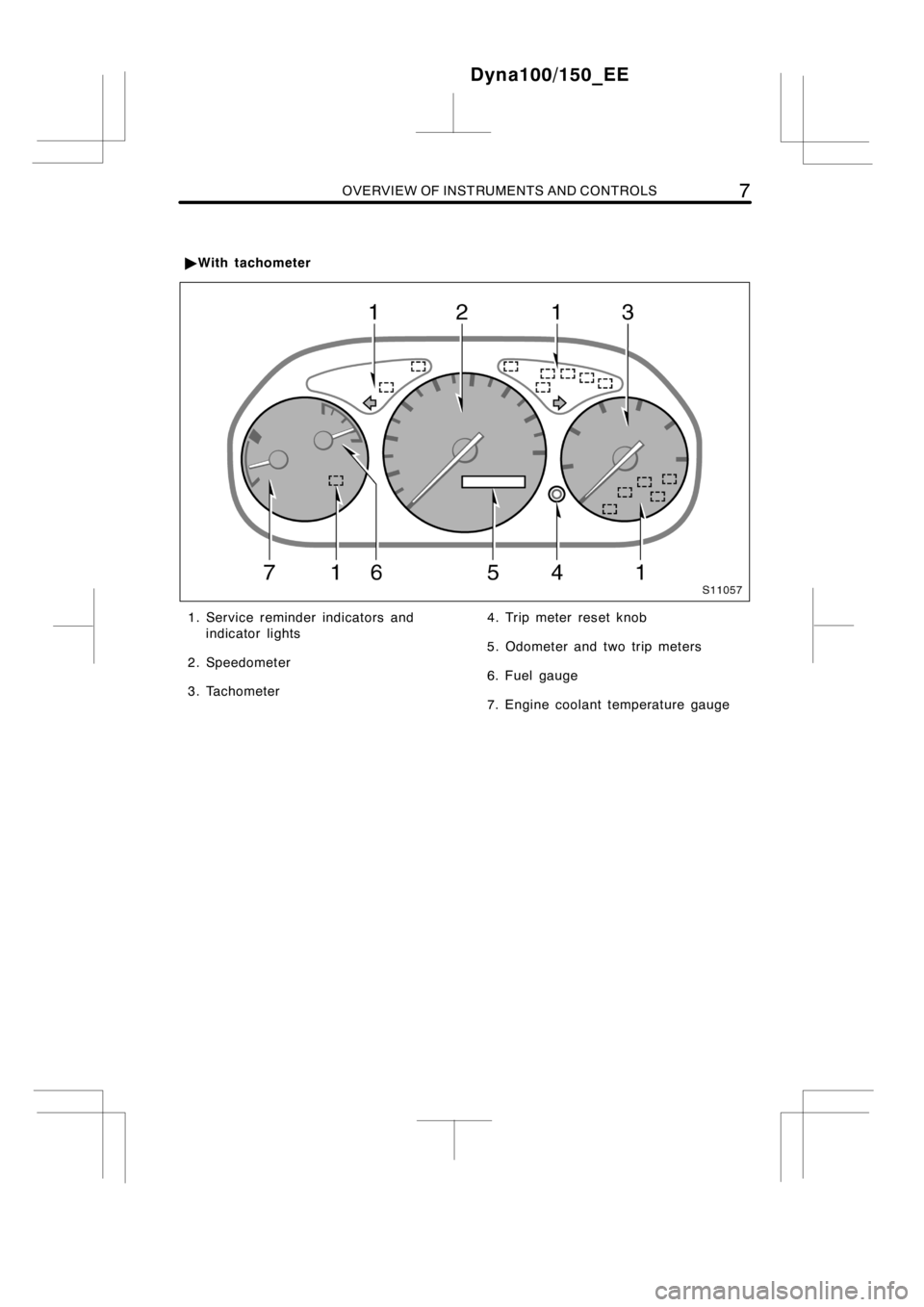

OVERVIEW OF INSTRUMENTS AND CONTROLS7
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Tachometer4. Trip meter reset knob
5. Odometer and two trip meters
6. Fuel gauge
7. Engine coolant temperature gauge
Dyna100/150_EE
"With tachometer

8OVERVIEW OF INSTRUMENTS AND CONTROLS
Brake system warning light

Charging system warning light

Low engine oil pressure warning light

Low engine oil level warning light

Malfunction indicator lamp

Low fuel level warning light

Anti−lock brake system warning light

SRS warning light

DPF (Diesel Particulate Filter) system indicator
light

Timing belt replacement warning light

Fuel filter warning light

Engine oil change reminder light

Headlight high beam indicator light
Dyna100/150_EE
Indicator symbols on the instrument panel

OVERVIEW OF INSTRUMENTS AND CONTROLS9
Turn signal indicator lights
Engine preheating indicator light
The indicators marked with
are service reminder indicators. For
details, see “Service reminder indicators and warning buzzer” on
page 73 in Section 1−5.
