DO−IT−YOURSELF MAINTENANCE: Engine and Chassis203
Never use second−hand tires on your
To y o t a .
Using tires whose previous history is un-
known is a risk.
Toyota recommends all four tires, or at
least both front or rear tires be re-
placed at a time as a set.
See “If you have a flat tire” on page 157
in Section 4 for tire change procedure.
When a tire is replaced, the wheel
should always be balanced.
An unbalanced wheel may affect vehicle
handling and tire life. Wheels can get out
of balance with regular use and should
therefore be balanced occasionally.
When replacing a tubeless tire, the air
valve should also be replaced with a
new one.
With single rear tires
With double rear tires
To equalize tire wear and help extend
tire life, Toyota recommends that you
rotate your tires approximately every
10000 km (6000 miles). However, the
most appropriate timing for tire rotation
may vary according to your driving hab-
its and road surface conditions.
See “If you have a flat tire” on page 157
in Section 4 for tire change procedure.
When rotating tires, check for uneven
wear and damage. Abnormal wear is usu-
ally caused by incorrect tire pressure, im-
proper wheel alignment, out−of−balance
wheels, or severe braking.
Dyna100/150_EE
Rotating tires

204DO−IT−YOURSELF MAINTENANCE: Engine and Chassis
WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tires.
SNOW TIRE SELECTION
If you need snow tires, select tires of
the same size, construction and load
capacity as the originally installed tires.
Do not use tires other than those men-
tioned above. Do not install studded tires
without first checking local regulations for
possible restrictions.
CAUTION
Do not use snow tires other than the
manufacturer ’s recommended size, as
this may cause dangerous handling
characteristics resulting in loss of
control. Otherwise, an accident may
occur resulting in death or serious
injuries.
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the rear wheels
only can lead to an excessive difference
in road grip capabilitybetween the front
and rear tires which could cause loss of
vehicle control.
When storing removed tires, you should
store them in a cool dry place.
In case of radial tires, mark the direction
of rotation and be sure to install them in
the same direction when replacing.
CAUTION
DDo not drive with the snow tires
incorrectly inflated.
DObserve permissible maximum
speed for your snow tires and the
legal speed limit.
TIRE CHAIN SELECTION
Use the tire chains of correct size.
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check the local
regulations before installing chains.
NOTICE
If the wrong combination of tire and
chain is used, the chains could dam-
age the vehicle body.
CHAIN INSTALLATION
Install the chains on the rear tires as
tightly as possible. Do not use tire
chains on the front tires. For vehicles
with dual rear wheels, install the chains
either on the outer rear tires or all four
rear tires. Retighten chains after driving
0.5—1.0 km (1/4—1/2 mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
If wheel covers are used, they will be
scratched by the chain band, so remove
the covers before putting on the chains.
Dyna100/150_EE
Installing snow tires and
chains

DO−IT−YOURSELF MAINTENANCE: Engine and Chassis205
CAUTION
DDo not exceed 50 km/h (30 mph) or
the chain manufacturer ’s recom-
mended speed limit, whichever is
lower.
DDrive carefully avoiding bumps,
holes, and sharp turns, which may
cause the vehicle to bounce.
DAvoid sharp turns or locked−wheel
braking as use of chains may ad-
versely affect vehicle handling.
DWhen driving with chains installed,
be sure to drive carefully. Slow
down before entering curves to
avoid losing control of the vehicle.
Otherwise an accident may occur.
WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace a damaged wheel,
the tire may slip off the wheel or cause
loss of handling control.
WHEEL SELECTION
When replacing wheels, care should be
taken to ensure that the wheels are re-
placed by ones with the same load ca-
pacity, diameter, rim width, and inset


(single wheels) or offset (dual wheels).
Correct replacement wheels are available
at any authorized Toyota dealer or repair-
er, or another duly qualified and equipped
professional.

: Conventionally referred to as “offset”.
A wheel of a different size or type may
adversely affect handling, wheel and bear-
ing life, brake cooling, speedometer/odom-
eter calibration, stoppingability,headlight
aim, bumper height, vehicle ground clear-
ance, and tire or snow chain clearance to
the body and chassis.
Replacement with used wheels is not rec-
ommended as they may have been sub-
jected to rough treatment or high mileage
and could fail without warning. Also, bent
wheels which have been straightened may
have structural damage and therefore
should not be used. Never use an inner
tube in a leaking wheel which is designed
for a tubeless tire.
Dyna100/150_EE
Replacing wheels

206DO−IT−YOURSELF MAINTENANCE: Engine and Chassis
CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.
DDo not use wheels other than the
manufacturer ’s recommended size,
as this may cause dangerous han-
dling characteristics resulting in
loss of control.
DWhen installing the wheel nuts, be
sure to install them with the ta-
pered ends facing inward. See
“—Installing wheel” on page 167 in
Section 4.
Dyna100/150_EE

DO−IT−YOURSELF MAINTENANCE: Electrical components207
Section 7−3
DO−IT−YOURSELF MAINTENANCE
Electrical components
DChecking battery condition 208.........................
DBattery recharging precautions 210.....................
DChecking and replacing fuses 211.......................
DAdding washer fluid 212................................
DReplacing light bulbs 213...............................
Dyna100/150_EE

208DO−IT−YOURSELF MAINTENANCE: Electrical components
CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and
explosive hydrogen gas.
DDo not cause a spark from the bat-
tery with tools.
DDo not smoke or light a match near
the battery.
The electrolyte contains poisonous
and corrosive sulfuric acid.
DAvoid contact with eyes, skin or
clothes.
DNever ingest electrolyte.
DWear protective safety glasses when
working near the battery.
DKeep children away from the bat-
tery.
EMERGENCY MEASURES
DIf electrolyte gets in your eyes,
flush your eyes with clean water
immediately and get immediate
medical attention. If possible, con-
tinue to apply water with a sponge
or cloth while en route to the medi-
cal office.
DIf electrolyte gets on your skin,
thoroughly wash the contact area. If
you feel pain or burning, get medi-
cal attention immediately.
DIf electrolyte gets on your clothes,
there is a possibility of its soaking
through to your skin, so immediate-
ly take off the exposed clothing and
follow the procedure above, if nec-
essary.
DIf you accidentally swallow electro-
lyte, drink a large quantity of water
or milk. Get emergency medical
attention immediately.
The electricity stored in the battery will
discharge gradually even when the vehicle
is not in use, due to natural discharge
and the draining effects of certain electri-
cal appliances. If the vehicle is left for a
long time, the battery may discharge, and
the engine may be unable to start. (The
battery recharges automatically during
driving.)
Some models—
The meanings of each caution symbol
on the top of the battery are as fol-
lows:
No smoking, no naked
flames, no sparks
Shield eyes
Keep away from
children
Battery acid
Note operating
instructions
Explosive gas
Dyna100/150_EE
Checking battery condition—
—Precautions

DO−IT−YOURSELF MAINTENANCE: Electrical components209
Te r m i n a l s
Ground
cable
Hold−down
clamp

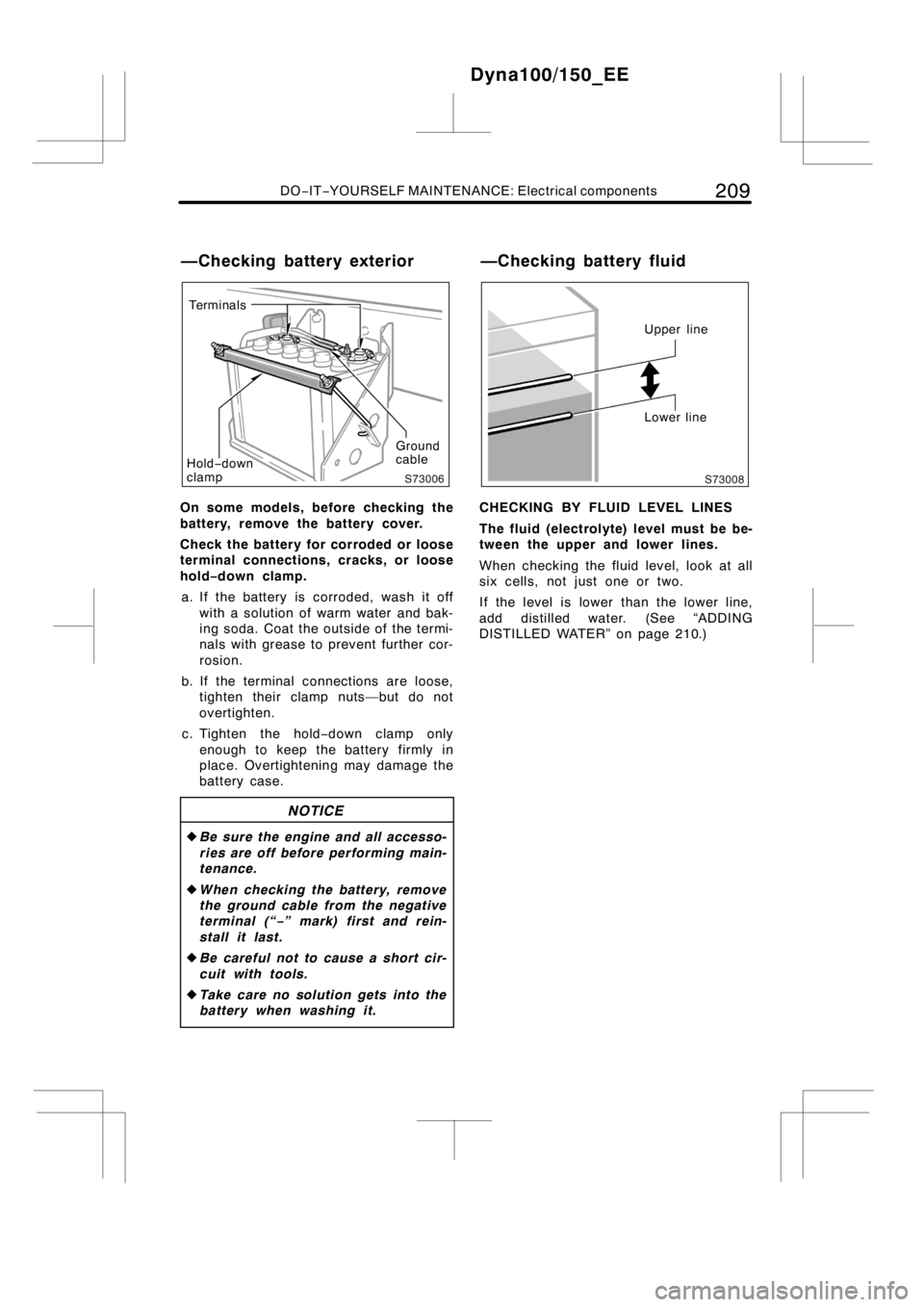

On some models, before checking the
battery, remove the battery cover.
Check the battery for corroded or loose
terminal connections, cracks, or loose
hold−down clamp.
a. If the battery is corroded, wash it off
with a solution of warm water and bak-
ing soda. Coat the outside of the termi-
nals with grease to prevent further cor-
rosion.
b. If the terminal connections are loose,
tighten their clamp nuts—but do not
overtighten.
c. Tighten the hold−down clamp only
enough to keep the battery firmly in
place. Overtightening may damage the
battery case.
NOTICE
zBe sure the engine and all accesso-
ries are off before performing main-
tenance.
zWhen checking the battery, remove
the ground cable from the negative
terminal (“−” mark) first and rein-
stall it last.
zBe careful not to cause a short cir-
cuit with tools.
zTake care no solution gets into the
battery when washing it.
Upper line
Lower line
CHECKING BY FLUID LEVEL LINES
The fluid (electrolyte) level must be be-
tween the upper and lower lines.
When checking the fluid level, look at all
six cells, not just one or two.
If the level is lower than the lower line,
add distilled water. (See “ADDING
DISTILLED WATER” on page 210.)
Dyna100/150_EE
—Checking battery exterior —Checking battery fluid

210DO−IT−YOURSELF MAINTENANCE: Electrical components
Low O.K.
ADDING DISTILLED WATER
1. Remove the vent plugs.
2. Add distilled water to cells needing
fluid.
If the side of your battery is covered,
check the water level by looking down
directly above the cell as illustrated
above.
3. Retighten the vent plugs securely.
NOTICE
Do not overfill the cells. Excess elec-
trolyte could squirt out of the battery
during heavy charging, causing corro-
sion or damage.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed
on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re-
charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the bat-
tery in a garage or closed room
where there is not sufficient ventila-
tion.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
Dyna100/150_EE
Battery recharging
precautions
