2012 TOYOTA DYNA 100/150 warning lights

OVERVIEW OF INSTRUMENTS AND CONTROLS9
Turn signal indicator lights
Engine preheating indicator light
The indicators marked with
are service reminder indicators. For
details, see “Service reminder indicators and warning buzzer” on
page 73 in Section 1−5.
Dyna100/150_EE

16KEYS AND DOORS

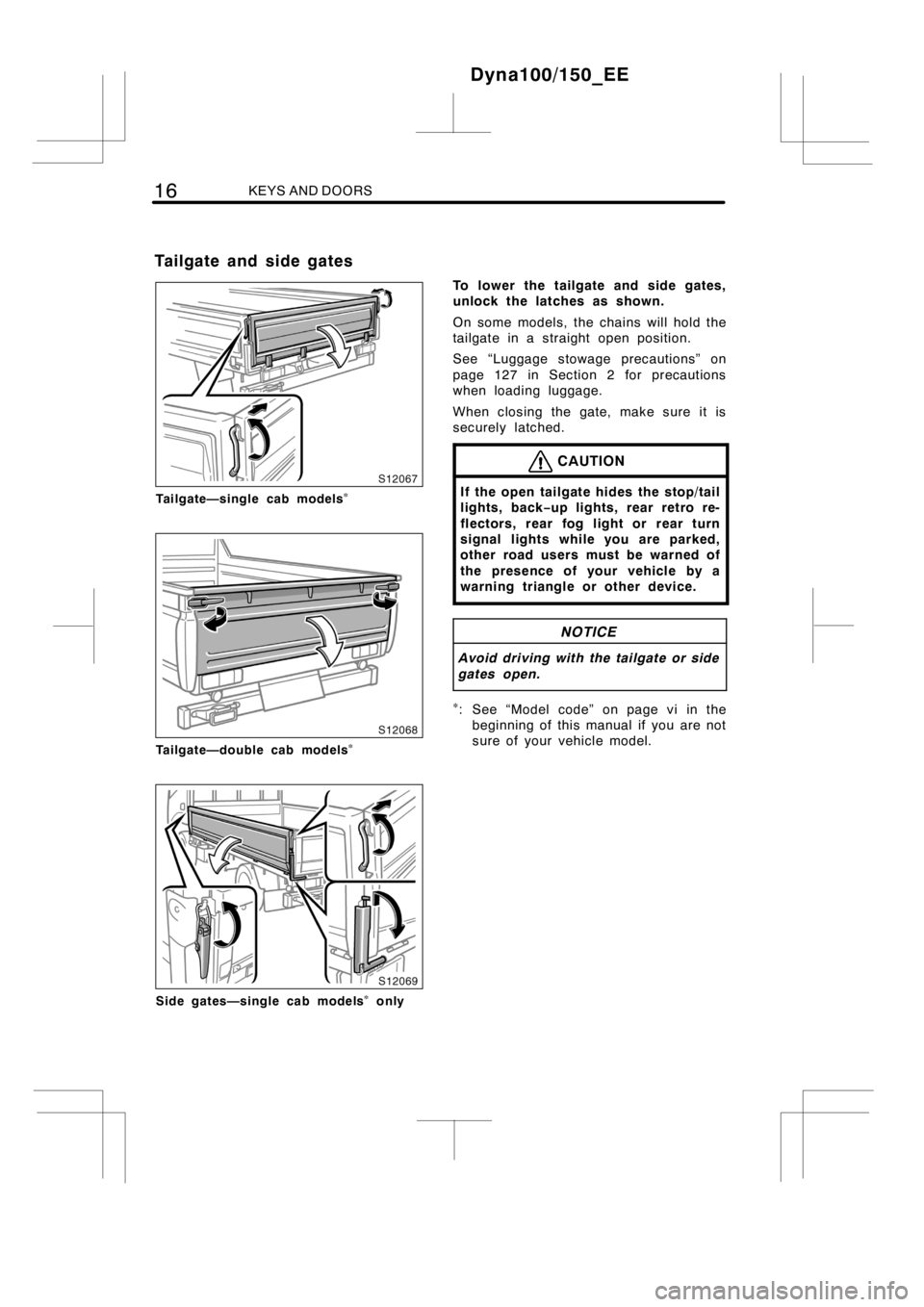

Tailgate—single cab models

Tailgate—double cab models

Side gates—single cab models
only
To lower the tailgate and side gates,
unlock the latches as shown.
On some models, the chains will hold the
tailgate in a straight open position.
See “Luggage stowage precautions” on
page 127 in Section 2 for precautions
when loading luggage.
When closing the gate, make sure it is
securely latched.
CAUTION
If the open tailgate hides the stop/tail
lights, back−up lights, rear retro re-
flectors, rear fog light or rear turn
signal lights while you are parked,
other road users must be warned of
the presence of your vehicle by a
warning triangle or other device.
NOTICE
Avoid driving with the tailgate or side
gates open.

: See “Model code” on page vi in the
beginning of this manual if you are not
sure of your vehicle model.
Dyna100/150_EE
Tailgate and side gates

SPECIFICATIONS227

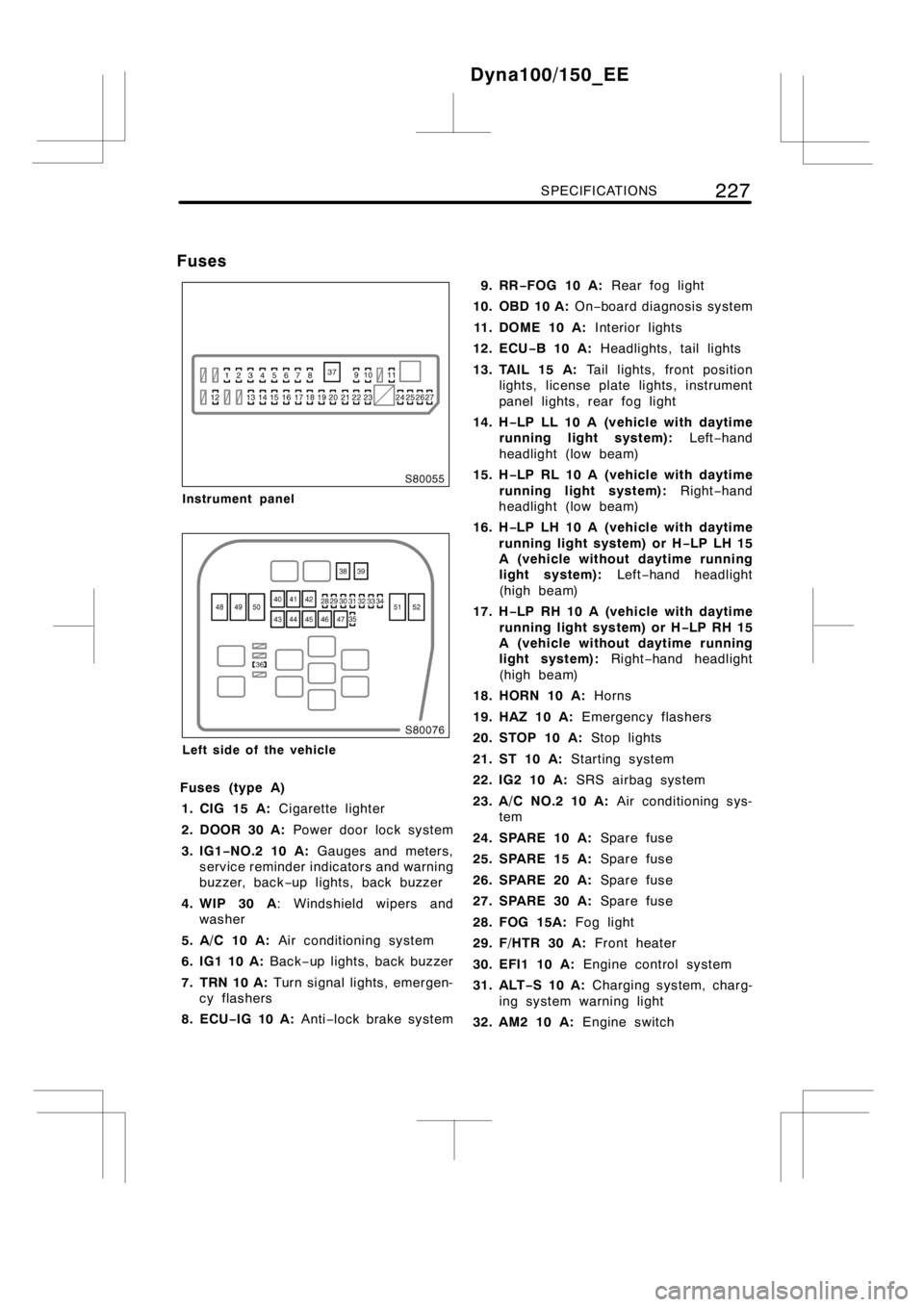

Instrument panel
Left side of the vehicle
Fuses (type A)
1. CIG 15 A:Cigarette lighter
2. DOOR 30 A:Power door locksystem
3. IG1−NO.2 10 A:Gauges and meters,
service reminder indicators and warning
buzzer, back−up lights, back buzzer
4. WIP 30 A: Windshield wipers and
washer
5. A/C 10 A:Air conditioningsystem
6.IG110A:Back−up lights, back buzzer
7. TRN 10 A:Turn signal lights, emergen-
cy flashers
8. ECU−IG 10 A:Anti−lock brake system9. RR−FOG 10 A:Rear fog light
10. OBD 10 A:On−board diagnosissystem
11 . D O M E 1 0 A :Interior lights
12. ECU−B10A:Headlights, tail lights
13. TAIL 15 A:Tail lights, front position
lights, license plate lights, instrument
panel lights, rear fog light
14. H−LP LL 10 A (vehicle with daytime
running light system):Left−hand
headlight (low beam)
15. H−LP RL 10 A (vehicle with daytime
running light system):Right−hand
headlight (low beam)
16. H−LP LH 10 A (vehicle with daytime
running light system) or H−LP LH 15
A (vehicle without daytime running
light system):Left−hand headlight
(high beam)
17. H−LP RH 10 A (vehicle with daytime
running light system) or H−LP RH 15
A (vehicle without daytime running
light system):Right−hand headlight
(high beam)
18. HORN 10 A:Horns
19. HAZ 10 A:Emergency flashers
20. STOP 10 A:Stop lights
21. ST 10 A:Starting system
22.IG210A:SRS airbag system
23.A/CNO.210A:Air conditioning sys-
tem
24. SPARE 10 A:Spare fuse
25. SPARE 15 A:Spare fuse
26. SPARE 20 A:Spare fuse
27. SPARE 30 A:Spare fuse
28. FOG 15A:Fog light
29. F/HTR 30 A:Front heater
30. EFI1 10 A:Engine control system
31. ALT−S10A:Charging system, charg-
ing system warning light
32.AM210A:Engine switch
Dyna100/150_EE
Fuses

232INDEX
G
Gauge
Engine coolant temperature 68.........
Fuel 68...............................
Glove box 109...........................
Good driving practice 81.................
H
Hazard switch 64........................
Head restraints 27.......................
Headlight beam level control dial 63.......
Headlight switch 62......................
Heater idle up switch 101.................
High speed operation
During break−in 116...................
How to start the engine 132...............
I
Identification
Engine 130............................
Vehicle 128...........................
Ignition switch 80........................
Indicator symbols 8.....................
Instrument panel
Cigarette lighter and ashtrays 108......
Fuel gauge 68.........................
Indicator symbols 8....................
Odometer 70..........................
Tachometer 69........................
Trip meter 70..........................
Instrument panel overview 2,6...........
Intercooler
Checking the intercooler 200...........
J
Jack
Location 158..........................
Jump starting 151.......................
K
Keys 12,174............................
L
Light bulbs
Back−up lights 217....................
Front position lights 216................
Front turn signal lights 216.............
Headlights 214........................
License plate lights 218................
Rear fog light 218......................
Rear turn signal lights 217..............
Side turn signal lights 216..............
Stop/tail lights 217.....................
Light bulbs, Replacing 213...............
Light reminder buzzer 73.................
Light, Interior
Interior light 65........................
Limited slip differential 128...............
Lock
Side doors 13.........................
Side gate 16..........................
Steering column 80....................
Tailgate 16............................
Low brake fluid level warning light 73......
Low engine oil level warning light 73......
Low engine oil pressure
warning light 73.......................
Low fuel level warning light 73............
Low vacuum warning light 73.............
Luggage stowage precautions 127........
M
Maintenance
Do−it−yourself maintenance 193........
Does your vehicle need
repairing? 185.......................
Maintenance facts 184.................
Where to go for service 184............
Malfunction indicator lamp 73............
Manual regeneration switch,
Diesel particulate filter system 118......
Manual transmission
Driving with a manual
transmission 81.....................
Shift pattern 81........................
Maximum allowable speed
Manual transmission 81................
Mirrors
Folding rear view 59...................
Outside rear view 59...................
